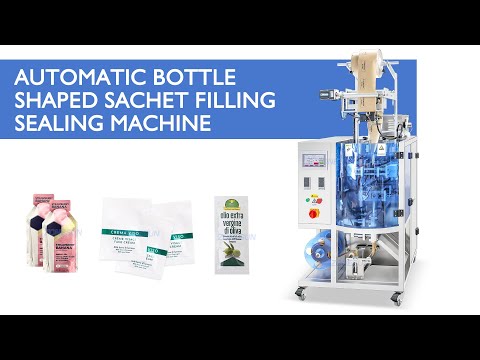

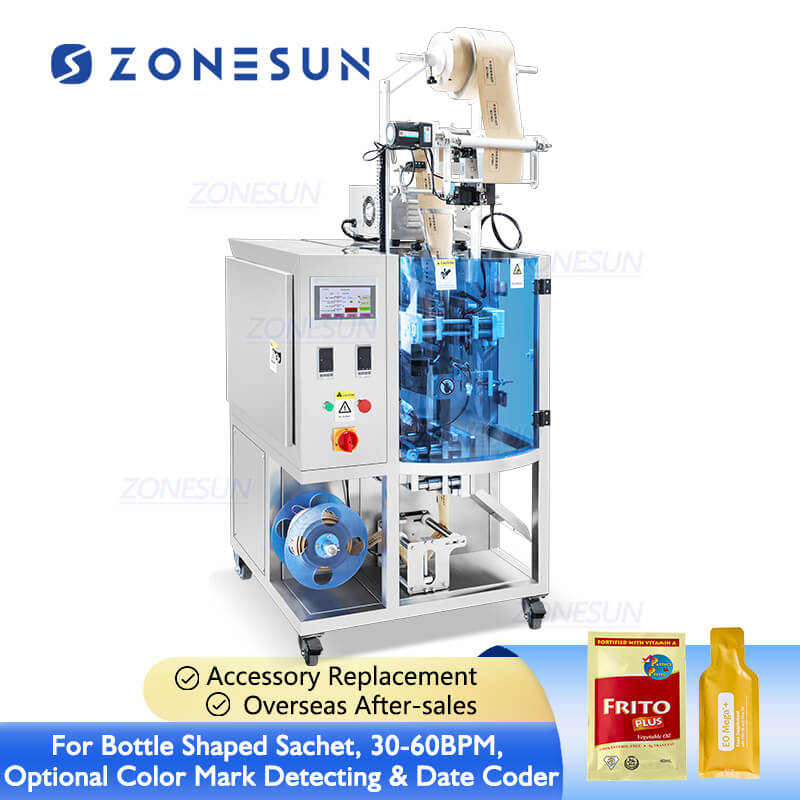

ZONESUN ZS-PL240YX Automatic VFFS Bottle Shaped Pocuh Liquid Sachet Filling Sealing Packing Machine For Cosmetic Cream Liquid Supplements
Regular price
$12,499.00 USD
Regular price
Sale price
$12,499.00 USD
Save $-12,499 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

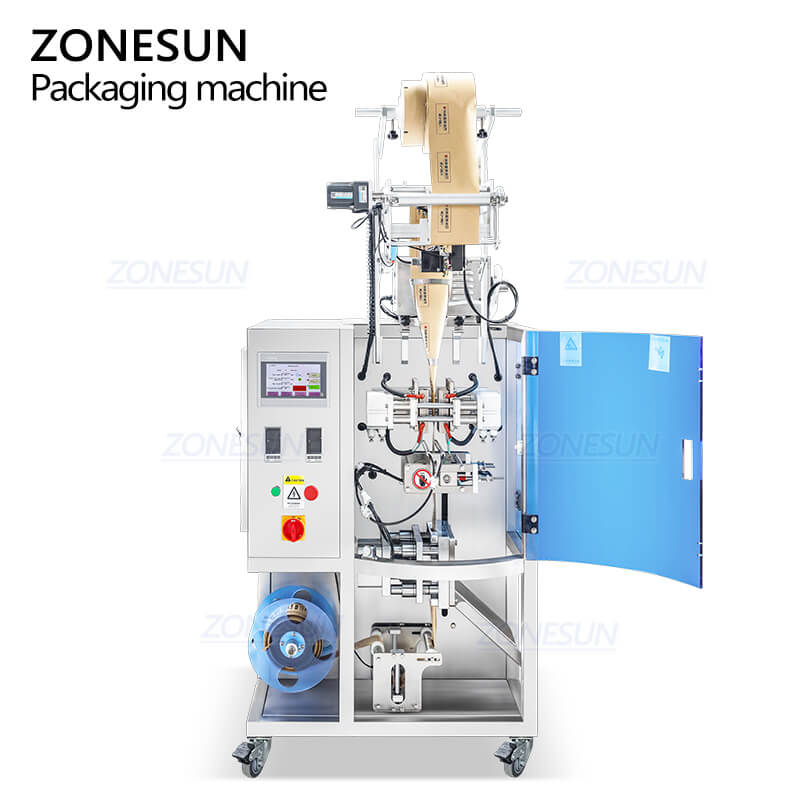

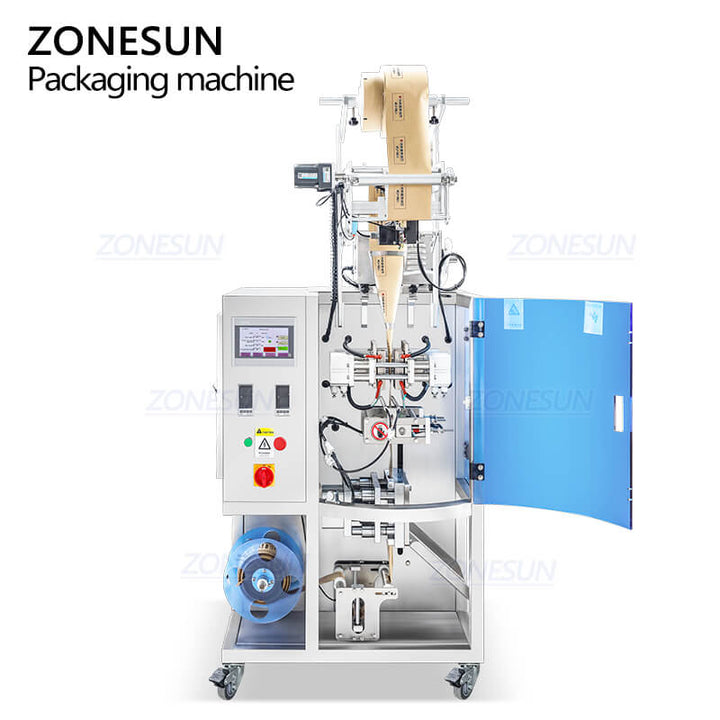

This liquid sachet filling machine is designed for filling liquid into customized bottle shaped sachet and seal sachets at the same time. Equipped with a magnetic pump for liquid and optional piston pump for viscous products, it offers precise PID temperature control, suits sport gel, juice concentrate, cosmetic serum etc.
Liquid Sachet Filling Machine Parameter
- Machine Model: ZS-PL240YX
- Power Supply: 110/220V 50-60HZ 2KW
- Filling Pump: Magnetic Pump/Piston Pump(Optional)
- Filling Range: 1-50 ml (Customizable)
- Packaging Form: Customized shaped sachets
- Package Film Material: PET/VMPET/PE/PA/AL(80-120 μm)
- Bag Size: (L) 40-160 mm * (W)20-110 mm(Customizable)
- Packaging Speed: 30-60 bags/minute (Depending on the actual material)
- Machine Size: About 780*750*1800 mm(L*W*H)
- Machine Weight: About 300 kg
- Package Size: About 920*1080*1970 mm
- Package Weight: About 375 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

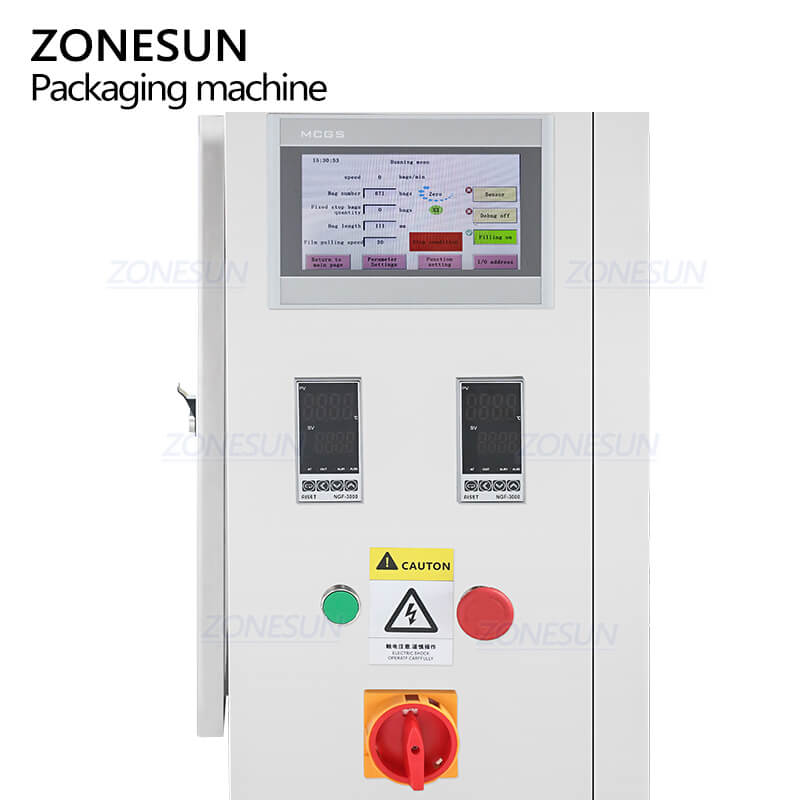

Touch Screen Control Panel
Easy-to-use interface ensures intuitive operation and quick parameter adjustment.
Easy-to-use interface ensures intuitive operation and quick parameter adjustment.

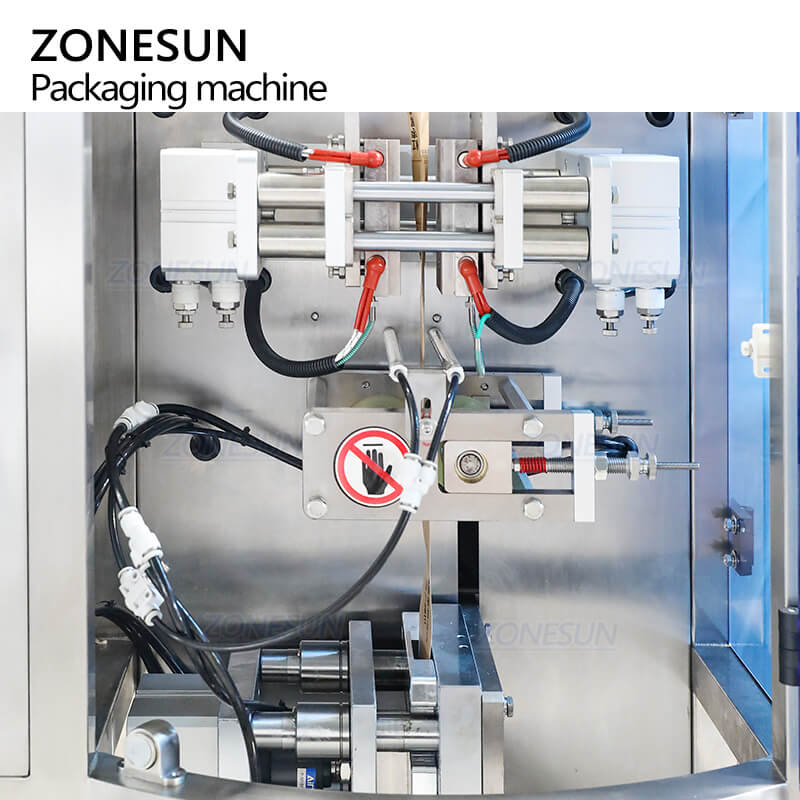

Sealing Structure
High-precision PID temperature control ensures stable sealing for different film materials.
High-precision PID temperature control ensures stable sealing for different film materials.
Ribbon Coding Structure
Optional ribbon printer allows prints batch number or production dates.Different colors of ribbon are available.
Optional ribbon printer allows prints batch number or production dates.Different colors of ribbon are available.

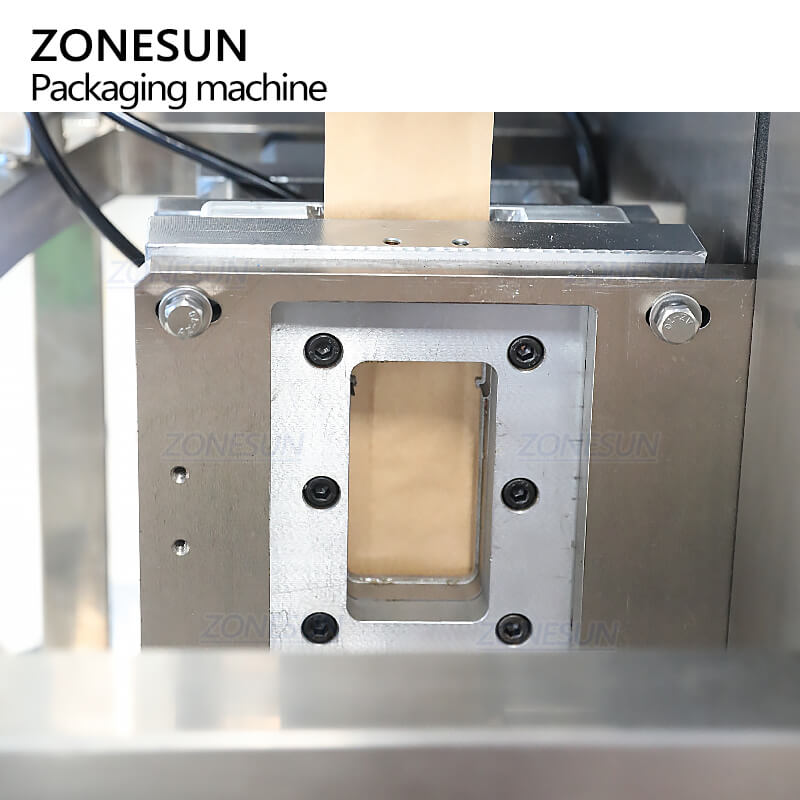

Bag Cutting Structure
Interchangeable cutting structure enable different bag shapes with clean cutting.
Interchangeable cutting structure enable different bag shapes with clean cutting.

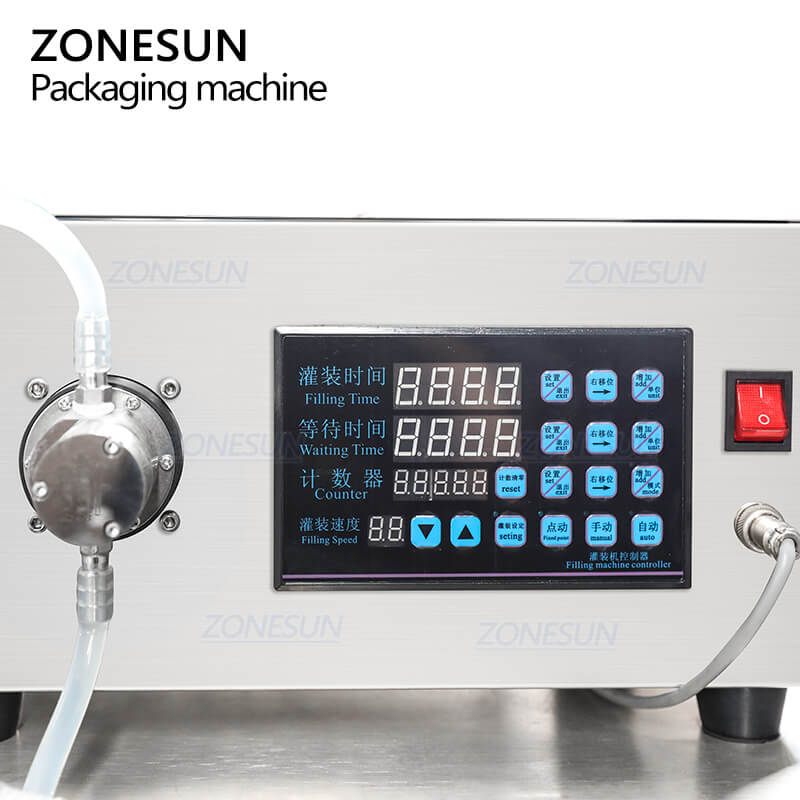

Filling Structure
Magnetic pump for liquids, filling time and speed can be adjusted as needed.
Magnetic pump for liquids, filling time and speed can be adjusted as needed.
Neat Electrical Wiring
Organized circuitry provides stable performance and easy maintenance.
Organized circuitry provides stable performance and easy maintenance.
Scrap Collector
Scrap collection allows long-time operation and easy cleaning, saving time and reducing material waste.
Scrap collection allows long-time operation and easy cleaning, saving time and reducing material waste.
