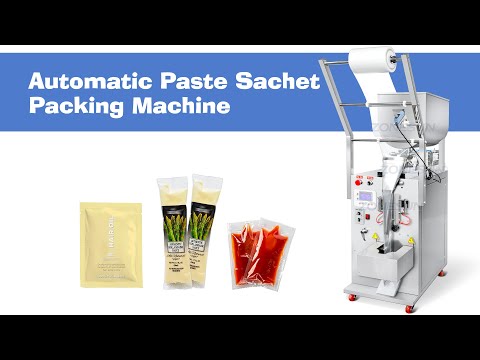

ZONESUN ZS-FS200D1 Automatic Vertical Piston Pump Seasoning Sauce Paste Sachet Packaging Machine for Paste Food

Price

~~$2,750.00 USD~~

Save $551 USD

/

One Year Warranty

User Manual

One-to-one Video Chat Support

Install & Debug Video

Custom Package Solution

Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

This paste sachet packaging machine is designed for filling paste or liquid products, such as sauce, honey, and similar materials into sachets. It features a large-capacity hopper with a mixing function to ensure uniform consistency of the filling material. Various sealing types are customizable, including back seal, three-side seal, and four-side seal, to meet different packaging needs.

Paste Sachet Packaging Machine Parameter

Machine Model: ZS-FS200D1
Machine Voltage: 110/220V 50-60HZ 650W
Recommend Filling Volume: 5-100ml (Customizable)
Filling Accuracy: ±1-2 ml
Hopper Size: 80L (With Mixer, Optional Heater)
Machine Size: 580*1100*1750 mm
Machine Weight: About 95 kg
Package Size: About 940*550*1150 mm(Main Machine) About 590*510*660 mm(Hopper)
Package Weight: About 82 kg(Main Machine)+34 kg(Hopper)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

features of ZS-FS200D1 automatic paste sachet packaging machine with mixer

application of ZS-FS200D1 paste pouch filling and sealing machine

main component of ZS-FS200D1 automatic paste sachet packaging machine with agitated tank

navigation

control panel of ZS-FS200D1 seasoning sauce paste filling sealing machine

Paste Sachet Packaging Machine Simple Control Panel

Intuitive interface allows for easy operation and quick parameter adjustments.

Sealing Structure

Compatible with PE/PP and laminated films. Sealing temperature is adjustable to suit different materials.

Bag Cutting Structure

Supports tear notch customization with flexible sealing formats: back seal, three-side seal, or four-side seal.

stirring hopper of ZS-FS200D1 paste sauce filling and sealing machine

Hopper with Stirrer

80L hopper equipped with a stirrer for pre-processing of materials. Optional heating function available for temperature-sensitive products.

Piston Pump

Filling volume is controlled by piston stroke. Air inlet/outlet valves adjust filling speed. Rotary valve available for handling viscous pastes with soft particles.
