ZONESUN ZS-TB300L Automatic Dual Use Shampoo Lotion Lanudry Detergent Flat & Round Bottle Labeling Machine Label Applicator
Regular price
$8,999.00 USD
Regular price
Sale price
$8,999.00 USD
Save $-8,999 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

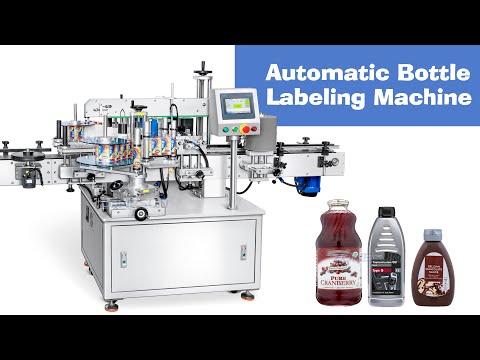

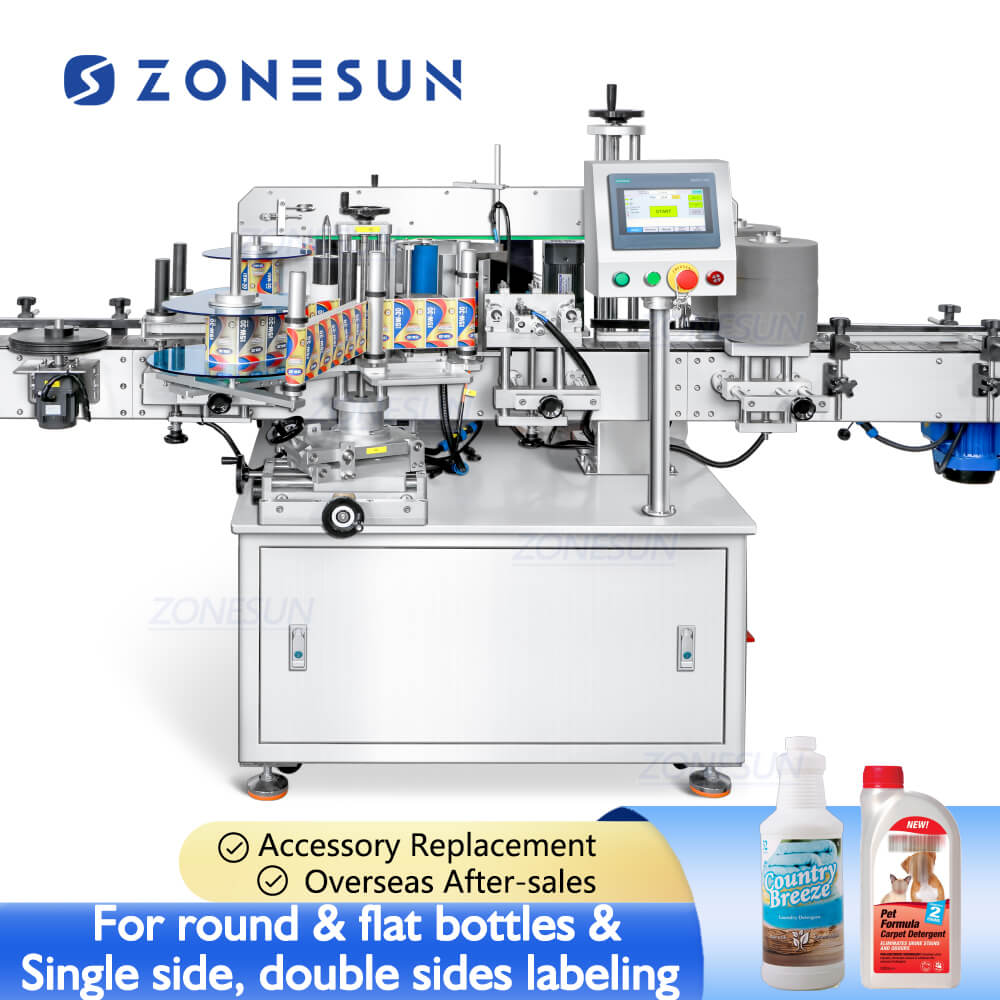

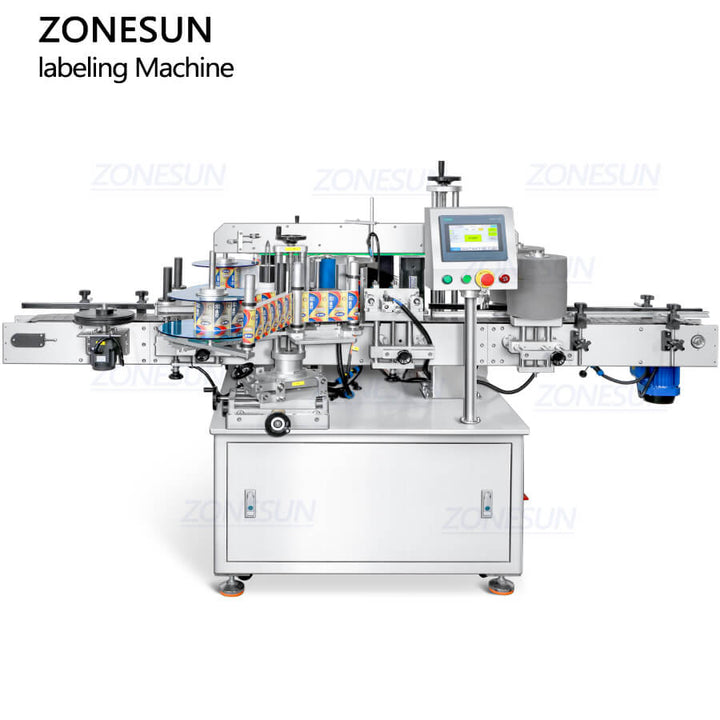

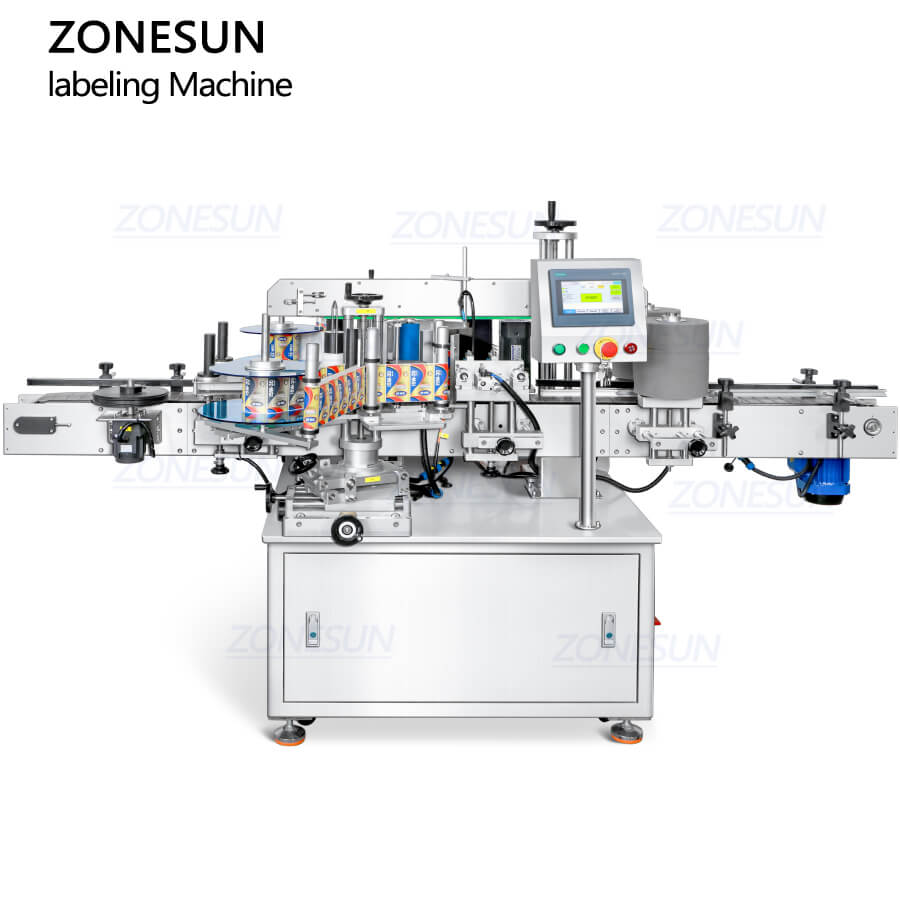

This labeling machine applies labels to round bottles and flat bottles (dual use). It features a top pressure system to keep bottles upright and a hand wheel adjustment for precise labeling accuracy. It is ideal for daily chemical, food, beverage industries.
Automatic Bottle Labeling Machine Paramter
- Machine Model: ZS-TB300L
- Voltage: 110V-60HZ/220V-50HZ
- Power: 2 KW
- Working Speed: About 30-100 bottles/min
- Labeling Accuracy: ±2 mm
- Suitable Labeling Size: ≤150 mm(W)(Can be customized)
- Roll Inside Diameter(mm): Φ75 mm
- Roll Outside Diameter(mm): Φ320 mm
- Suitable Bottle Diameter: φ≤100 mm H≤350 mm
- Conveyor Size: About 2500*100 mm
- Machine Size: About 2000*1300*1350 mm(L*H*W)

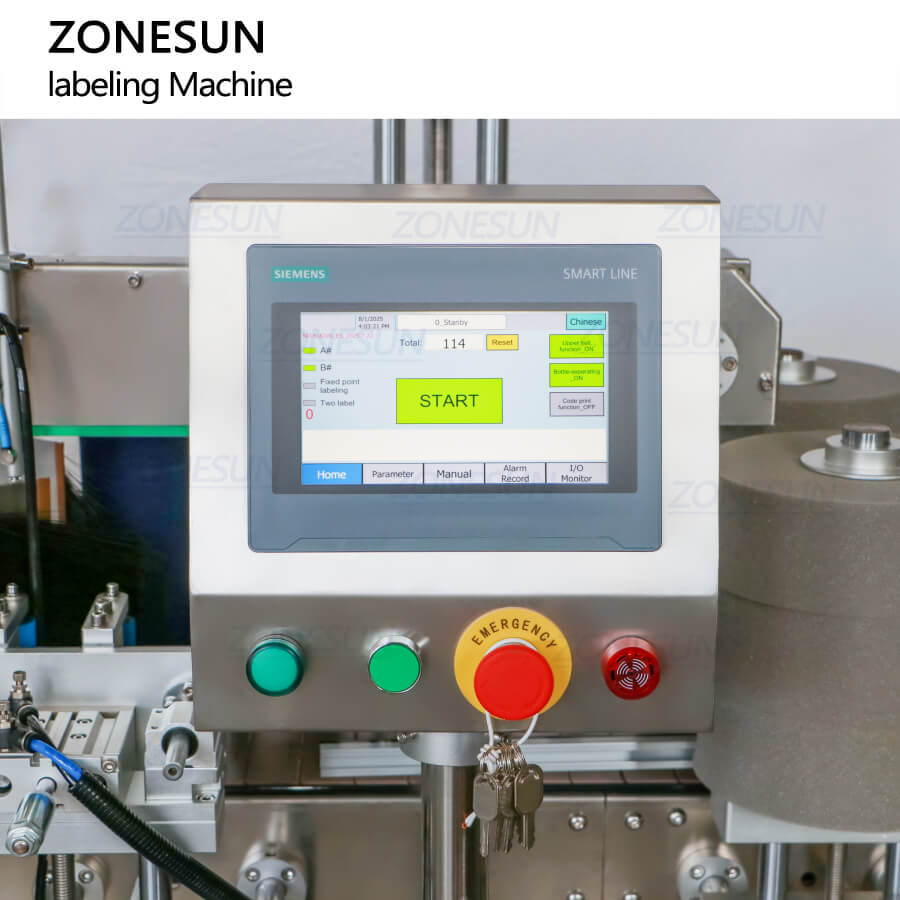

Control Panel
The intuitive control panel makes machine operation simple and efficient, allowing easy adjustment of labeling parameters.
The intuitive control panel makes machine operation simple and efficient, allowing easy adjustment of labeling parameters.

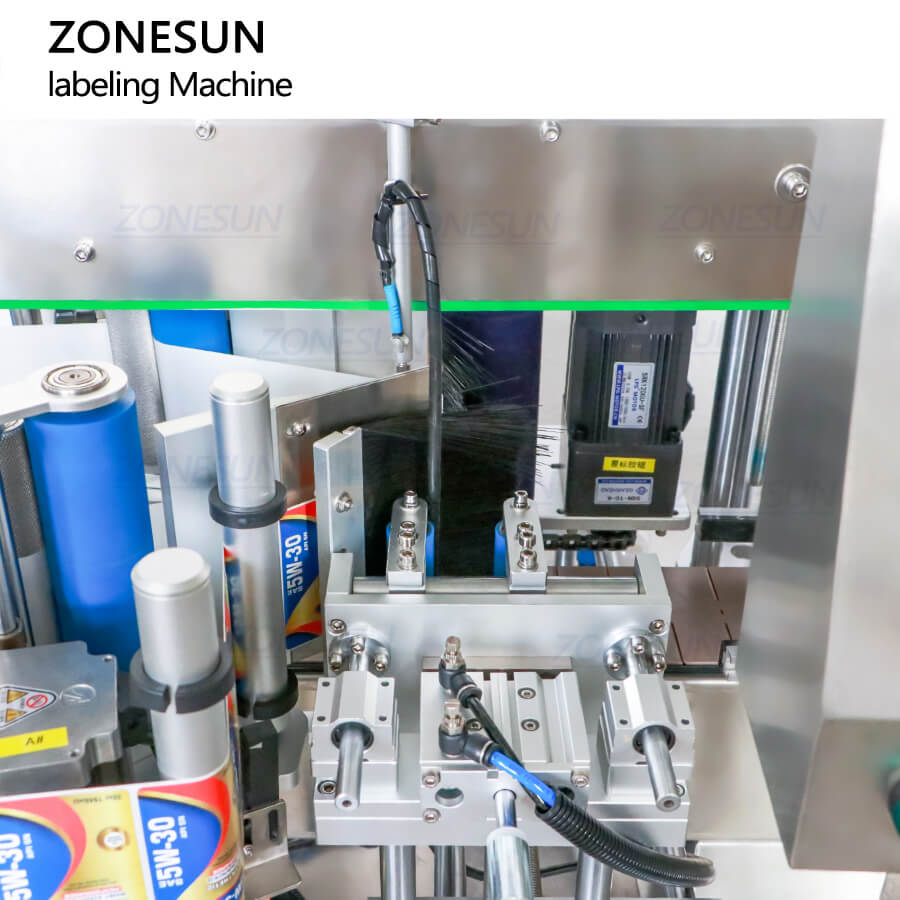

Labeling Structure
Equipped with a precise label structure, it ensures smooth label dispensing and accurate placement on round and flat bottles.
Equipped with a precise label structure, it ensures smooth label dispensing and accurate placement on round and flat bottles.

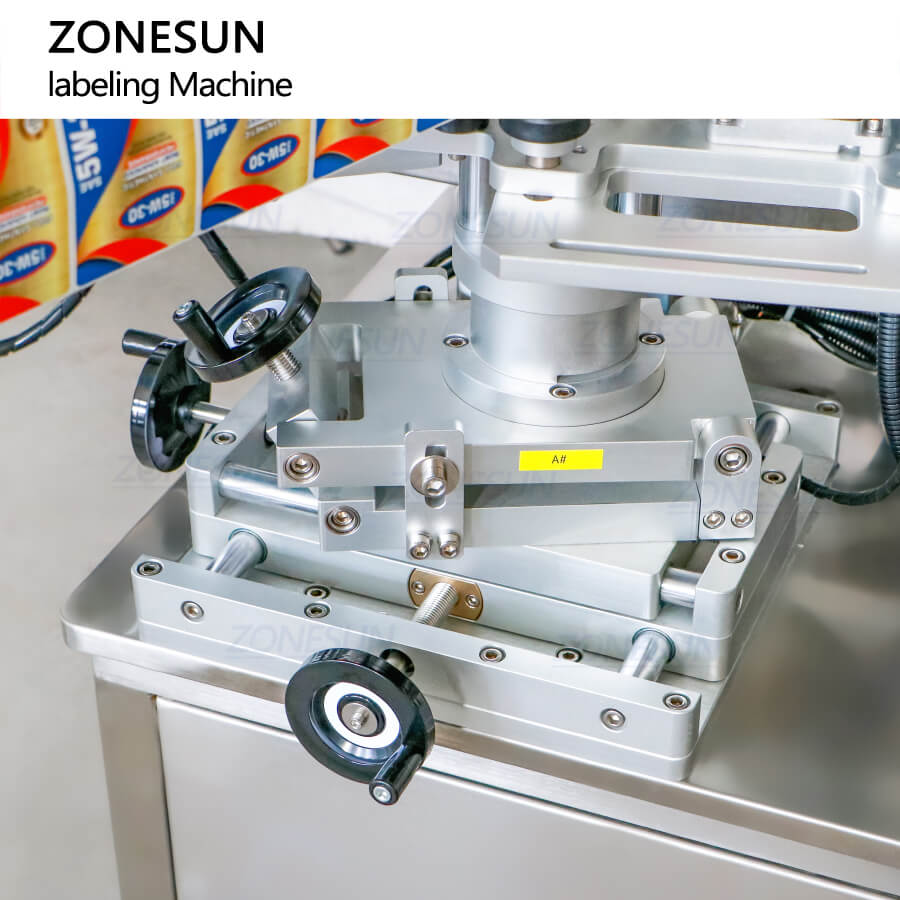

Adjustment Hand Wheel
The hand wheel allows fine-tuning of label dispensing positions, ensuring consistent accuracy.
The hand wheel allows fine-tuning of label dispensing positions, ensuring consistent accuracy.

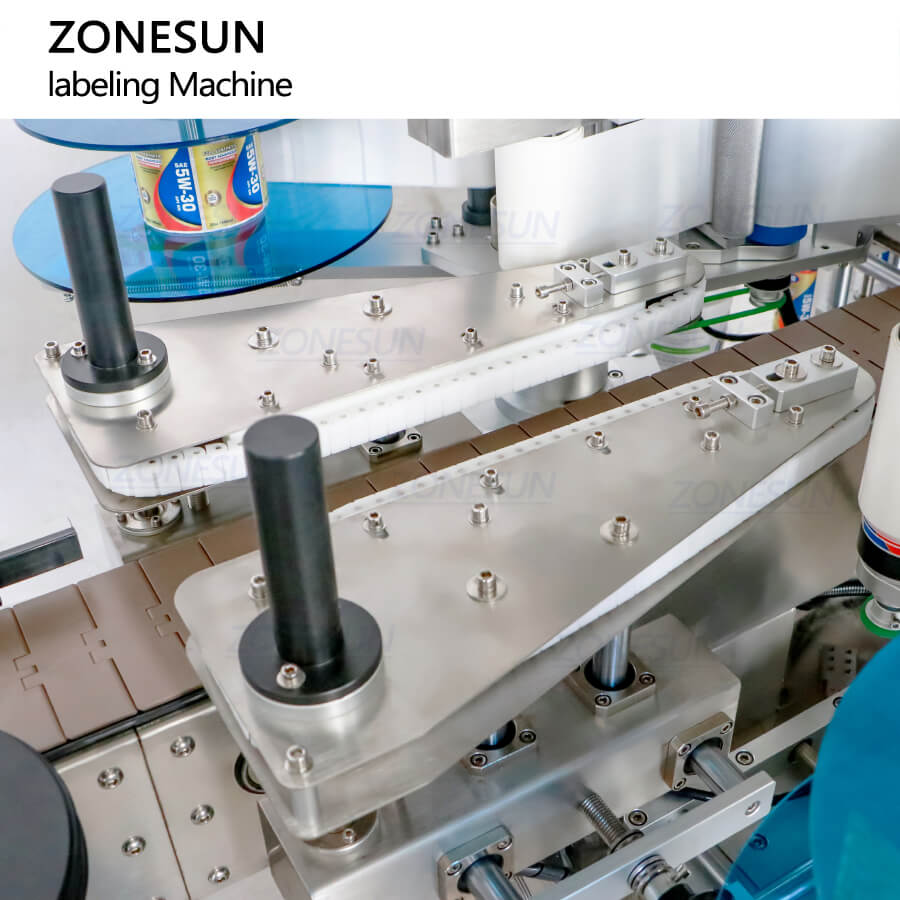

Bottle Guiding Structure
This is adjustable according to bottle diameter, it can clamp and transport bottles, ensure smooth conveying.
This is adjustable according to bottle diameter, it can clamp and transport bottles, ensure smooth conveying.

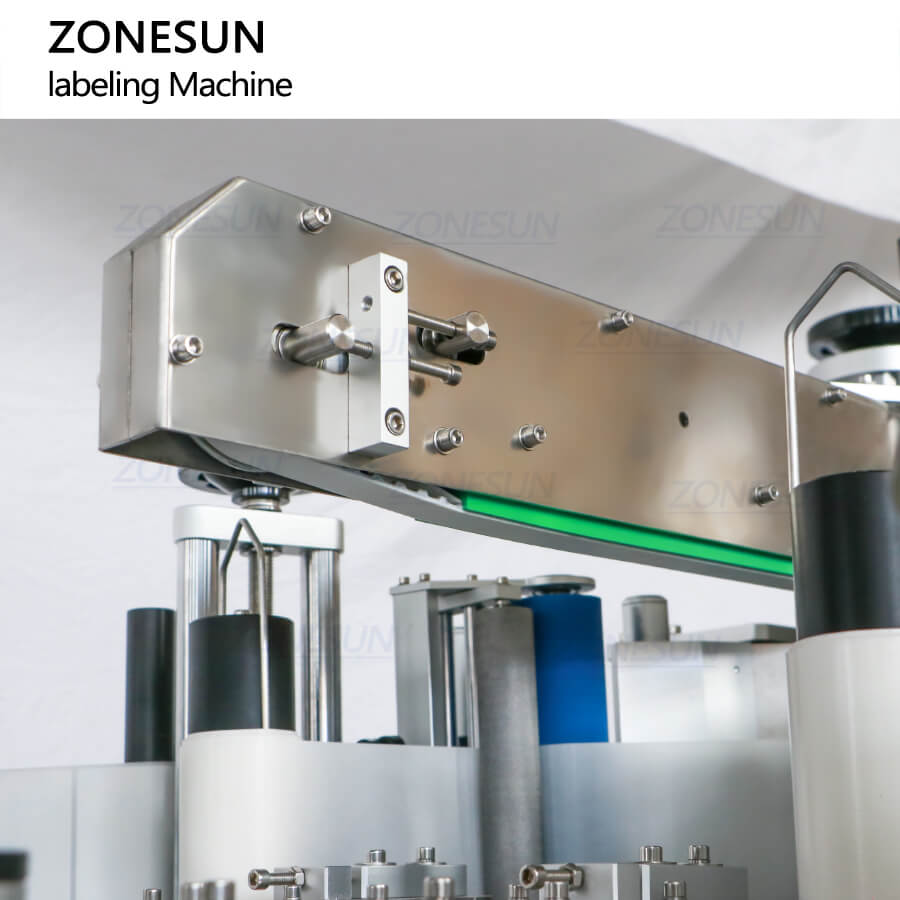

Top Pressure Structure
Applies downward pressure to stabilize bottles during labeling and conveying, effectively preventing them from tipping or falling.
Applies downward pressure to stabilize bottles during labeling and conveying, effectively preventing them from tipping or falling.

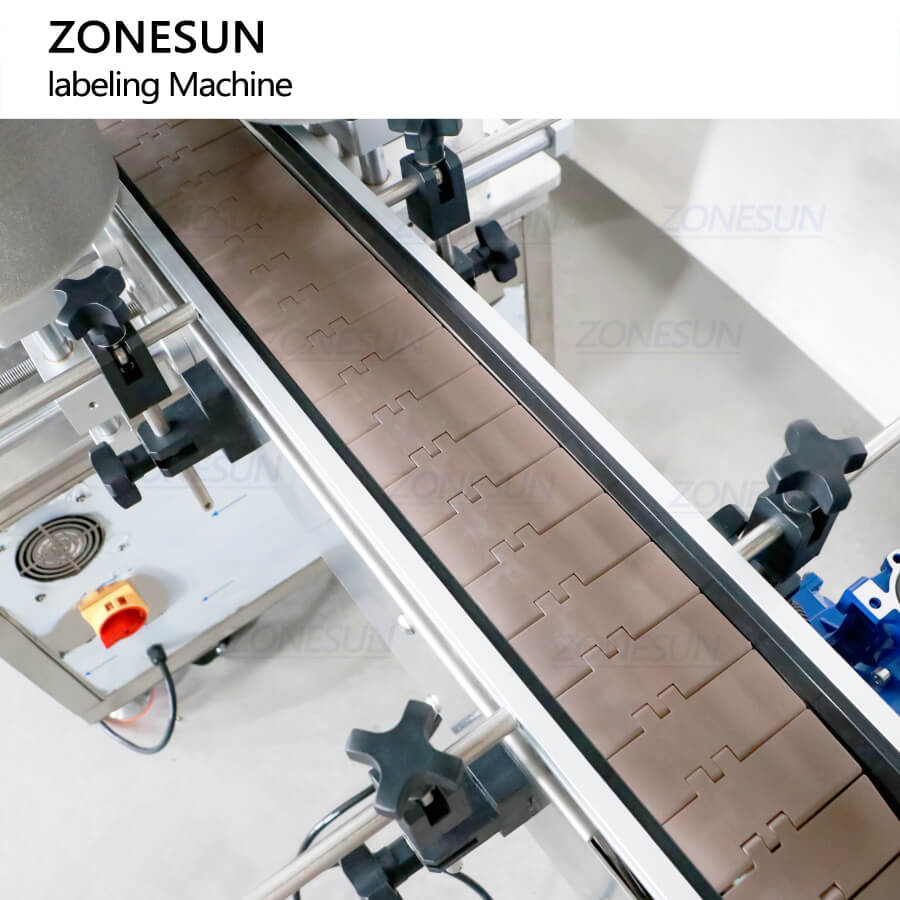

Chain Plate Conveyor
The durable conveyor system ensures stable bottle transport, length and width of conveyor are adjustable.
The durable conveyor system ensures stable bottle transport, length and width of conveyor are adjustable.
