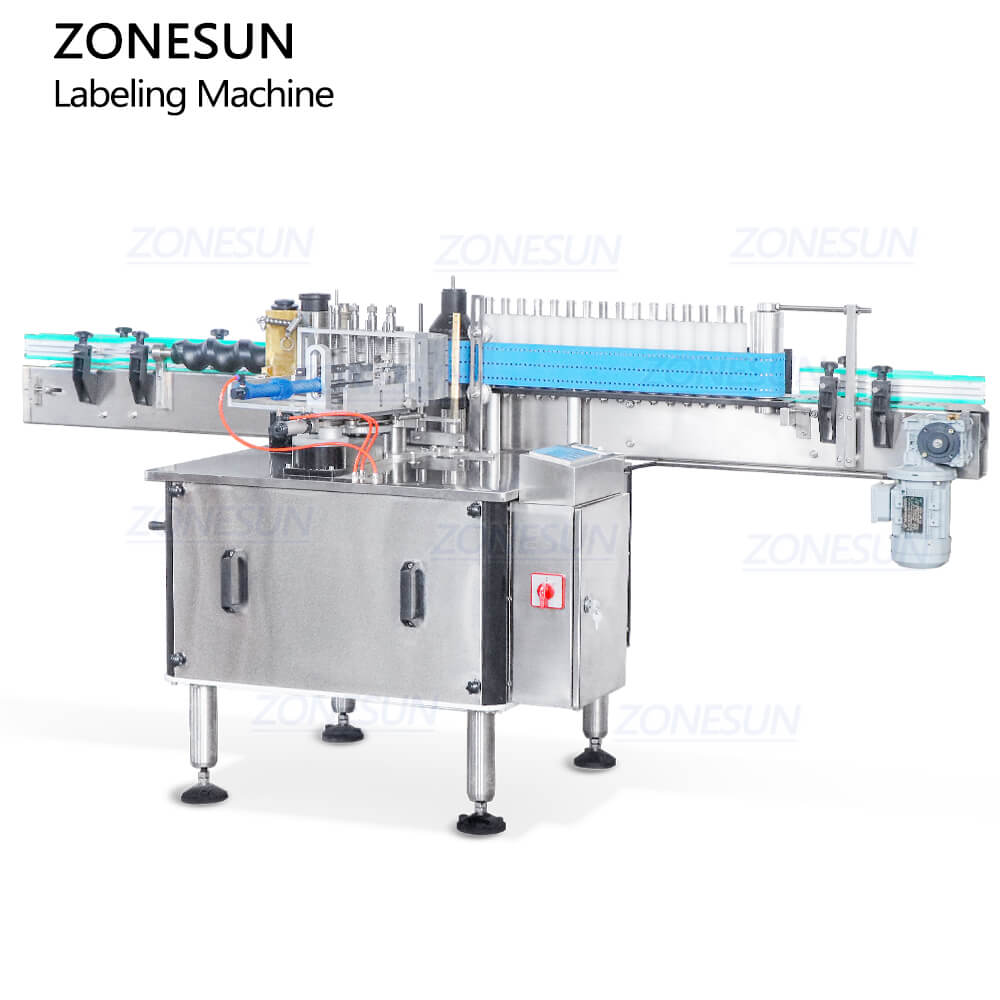

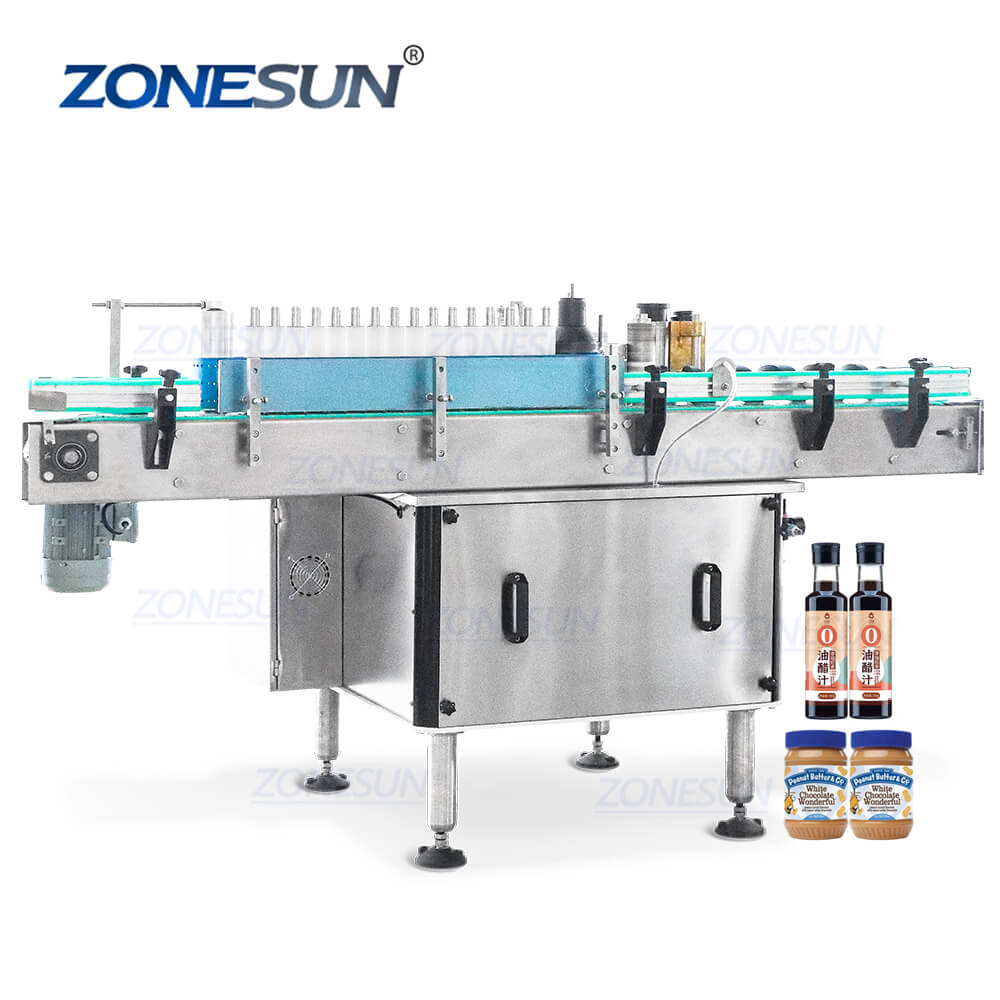

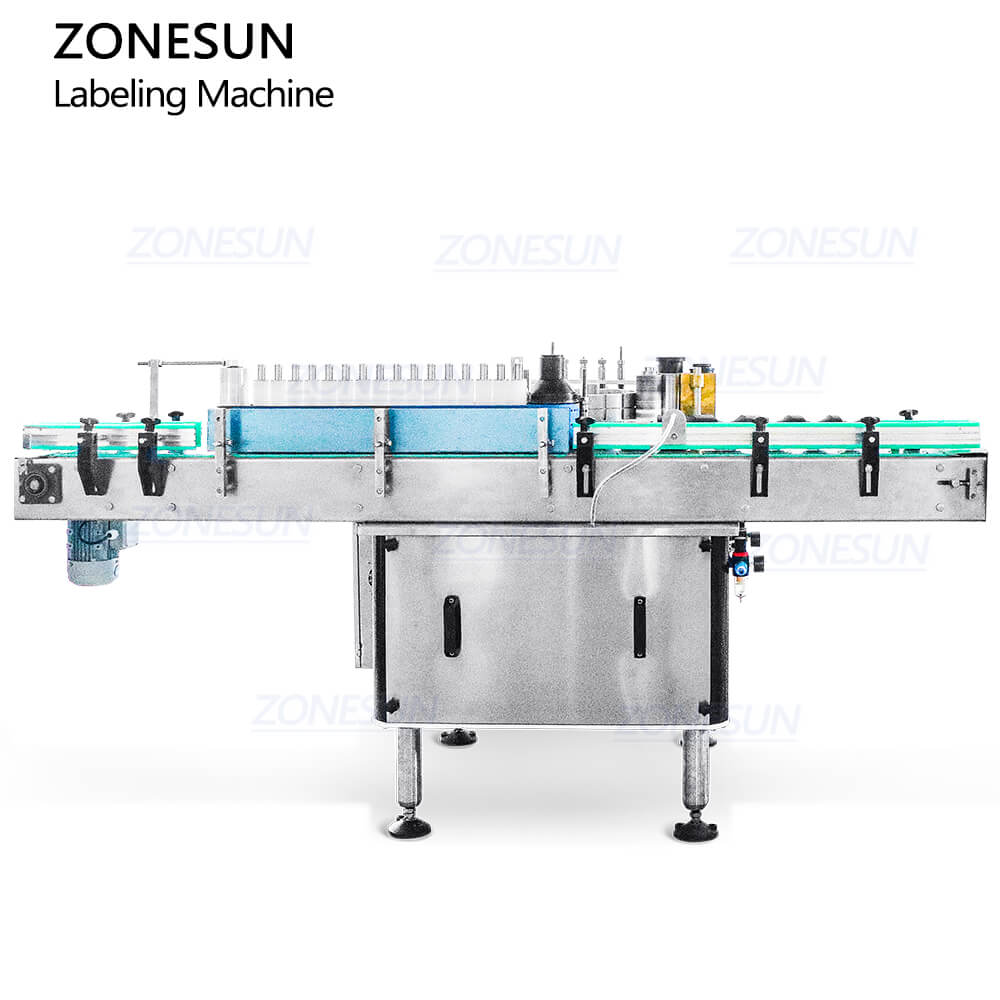

This automatic bottle glue labeling machine is designed for labeling paper label on cans,jars,bottle and any kinds of round container. Operator need to put paper labels into label box,and the machine will label stickers automatically.The wet glue is the resin glue.This machine is mianly for the food,chemical industry.

Parameter

Machine model:ZS-WGTB01
Compressed air pressure:0.3-0.4MPa
Power supply:220V 50HZ
Power:2KW
Working speed:35-40 bottles/min
Suitable bottle size:500ml-600ml round glass bottle
Labeling adhesive:resin glue
Machine size:About 3050*960*1120mm(L*W*H)
Package size:About 3160*1220*1500mm(L*W*H)
Package weight:About 480kg

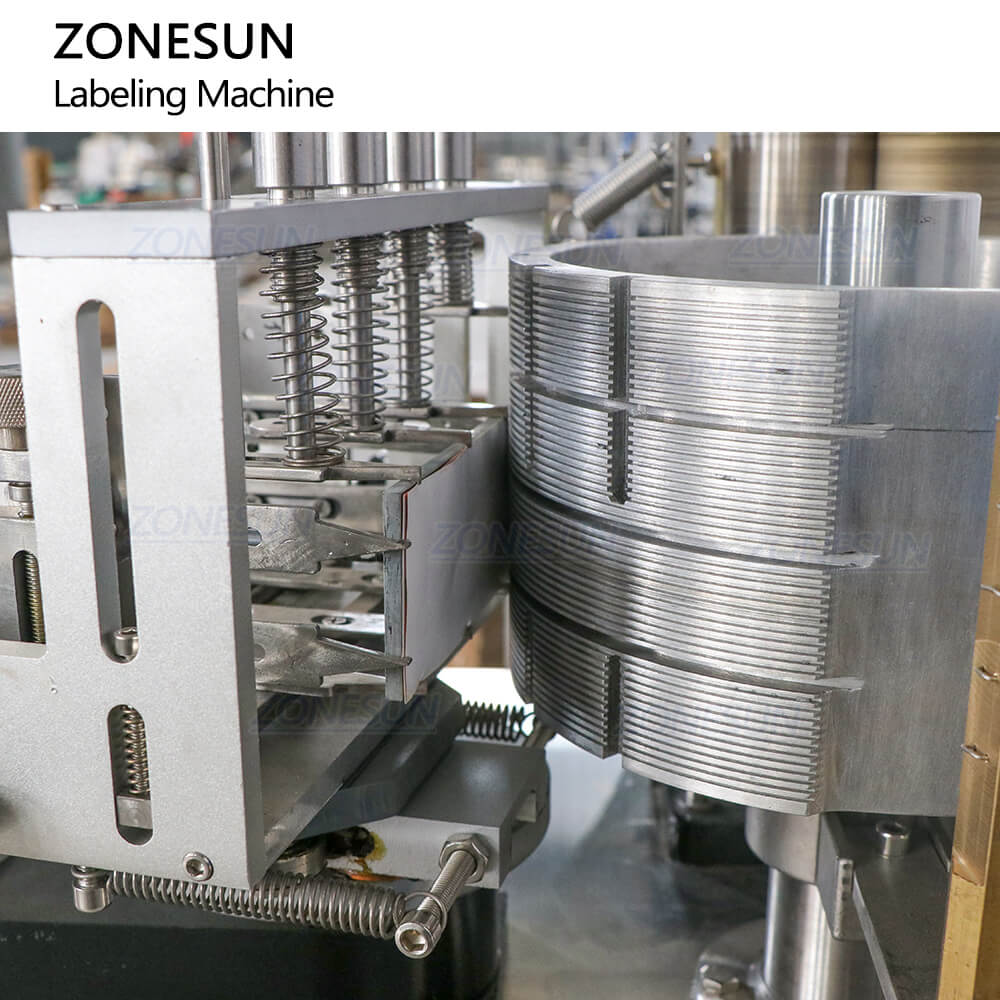

This structure is used to storage labels and it will move left and right when the machien start to work,in this way,labels will be glued one by one.

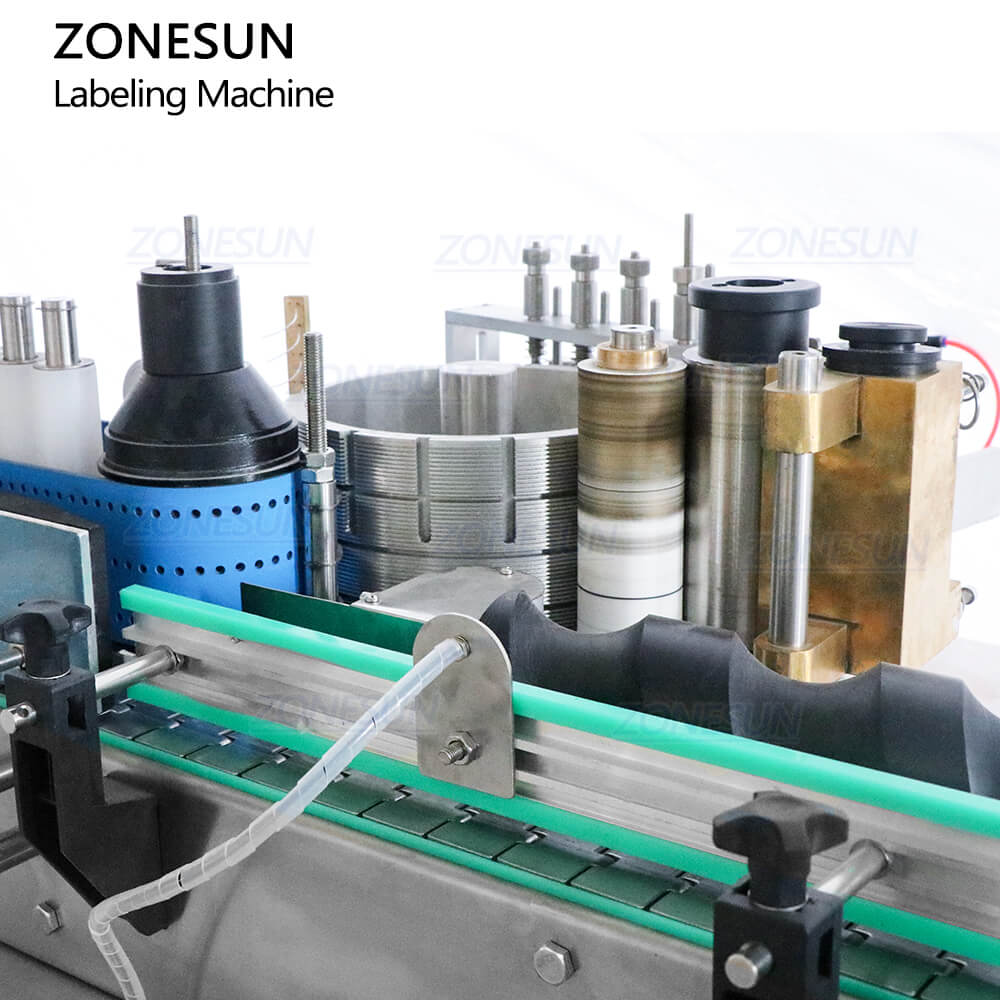

The right side of the copper container is used to storage glue. The“A”transitional roller will help to glue the“B”rubber roller, and the rubber roller can make the middle rotary plate be glued evenly, improves labeling quality.

The pressing belt is designed for pressing label sticker and make sure there is no bubble under label stickers. This improves labeling accuracy.

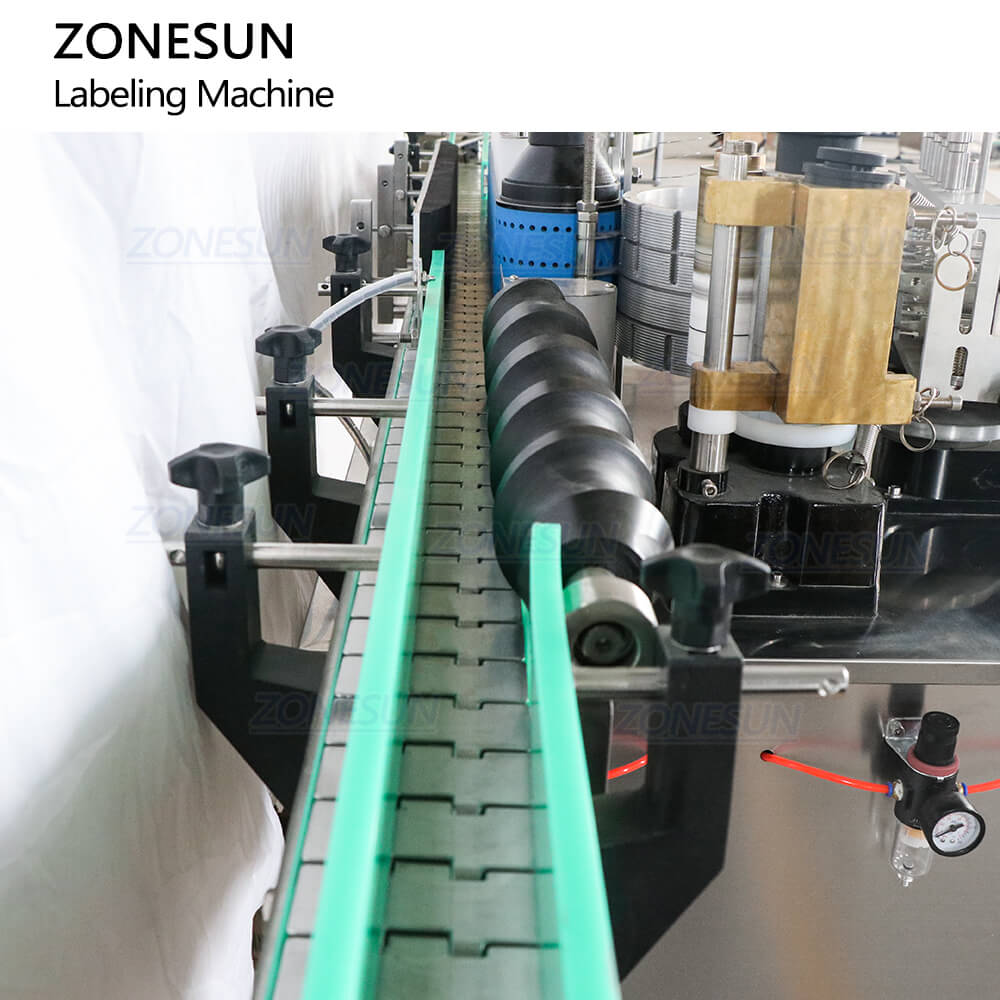

The chain convey is with large weight capacity,it can transport bottles smoothly,reduce production error and improves working speed.
