ZS-ASP2 Automatic Spout Pouch Yogurt Piston Pump Beverage Liquid Liquid Filling Capping Machine For Juice

ZS-ASP2 Automatic Spout Pouch Yogurt Piston Pump Beverage Liquid Liquid Filling Capping Machine For Juice

Voltage
Regular price $5,799.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

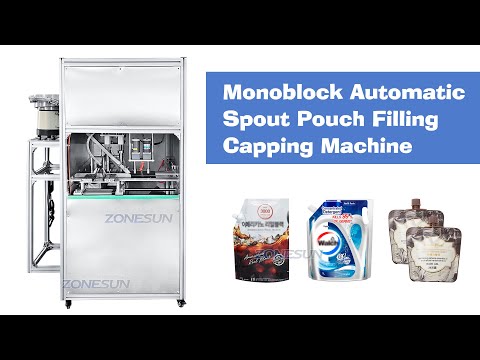

Click Video Link For Video

This filling capping machine is designed for filling liquid into spout pouch bag like laundry detergent, essence,juice.It is equipped with piston pump,different filling range can be chosen as need.It is widely used in food,daily chemical industries.

Parameter

Machine Model:ZS-ASP2
Voltage:220V 50HZ
Power:1kW
Filling Pump:Piston Pump
Filling Range:50-500ml(Can be customized)
Working Capacity:About 800-1200pcs/h
(depending on filling volume and material)
Cap Size:Can be customized
Air Pressure:0.6-0.7MPa
Machine Weight:About 160kg
Machine Size:About 1160*1100*1510mm

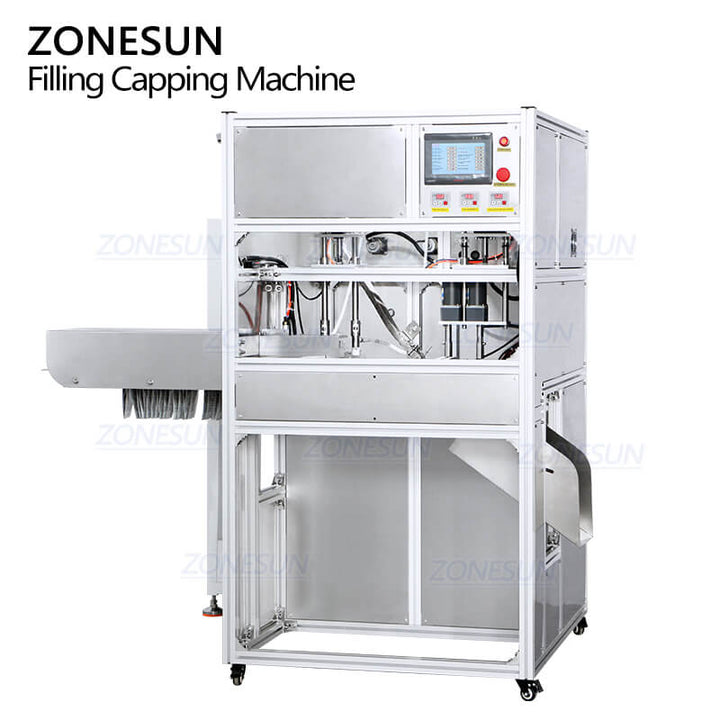

spout pouch liquid filling capping machine

application of spout pouch liquid filling capping machine
machine component of spout pouch liquid filling capping machine

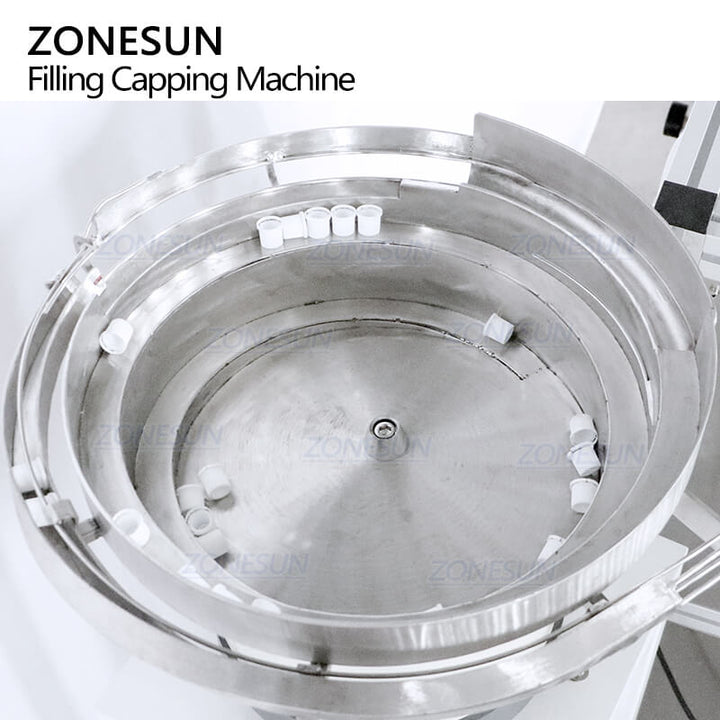

vibratory bowl sorting machine of spout pouch liquid filling capping machine
The vibratory bowl is designed for arranging caps and feeding them automatically,improving efficiency.It can be customized according to cap size.

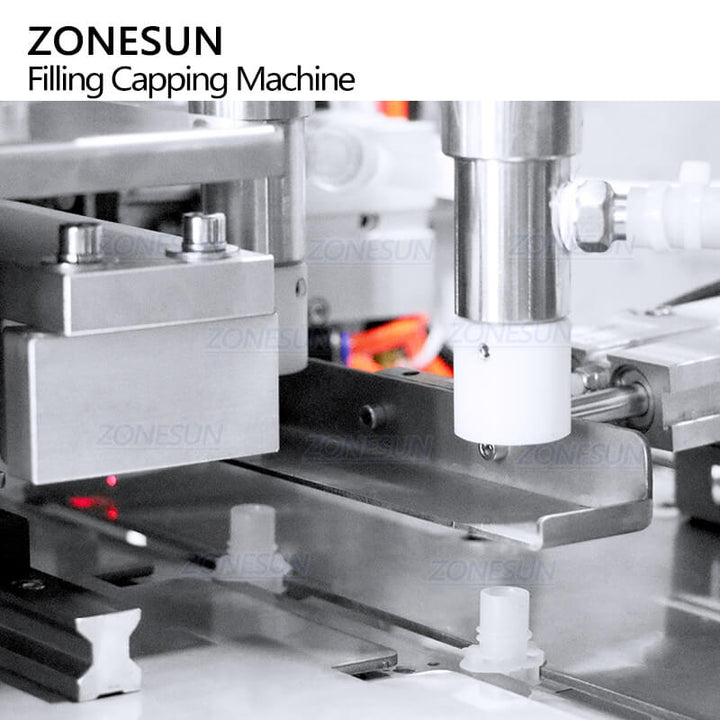

capping head of spout pouch liquid filling capping machine
With powerful motor,the capping heads can tighten caps well,ensuring production quality.The size of capping head can be customized according to cap size.

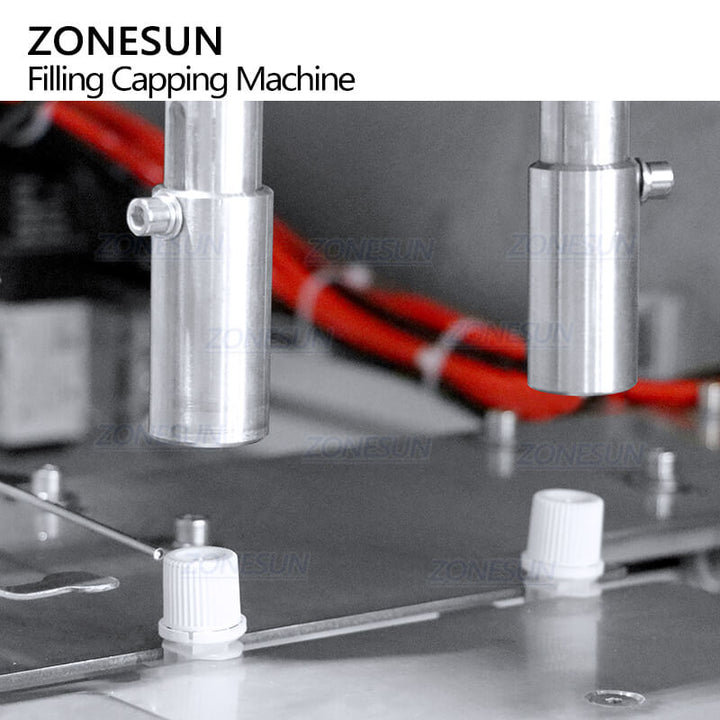

filling nozzle of spout pouch liquid filling capping machine
Driven by piston pump,it can be used for filling liquid like laundry detergent,oil.The quantity of filling nozzles can be customized as needed.
automatic spout pouch liquid filling capping machine
