ZONESUN ZS-FS500Y-2 Automatic Servo Motor Skincare Serum Shampoo Pouch Sachet Double Lanes Liquid Paste Filling Sealing Machine

Voltage
Price
Regular price $20,499.00 USD
Regular price Sale price $20,499.00 USD
Save $-20,499 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Video For Shampoo Sachet Packing Machine

This servo motor VFFS packing machine can automatically finish filling material supplying, bag making, filling, sealing and date coding.Double lanes machine design improves working capacity, the sealing type can be customized according to production need.It is suitable for packaging shampoo, sauce, honey, fruit jam and ketchup.

Parameter

  • Machine model:ZS-FS500Y-2
  • Machine voltage:110/220V 50-60HZ 7KW
  • Suitable film:OPP/CPP/OPP/CE/MST/PE/PET/PE
  • Filling range:Customized
  • Filling pump:Piston pump(filling) Diaphragm pump(feeding pump)
  • Lanes quantity:2(can be customized)
  • Film thickness:0.05-0.09mm
  • Sealing type:4 sides sealing(can be customized)
  • Film width:280-500mm
  • Film roll size:ID=75mm OD≤320mm
  • Finished Bag size(single lane):35-60mm(W)*35-160mm(L)
  • Working speed:30-35 bags/min*2
  • Machine size:About 1700*1350*2350mm(L*W*H)
  • Machine weight:About 350kg

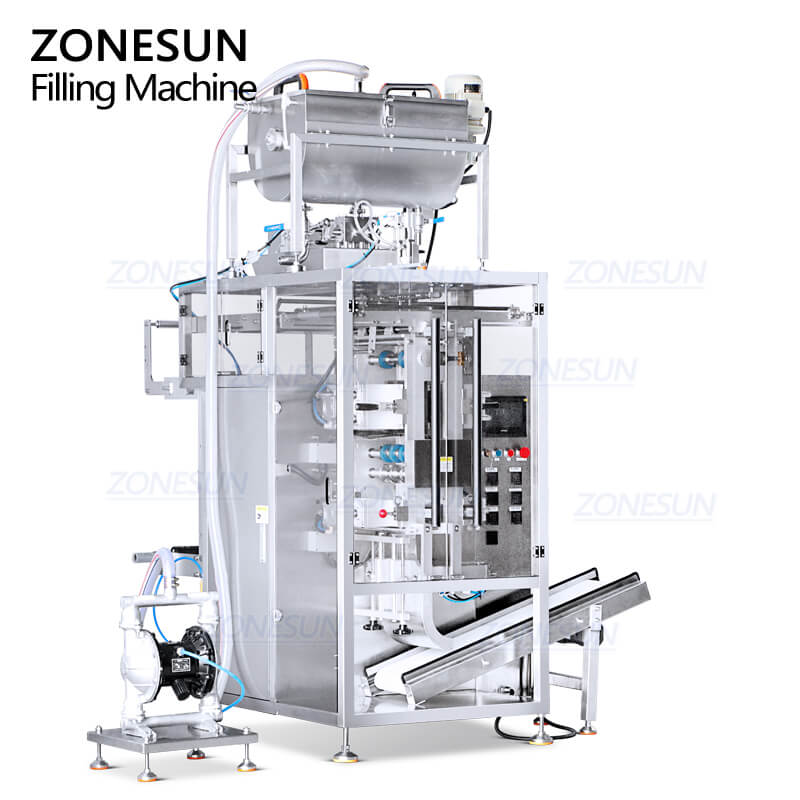

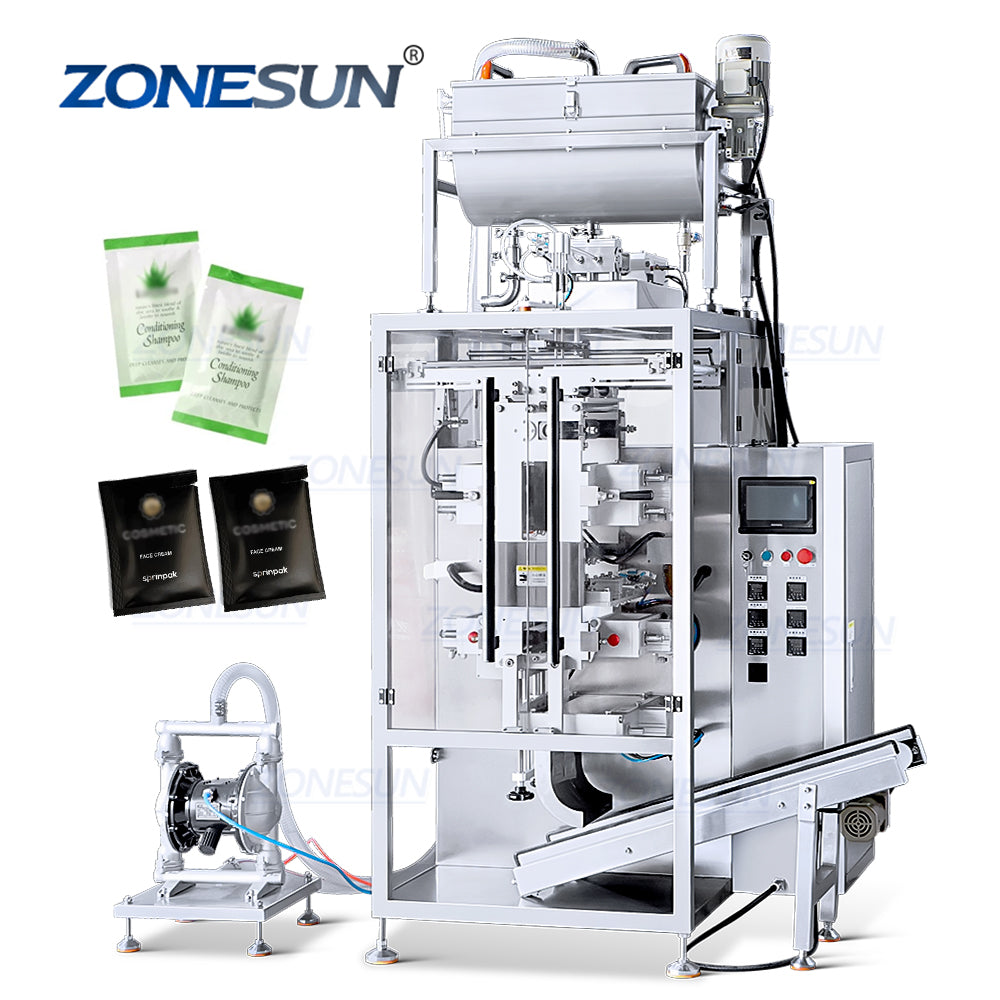

shampoo sachet packing machine

application of shampoo sachet packing machine

shampoo pouch packing machine

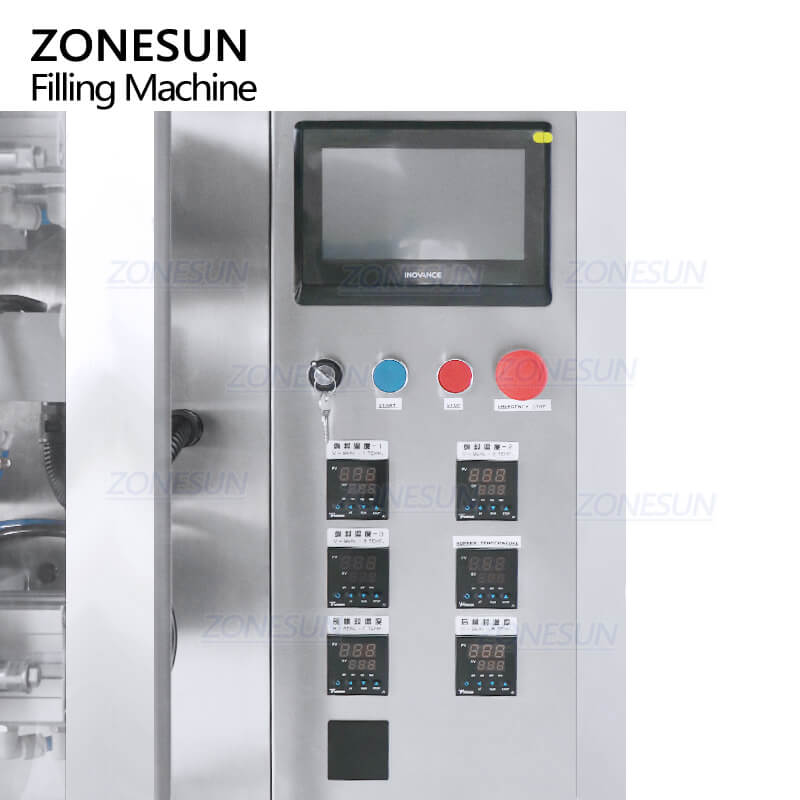

control panel of shampoo sachet packing machine

Equipped with PLC touch screen control panel, the customizable interface makes machine operation more convenient and intuitive.Different kinds of operation language can be customized as production need

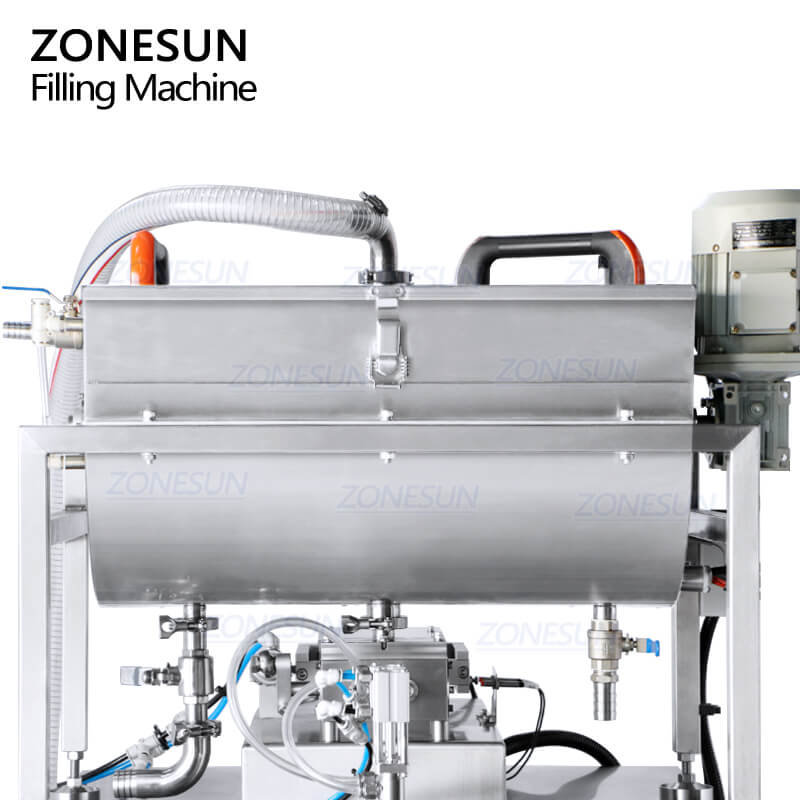

hopper of shampoo sachet packing machine

Equipped with a floating ball, when the material in the hopper is insufficient, the machine will supply the filling material in time through the feeding pump.Extra mixing and heating function are customized according to production need.

piston pump of shampoo sachet packing machine

Equipped with servo motor piston pump, set filling volume according to control panel directly, this is more convenient when using the machine.It has higher filling accuracy.

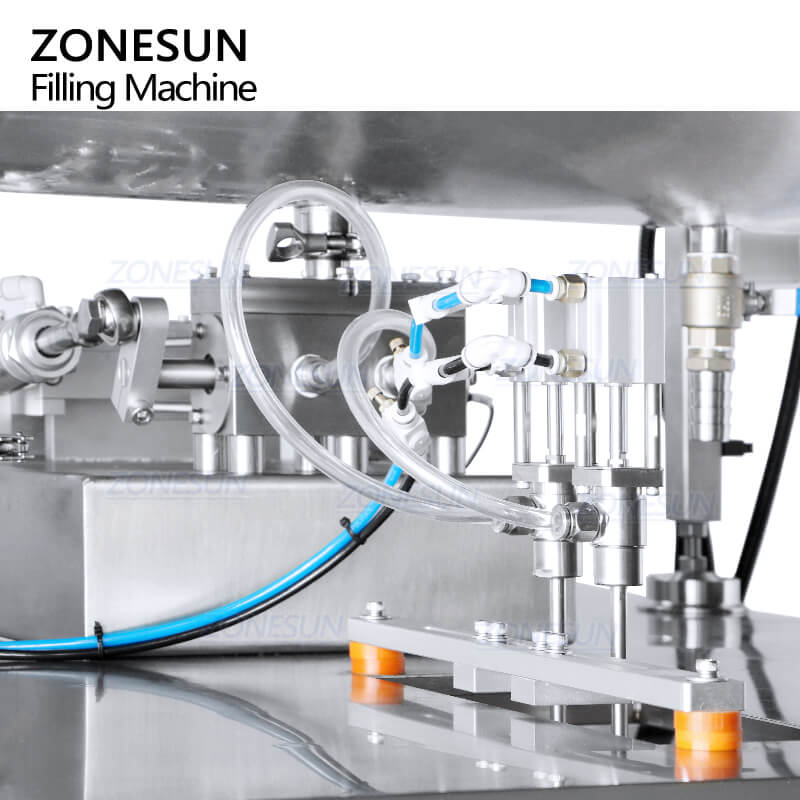

filling nozzle of shampoo sachet packing machine

Equipped with pneumatic filling nozzle, which is powerfule for filling thicker liquid or paste.Multiple filling lanes can be customized to improve working capacity.

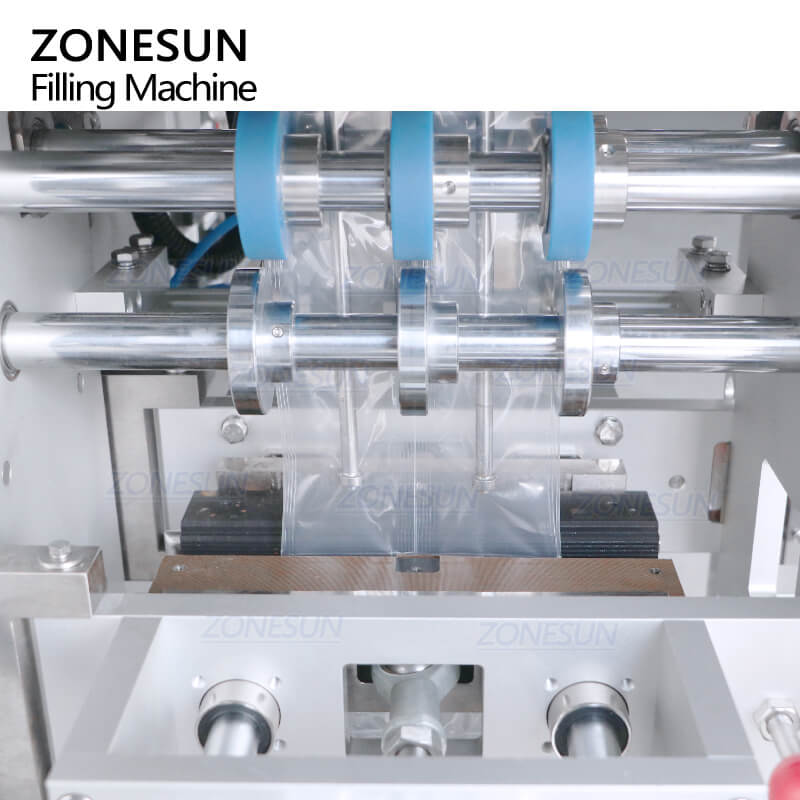

sealing structure of shampoo sachet packing machine

The film pulling structure is controlled by servo motor, bag sealing type includes back side sealing, three sides sealing and four sides sealing can be customized as needed.Sealing temperature can be adjusted according to film material

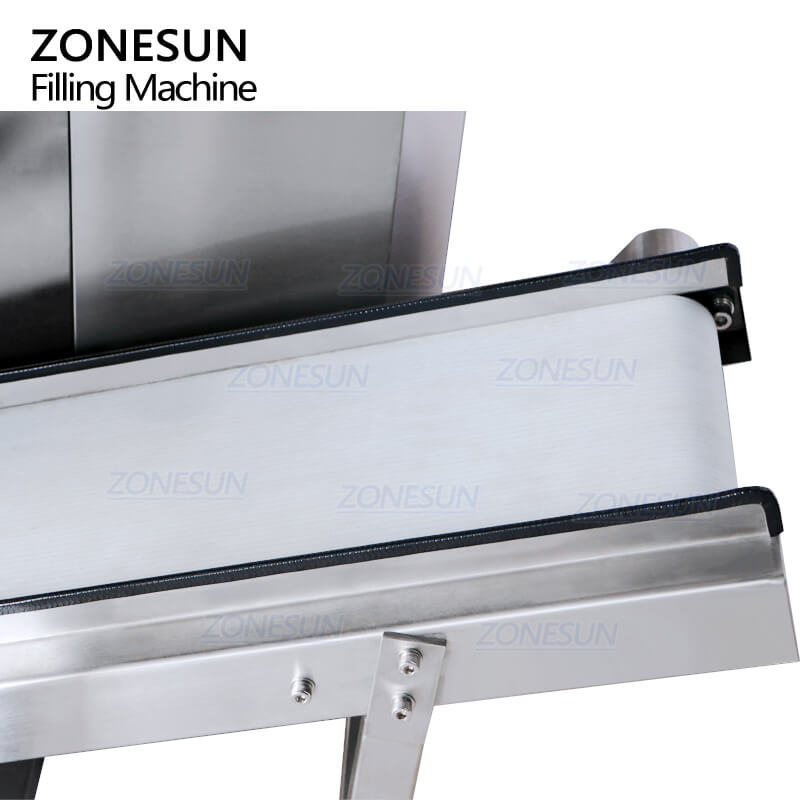

conveyor of shampoo sachet packing machine

Equipped with conveyor belt to convey finished products to next production process, it saves working labor and improves production capacity greatly

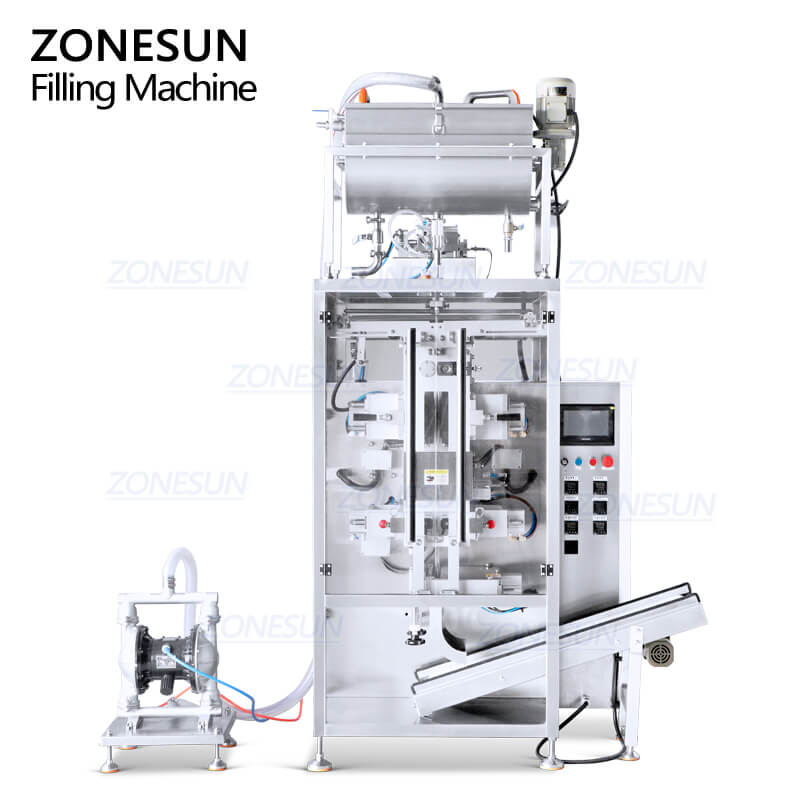

automatic shampoo sachet packing machine
