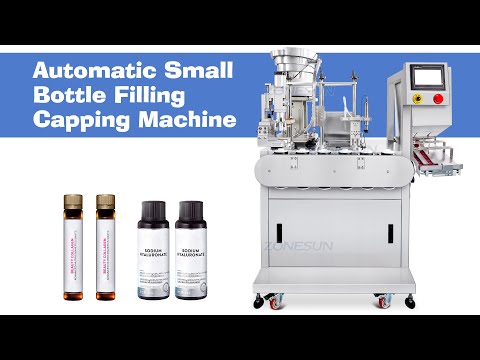

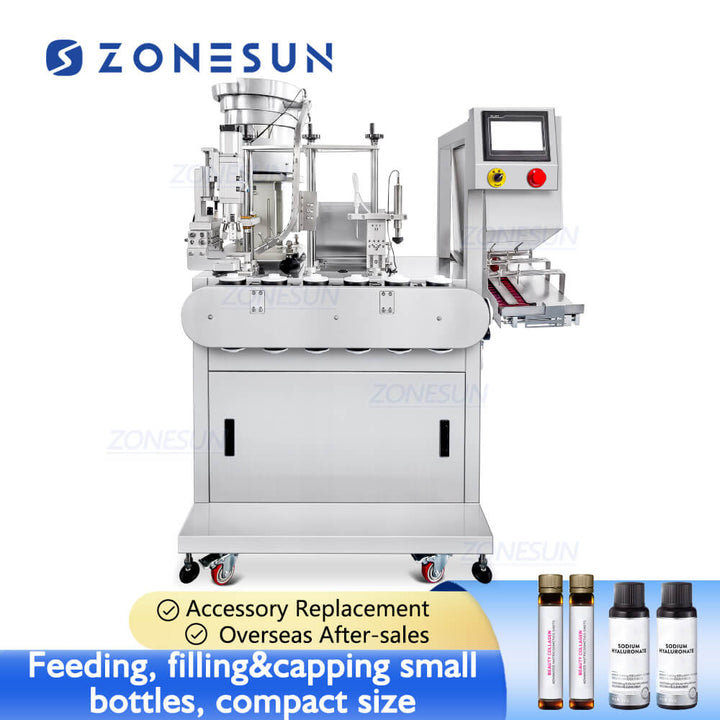

ZONESUN ZS-AFC48 Automatic Servo System Magnetic Gear Pump Liquid Multivitamin Small Bottle Vial Filling and Capping Machine
Regular price
$9,855.00 USD
Regular price
Sale price
$9,855.00 USD
Save $-9,855 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
This filling and capping machine is designed for precision filling and reliable capping of small bottles. It integrates bottle feeding, servo-controlled magnetic gear pump filling, cap feeding, and servo capping into a compact and efficient system. The servo system ensures high filling accuracy and consistent torque control for capping. Ideal for cosmetic, and chemical industries, this machine can be customized to meet various bottle types and production needs.
Filling and Capping Machine Parameter
- Machine Model: ZS-AFC48
- Voltage: 220V/110V 50-60Hz
- Power: 3kW
- Working Speed: About 15-30 pcs/min(depending on filling range and materials)
- Minimum Filling Volume: 3ml
- Filling Pump: Magnetic Gear Pump
- Filling Accuracy: ±1%
- Bottle Diameter: φ15 mm-φ50 mm
- Bottle Height: 50 mm-250 mm(Can be customized)
- Air Pressure: 0.6-0.7 Mpa
- Machine Size: About 1200*800*1500 mm
- Machine Weight: About 220 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

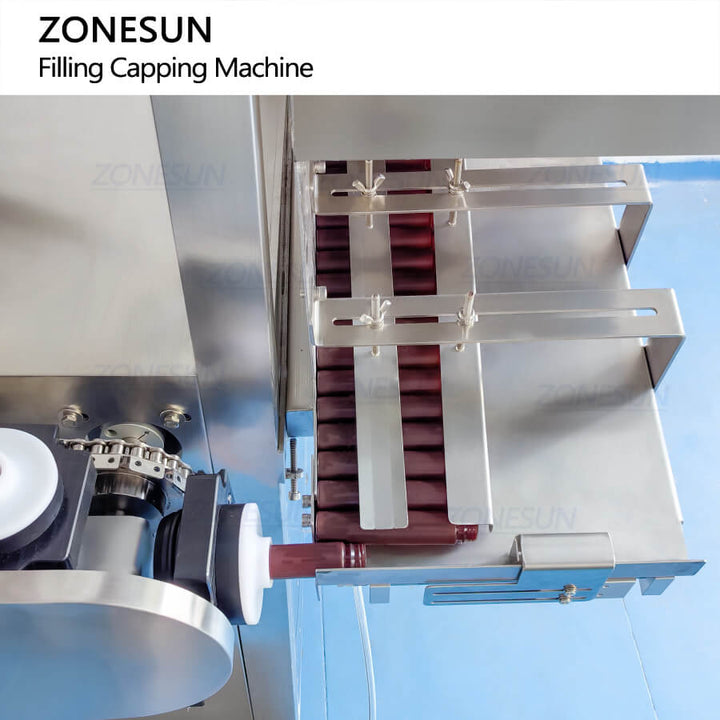

Bottle Feeding Structure
Can feed small bottles into fixing molds automatically, saving labor cost.

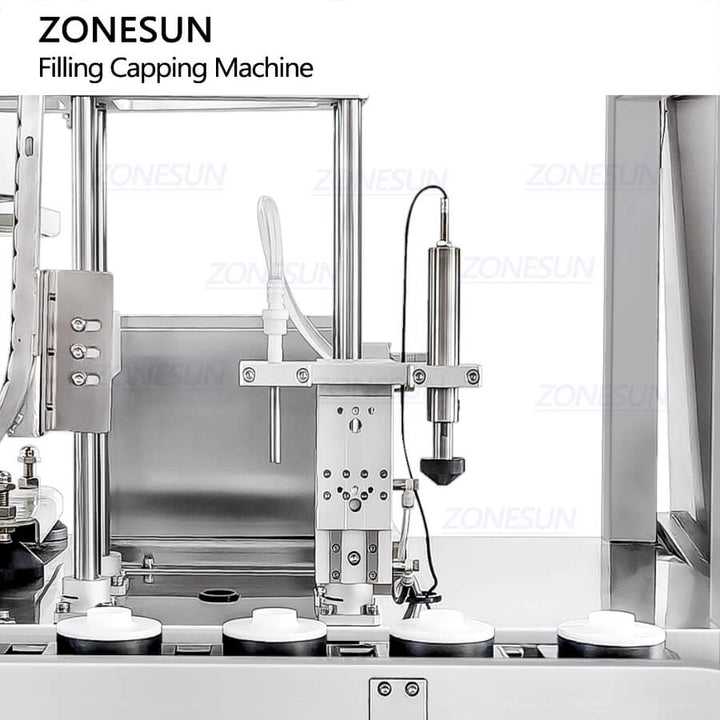

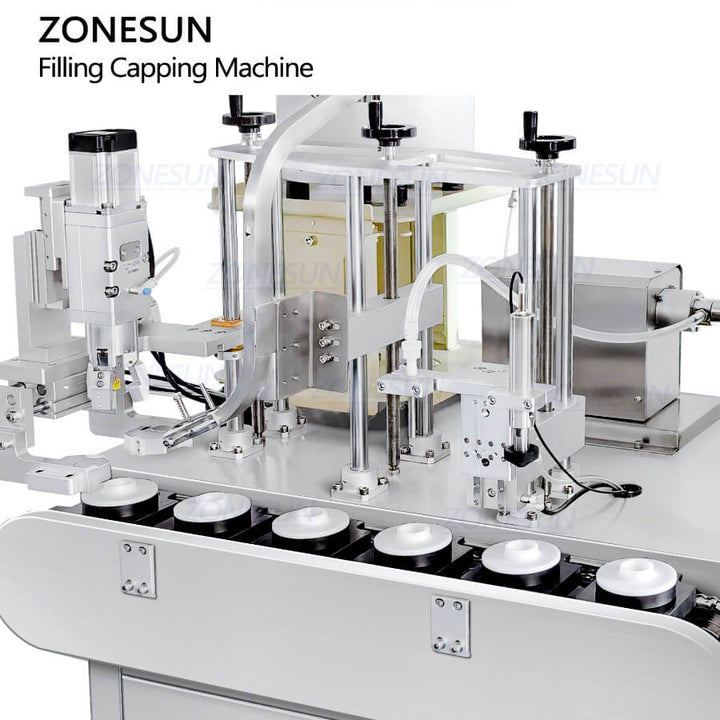

Filling Head
Filling work is controlled by servo magnetic gear pump, which has high accuracy.
Cap Guide Rail
Can feed caps to bottles automatically. The guide rail can be customized as your cap size.

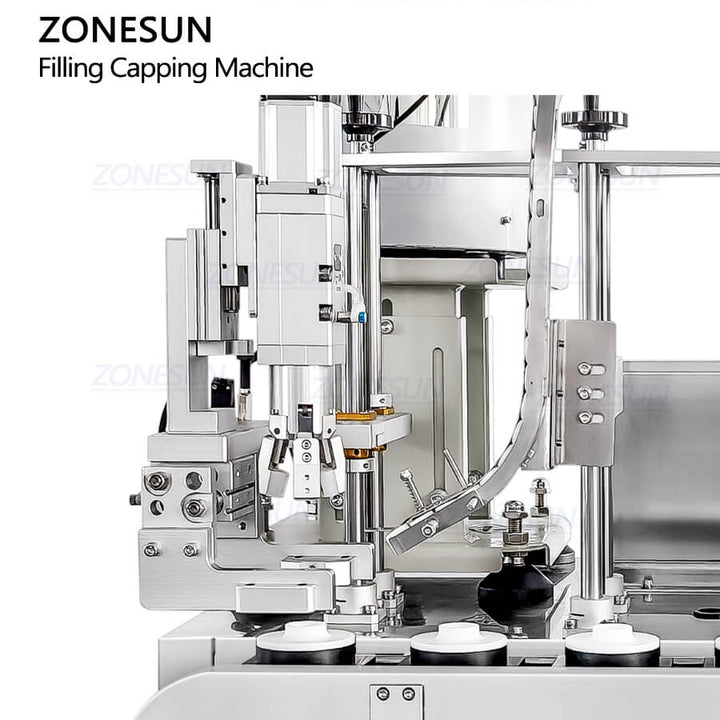

Capping Head
Capping work is controlled by servo motor, which ensures consistent torque and tightness.

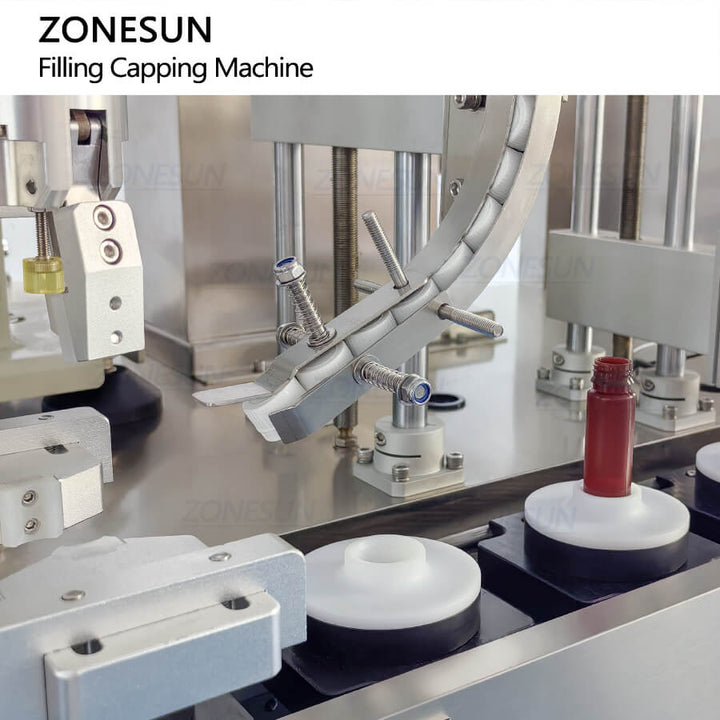

Fixing Molds of Filling and Capping Machine
The molds can be customized according to your product size.
