ZONESUN ZS-DDP300 Automatic Servo System Food Supplements Eyedrops Sauce Blister Packaging Machine
Regular price
$59,999.00 USD
Regular price
Sale price
$59,999.00 USD
Save $-59,999 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

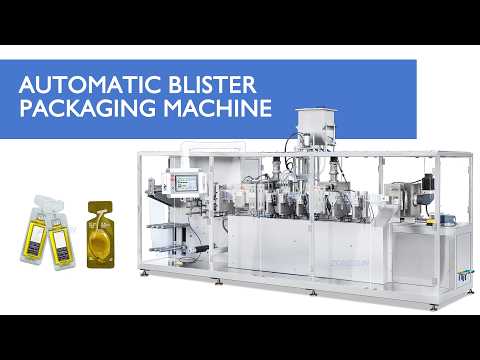

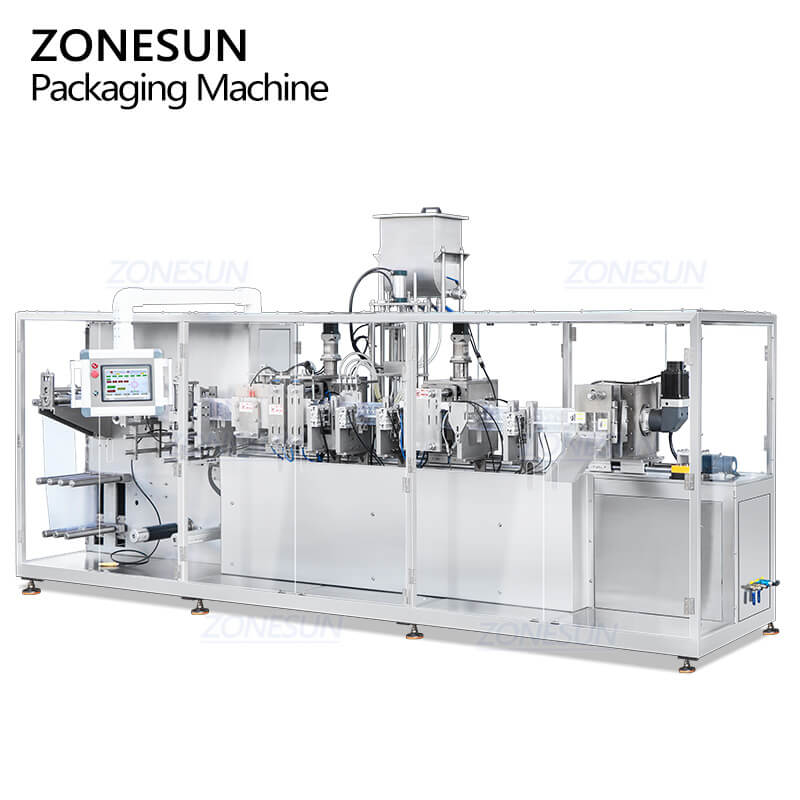

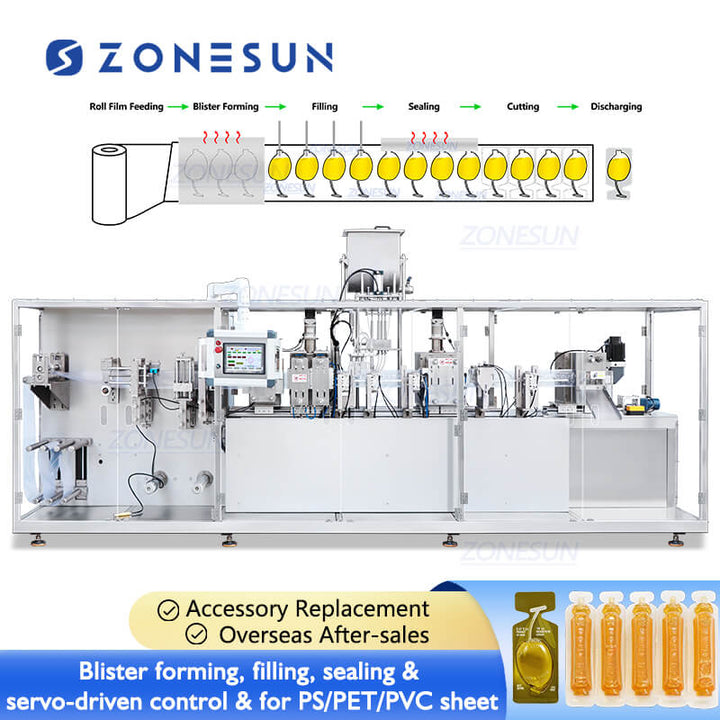

This blister packaging machine is specially designed for filling various types of liquid into blister packs. It features a PLC control system and independent servo motor operation for each station, enabling precise and efficient performance in forming, filling, sealing, date printing, cutting, and product discharge. Equipped with a photoelectric eye sensor, the machine ensures accurate sealing and cutting. Suitable for PS, PET, PVC sheet materials.
Blister Packaging Machine Parameter
- Model: ZS-DDP300
- Cutting Frequency: 10–15 Times/min
- Motor Power: 16 kW
- Air Pressure: 0.8 MPa
- Packaging Volume: Customizable
- Air Consumption: ≥ 1 m³/min
- Mould Cooling: Tap Water or Recycling Water
- Max Shaping Area & Depth: 160*200*20 mm
- Machine Size (L*W*H): 4925*1300*2190 mm(L*W*H)
- Machine Weight: 1500 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

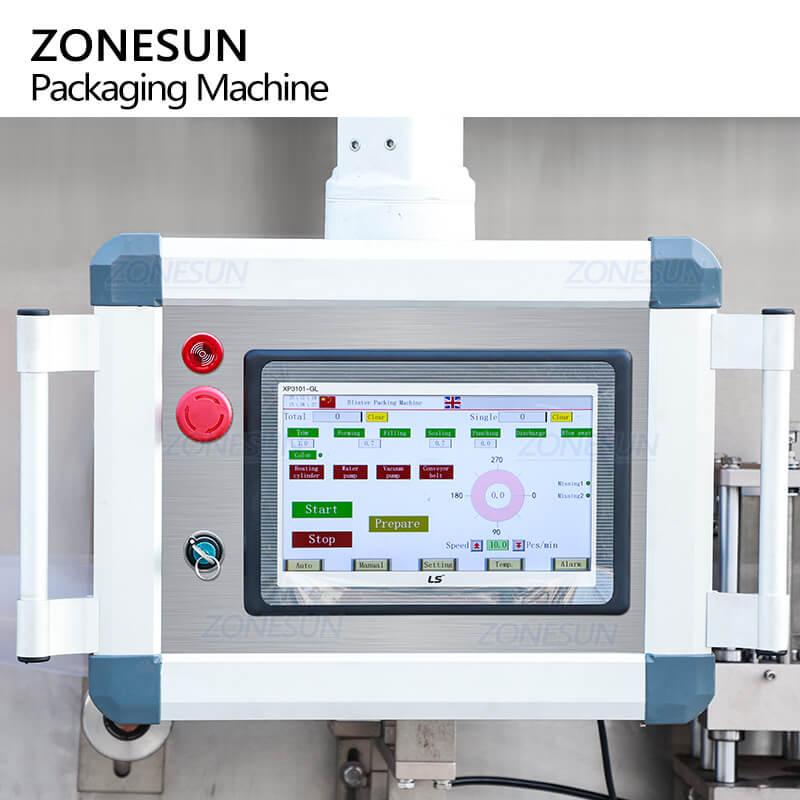

PLC Touchscreen Control Panel
Ergonomic swing arm panel enables flexible positioning and convenient operation during production.
Ergonomic swing arm panel enables flexible positioning and convenient operation during production.

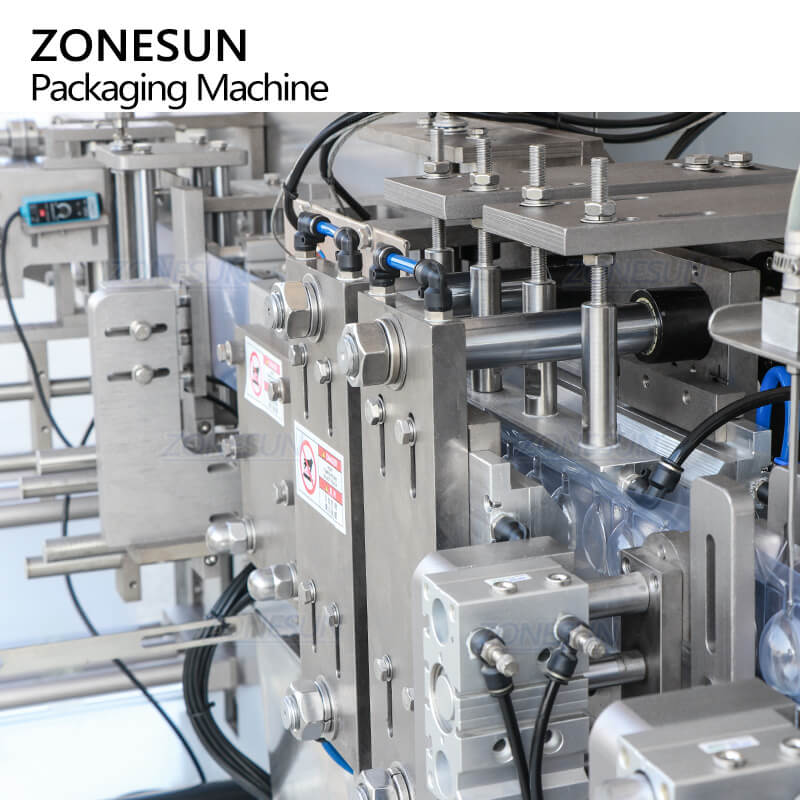

Blister Forming Structure
Precisely forms blisters to securely contain filling material with consistent cavity shape and depth..
Precisely forms blisters to securely contain filling material with consistent cavity shape and depth..

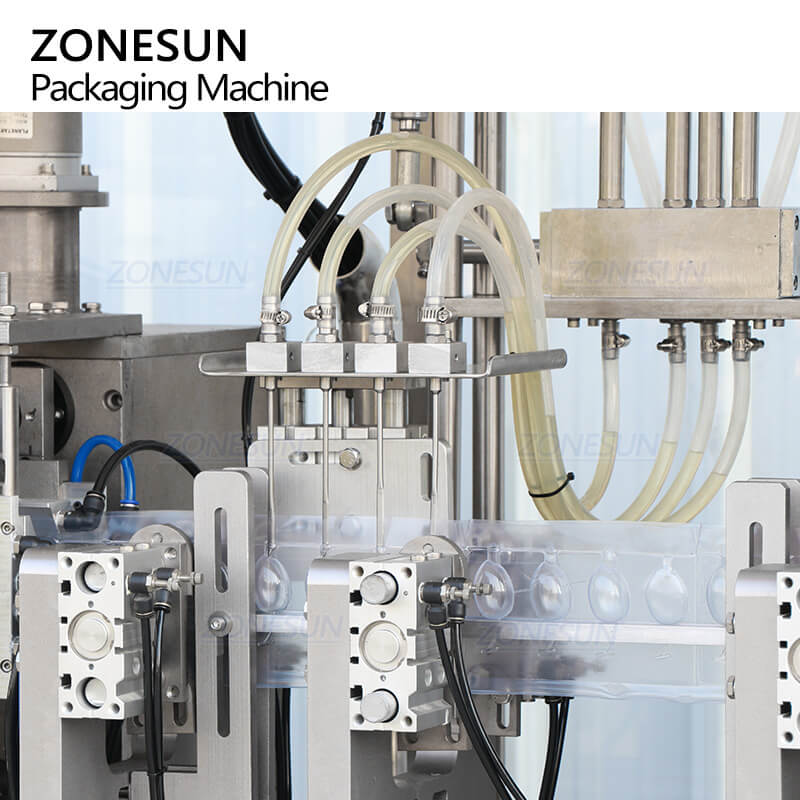

Servo-Driven Liquid Filling System
Supports liquid filling with precise servo-driven control.Quantity of filling heads is customizable.
Supports liquid filling with precise servo-driven control.Quantity of filling heads is customizable.

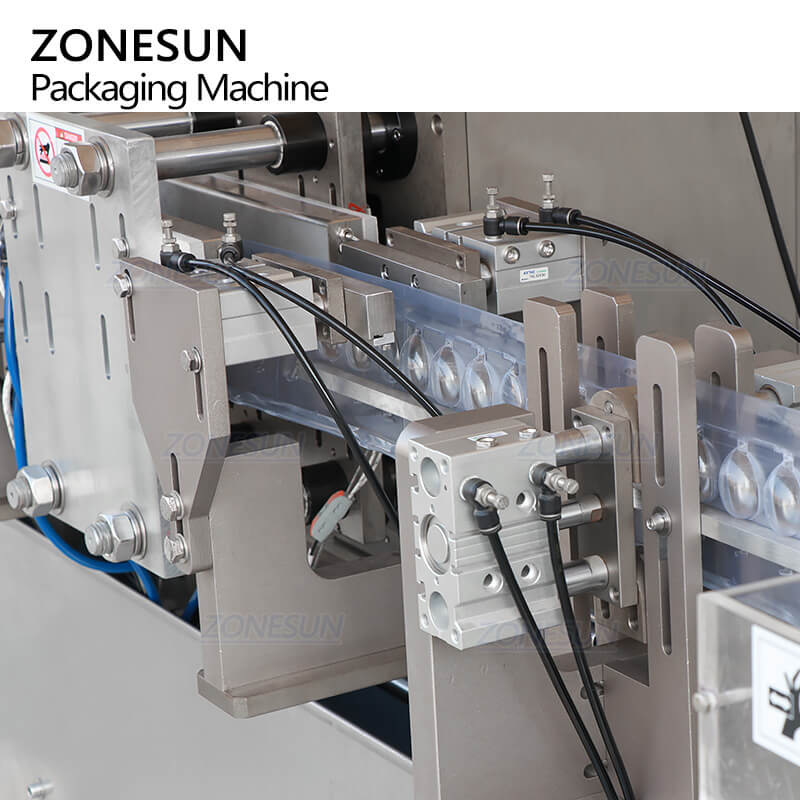

High-Strength Blister Sealing Unit
Applies controlled heat and pressure to create strong, leak-proof seals. The sealing process ensures product safety, extended shelf life, and protection against contamination.
Applies controlled heat and pressure to create strong, leak-proof seals. The sealing process ensures product safety, extended shelf life, and protection against contamination.

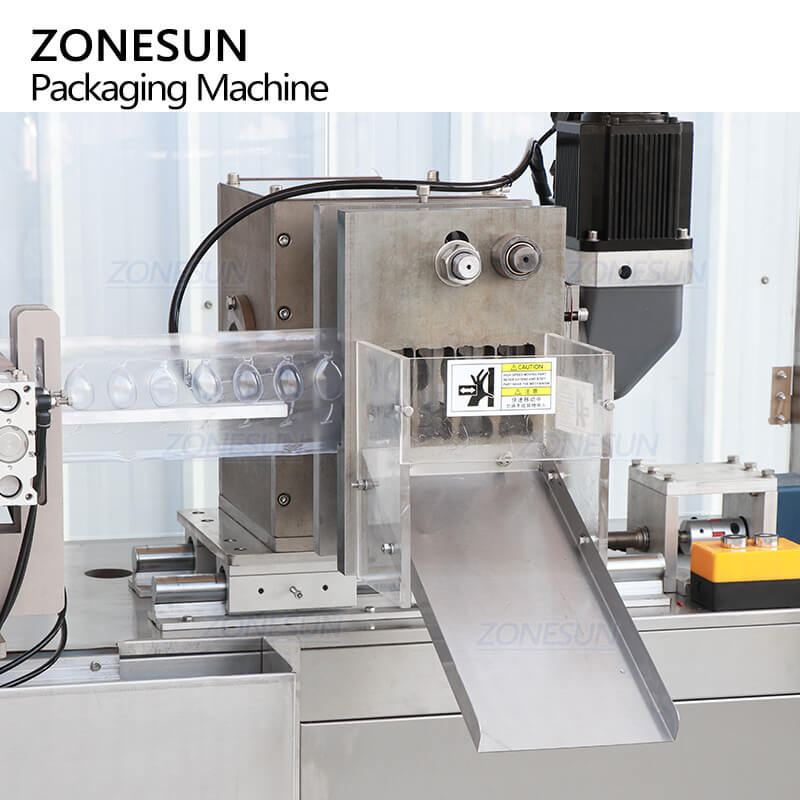

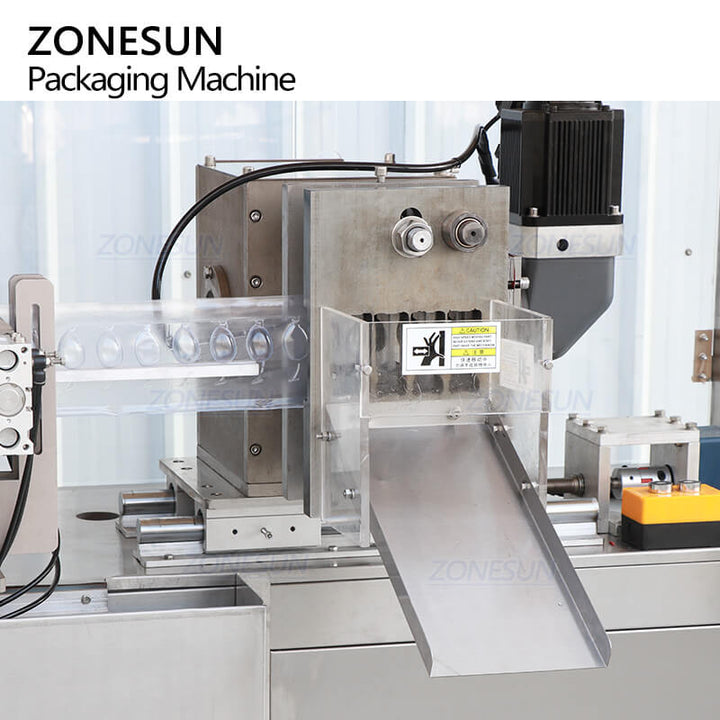

Multi-Lane Cutting Structure
Four-lane cutting system produces four packs per cycle, with cutting shapes customizable via dedicated molds.
Four-lane cutting system produces four packs per cycle, with cutting shapes customizable via dedicated molds.
Material Hopper
Feeds filling material smoothly and can work with existing feeding machine to realize continuous packaging work.
Feeds filling material smoothly and can work with existing feeding machine to realize continuous packaging work.
