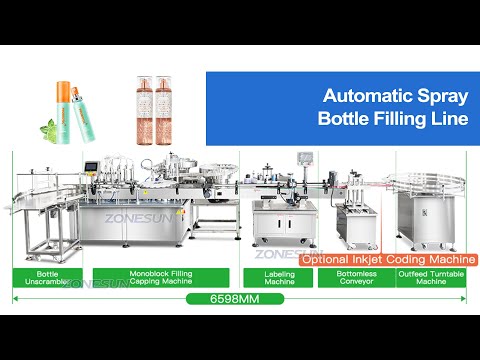

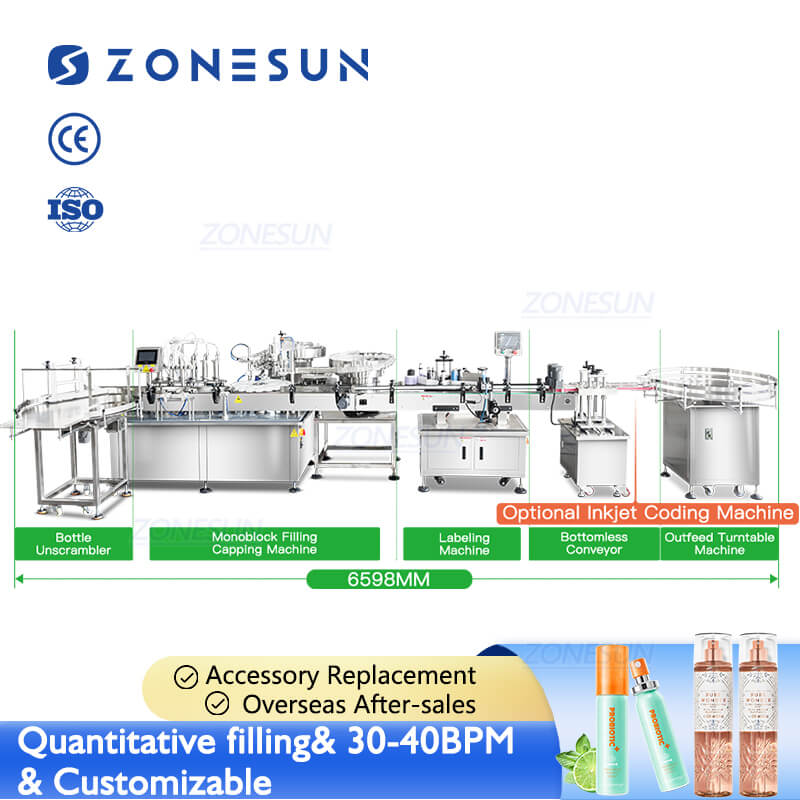

This filling line consists of a monoblock spray filling and capping machine, round bottle labeling machine, bottomless conveyor, bottle turntable, and an optional inkjet coding machine. It is ideal for small-scale production of products such as body mist, perfume, and more.

Monoblock Filling Capping Machine

  • Machine model: ZS-AFC46
  • Machine voltage: 110/220V 50-60HZ 3KW
  • Filling range: 100ml (Customizable)
  • Working capacity: 30-40 BPM
  • Filling pump: Servo Piston Pump
  • Quantity of filling nozzle: 6
  • Filling accuracy: ±1%
  • Suitable bottle size: Customizable
  • Suitable cap size: Customizable
  • Machine size: About 2608*1769*1448 mm(L*W*H)
  • Machine weight: About 600 kg
  • Package size: 2760*1110*1720 mm(Main Machine) 1550*1560*900 mm(Vibratory Bowl Sorter)
  • Package weight: 945 kg(Main Machine) 330 kg(Vibratory Bowl Sorter)

Labeling Machine

  • Model: ZS-TB260R
  • Power supply: AC220V 50Hz/60Hz 1000 W
  • Labeling capacity(bottles/min): 25-50 bottles/min(depends on bottle size)
  • Labeling accuracy(mm): ±1.0 mm
  • Suitable Bottle Size: Φ=30-100 mm H=30-200 mm
  • Label size(mm): (L)20-300 mm* (H)12-130 mm (Can be customized)
  • Roll inside diameter(mm): Φ76 mm
  • Roll outside diameter(mm): Φ350 mm
  • Conveyor Size: 112*2000 mm(W)
  • Machine size: About (L)2000*(W)820*(H)1380(mm)
  • Machine weight: About 180 kg
  • Packing Size: About (L)2100*(W) 890*(H)1520(mm)
  • Package weight: About 250 kg

Bottomless Conveyor

  • Machine model: ZS-JP1
  • Voltage: 220V 260W
  • Working speed: 0-60 bottles/min(based on bottle sizes)
  • Adjustable working height: 500 mm
  • Conveyor length: 830 mm
  • Machine size: 560*520*1200 mm
  • Machine weight: 86 kg
  • Package size: About 810*720*1330 mm
  • Package weight: About 120 kg

Outfeed Turntable Machine

  • Machine model: ZS-SP800S
  • Voltage: 220V 50Hz (110V can be customized)
  • Power supply: 200W
  • Bottle specifications: Square bottle/round bottle
  • Conveying speed: 0-20 revolutions per minute(adjustable)
  • Turntable diameter: 800 mm (Customizable)
  • Dimensions: About 550*550*990 mm
  • Package size: About 1050*1000*1130 mm
  • Net weight/Gross weight: About 93 kg/120 kg
automatic body mist filling line
application of automatic perfume filling line
component of automatic perfume filling line

navigation

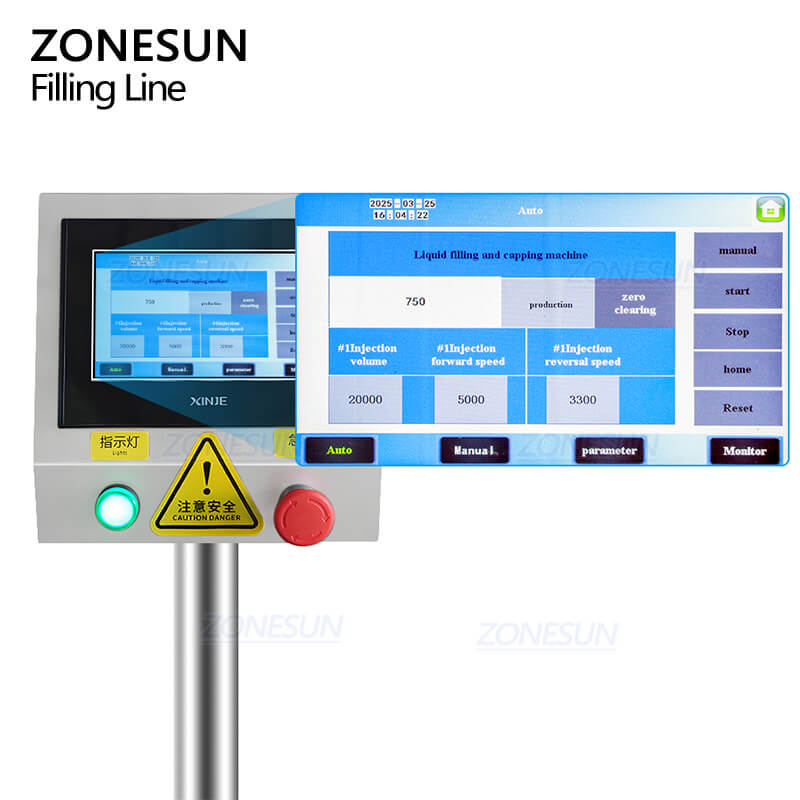

control panel of automatic perfume filling line
Touch Screen Control Panel
Shows parameter setting more intuitively, easy to debug machine

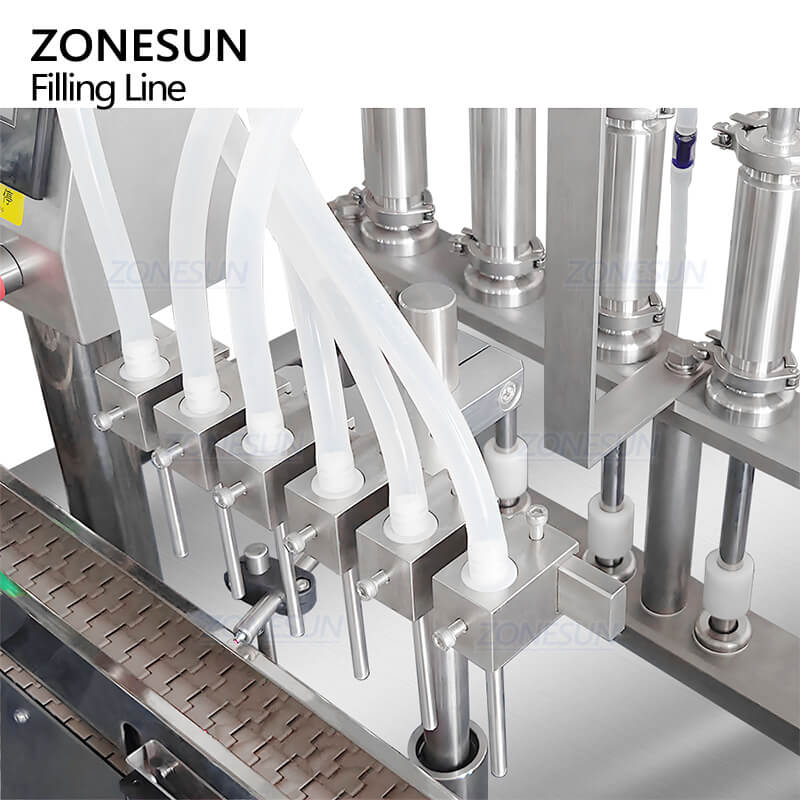

filling nozzle of automatic perfume filling line
Quantitative Filling
Servo piston pump, it can dispense a precise, pre-set amount of liquid into each bottle.

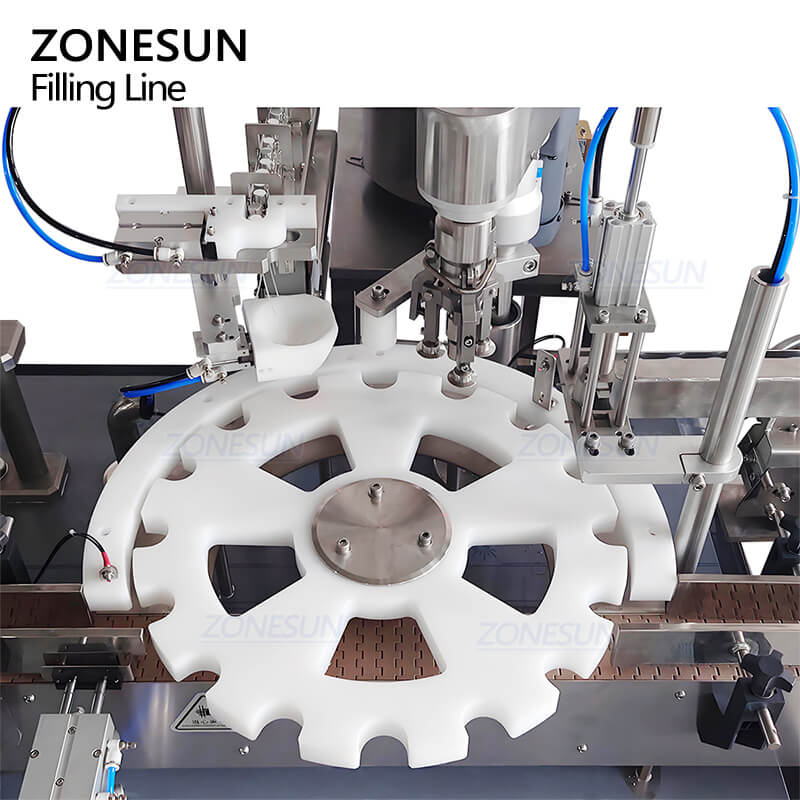

compact design of automatic perfume filling line
Multi-Functional Operation
Capable of filling liquid, feeding spray caps, crimping caps, and pressing covers simultaneously, increasing efficiency.

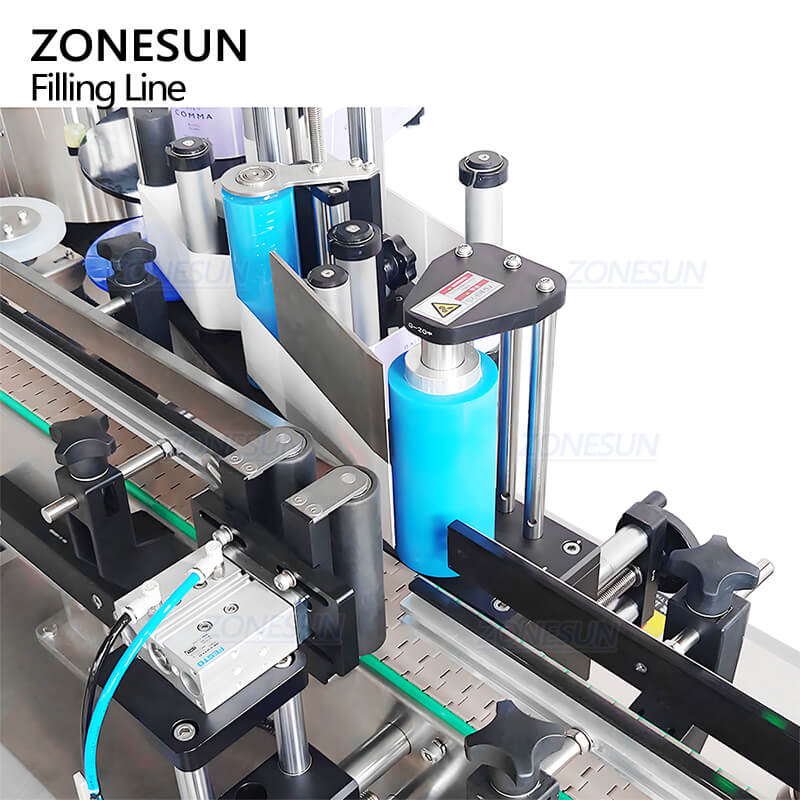

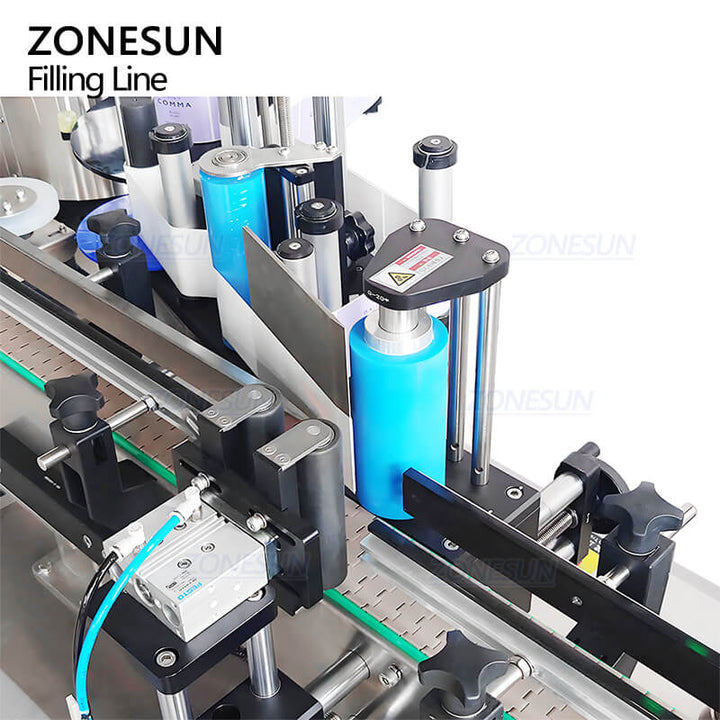

labeling structure of automatic perfume filling line
Labeling Structure
Three roller bar finish labeling work, it suits single side, double sides and wrap-around labeling, can reach 20-50 BPM.

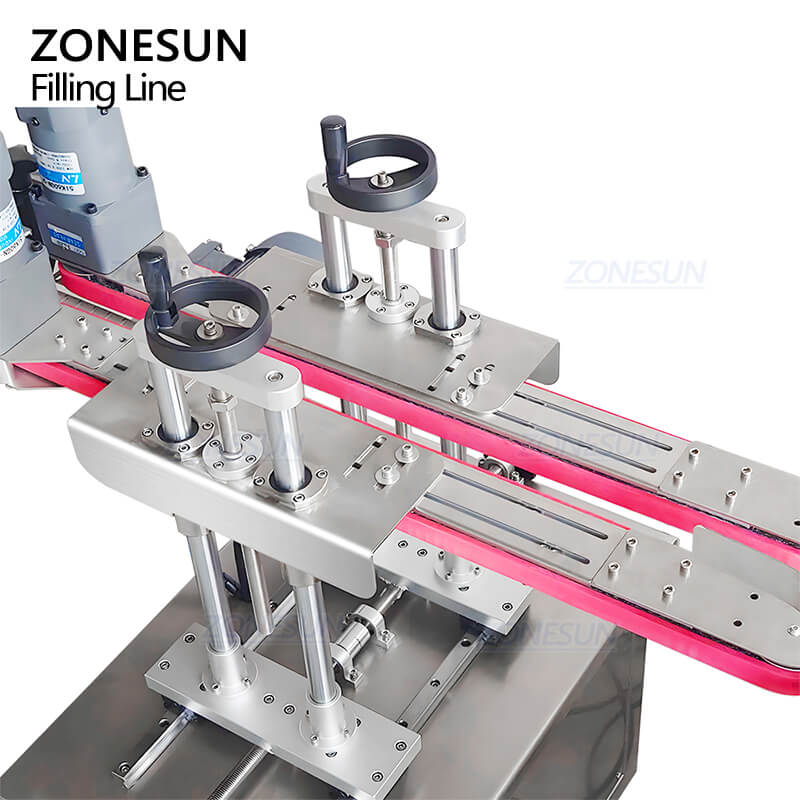

conveyor of automatic perfume filling line
Bottomless Conveyor
Can pass bottles and regularly work with optional inkjet coding machine to realize complete packaging work.

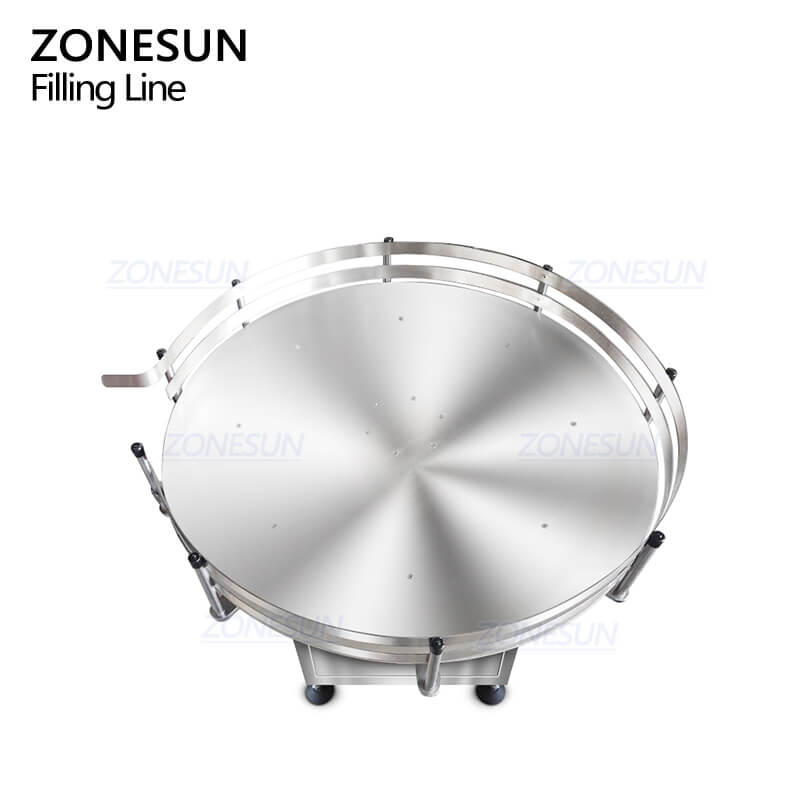

bottle turntable of automatic perfume filling line
Bottle Turntable
Size of turntable machine is customizable based on production, saves working labor.
body mist filling line
