ZONESUN ZS-FAL180F10 Fully Automatic Servo Piston Pump Degreaser Cleaner Trigger Pump Spray Bottle Filling Capping Labeling Packaging System
Regular price
$30,39900 USD
$30,399.00 USD
Regular price
Sale price
$30,39900 USD
$30,399.00 USD
Save $-30,399 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

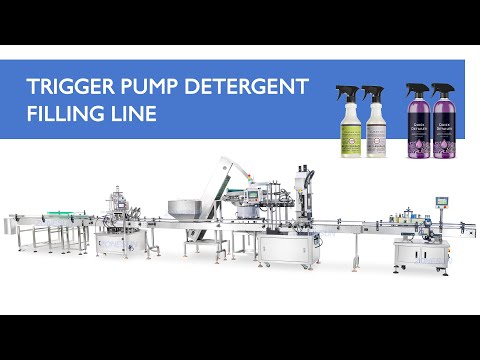

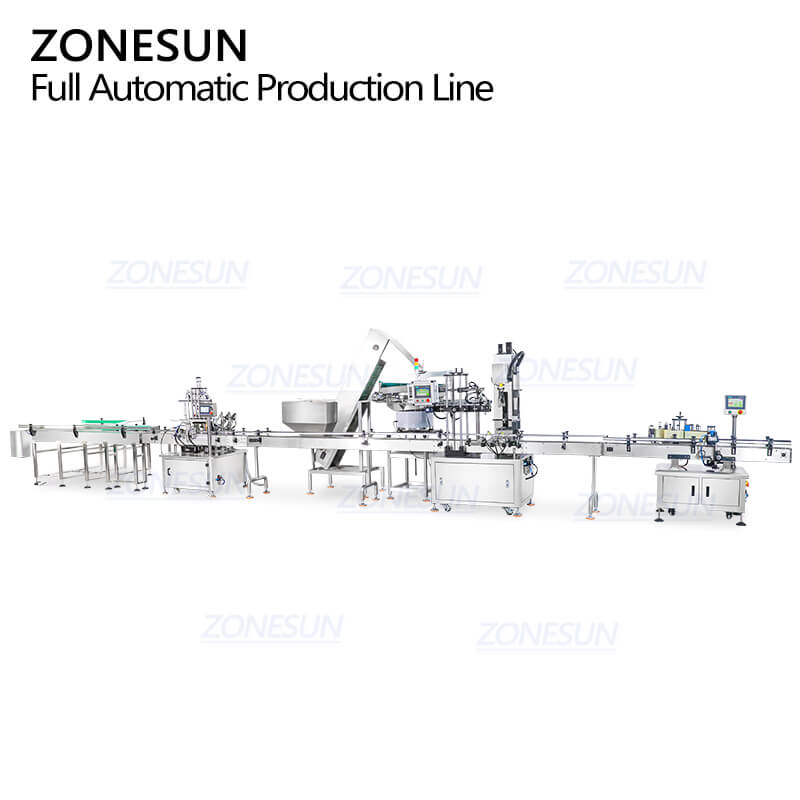

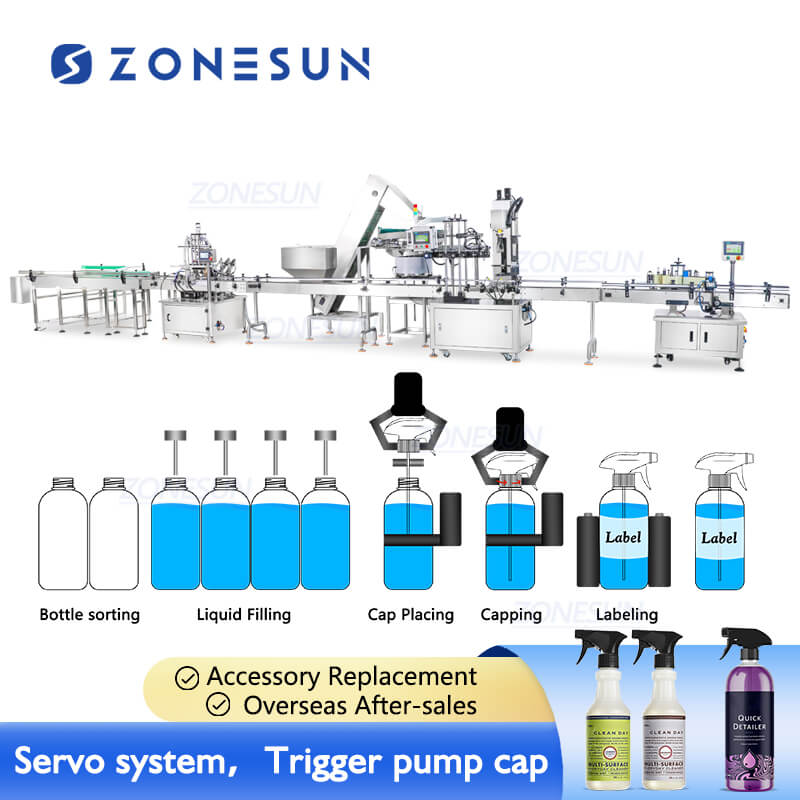

This filling system is designed for fill liquid into bottles, tighten trigger pump bottles and label self-adhesive sticker on round bottles.It is suitable for small or medium scale production of detergent. Customized packaging solution is available according to production need.
Parameter
Accumulation Table
- Machine Mode: ZS-CB190
- Machine Power: 1.5KW
- Conveyor Size: 1760*1425mm+960*190.5mm
- Conveyor Width: 190.5mm(Single)
- Working Speed: 0-20m/min
- Package Size: 2050*1720*720mm
- Package Weight: 276kg
Servo Liquid Filling Machine
- Machine Model: ZS-SV4HS
- Voltage: 220V/110V 50-60Hz
- Power: About 6kW
- Filling Range: 100-1000ml(Can be customized)
- Filling Nozzle Quantity: 4
- Filling Pump: Piston Pump
- Filling Speed: About 30-70 bottles/min (depending on bottle size and filling
- material)
- Filling Error: About ±0.5%
- Air Pressure: 0.5-0.8Mpa
- Conveyor Belt Size: About 114*2000mm(W*L)
- Machine Weight: About 130kg
- Package Size: About 2070*760*1670mm
- Package Weight: About 275kg
Trigger Pump Capper
- Machine Model: ZS-XG445A
- Voltage: 110/220V
- Power: 900W
- Capacity: 5-23 Bottle/Min(based on bottle and cap size)
- Material: 304 SUS
- Air Pressure: 0.6-0.8Mpa
- Suitable Bottles: Customize according to sample
- Cap Feeding way: Pneumatic fetch
- Capping Way: Servo drive screw capping
- Machine Size: About4520*1480*2400mm
Round Bottle Labeling Machine
- Model: ZS-TB260R
- Power Supply: AC220V 50Hz/60Hz 1000W
- Labeling Capacity(bottles/min): 25-50 bottles/min(depends on bottle size)
- Labeling Accuracy(mm): ±1.0mm
- Suitable Bottle Diameter: Φ12-100mm
- Label Size(mm): (L)20-300mm (H)15-150mm
- Roll Inside diameter(mm): Φ76mm
- Roll Outside diameter(mm): Φ350mm
- Conveyor Size: 112*2000mm(W)
- Machine Size: About (L)2000*(W)820*(H)1380(mm)
- Machine Weight: About 180kg
- Packing Size: About (L)2100*(W)890*(H)1520(mm)
- Package Weight: About 250kg

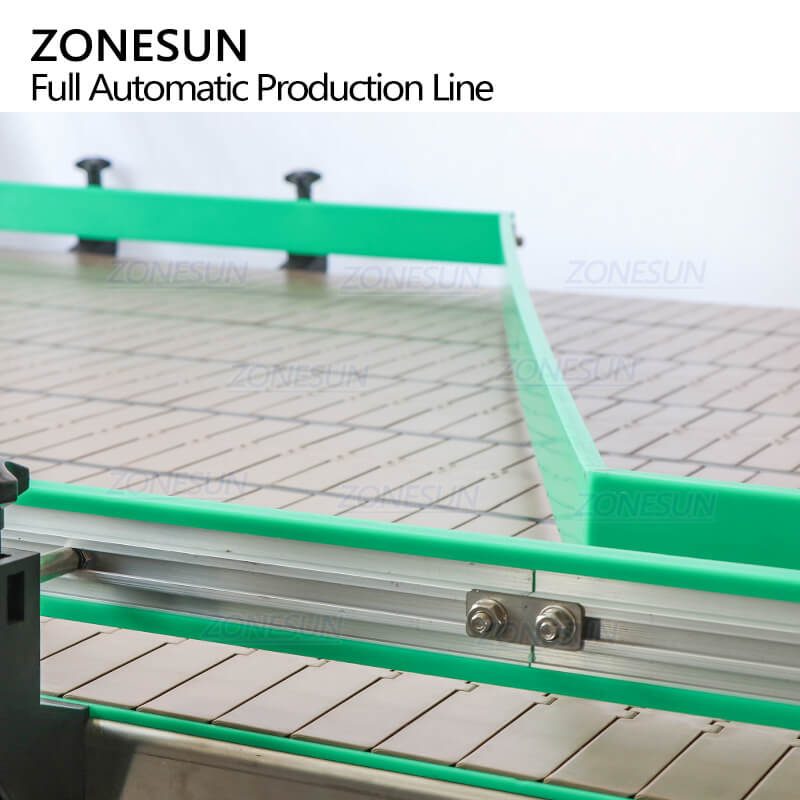

Accumulation Table
This ensures that upstream processes can continue running smoothly.
This ensures that upstream processes can continue running smoothly.

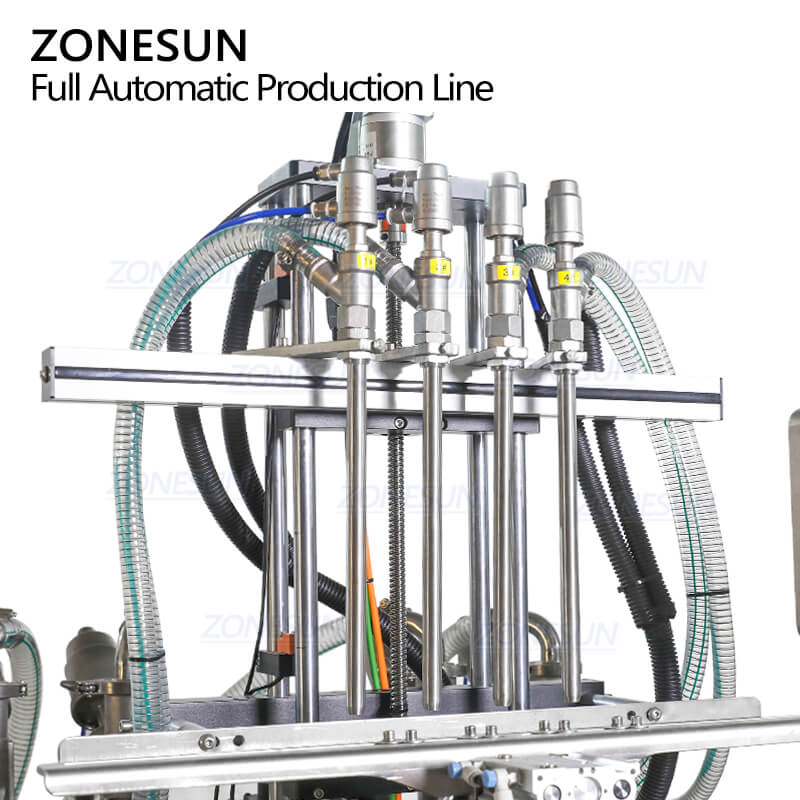

Anti-dripping Diving Nozzle
Good for foamy liquid and can prevent liquid from spraying out during filling.
Good for foamy liquid and can prevent liquid from spraying out during filling.
Servo Piston Pump
Makes machine operation more conveniently and improves filling accuracy.
Makes machine operation more conveniently and improves filling accuracy.

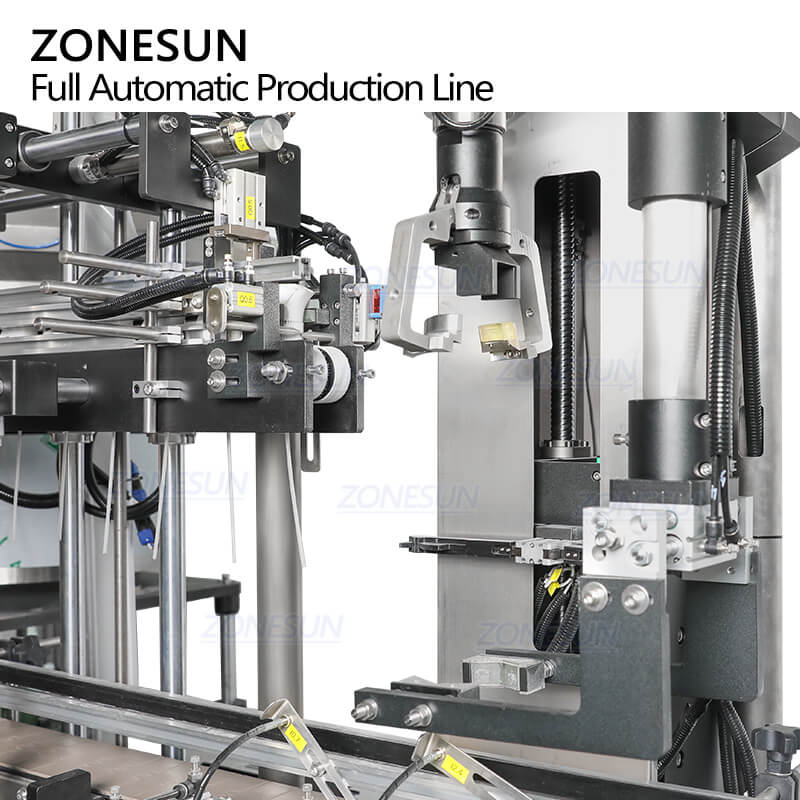

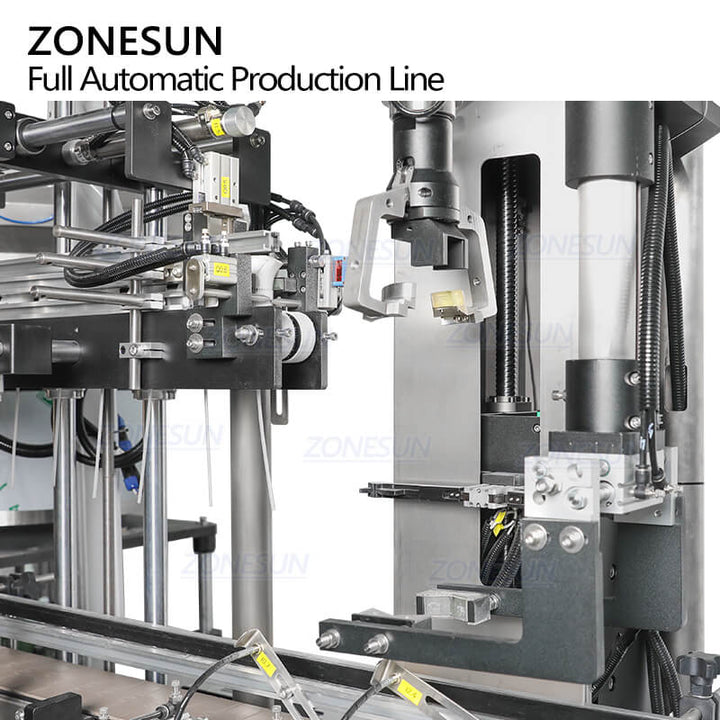

Cap Feeding & Screwing Structure
Imitating human hands to place cap, the servo capping machine controls the capping to improve the working accuracy
Imitating human hands to place cap, the servo capping machine controls the capping to improve the working accuracy
Cap Elevator Machine
Customized according to cap size, it can supply trigger pump caps in time and save working labor.
Customized according to cap size, it can supply trigger pump caps in time and save working labor.
Vibratory Bowl Sorter
Make caps be in order before capping work and transport them to cap feeding structure.
Make caps be in order before capping work and transport them to cap feeding structure.

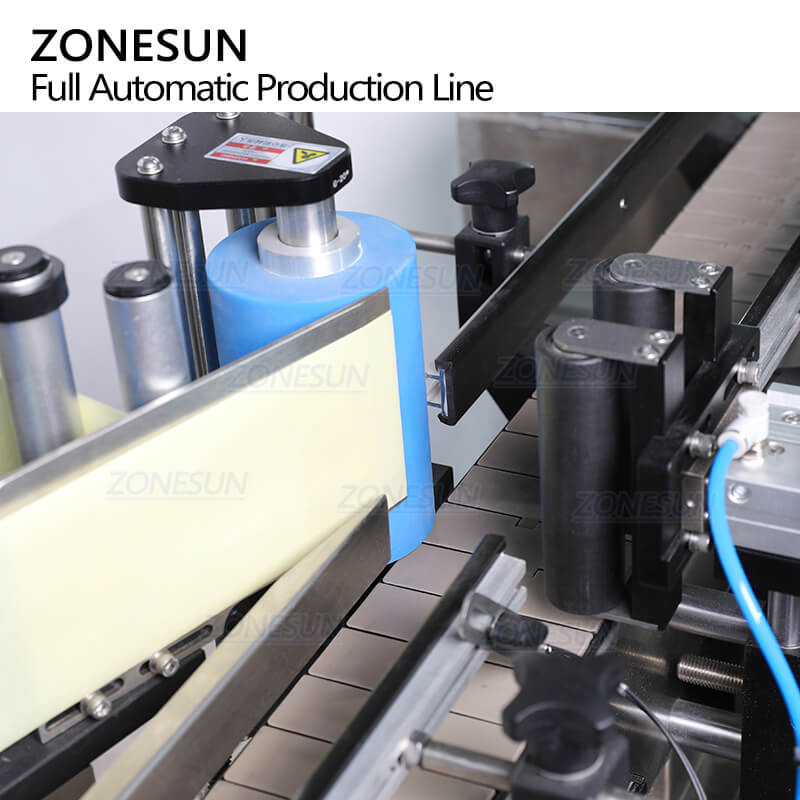

Labeling Structure
Good for sticking labels on round bottles, single/double sides and wrap-around labeling are available.
Good for sticking labels on round bottles, single/double sides and wrap-around labeling are available.
