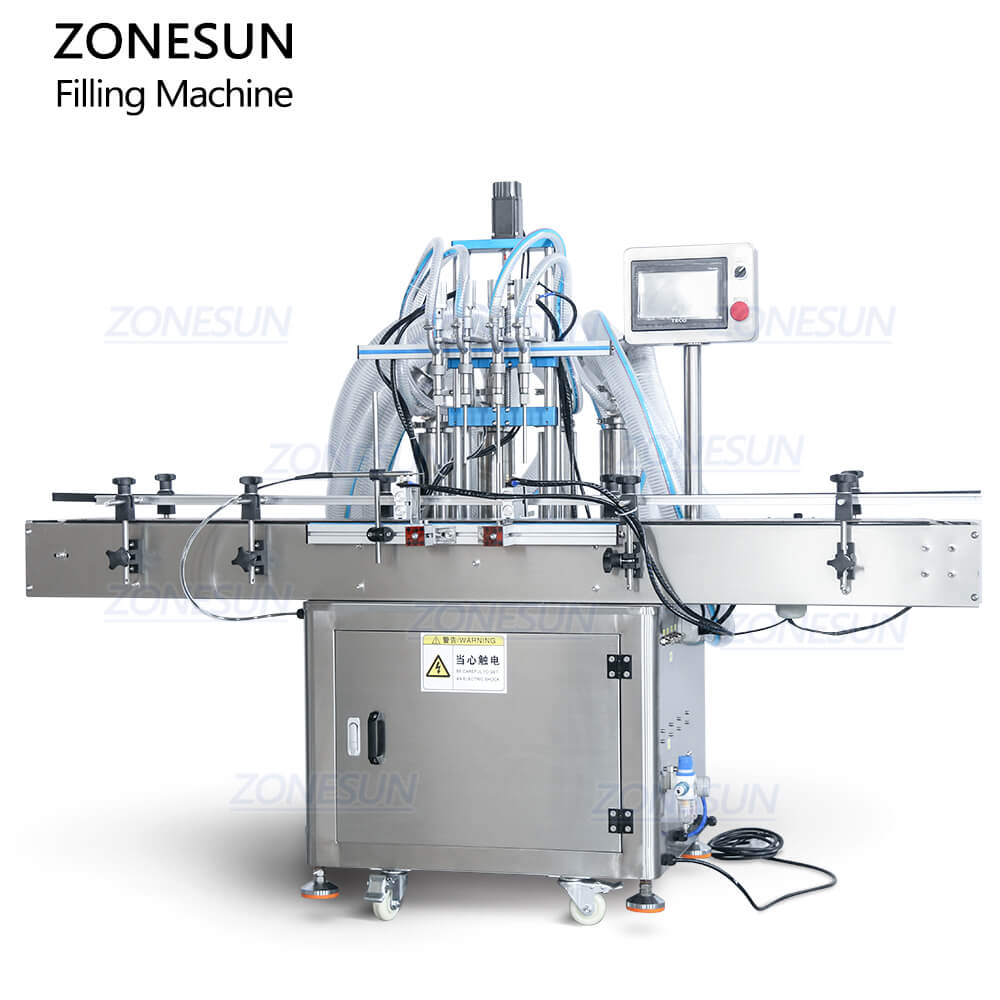

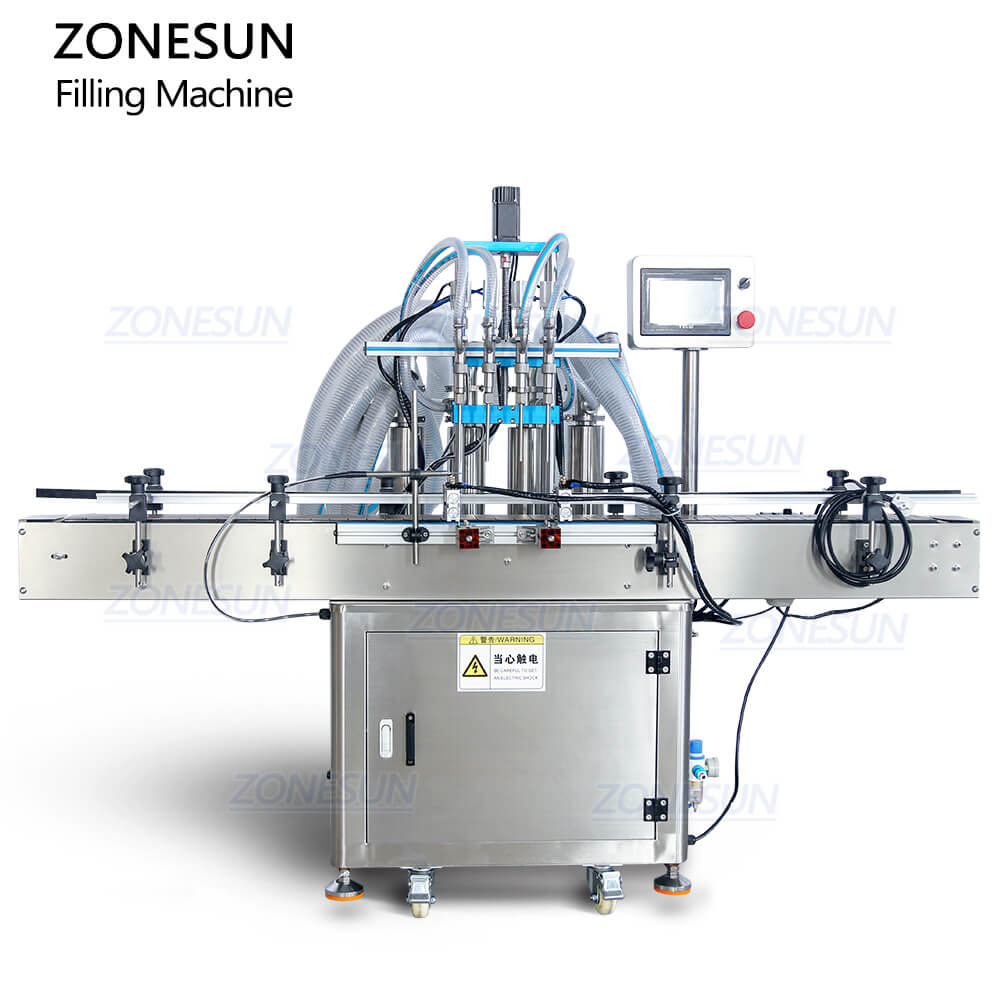

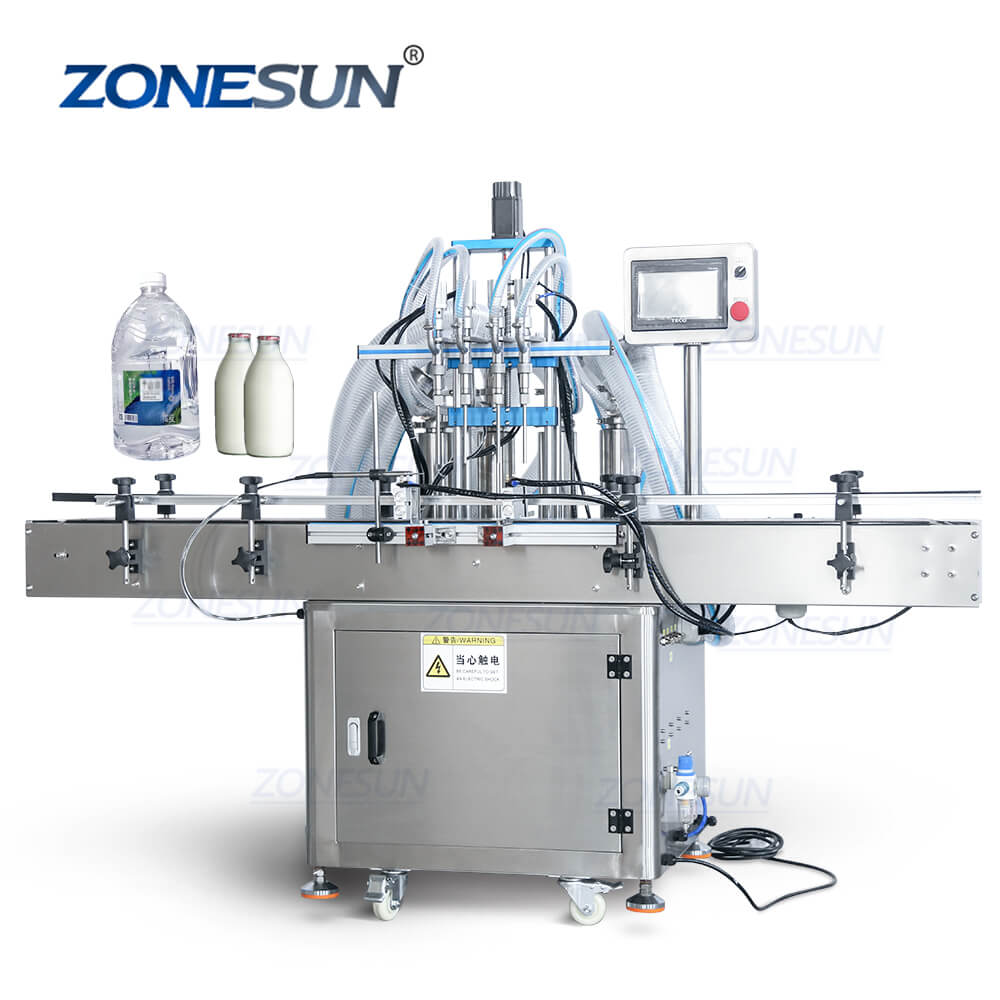

ZS-SV4HS Automatic Piston Pump Cosmetic Shampoo Gel Quantitative Liquid Filling Machine

Automatic Detergent Filling Machine
ZS-SV4HS Automatic Piston Pump Cosmetic Shampoo Gel Quantitative Liquid Filling Machine
Filling Nozzle of Automatic Shampoo Filling Machine
Electric Eye of Automatic Shampoo Filling Machine

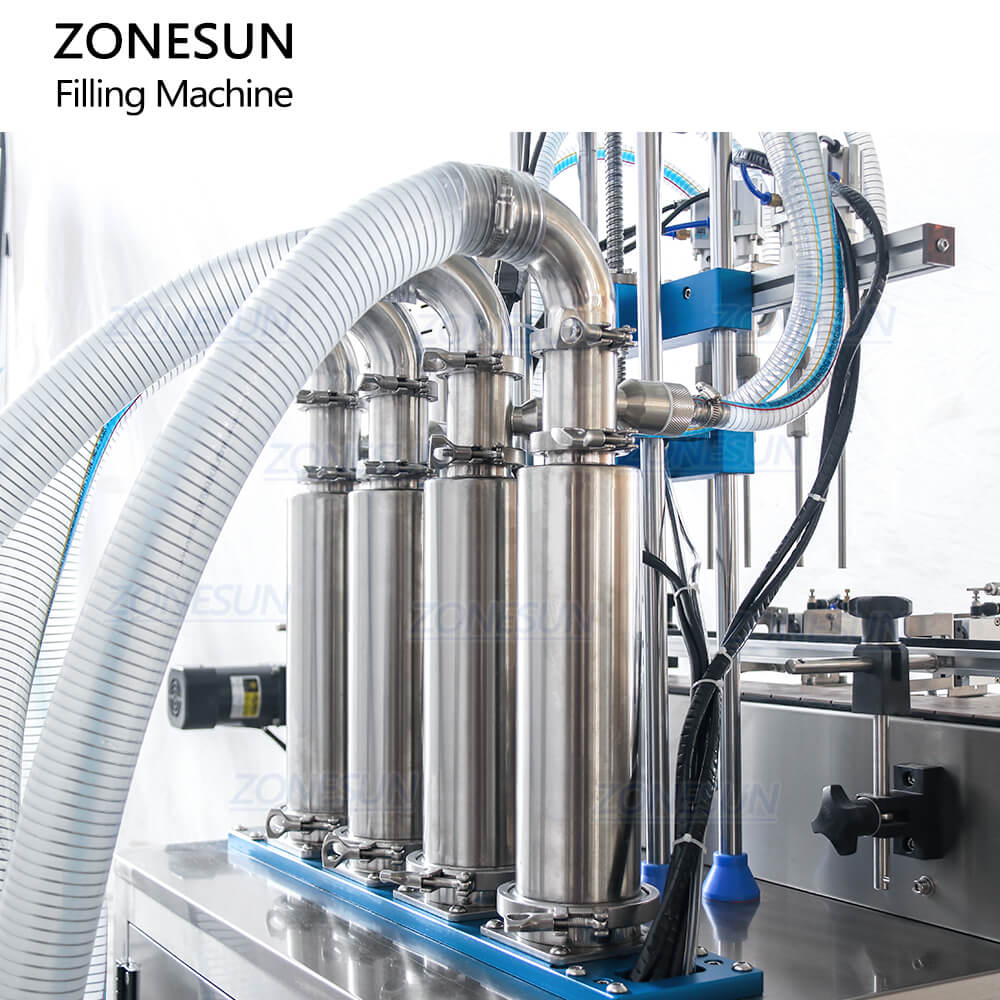

Material Cylinder of Automatic Shampoo Filling Machine
Automatic Filling Machine For Shampoo
Full Automatic Thick Liquid Filling Machine

ZS-SV4HS Automatic Piston Pump Cosmetic Shampoo Gel Quantitative Liquid Filling Machine

Voltage
Regular price $6,199.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

This automatic quantitative filling machine can fill liquid by entering certain number through control panel to set filling volume.It has the feeding pump and can feed filling material automatically, larger filling range can be chosen as production need.It is widely used in food,daily chemical and cosmetics industries.

Parameter

Machine Model:ZS-SV4HS
Voltage:220V/110V 50-60Hz
Power:About 6kW
Filling Range:100-1000ml(Can be customized)
Filling Speed:About 30-70 bottles/min
(depending on bottle size and filling material)
Filling Error:About±0.5%
Air Pressure:0.5-0.8Mpa
Conveyor Belt Size:About 114*2000mm(W*L)
Machine Weight:About 130kg
Package Size:About 2070*760*1670mm
Package Weight:About 275kg

Automatic Shampoo Filling Machine

Application of Automatic Shampoo Filling Machine

Machine Componet BrandMachine Component of Automatic Shampoo Filling Machine

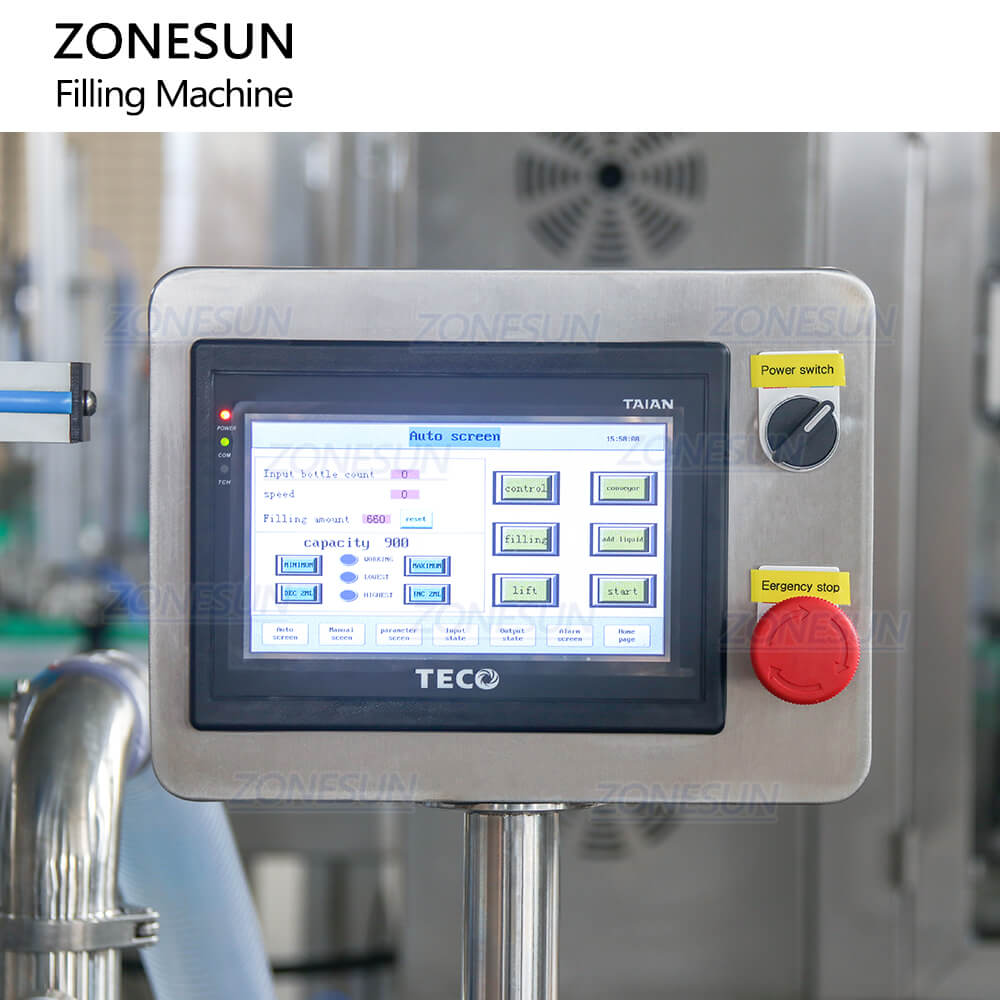

Control Panel of Automatic Shampoo Filling Machine

Equipped with touch screen panel, it is easy to set or adjust working parameters.The language of panel can be customized as needed.

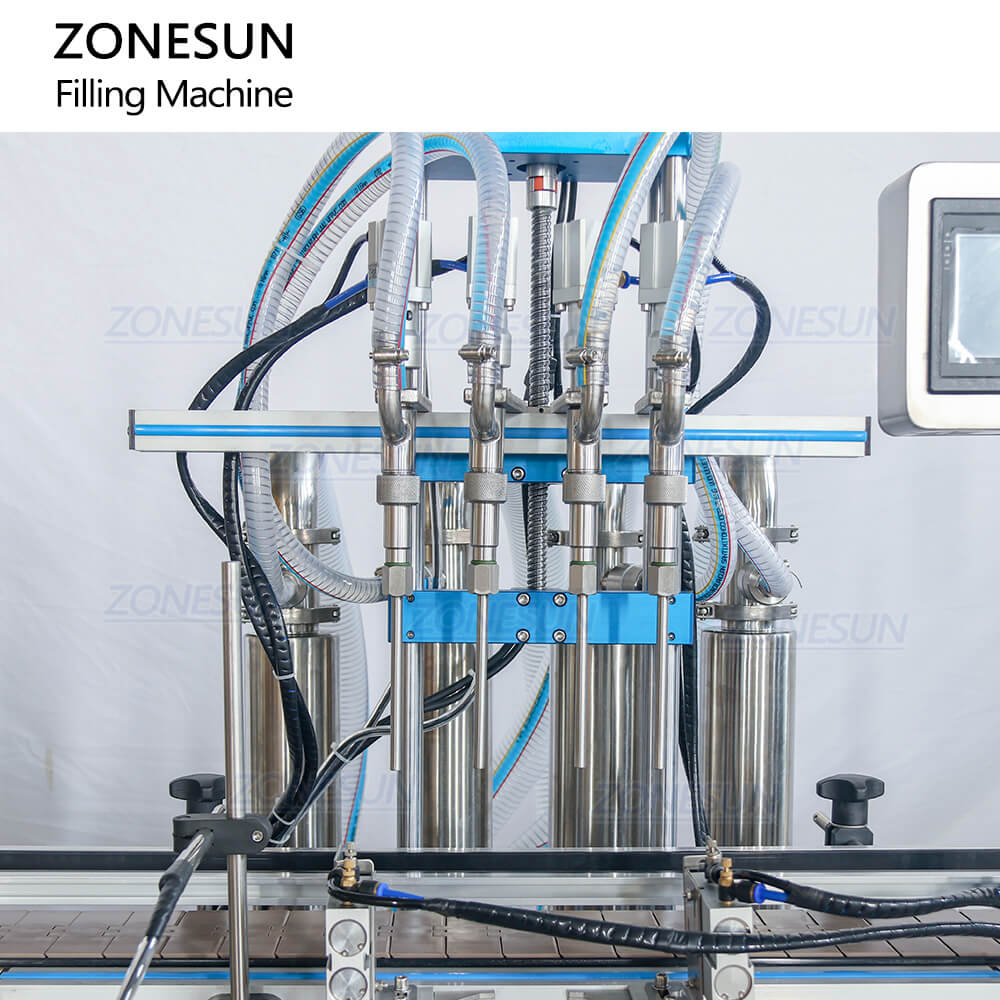

Filling Nozzle of Automatic Shampoo Filling Machine

Equipped with diving nozzles,it can prevent liquid from splashing out during filling.Each nozzles can be controlled separately,ensuring filling accuracy.The quantity of nozzles can be customized as needed.

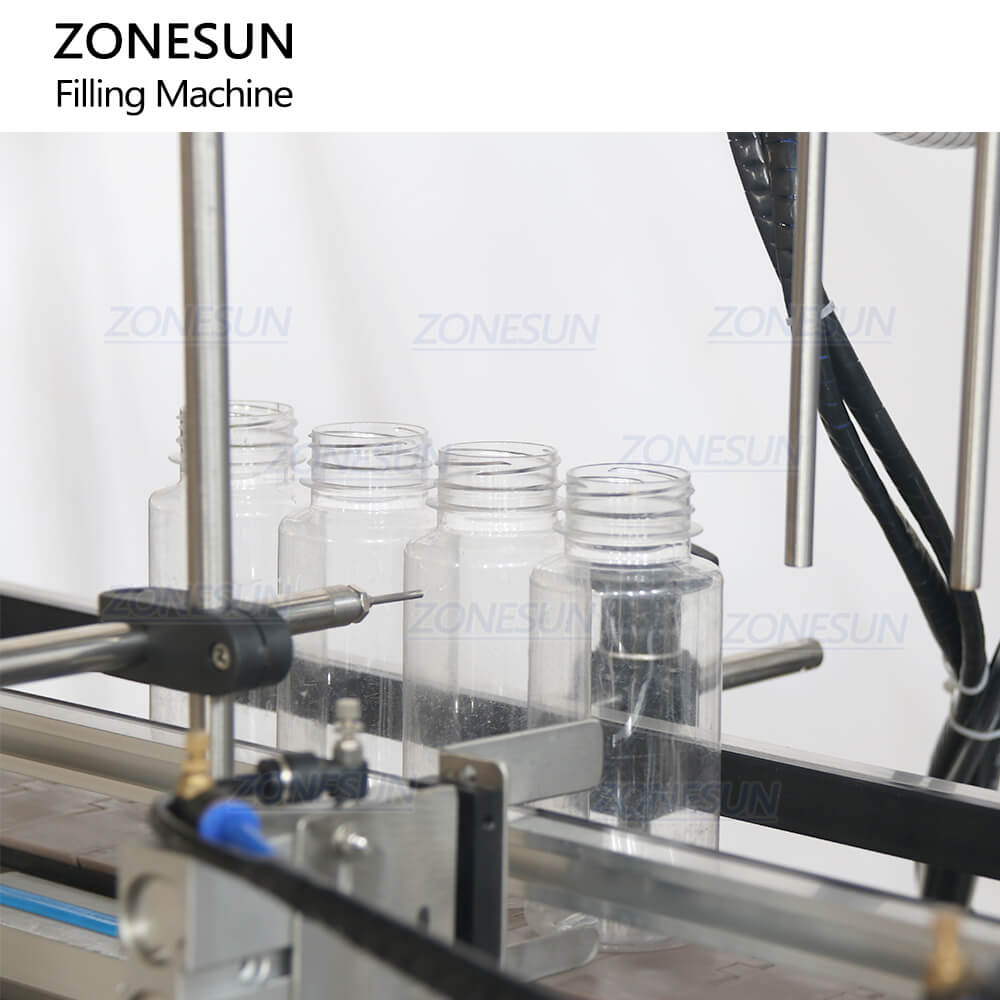

Electric Eye of Automatic Shampoo Filling Machine

The electric eye is designed for detecting bottles and controlling machine to run automatically,saving labor cost.The sensitivity of it can be adjusted as needed.

Conveyor of Automatic Shampoo Filling Machine

With chain conveyor belt,it has large loading capacity,which can transport bottles stably.The conveying speed and width of conveyor belt can be adjusted according to production need.

Machine Component of Automatic Shampoo Filling Machine

This machine is equipped with high-quality machine components,which ensures long service life and enables machine to run steadily.

Automatic Piston Pump Detergent Filling Machine
