ZONESUN ZS-XG05 Automatic Servo Motor Fruit Jam Jar Tomato Paste Chili Sauce Bottle Metal Lug Caps Screwing Capping Machine Tightening Equipment

Voltage
Price
Regular price $7,399.00 USD
Regular price Sale price $7,399.00 USD
Save $-7,399 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Video For Bottle Capping Machine

This automatic bottle capper work with the cap elevator to realize automated cap feeding, and cap screwing.It is suitable for twist off bottles/jars, screw-on drinks bottle etc.It is usually work with automatic filling machine and labeling machine to realize automated production in jam, drinks industries.

Parameter

  • Machine model:ZS-XG05
  • Voltage:110/220V 50-60HZ 3KW
  • Working speed:20-40 bottles/min(based on product size)
  • Bottle height:About 80-300mm
  • Bottle caps diameter:About Φ30-90mm
  • Bottle caps height:Customized
  • Air pressure:0.4-0.6MPa
  • Machine size(L*W*H):About 3500-2000*2300mm(L*W*H)
  • Machine weight:About 450kg
  • Package size:About 2100*770*1770mm (Main Machine)+About 2200*870*1430mm (Cap Elevator)
  • Package weight:About 286kg (Main Machine)+About 245kg (Cap Elevator)

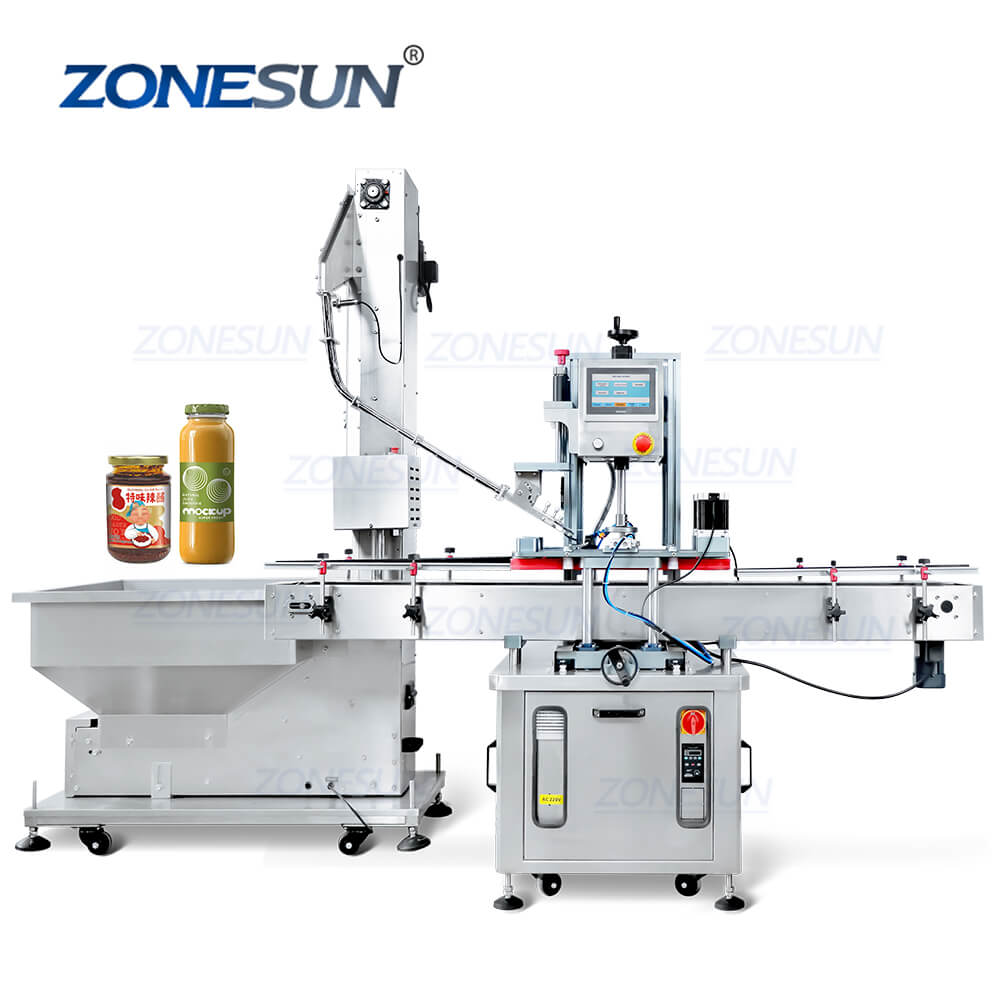

bottle capping machine

application of bottle capping machine

jar capping machine

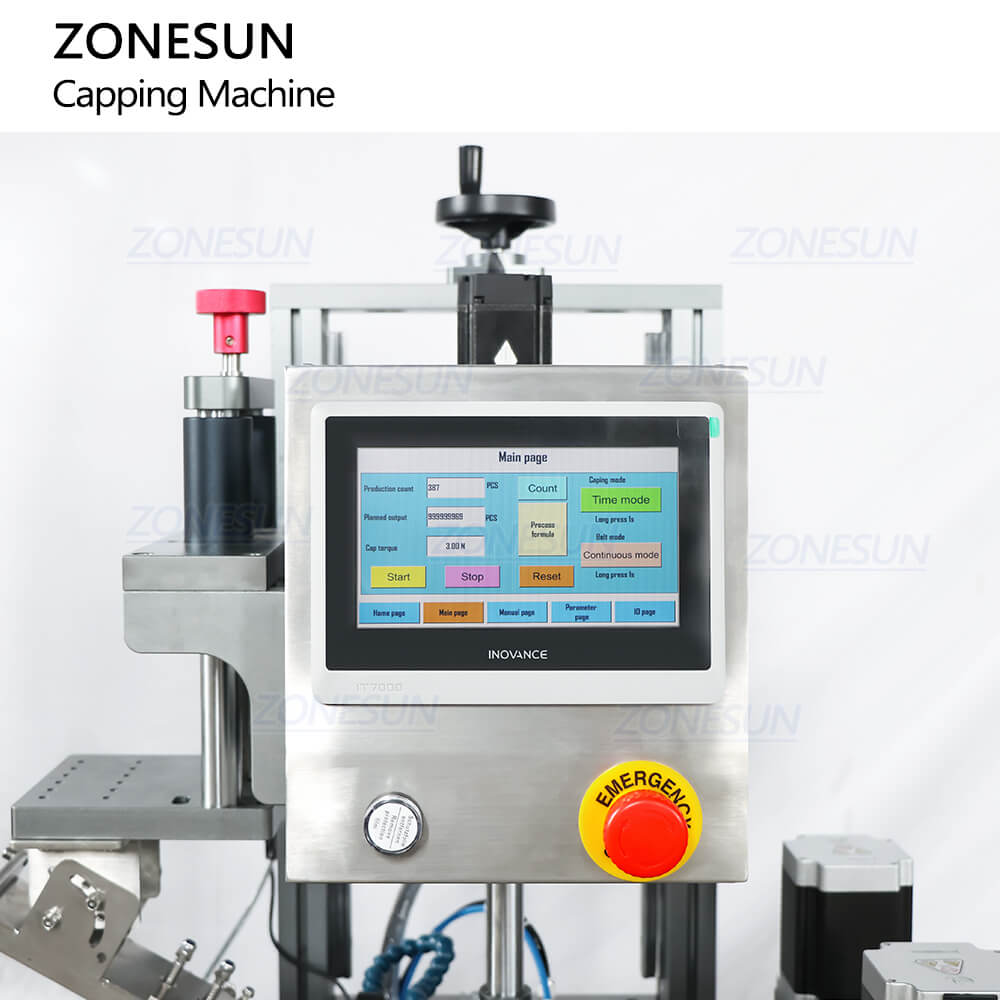

control panel of jar capping machine

Equipped with touch screen control panel, it shows working data more visually and help operator to watch working status in real time.Different kinds of operation language can be customized as operation need.

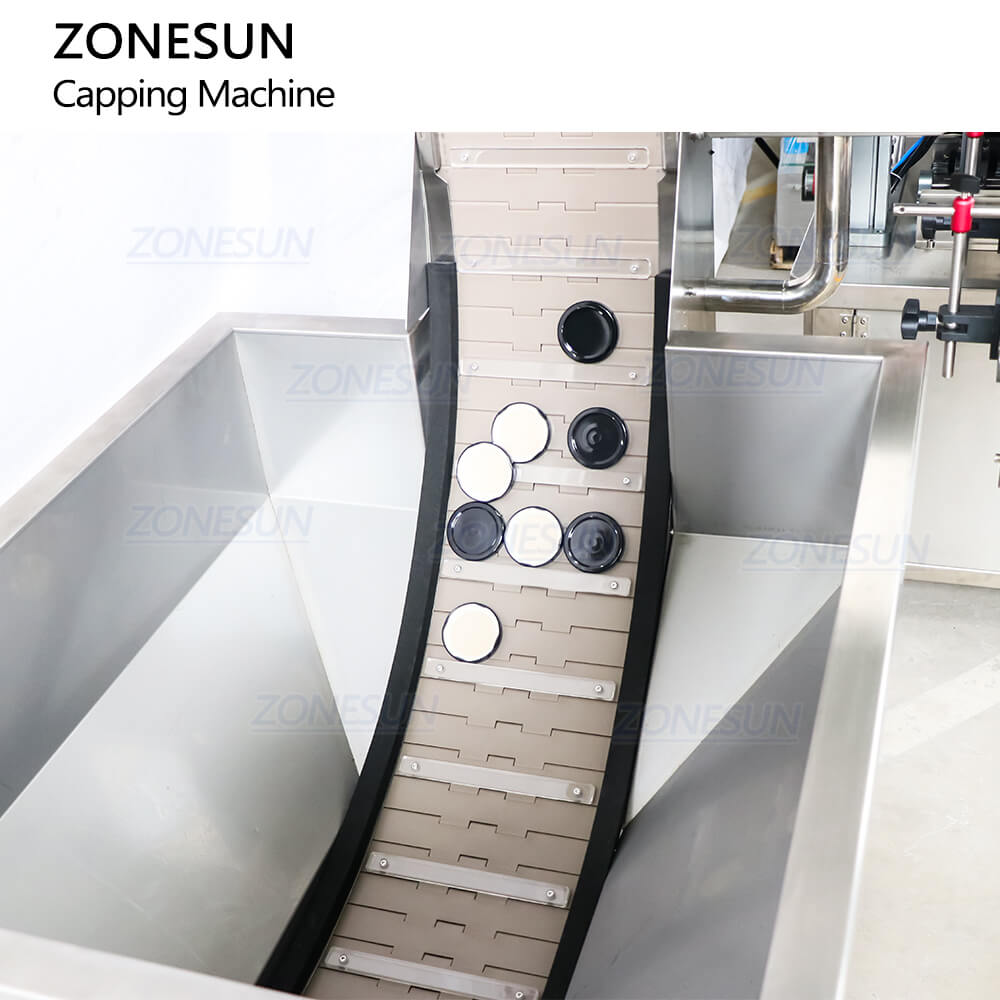

cap feeding elevator of jar capping machine

Work with cap elevator, it is easier to pour bottle caps, and the machine will arrange caps orderly and supply them time in time.This saves working labor and reduce production error.

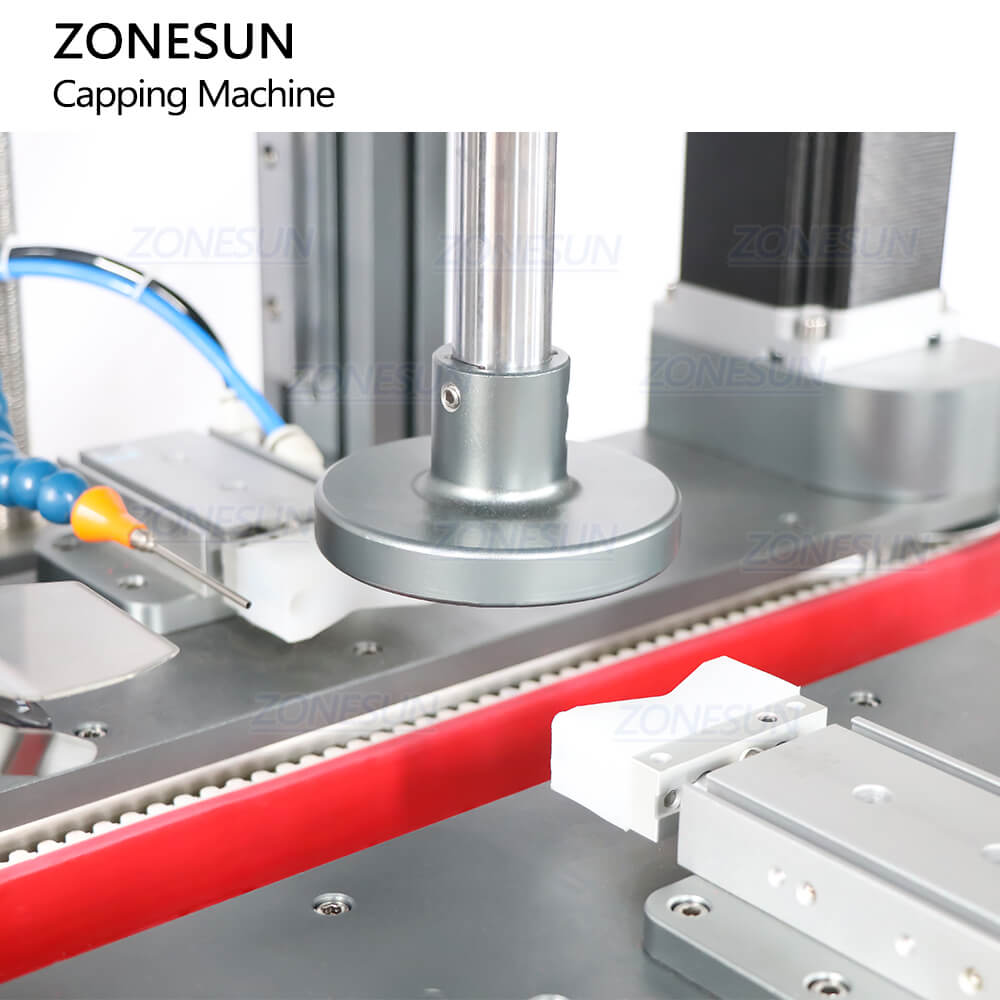

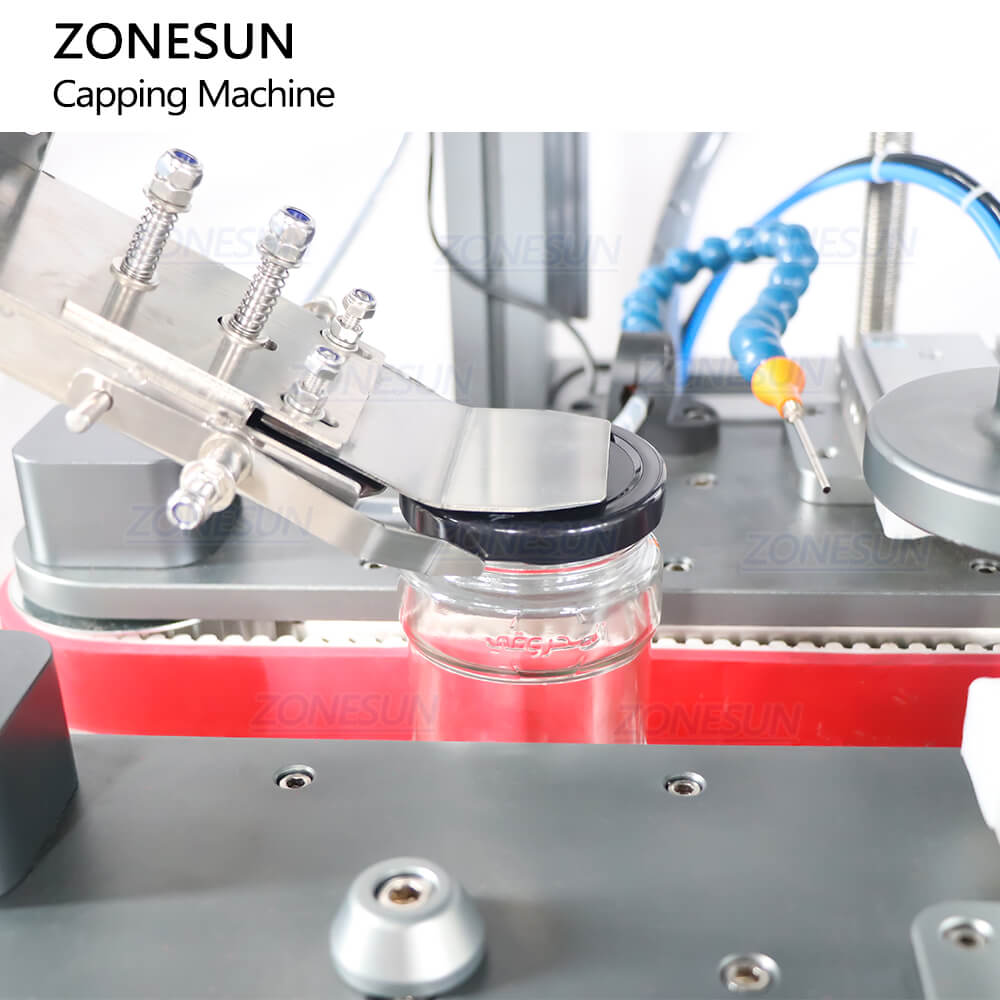

capping structure of jar capping machine

The bottle clamping structure can fixed bottles during capp. This capping machine is controlled by servo motor, it has higher capping accuracy.

electric eye  of jar capping machine

The electric eye is used to detect passing by bottles, it will send the signal to machine system and control the machine to work automatically.

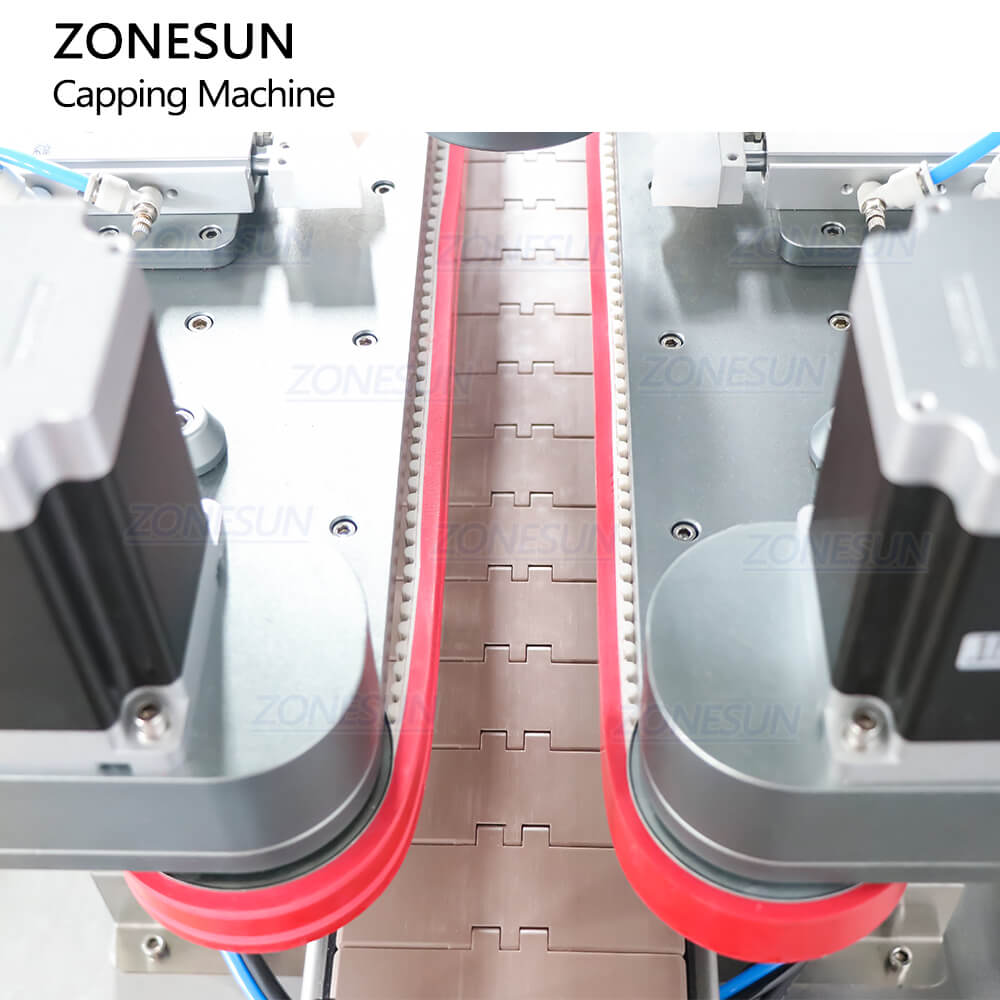

bottle guiding conveyor of jar capping machine

The bottle guiding structure can help to transport bottles stably, it can prevent bottles from falling down during capping.

automatic jar capping machine
