ZS-YT6T-6PXH Automatic Servo Motor 6 Heads Chili Sauce Honey Paste Jam Jar Peanut Butter Bottle Filling Machine With Mixer Heater

Voltage
Price
Regular price $11,699.00 USD
Regular price Sale price $11,699.00 USD
Save $-11,699 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

Controlled by servo motor, this 6 heads piston pump filler has high filling accuracy and can set filling volume by intuitive value.Equipped with hot water circulation system, ensure filling material can be filled in constant temperature, it is suitable for filling chocolate jam, hot sauce, jam etc.

Parameter

  • Machine Model:ZS-YT6T-6PXH
  • Voltage:480V
  • Power:6KW
  • Filling Heads:6 Heads(Can be customized)
  • Filling Range:10-300ml(Can be customized)
  • Filling Speed:About 20-70bottles/min(depending on materials and bottle size)
  • Suitable temperature range:≤80℃
  • Mixing speed:About 50r/min
  • Filling Accuracy:±1%
  • Air Pressure:0.5-0.8MPa
  • Memory Function:Available
  • Machine size:About 2500*950*1900mm(L*W*H)

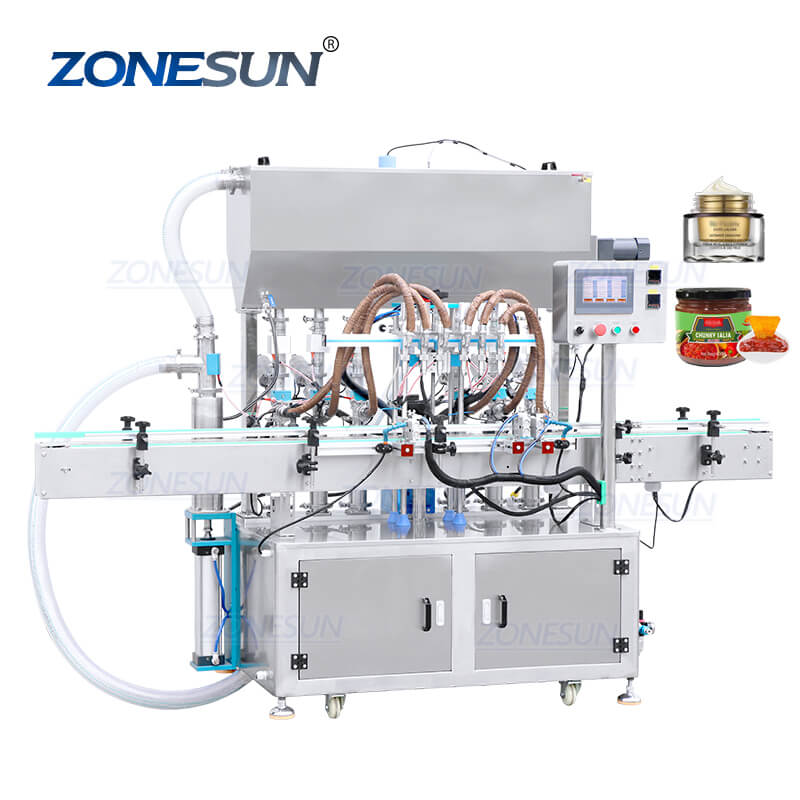

chili sauce filling machine

application of jam filling machine

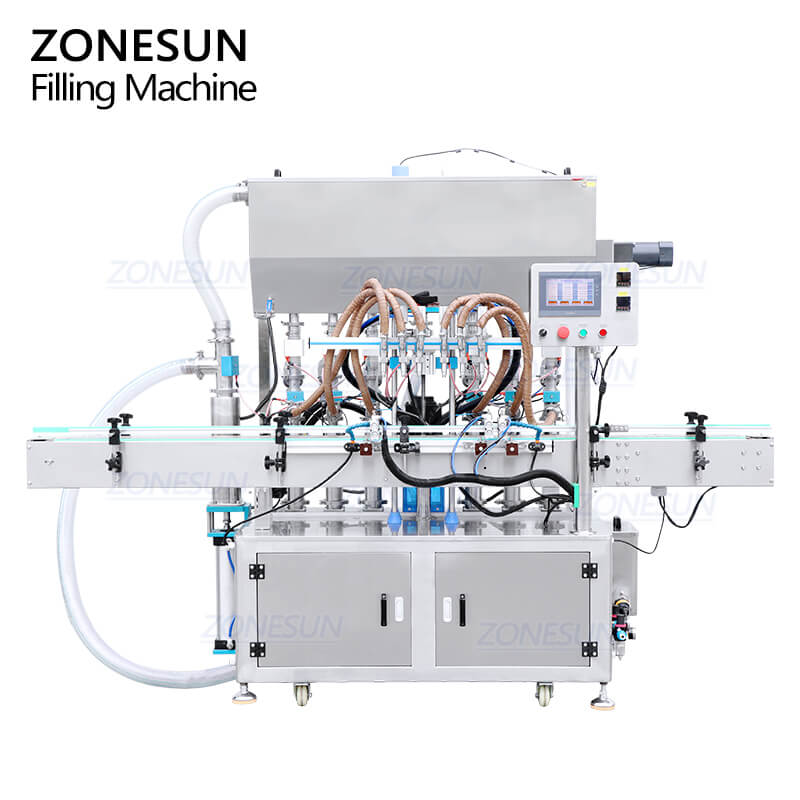

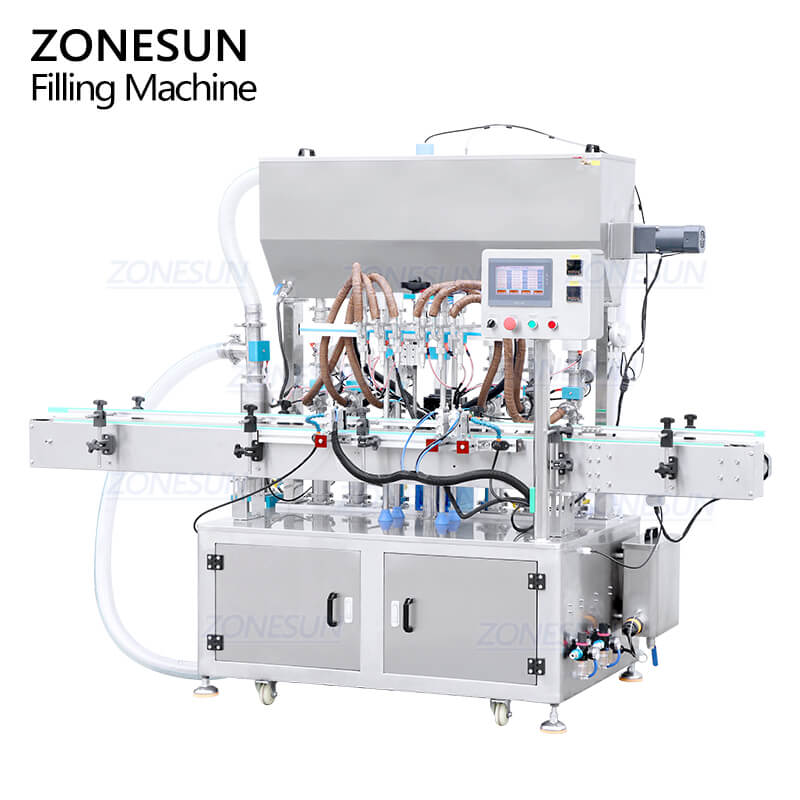

automatic jam filling machine

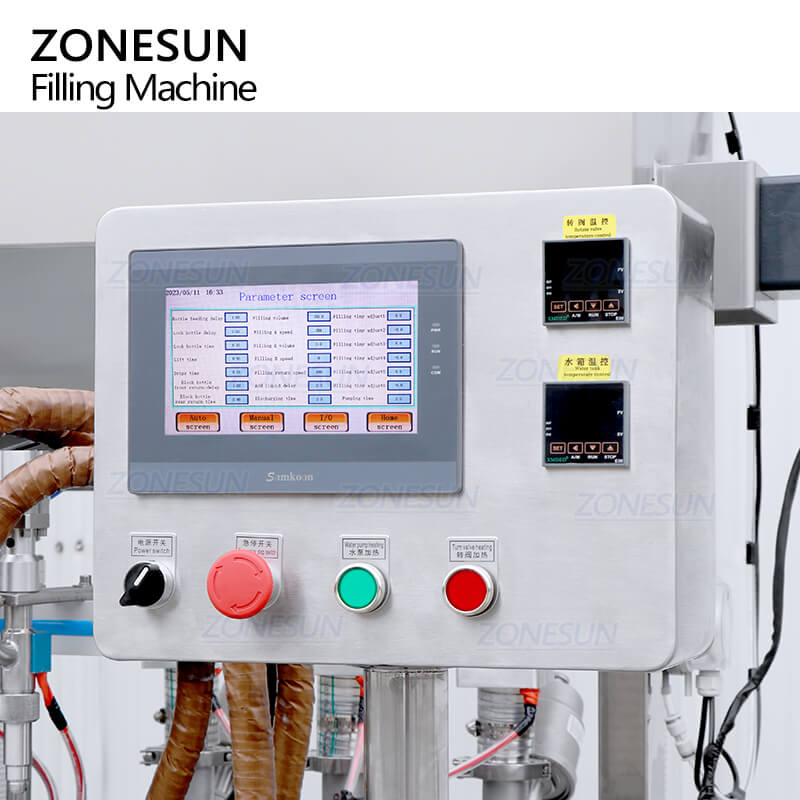

Control panel of hot sauce filling machine

Equipped with PLC touch screen control panel, it shows working parameter more intuitive, this is good for watch working status in real time.The interface can be customized into different kinds of language for easier operation.

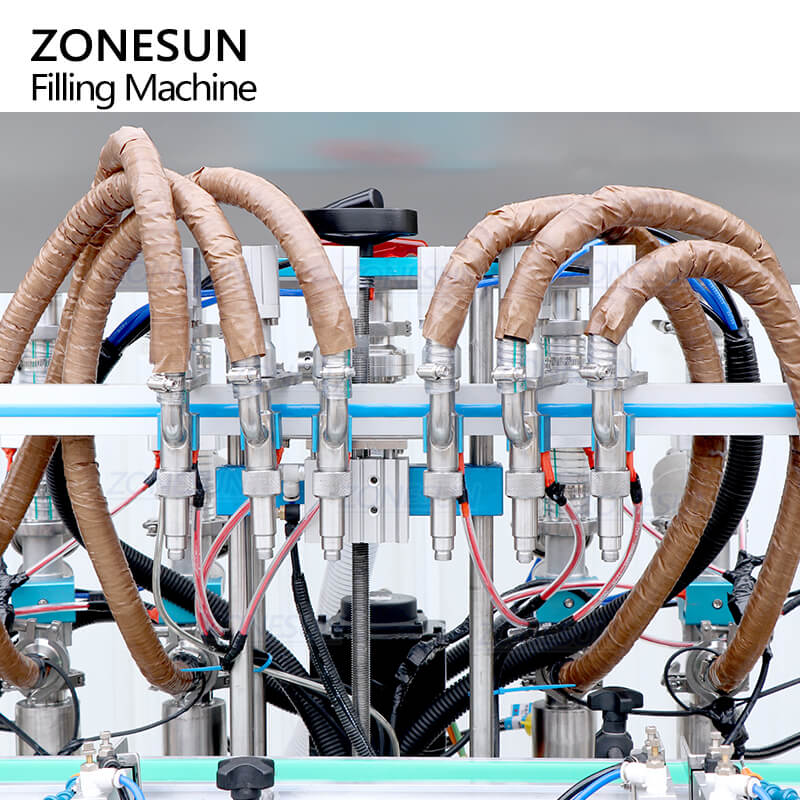

filling nozzle of hot sauce filling machine

The filling structure is made of food grade steel wire hose, the outside of the hose is wrapped with high-temperature cloth, which can effectively organize heat dissipation, so that the material can be filled at a constant temperature.

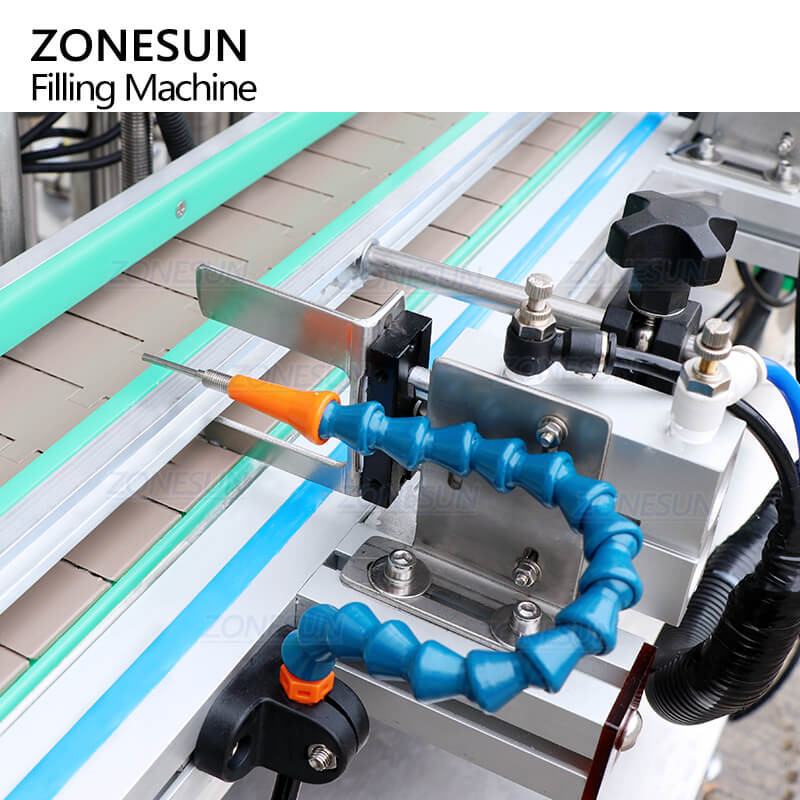

electric eye of hot sauce filling machine

Equipped with electric eye, it can detect passing by bottles and send the signal to control system to finish the automated filling work.The sensitivity can be adjusted as production need.

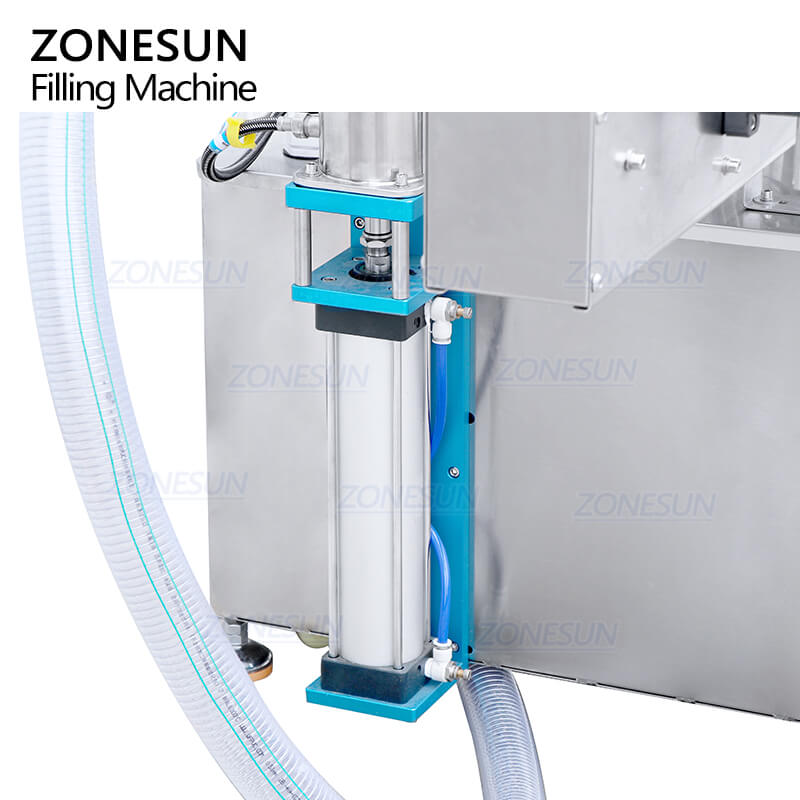

feeding pump of hot sauce filling machine

Equipped with feeding pump, it is powerfule for filling thicker liquid or paste.This can supply filling material in time and saves labor to pour filling material into hopper.

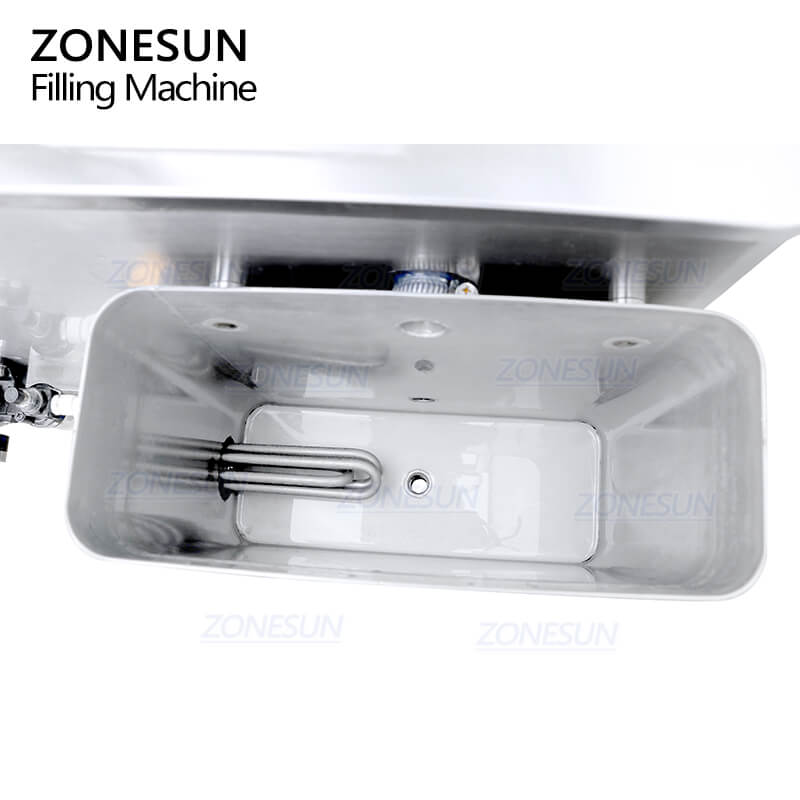

hopper of hot sauce filling machine

The large hopper can be used for temporary storage of filling materials, extra mixing or heating function can be customized according to production need.This machine has the hot water circulation system which can keep the filling material be at a constant temperature until it is filled.

Vaseline filling machine
