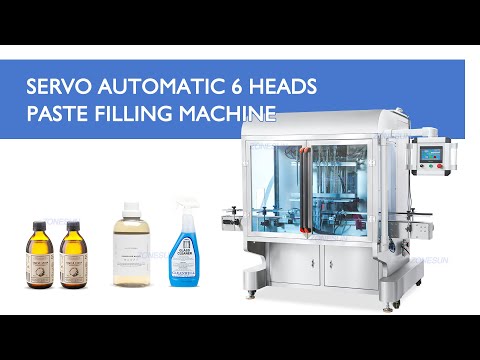

ZONESUN ZS-CL6T Automatic Servo Magnetic Pump 6 Heads Laundry Detergent Honey Shampoo Paste Filling Machine Bottle Filler Machine

Voltage
Price
Regular price $12,499.00 USD
Regular price $16,799.00 USD Sale price $12,499.00 USD
Save $4,300 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

This fully automatic servo 6-head filling machine adopts servo control system and magnetic pump, with high filling accuracy. The machine hopper has a liquid level monitoring system and automatic feeding function. The machine supports customization.

Parameter

  • Machine Model: ZS-CL6T
  • Voltage: 220V/110V 50-60Hz
  • Power: About 5.5kW
  • Working Speed: Max 42 bottles/min (based on 500ml)
  • Filling Range: 500-5000ml (Can be customized)
  • Filling Pump: Servo Magnetic Pump
  • Filling Accuracy: ≤±1%
  • Max Flow Rate: 45L/min
  • Filling Head Quantity: 6 (Can be customized)
  • Suitable Bottle Size: Height≤330mm; Diameter≤110mm
  • Hopper Capacity: About 320L
  • Conveyor Size: About 2440*114mm(L*W)
  • Machine Size: About 2440*1400*2150mm/ 96.1*55.1*84.6 in
  • Machine Weight: About 752kg

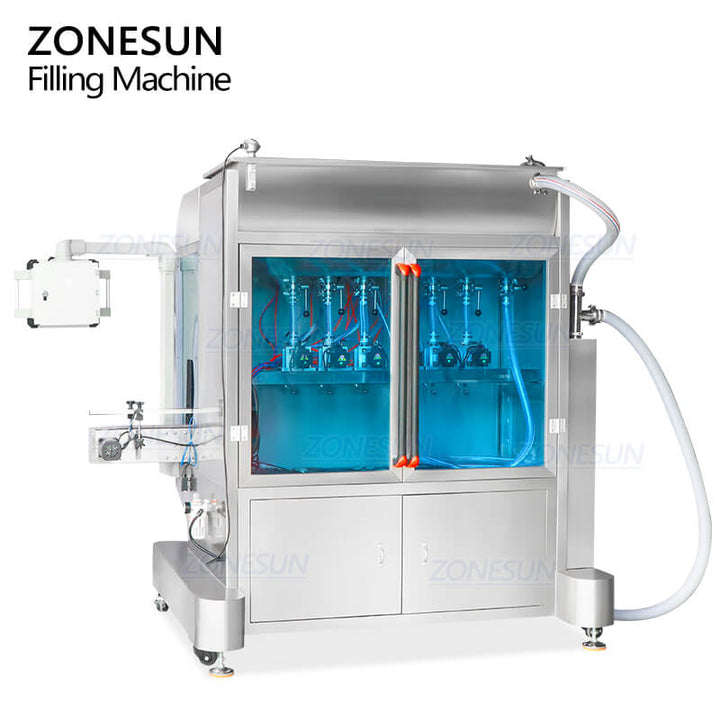

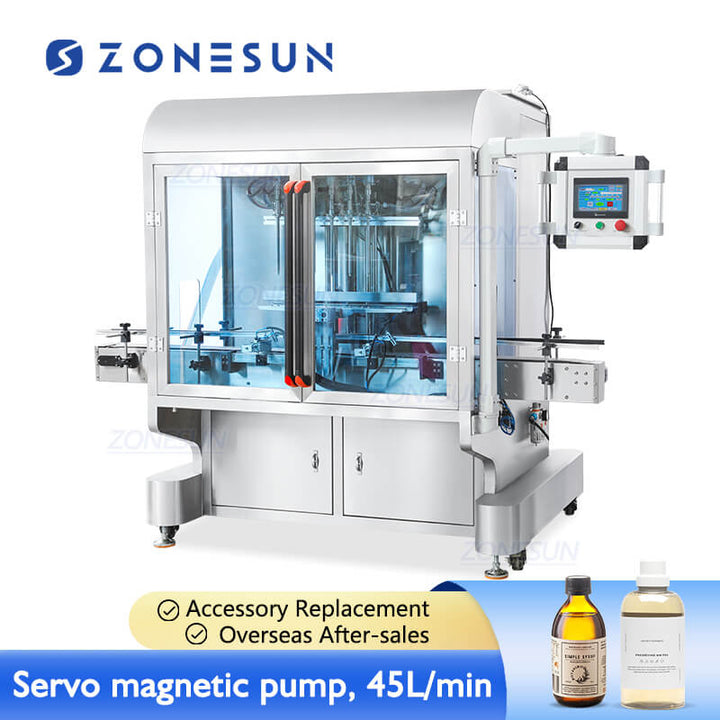

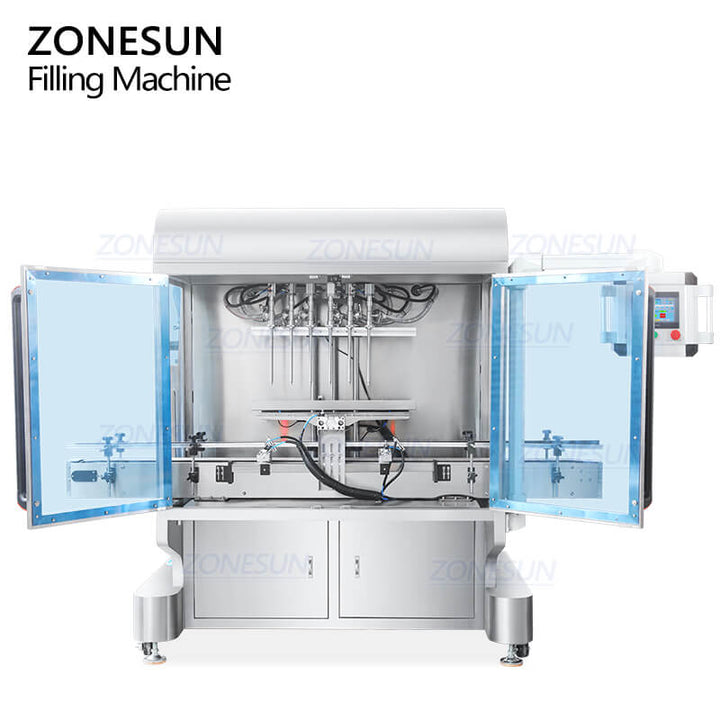

servo filling machine
application of servo filling machine
parameter of servo filling machine

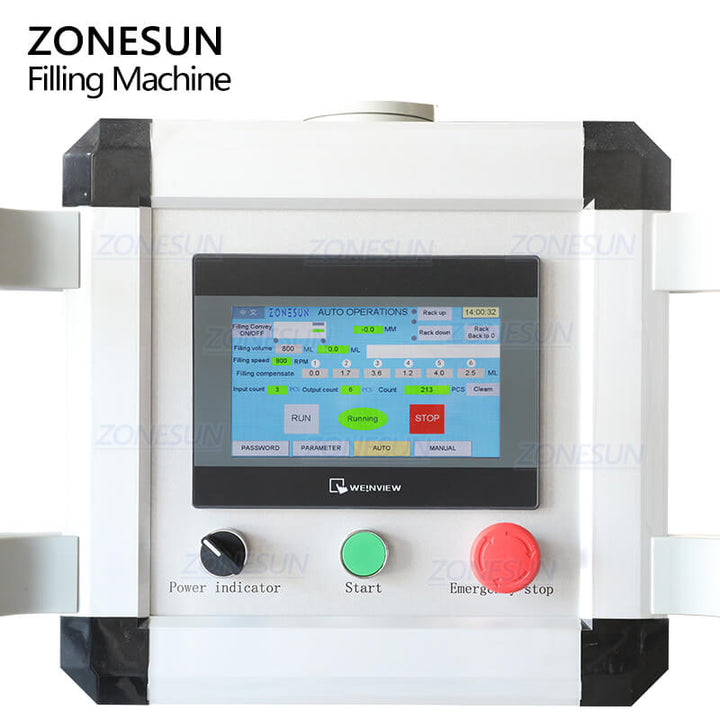

panel of servo filling machine
Touchscreen Panel
Easy to set working parameters like filling volume. The language of control panel can be customized.

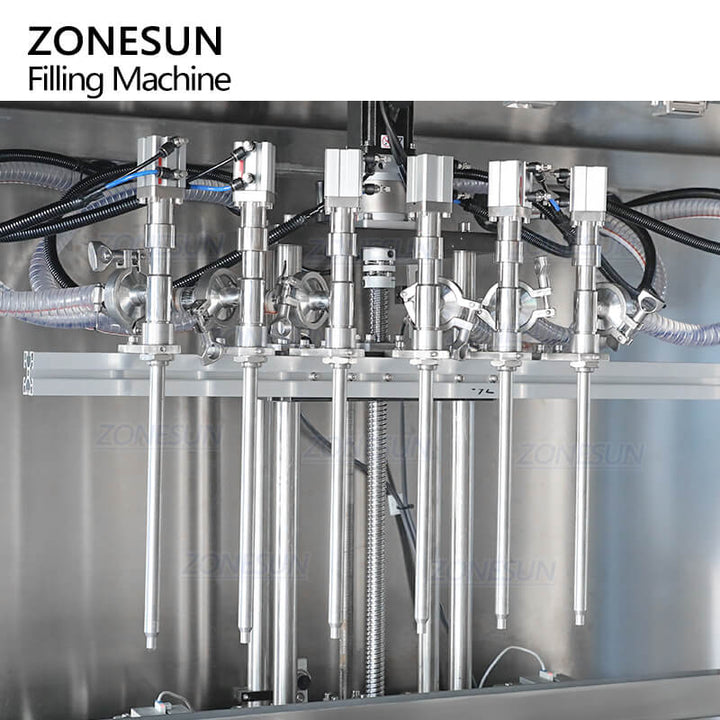

filling nozzles of servo filling machine6 Filling Heads
With diving heads, it can prevent liquid from splashing out during filling. Quantity of filling heads can be customized.

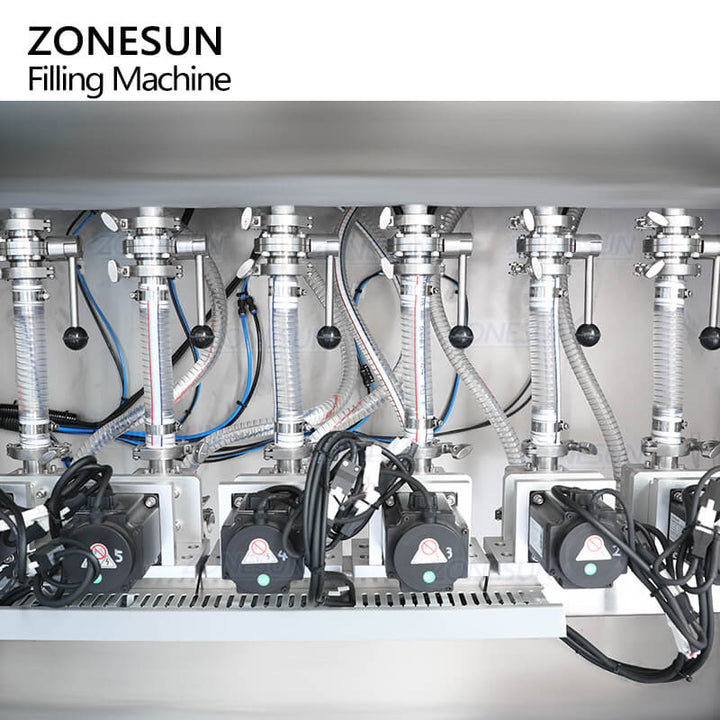

magnetic pump of servo filling machine
Servo Magnetic Pumps
Controlled by servo motor, this machine has high filling accuracy. The max flow rate can reach 45L/min, which can fill viscous liquid or paste.

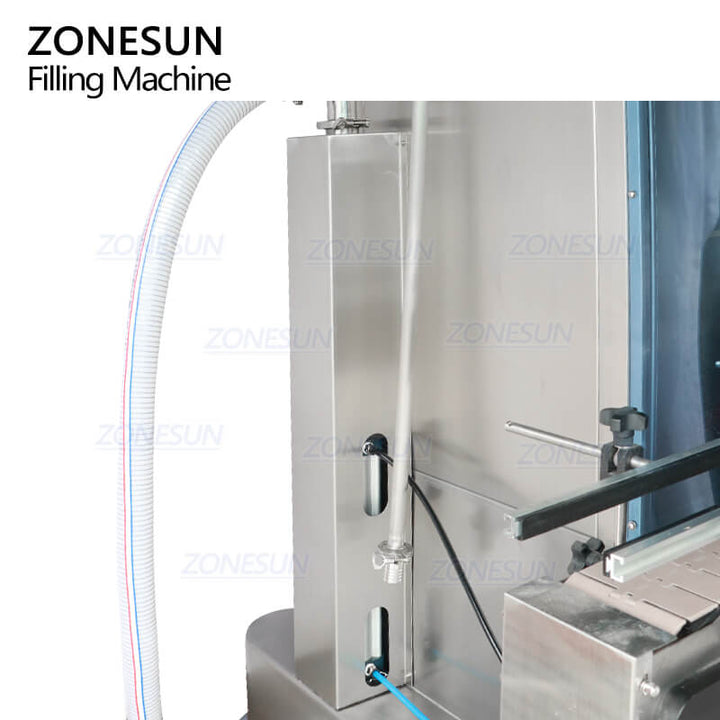

feeding pump of servo filling machine
Feeding Pump
Can detect liquid level and feed materials into hopper in time, saving labor.
air barometer of servo filling machine
Air Barometer
Can watch and adjust air pressure according to production need.
paste filling machinepaste filling machine-1
