ZONESUN ZS-AFS07R Automatic Servo Gear Pump Rotary Cup Filling and Sealing M and Yogurt
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

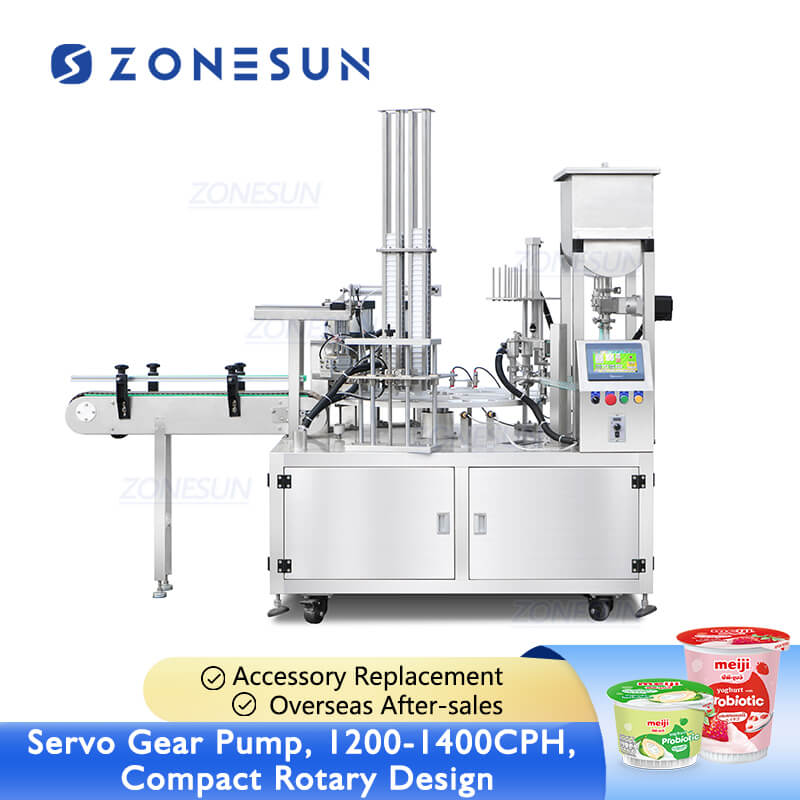

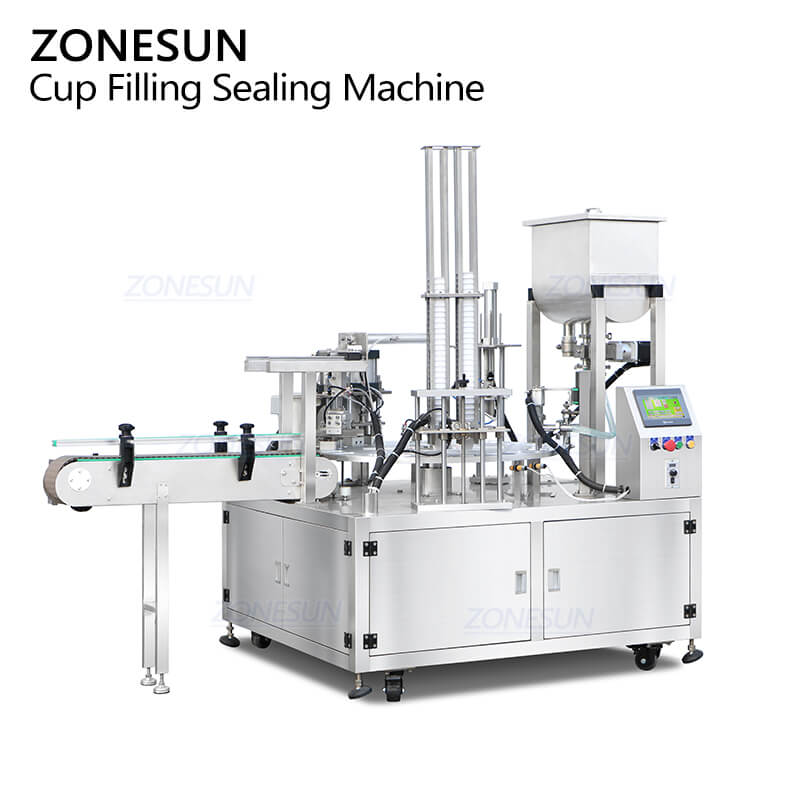

The ZONESUN rotary cup filling and sealing machine is designed for packaging yogurt, sauces, juice, dips, dairy products and cosmetic creams in preformed cups. Featuring a compact rotary indexing design, the machine integrates automatic cup feeding, product filling, film placement, heat sealing and finished product discharge into one system, with production speeds of up to 1,200-1,400 cups per hour. The servo-driven gear pump allows operators to adjust the filling volume directly through the control panel . Constructed from food-grade SUS304 stainless steel, the machine is equipped with a 50L hopper featuring optional heating and mixing functions. Anti-drip nozzles help reduce splashing during filling, while customized molds and film detection functions ensure reliable operation for different cup formats and sealing applications.
Rotary Cup Filling and Sealing Machine Parameter
- Machine Model: ZS-AFS07R
- Machine Voltage: 110/220 V, 50-60 HZ
- Power: 2.8 KW
- Working Speed: 1200-1400 Cups/H (Based On Different Filling Volume)
- Filling Range: 10-100 ml (Customizable as Needed)
- Filling Accuracy: ±1%
- Filling Pump: Gear Pump
- Sealing Temperature: 0-400 ℃
- Suitable Cup Size: Can be Customized
- Hopper Capacity: 50 L
- Air Pressure: 0.8 Mpa
- Machine Size: About 2300*1200*1800 mm
- Package Size: About 1560*1360*1860 mm
- Package Weight: About 598 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Machine Detail

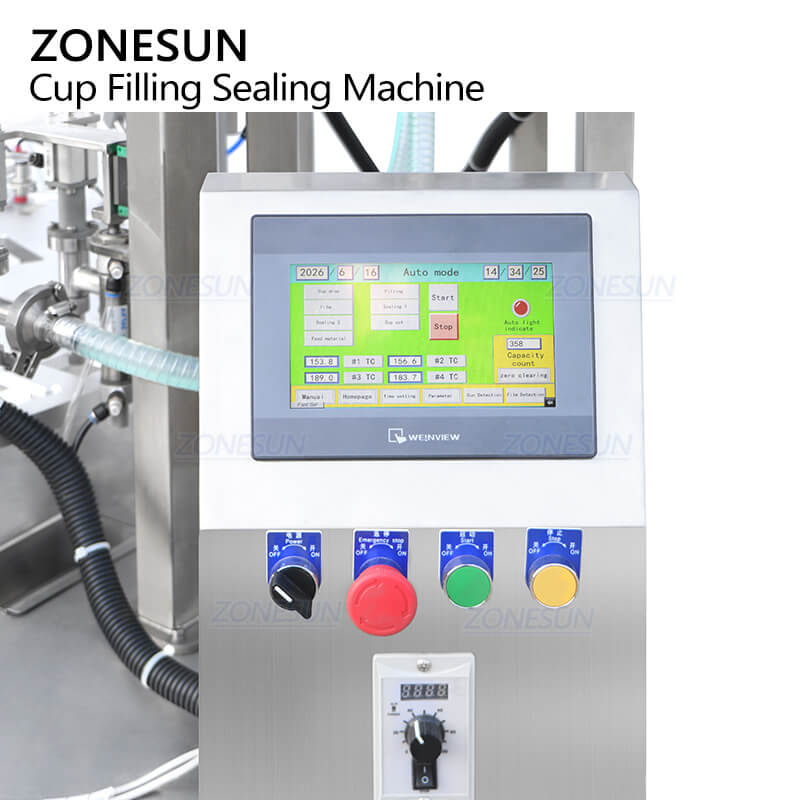

Operators can directly adjust filling volume and production parameters through the HMI, making operation and product changeovers more convenient.

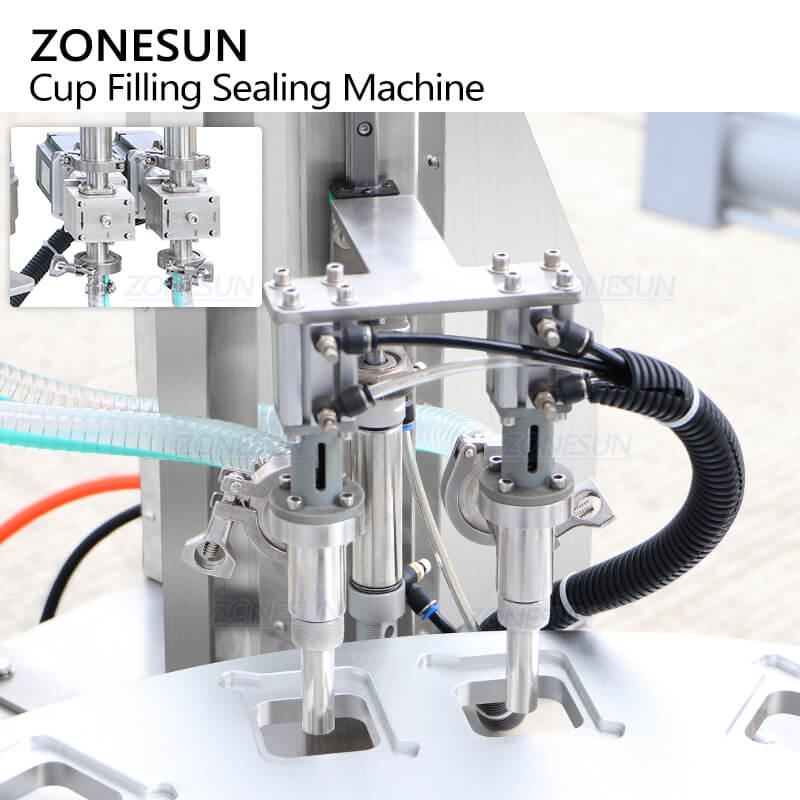

The servo-driven gear pump allows easy filling adjustment, while the anti-drip nozzle reduces splashing and improves filling cleanliness.

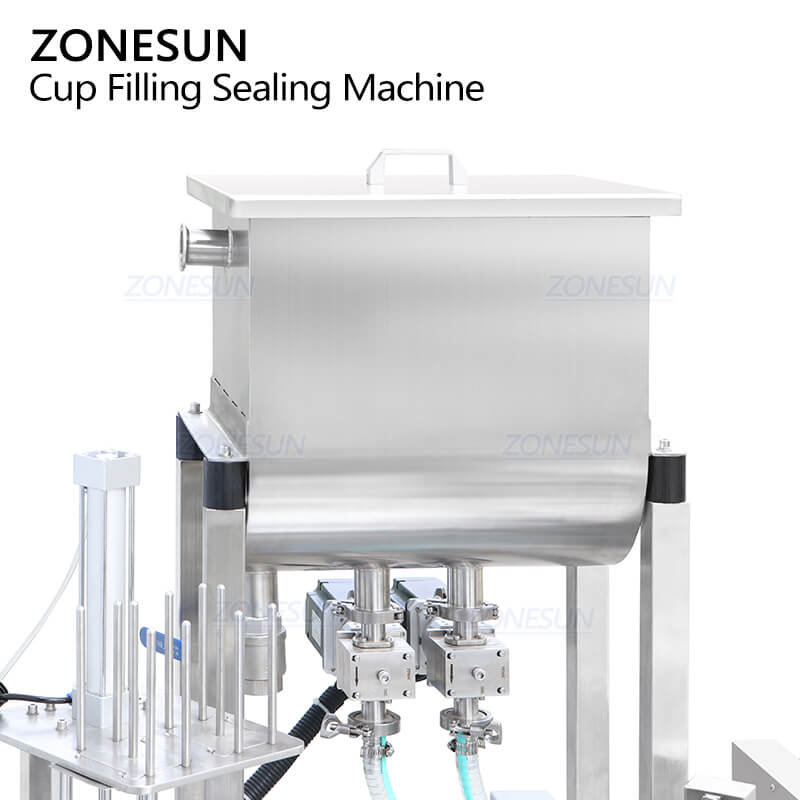

The 50L U-shaped hopper minimizes material accumulation and can be equipped with heating and mixing functions as needed.
The 50L U-shaped hopper minimizes material accumulation and can be equipped with heating and mixing functions as needed.

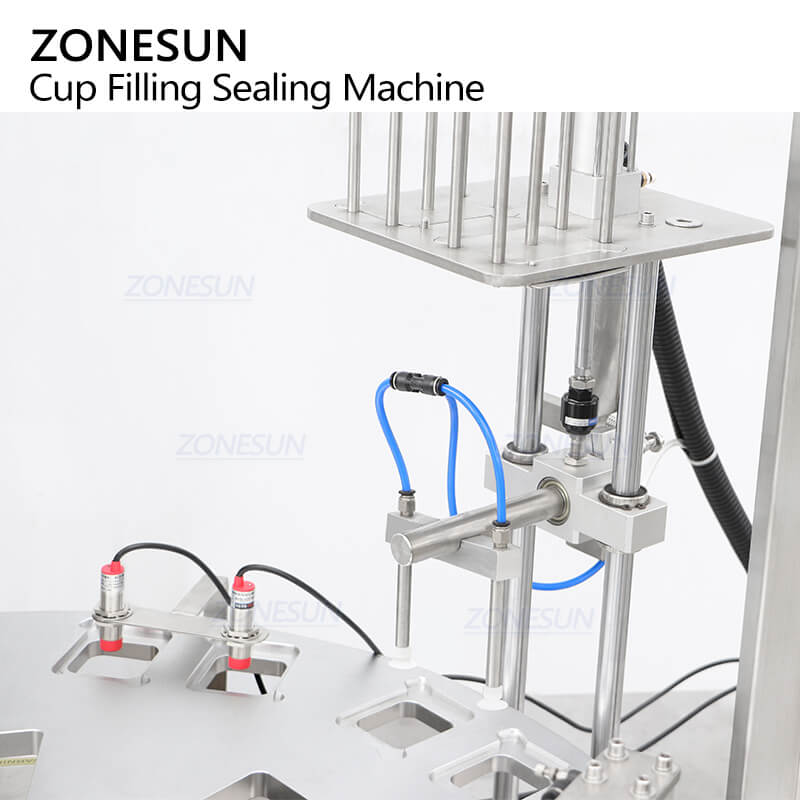

Automatically places sealing film onto the cup and monitors film availability and placement to help prevent missing seals and production interruptions.

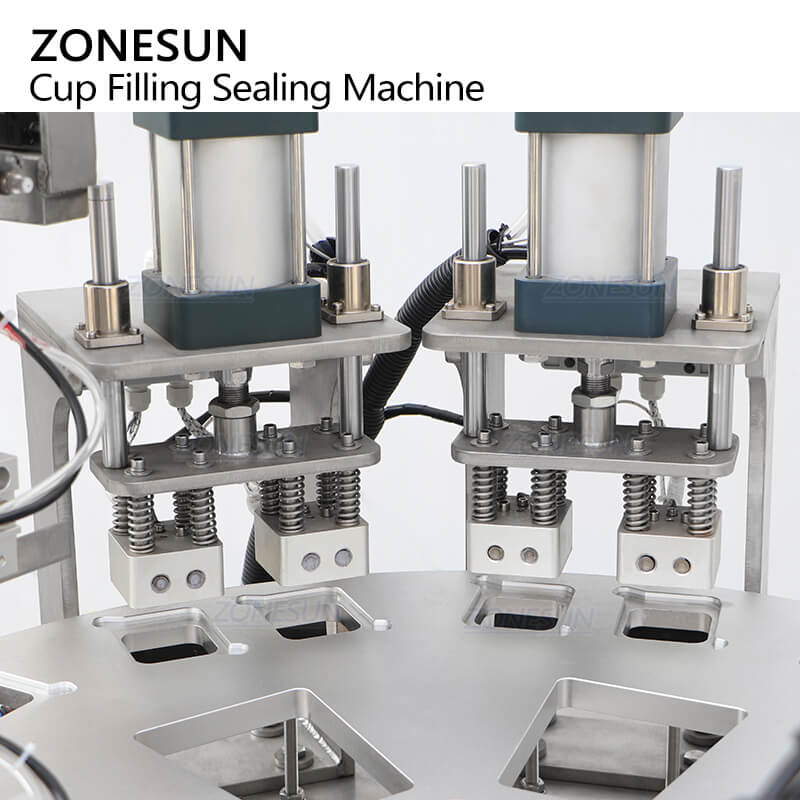

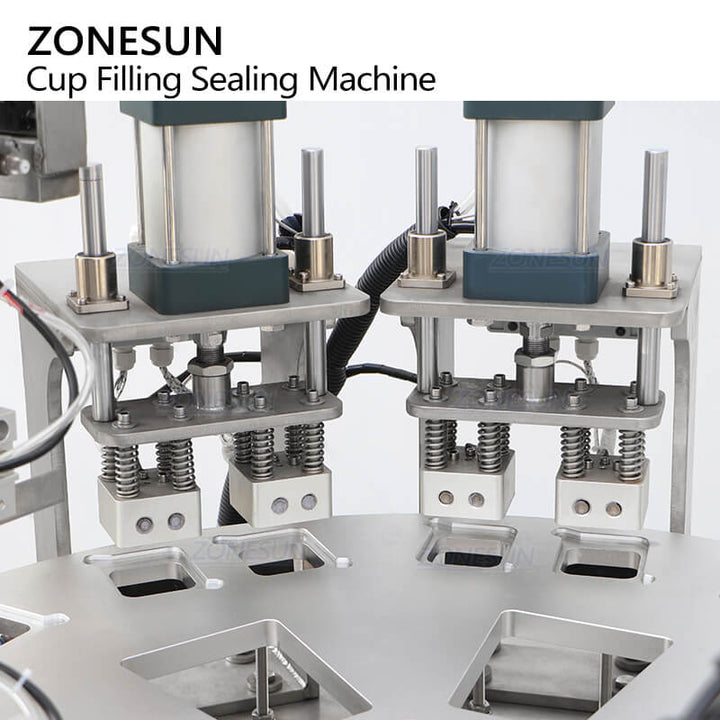

Applies consistent heat and pressure to create reliable seals, with molds customized according to cup shape and rim dimensions.

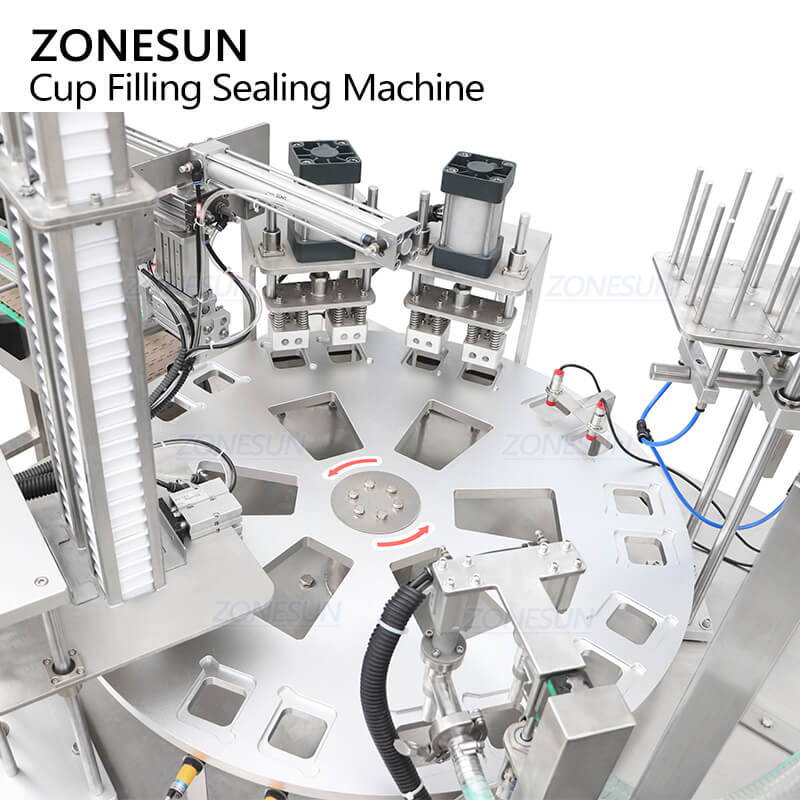

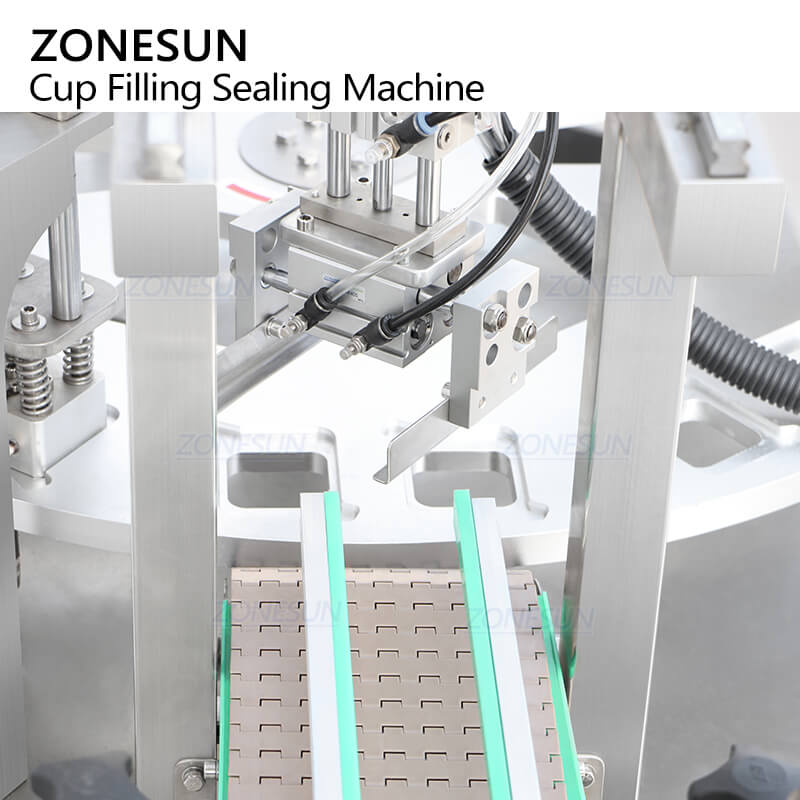

Cup holding molds are customized according to the cup shape and rim dimensions, while outfeeding conveyor automatically transfers finished cups to the next packaging process.
FAQ of Rotary Cup Filling and Sealing Machine
Q1. What products can this machine fill and seal?
The machine is suitable for yogurt, sauces, fruit juice, dips, dairy products, cosmetic creams and other liquid or semi-viscous products packaged in preformed cups.
Q2. Can the machine handle different cup sizes?
Yes. The cup holding molds and sealing molds can be customized or replaced according to the cup dimensions and rim design.
Q3. How is the filling volume adjusted?
The servo-driven gear pump allows operators to set and adjust the filling volume directly through the touchscreen control panel.
Q4. How does the machine prevent missing film seals?
The machine features a film detection function that monitors both film availability and whether a film has been placed onto the cup before sealing.
Q5. Why choose a rotary cup filling and sealing machine?
The rotary design combines multiple processes into one compact system, helping save floor space while achieving efficient automatic cup packaging.
