ZONESUN ZS-SVCF70H Automatic Servo-Driven Cardboard Paper Boxes Erecting Machine for Packaging Line
Regular price
$7,599.00 USD
Regular price
Sale price
$7,599.00 USD
Save $-7,599 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

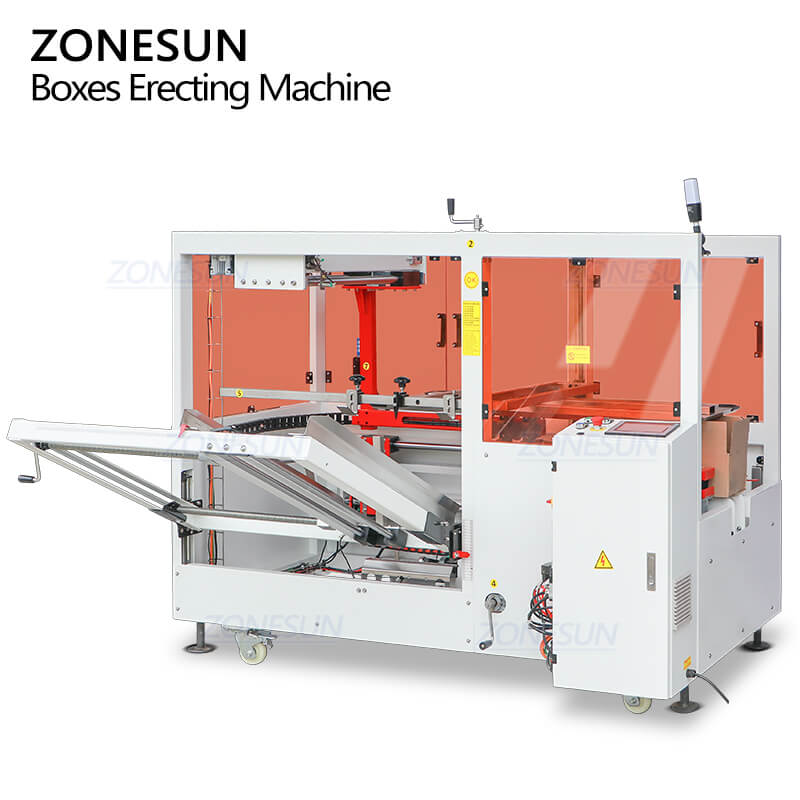

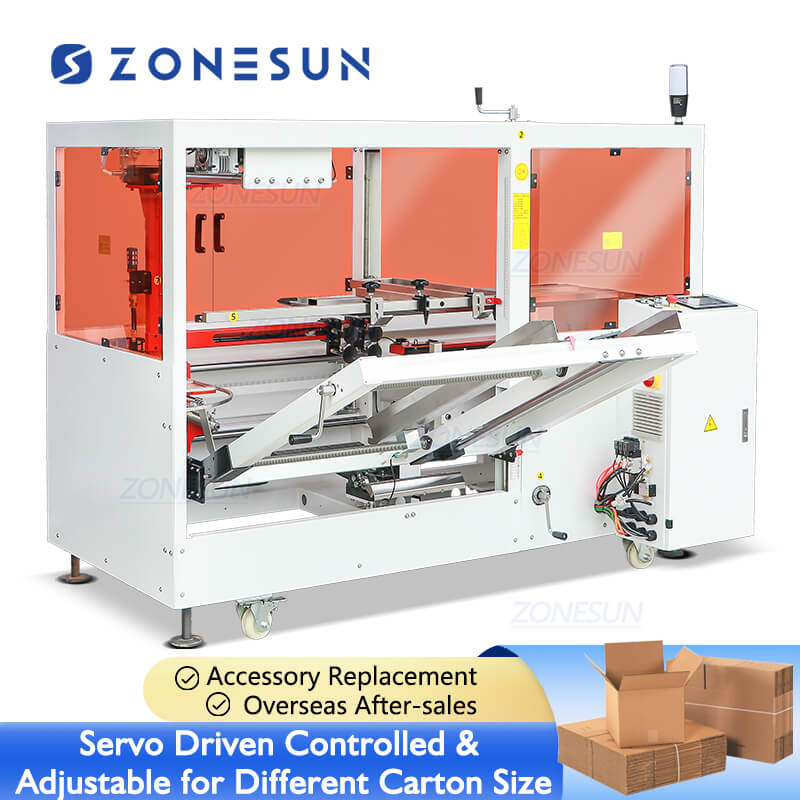

This servo-driven automatic carton erecting machine ensures efficient and precise box forming, bottom sealing, with easier and quicker changeover for different carton sizes. It features alarm functions for missing tape or cartons, stable performance after adjustments. It is suitable for packaging lines in food, beverage, and industrial sectors.
Automatic Carton Erecting Machine Parameter
- Machine Model: ZS-SVCF70H
- Power Supply: 220V 50Hz 1.9KW
- Air Pressure: 5–6 kg/cm²
- Air Consumption: 280 NL/min
- Applicable Carton Size: 280-600 * 180-400 * 150-400 mm(L*W*H)
- Tape Width: 48–72 mm
- Working Speed: 5–15 Cartons/min
- Machine Dimensions: 2082*2020*1607 mm(L*W*H)
- Package Size: 2260*1420*1770 mm(L*W*H)
- Package Weight: About 730 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

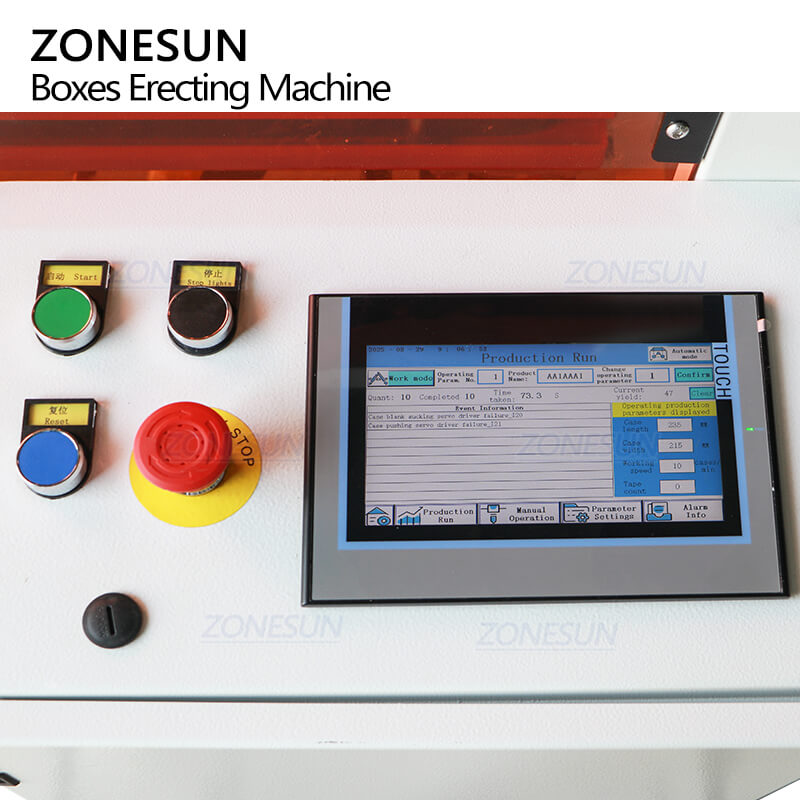

Touchscreen Panel
Intuitive interface for easy operation and quick size switching.
Intuitive interface for easy operation and quick size switching.

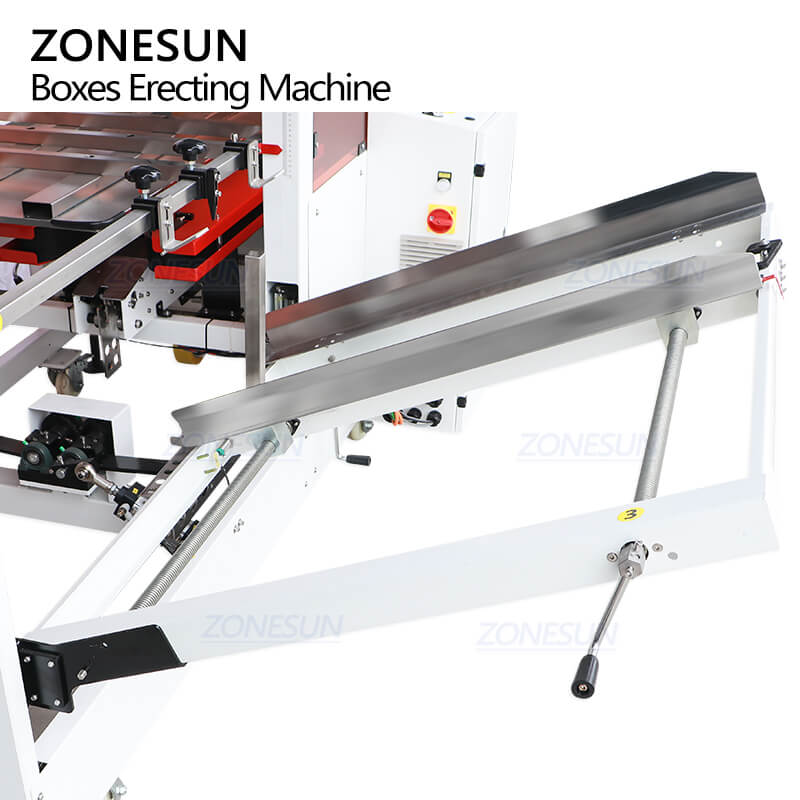

Carton Holder
Adjustable as carton size, holds up to 50 cardboard sheet, makes it refillable at any time.
Adjustable as carton size, holds up to 50 cardboard sheet, makes it refillable at any time.

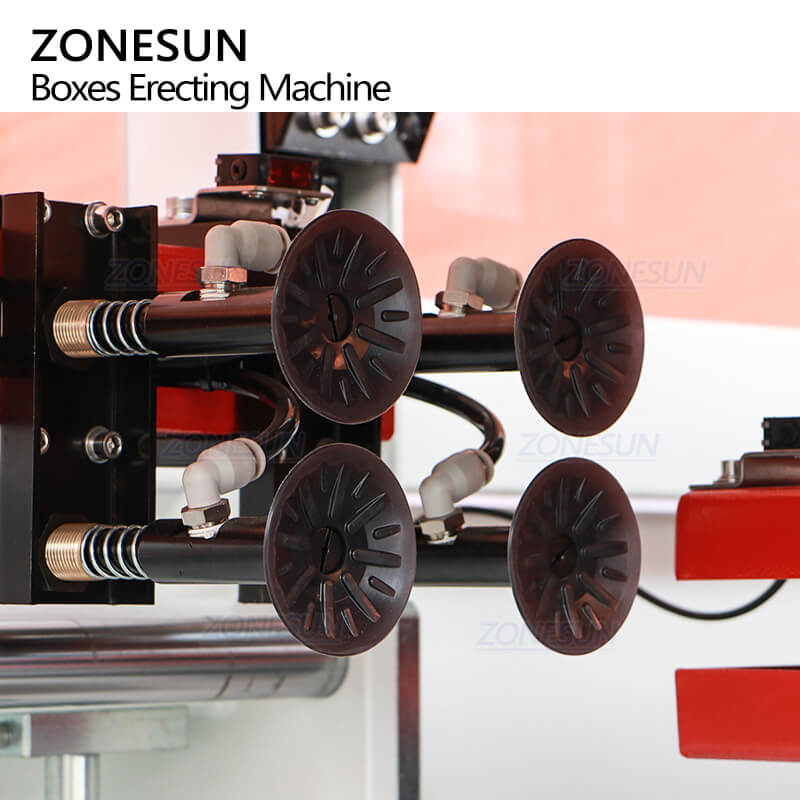

Suction Cup
Reliably pick up cardboard sheet and open them smoothly during the erecting process, ensuring accuracy and stability.
Reliably pick up cardboard sheet and open them smoothly during the erecting process, ensuring accuracy and stability.

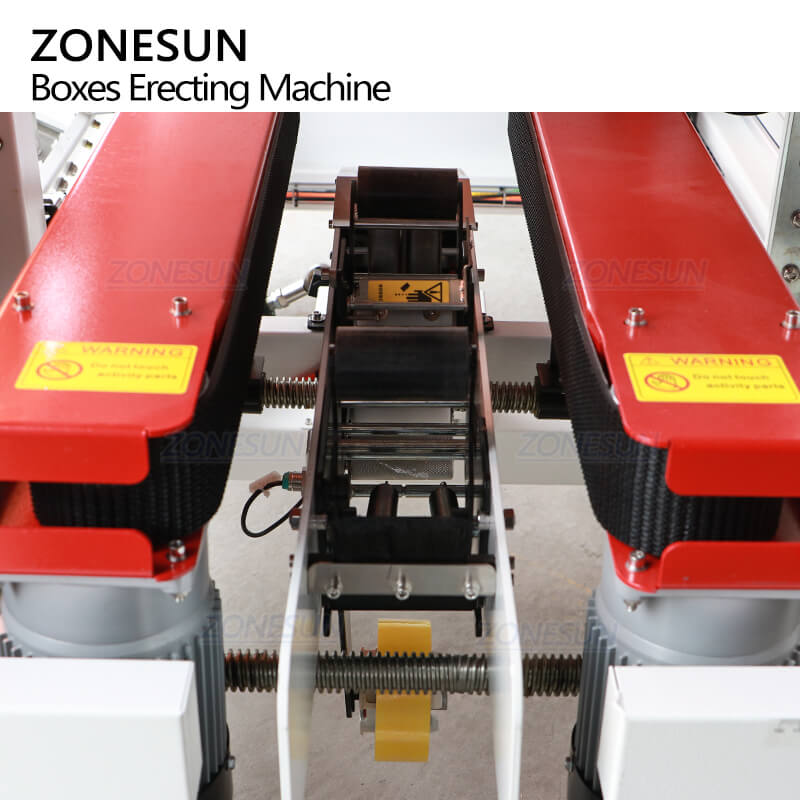

Sealing Structure
Applies tape neatly to seal carton bottoms, adjustable for different sizes of cartons.
Applies tape neatly to seal carton bottoms, adjustable for different sizes of cartons.
Servo Motor
Provide precise, flexible, and reliable motion control, offer higher working capacity.
Provide precise, flexible, and reliable motion control, offer higher working capacity.
Frame Scales
Clear markings for manual adjustments of width and height of automatic carton erector.
Clear markings for manual adjustments of width and height of automatic carton erector.
