ZONESUN ZS-GYCR4A Automatic Servo 4 Head Magnetic Gear Pump Corrosive Liquid Filling Machine
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

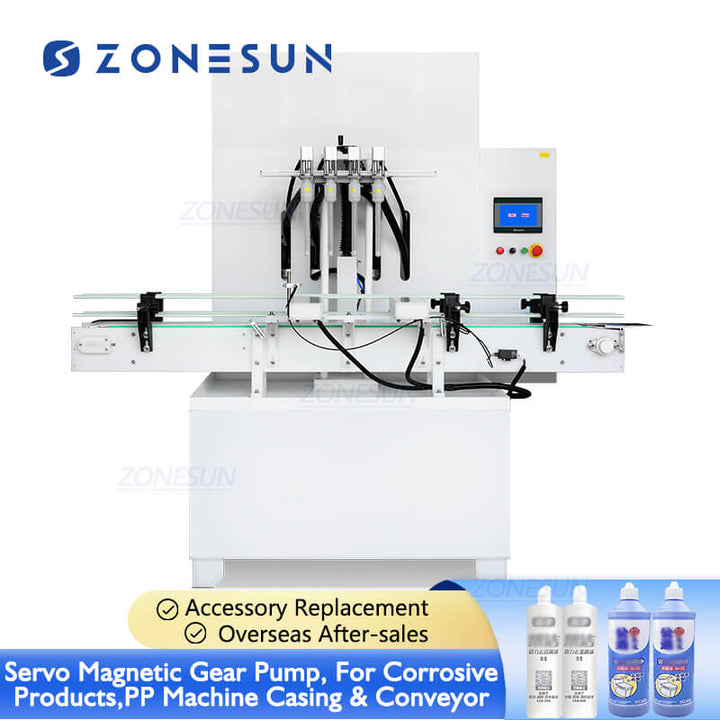

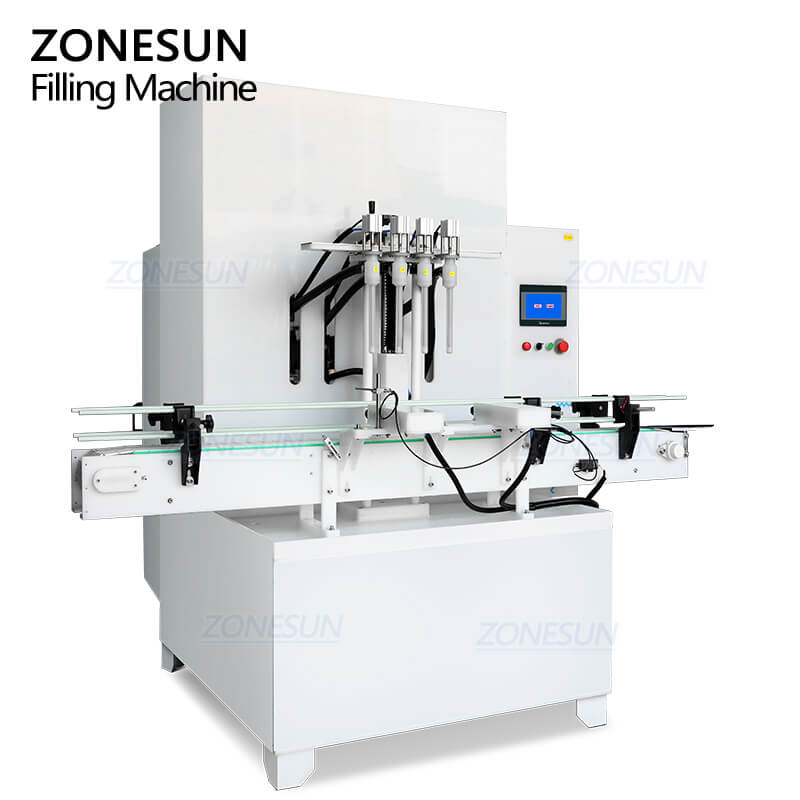

ZONESUN ZS-GYCR4A filling machine is equipped with a servo-driven magnetic gear pump system designed for filling corrosive liquids with high precision and stability. It is suitable for products such as bleach, hypochlorous acid, disinfectants, toilet cleaners, degreasers, detergents, fertilizer solutions, and automotive chemicals. The machine uses an anti-corrosion centrifugal pump for material feeding and anti-drip filling nozzles to ensure clean and accurate filling. The filling heads can be customized according to production requirements. With a PP structure and fluororubber hoses, the equipment offers strong corrosion resistance and reliable long-term operation in chemical and sanitation product production lines.
Corrosive Liquid Filling Machine Parameter
- Machine Model: ZS-GYCR4A
- Voltage / Power: 110V / 220V, 50–60 Hz, 5000 W
- Air Pressure Requirement: 0.4–0.7 MPa
- Suitable Bottle Diameter: φ50–110 mm
- Suitable Bottle Height: 60–300 mm
- Hopper Capacity: 120 L
- Recommend Filling Range: 300 ml-10 L
- Max Flow Rate: 27 L/min
- Filling Material Temperature Range: Room Temperature (Customizable for high-temperature materials)
- Filling Material Viscosity: 0-1000 cps (Customizable for higher viscosity)
- Filling Speed: 200–2500 BPH (Based on filling volume)
- Machine Size: 2000*1300*1900 mm (L×W×H)
- Machine Weight: 280 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

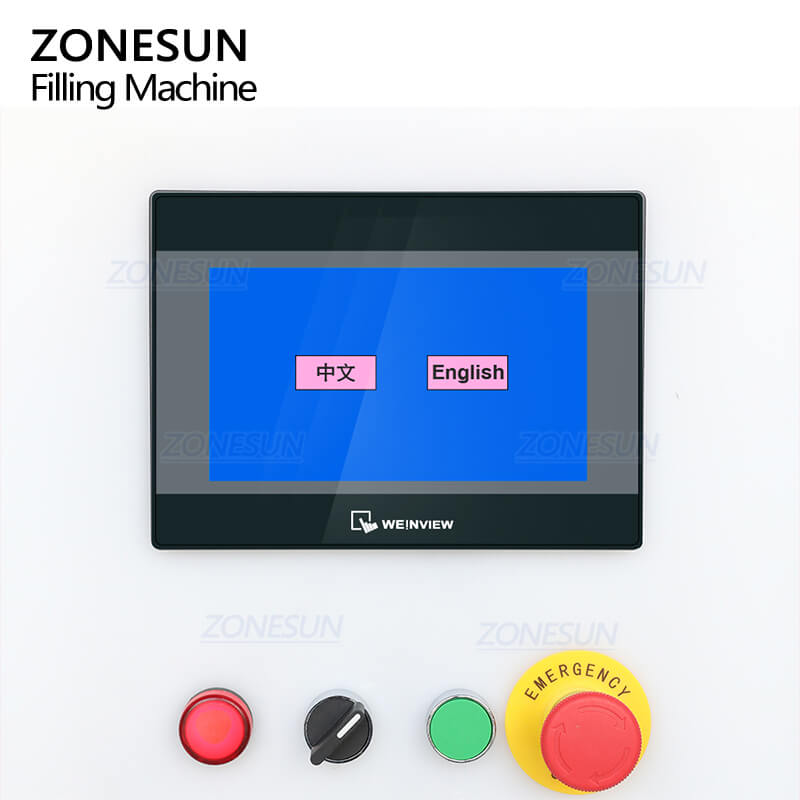

Setup & adjust filling volume through control panel directly, it provide an intuitive interface,simplifies machine operation.

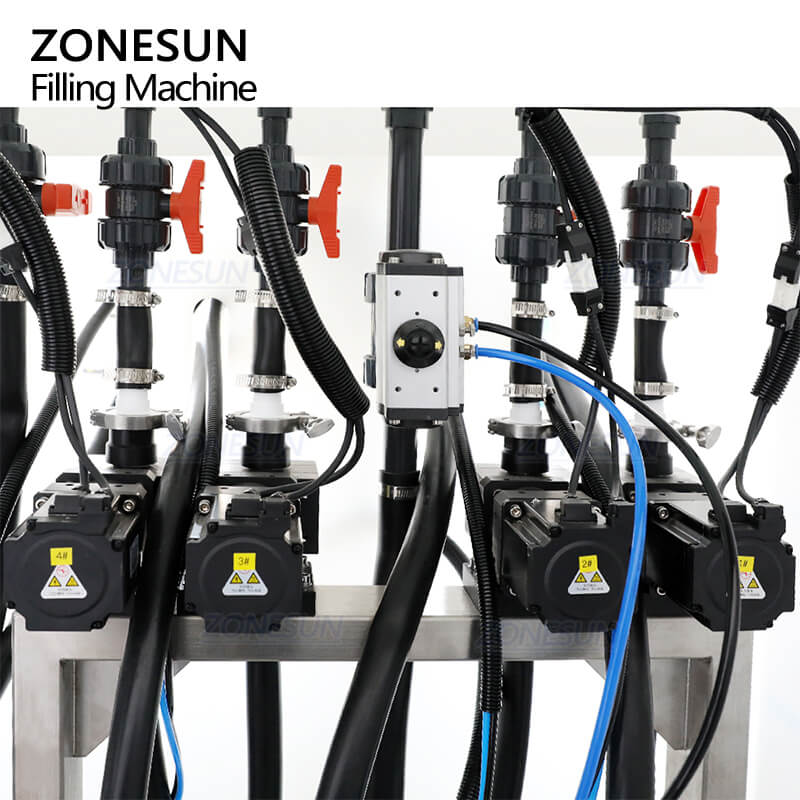

Designed for corrosive products, it provides accurate and quantitative filling.

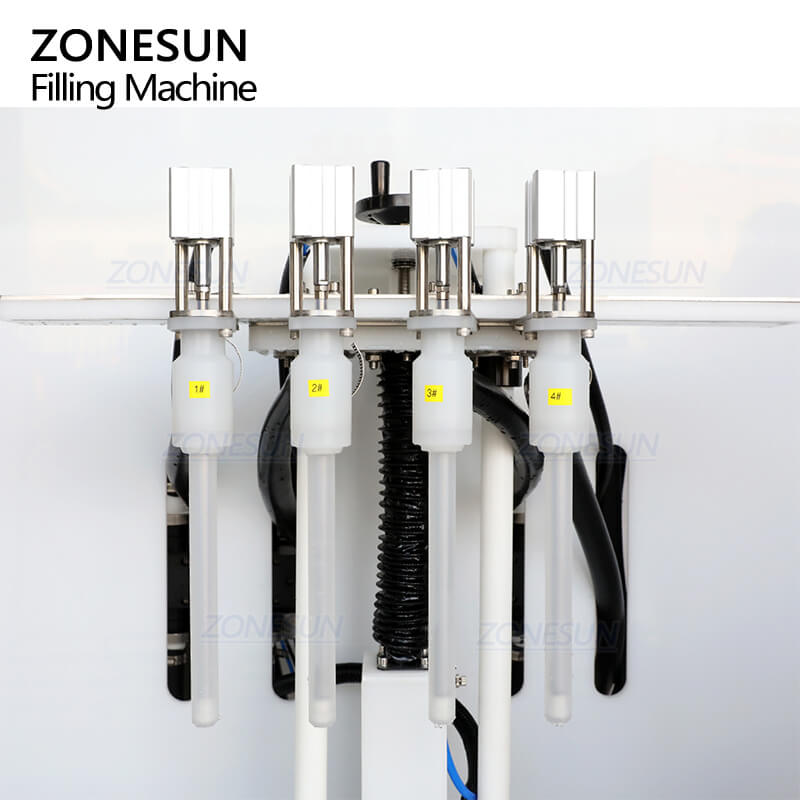

Designed for corrosive products, it provides accurate and quantitative filling.
Supplies liquid materials through anti-corrosion centrifugal pump steadily to the filling system during operation.

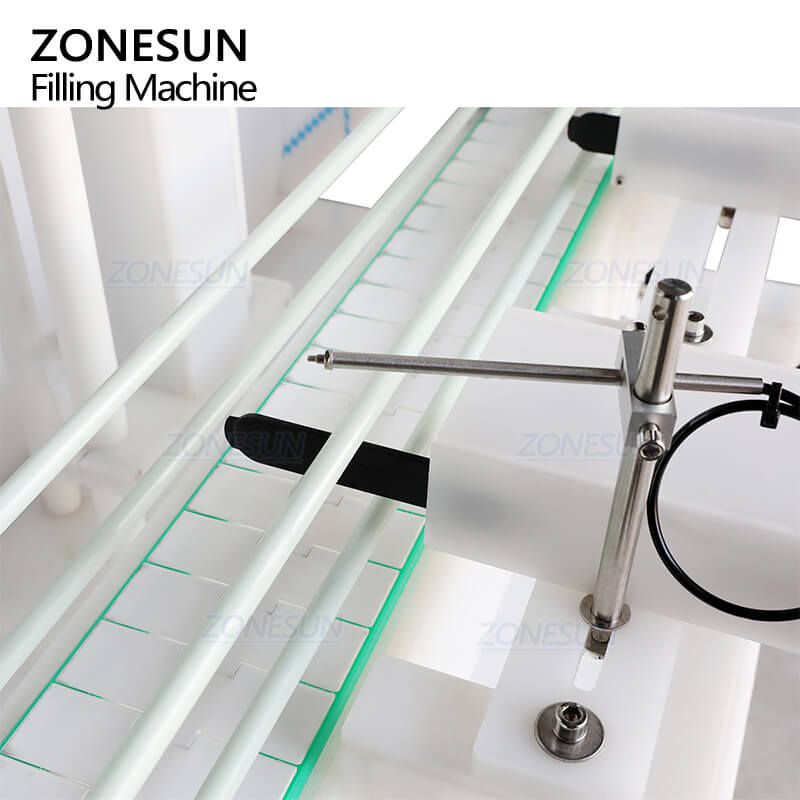

Corrosion-resistant PP conveyor ensures stable and reliable bottle transportation.
