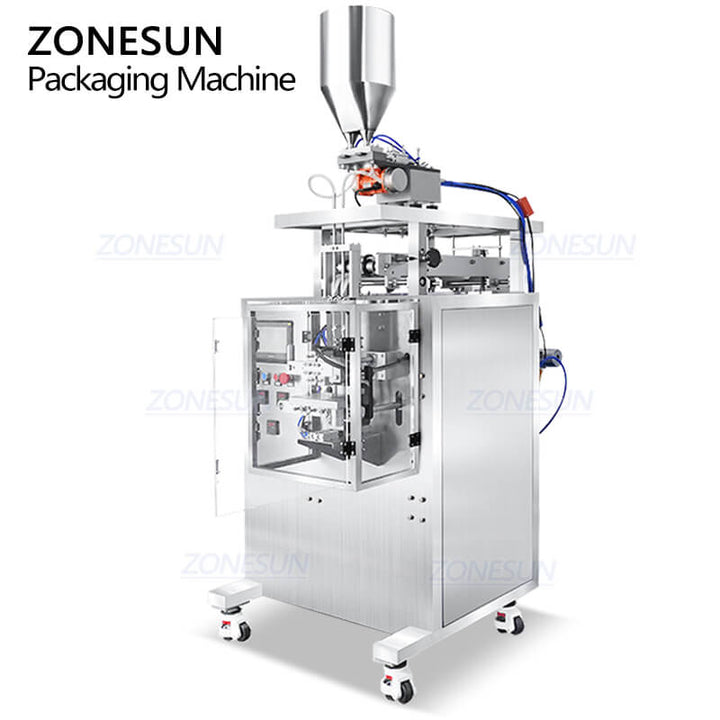

ZONESUN ZS-FSFM2 Automatic Servo 2 Lanes Measuring Cup Filling Pouch Packing Machine For Fine Granule
Regular price
$31,999.10 USD
Regular price
Sale price
$31,999.10 USD
Save $-31,999.10 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

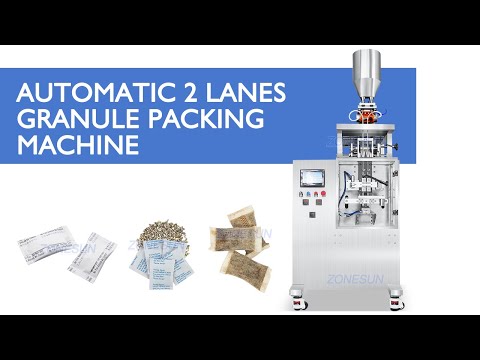

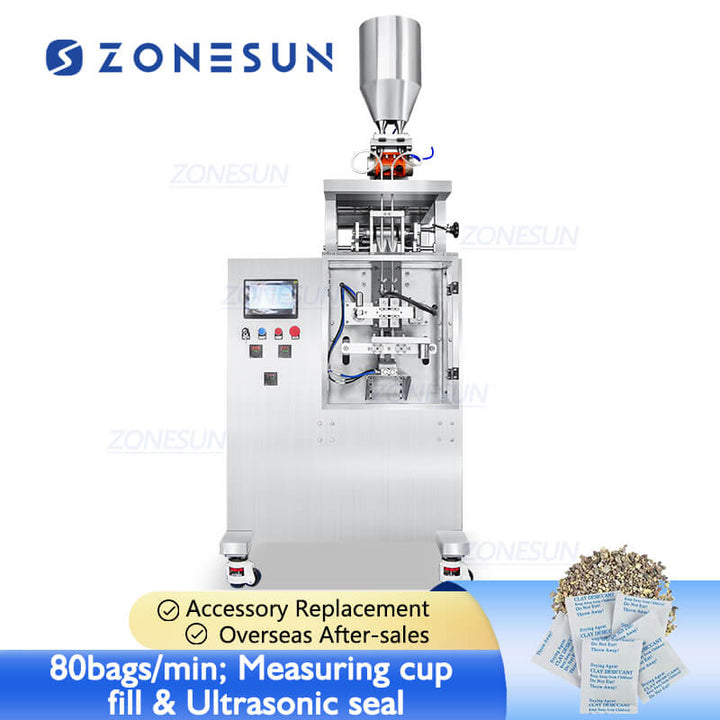

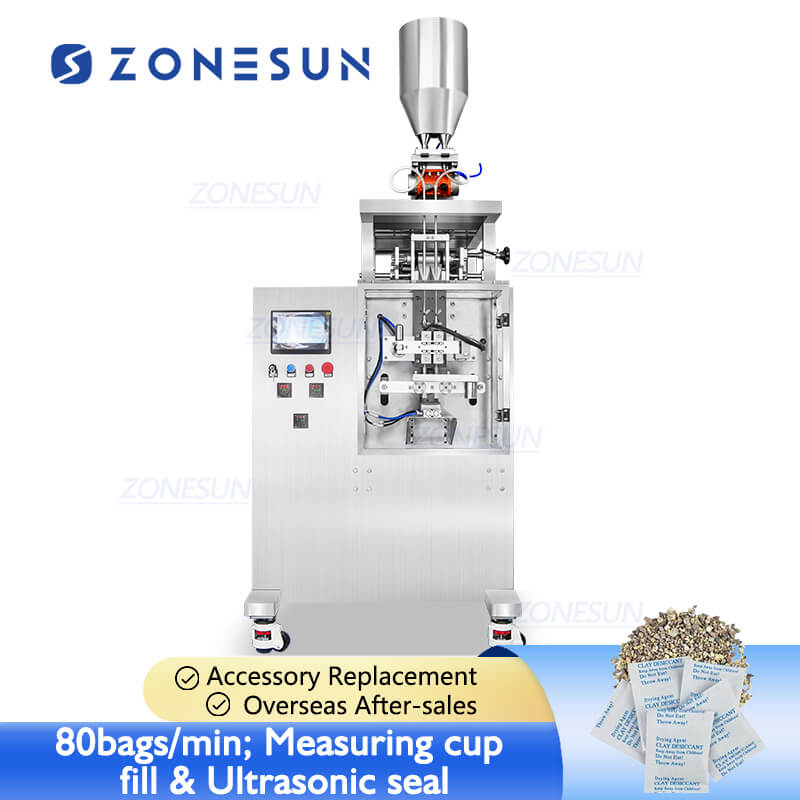

This double-lane ultrasonic fine granule packing machine is designed for precise and efficient packaging of oral tobacco pouches, desiccant, sugar, and salt etc. With dual filling channels, it doubles output while maintaining accurate dosing. The ultrasonic sealing system ensures clean, tight, and leak-proof seals without heat damage. Suitable for the food and daily chemical industries.
Granule Packing Machine Parameter
- Model: ZS-FSFM2
- Packing Speed: About 80 bags/minute
- Filling Method: Measuring Cup + Blowing
- Measuring Range: 0.5 g (Customized)
- Bag Size: Width-15 mm, Length-30 mm (Adjustable)
- Sealing Form: Back Seal
- Film Width Range: Maximum 220 mm
- Film Thickness: 0.04–0.09 mm
- Power Supply: 1N+PE / 50HZ / AC220V / 1.3KW
- External Dimensions (L*W*H): 1040*740*1670 mm
- Machine Weight: About 200 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Control Panel
Equipped with a PLC touchscreen interface for easy parameter adjustment, real-time monitoring, and intelligent operation.
Equipped with a PLC touchscreen interface for easy parameter adjustment, real-time monitoring, and intelligent operation.

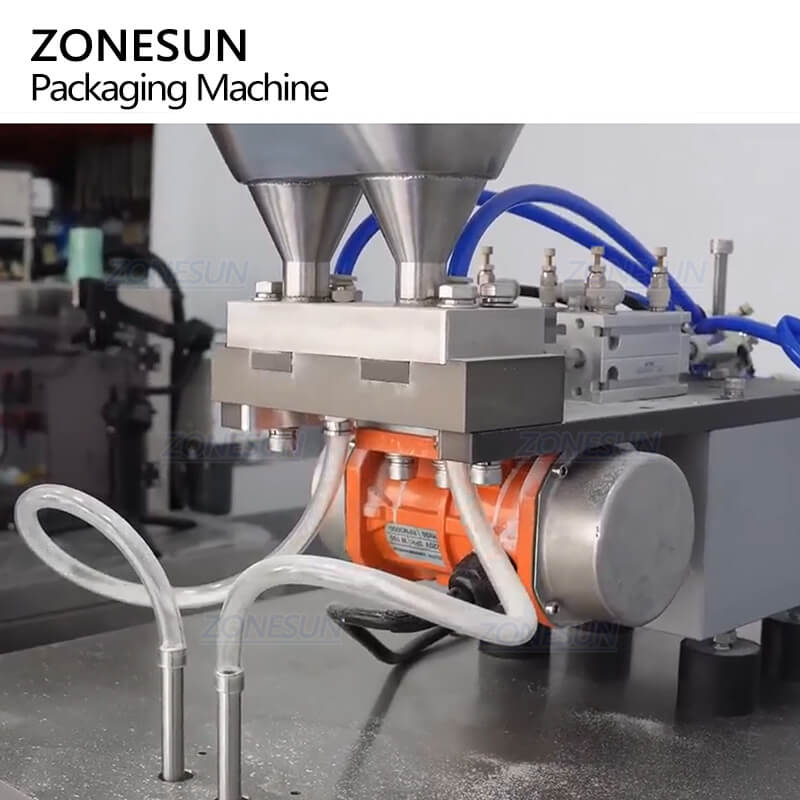

Filling Structure
The use of measuring cups to precisely measure fine particles and air blowing for transport ensures accurate and smooth filling.

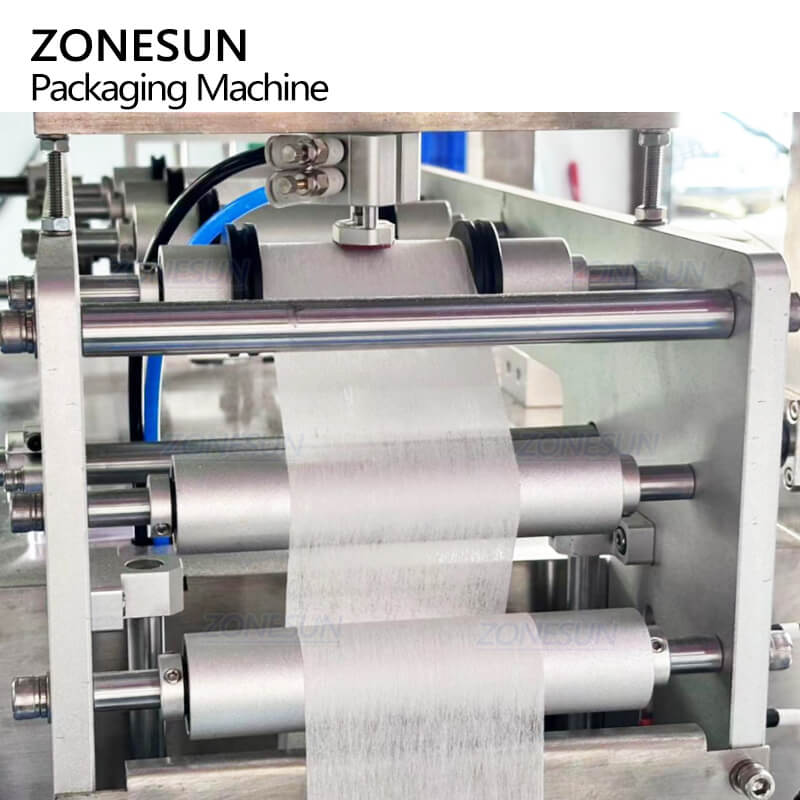

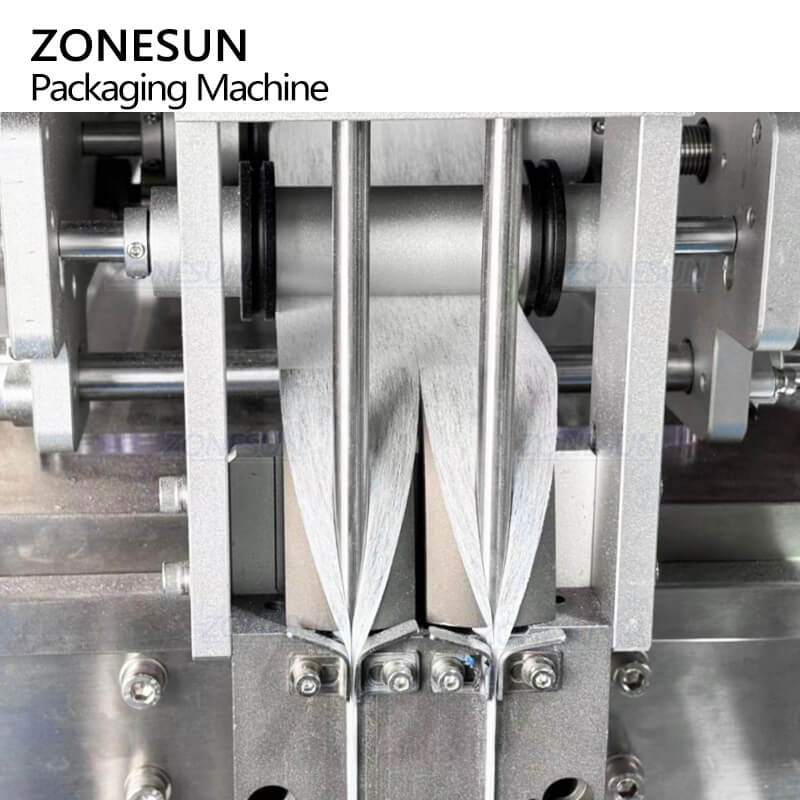

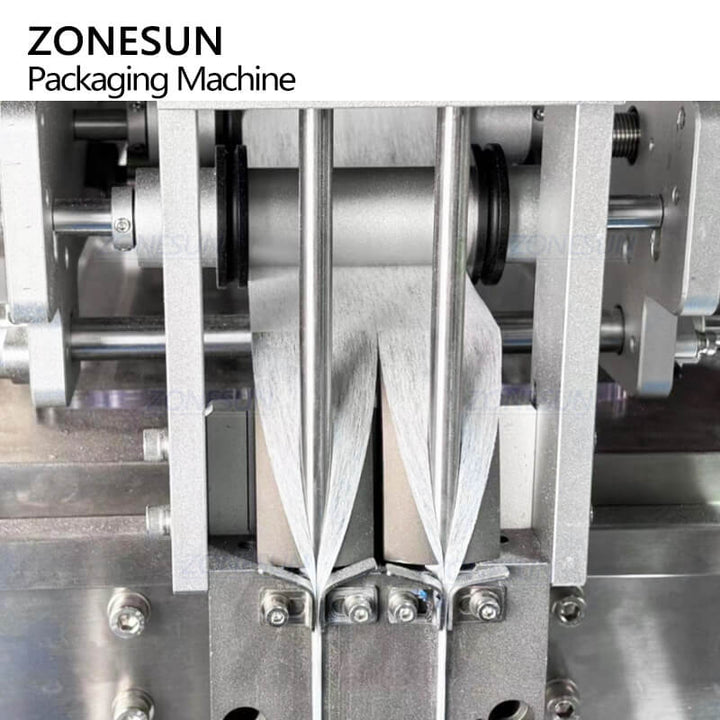

Forming & Sealing Mechanism
High-quality steel forming collars ensure neat, attractive bags. Teflon-coated sealing rollers are durable and easy to clean.
High-quality steel forming collars ensure neat, attractive bags. Teflon-coated sealing rollers are durable and easy to clean.

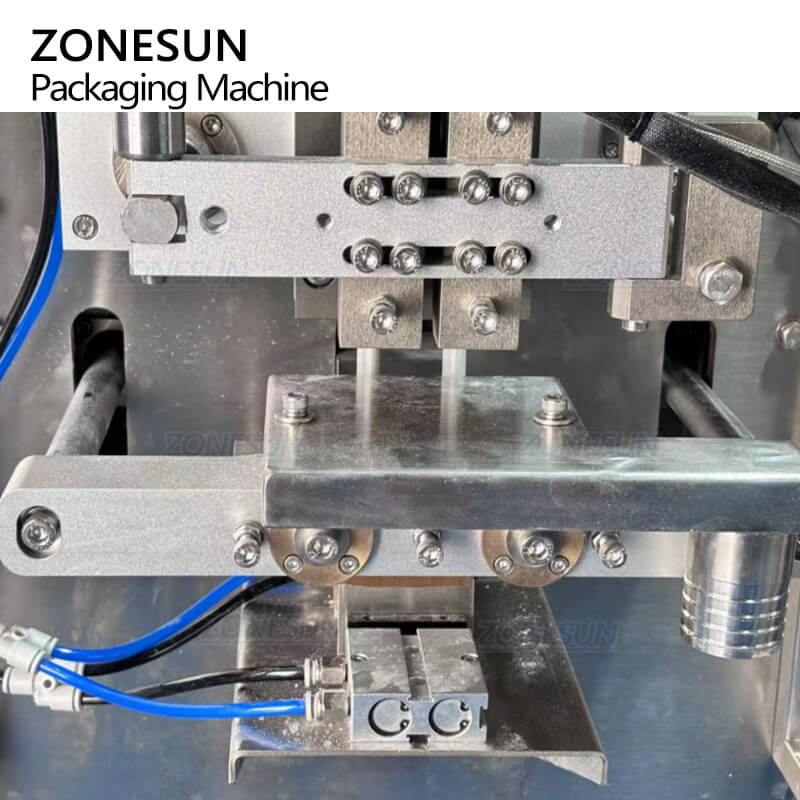

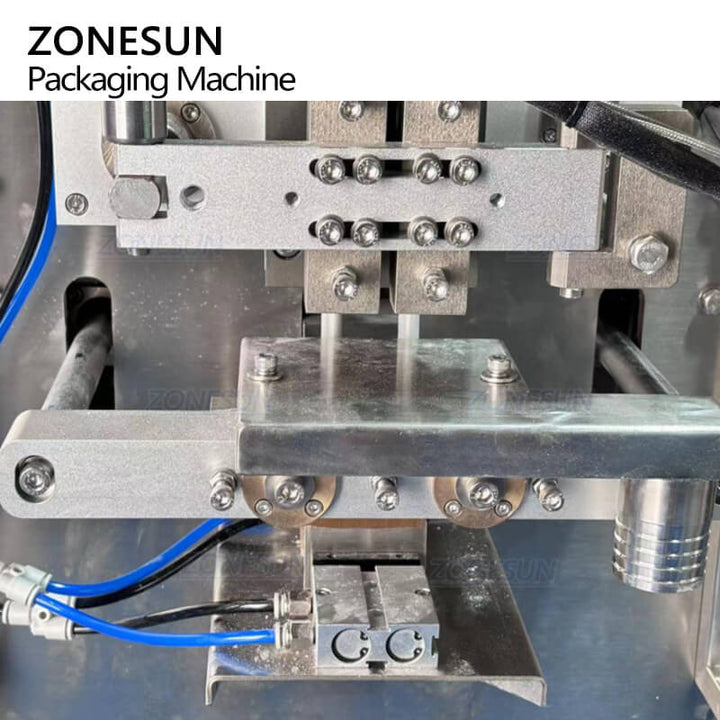

Sealing Mechanism
Ultrasonic sealing ensures neat, firm seals. Optional dust collector reduces dust emissions.
Ultrasonic sealing ensures neat, firm seals. Optional dust collector reduces dust emissions.
