ZS-TB822P Automatic Self-adhesive Stickers Round Plastic Bottle Caps Top Side & Body Side Labeling Machine For Honey Jam

Voltage
Price
Regular price $6,699.00 USD
Regular price Sale price $6,699.00 USD
Save $-6,699 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

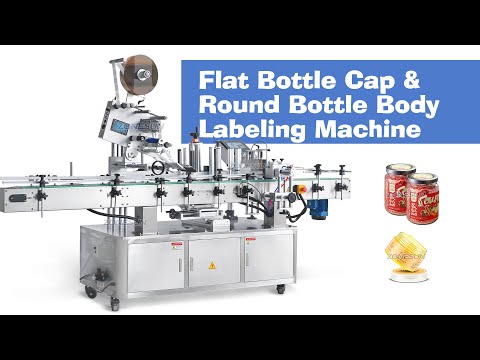

The automatic labeling machine is equipped with two labeling heads - one for top side flat surfaces and the other for curved surface. It is designed for labeling both bottle caps and bottle body simultaneously and is commonly utilized in various industries such as food, daily chemicals, and cosmetics.

Parameter

Machine Model:ZS-TB822P
Voltage:220V/110V 50-60Hz
Power:About 2200W
Labeling Speed:About 25-45pcs/min(depending on bottle and label size)
Labeling Accuracy:± 1mm
Suitable Bottle Diameter:Φ25-100mm
Label Size:(L)20mm-285mm* (W)20-150mm
Label Roll Inner Diameter:φ76mm
Label Roll Outer Diameter:Φ280mm
Package Size:About 2360*1010*1660mm
Package Weight:About 430kg

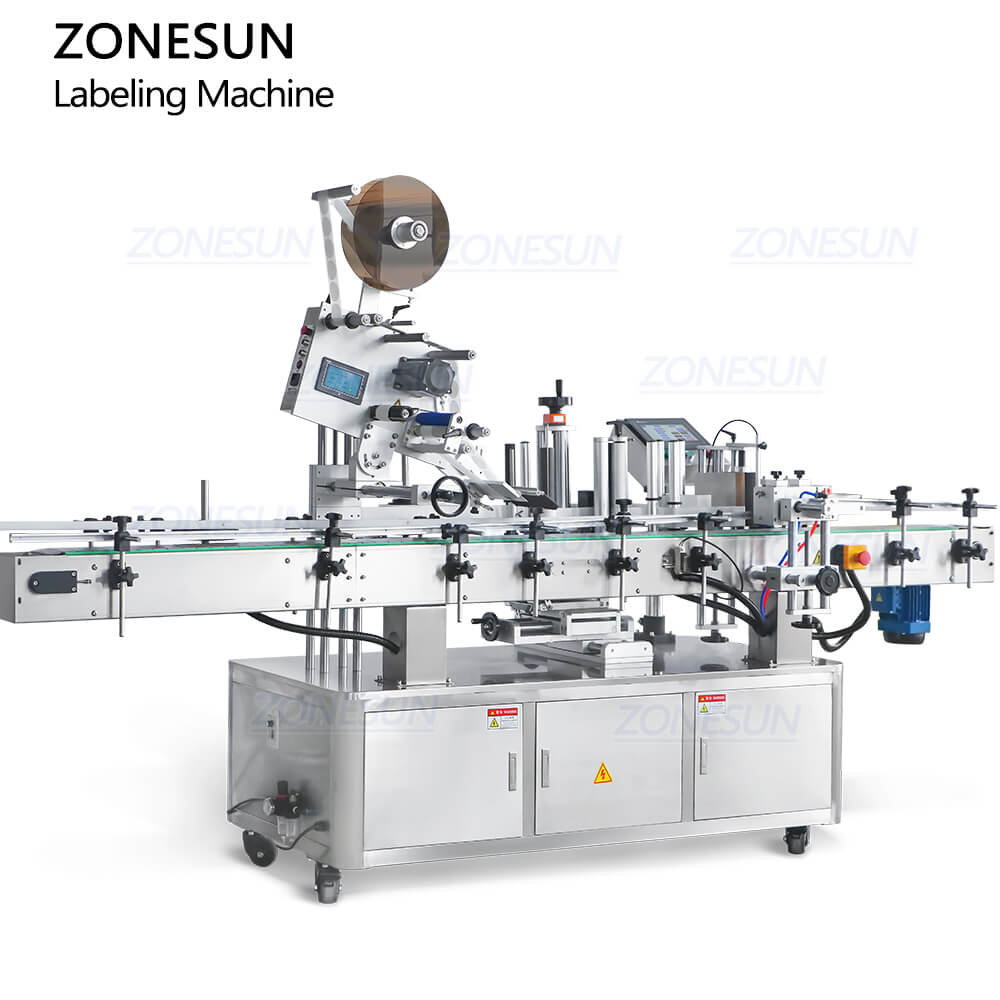

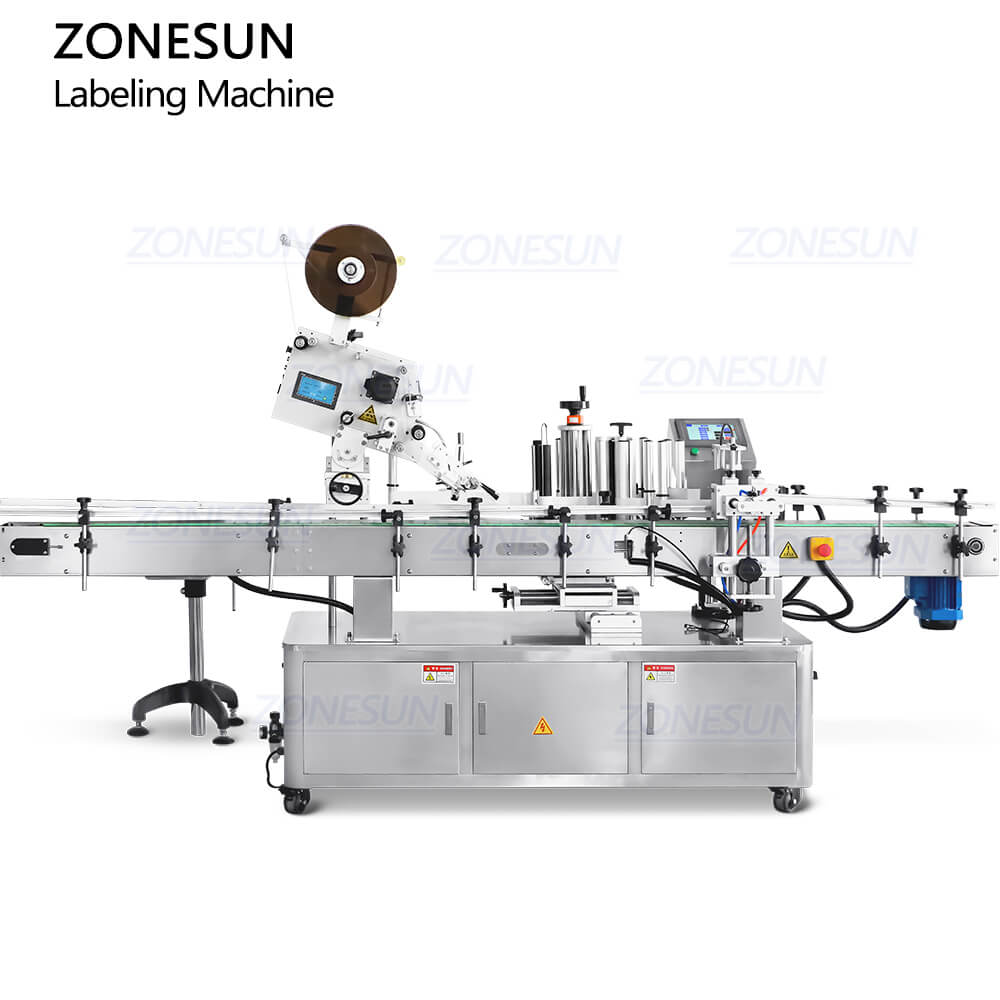

Bottle Cap & Body Labeling Machine

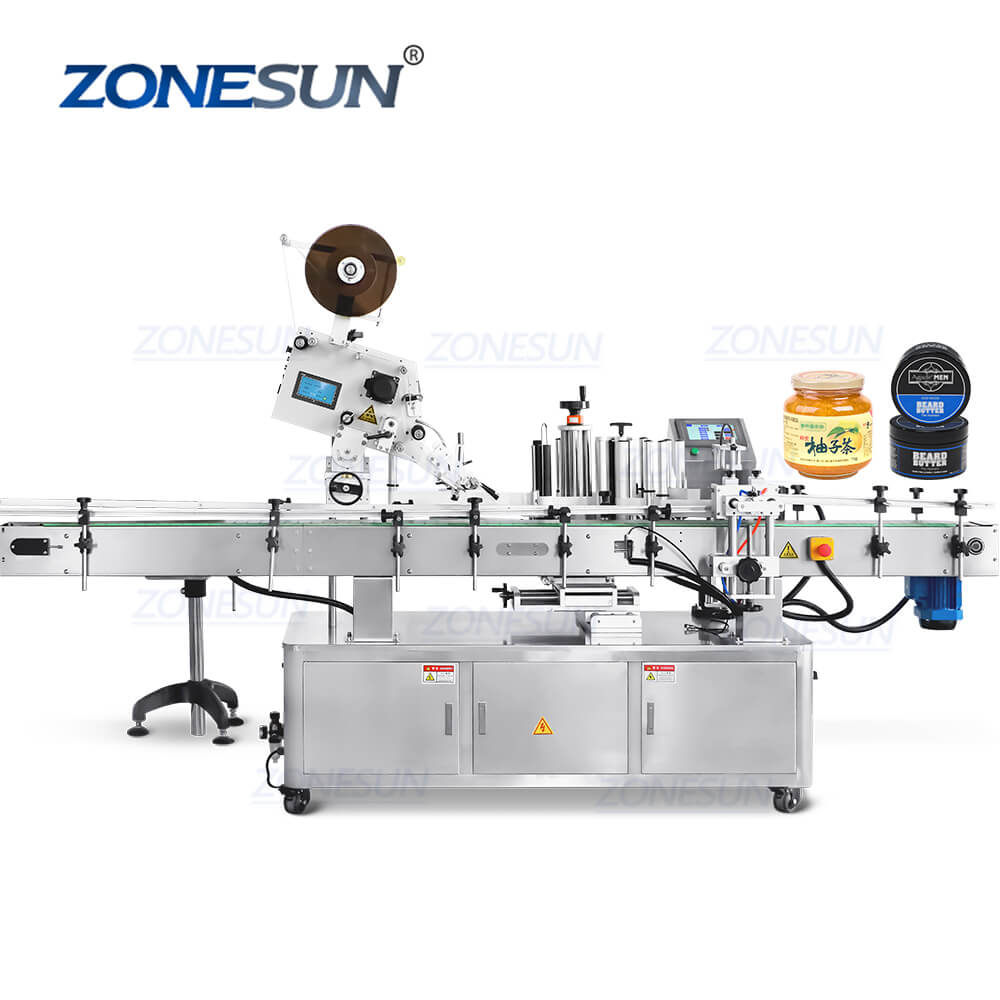

Application of Bottle Cap & Body Labeling Machine

Label size of Bottle Cap & Body Labeling Machine

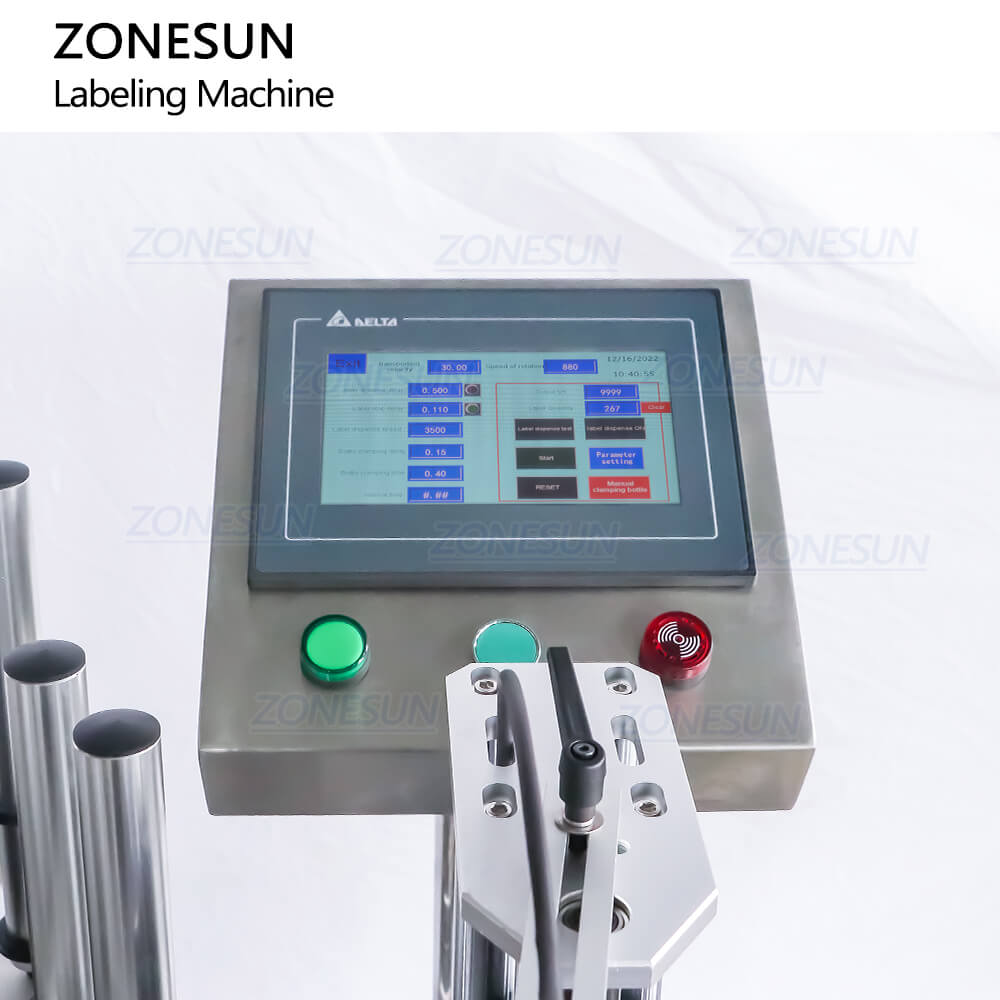

Control Panel of Bottle Cap & Body Labeling Machine

Equipped with PLC operation panel,it is convenient to set and adjust working parameters like label outputting length. The language of panel can be customized as your need.

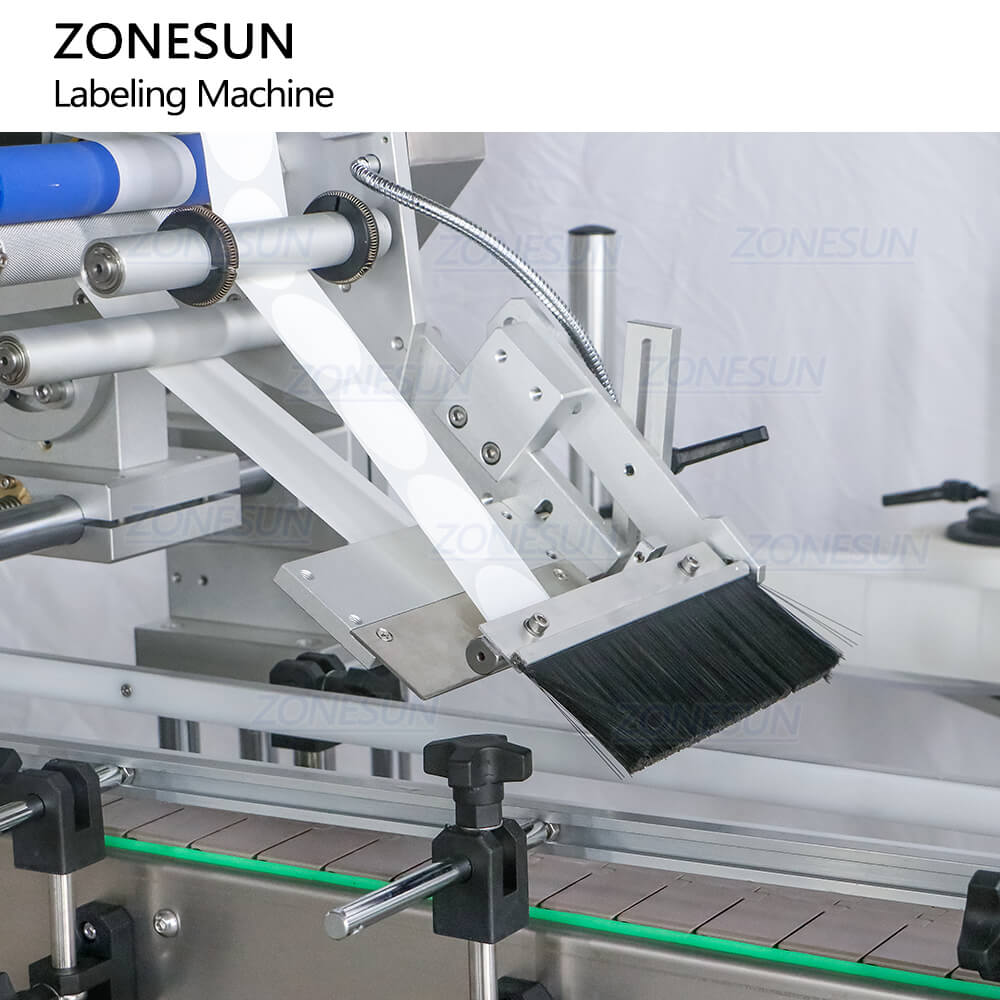

Labeling Structure of Bottle Cap & Body Labeling Machine

Equipped with two labeling structures, the machine can stick labels on flat bottle cap and bottle body simultaneously.The two

structures can be controlled separately.

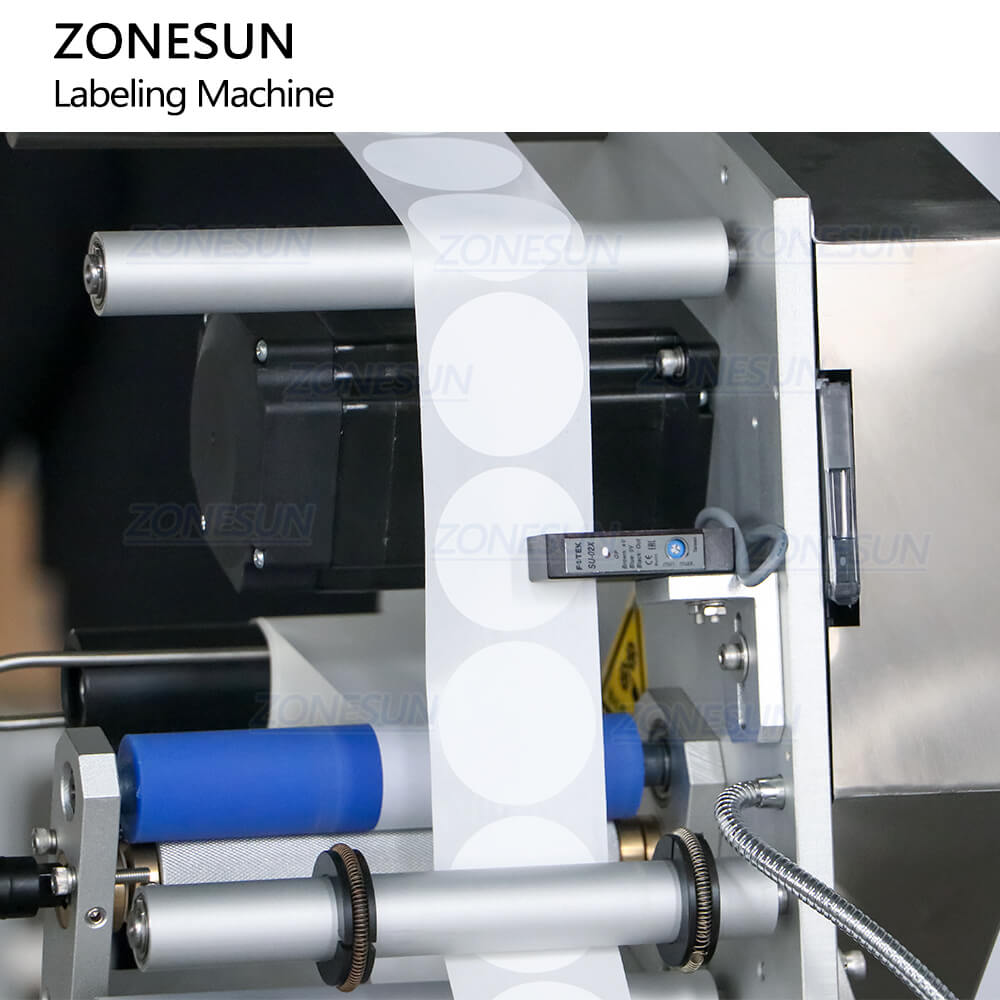

Label Sensor of Bottle Cap & Body Labeling Machine

With high-quality label sensor,it can detect labels and control machine to output labels accurately,avoiding wasting or missing labels.The sensitivity of it can be adjusted as production need.

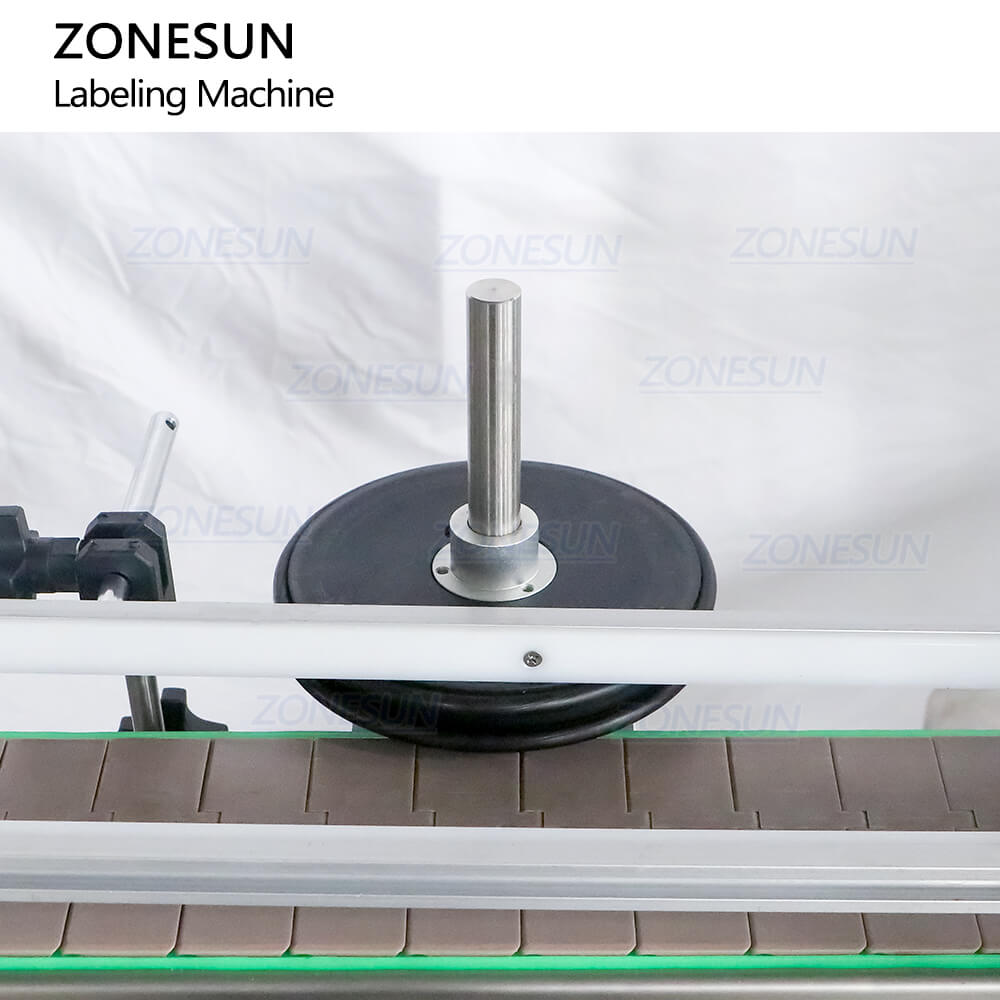

Bottle Separating Plate of Bottle Cap & Body Labeling Machine

The wheel is designed for separating bottles during working,making production in order.Reduce production error and improve working efficiency.

Conveyor of Bottle Cap & Body Labeling Machine

With chain conveyor belt,it has large bearing capacity,which can convey containers stably.The conveying speed and width of conveyor can be adjusted as production need.

Honey Bottle Cap & Body Labeling Machine
