ZOENSUN ZS-XG440Q 8 Heads Automatic Screw-on Caps Dish Detergent Bottle Filp Top Caps Screwing Capping Tightening Machine
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
Click
For Video

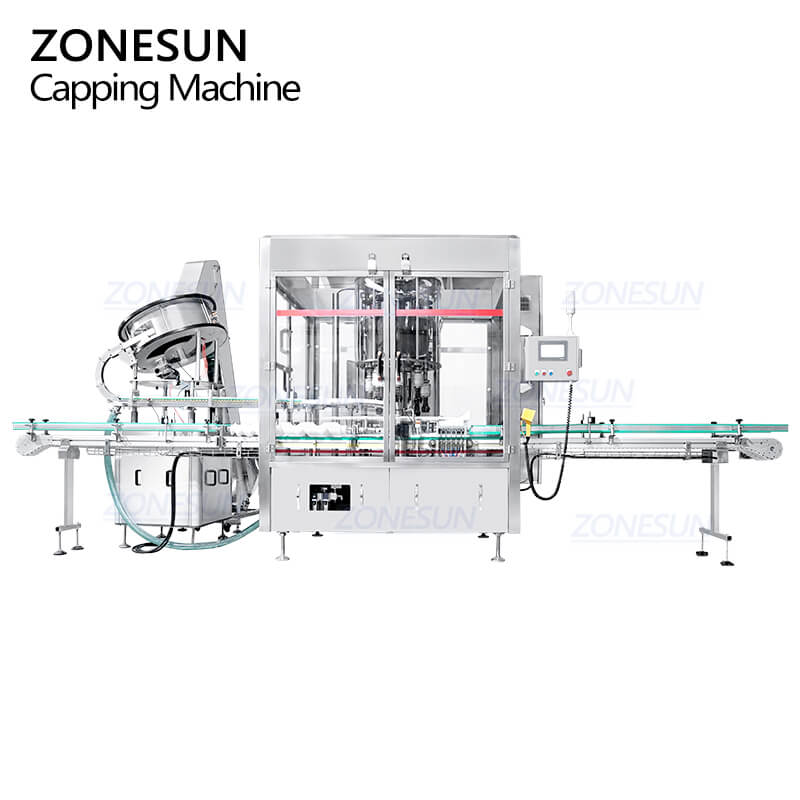

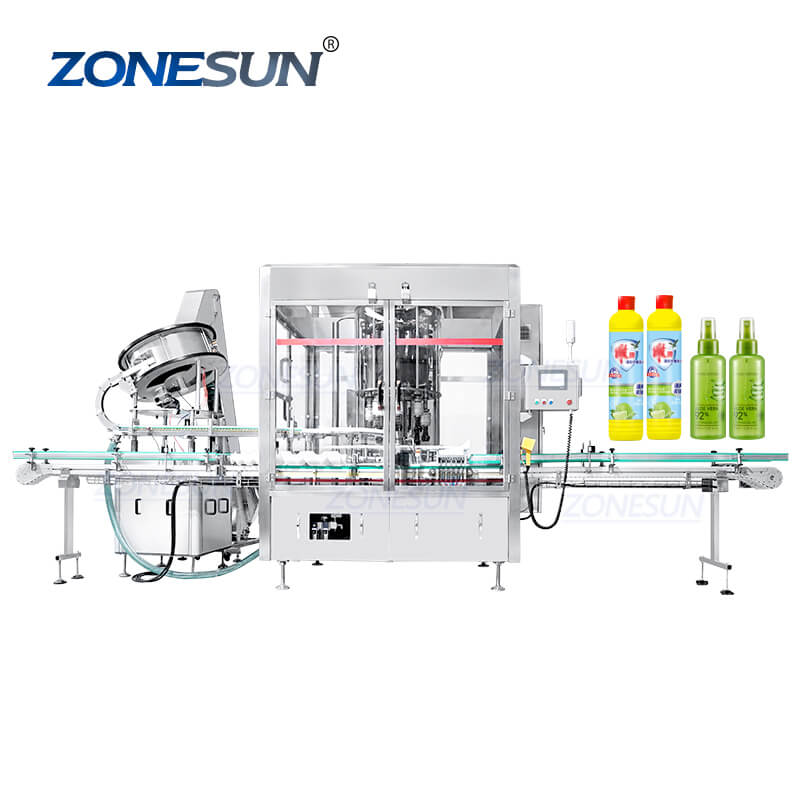

This automatic capping machine is equipepd with 8 capping heads, bottles will be tightened with caps during transporting. It is equipped with cap feeding machine and cap vibrating machine, which can improve working speed, this machine can cap 9000 bottles per hour. It is good for beverage, cosmetic , and daily chemical industries.
Parameter
- Machine model: ZS-XG440Q
- Number of capping heads: 8 heads
- Power supply: 380V 50Hz 3KW
- Air pressure: 0.5-0.6 Mpa
- Production capacity: 9000 Bottles/hour
- Applicable cover size: Customized
- Applicable bottle type: Customized
- Cap torque control type: Permanent magnetic clutch
- Conveyor height: 900±50mm
- Dimensions: 2000mm*1800mm*2900mm(L*W*H)
- Weight: 3000kg

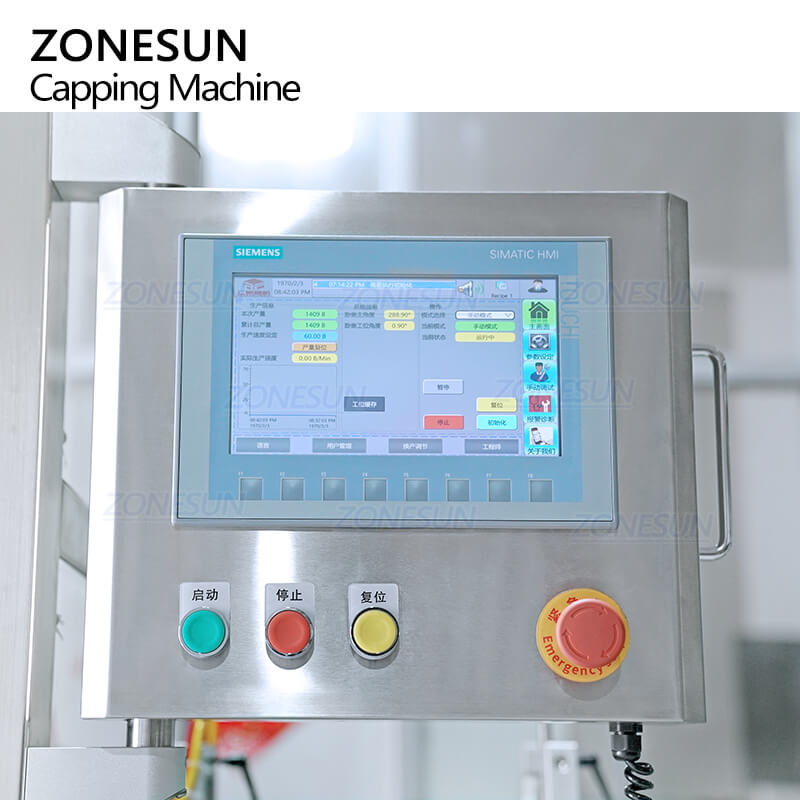

Equipped with PLC touch screen control panel, it is easier to adjust working parameter in real time. Different kinds of operation language can be customized.

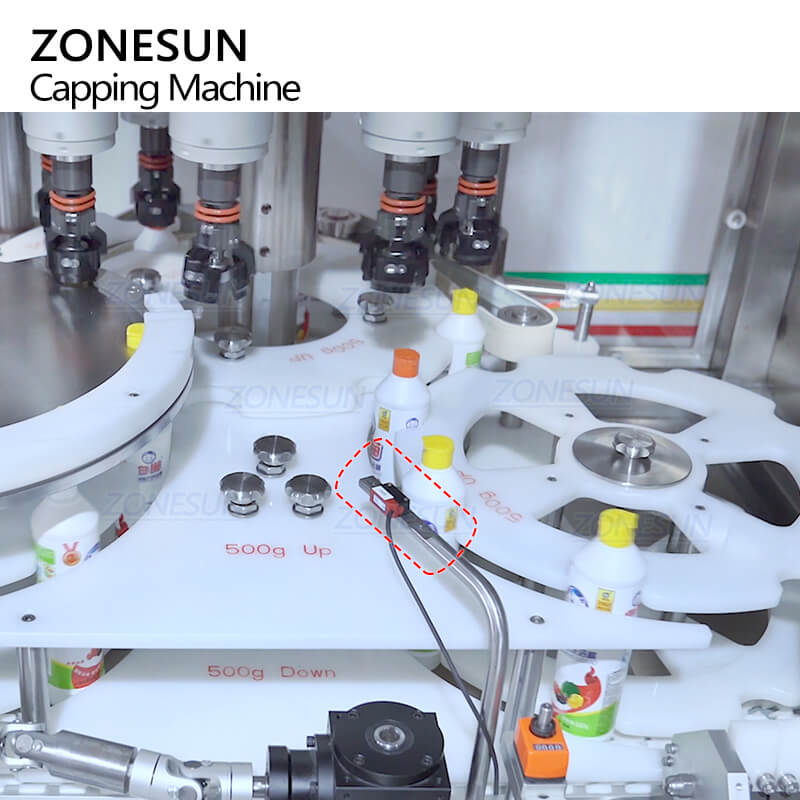

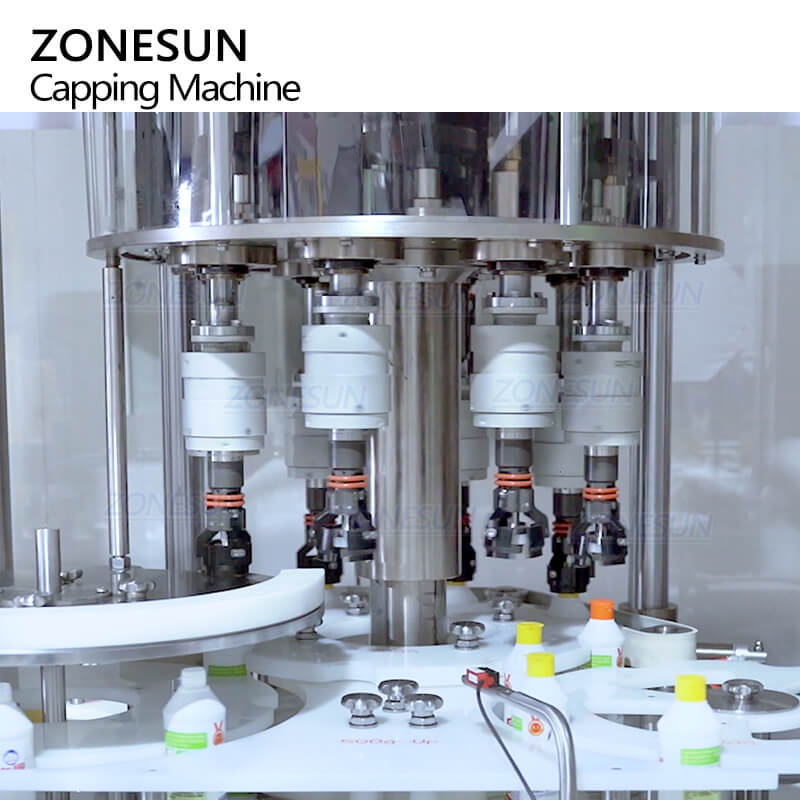

Equipped with 8 capping heads, bottle cap will be tightened during transporting.The upper limit detection photoelectric and lower limit detection photoelectric cab prevent the lifting transmission mechanism from locking or disengaging.
Equipped with photoelectric detection components at the inlet and outlet of the conveyor belt, it can realize the stop function of no bottle and full bottles.

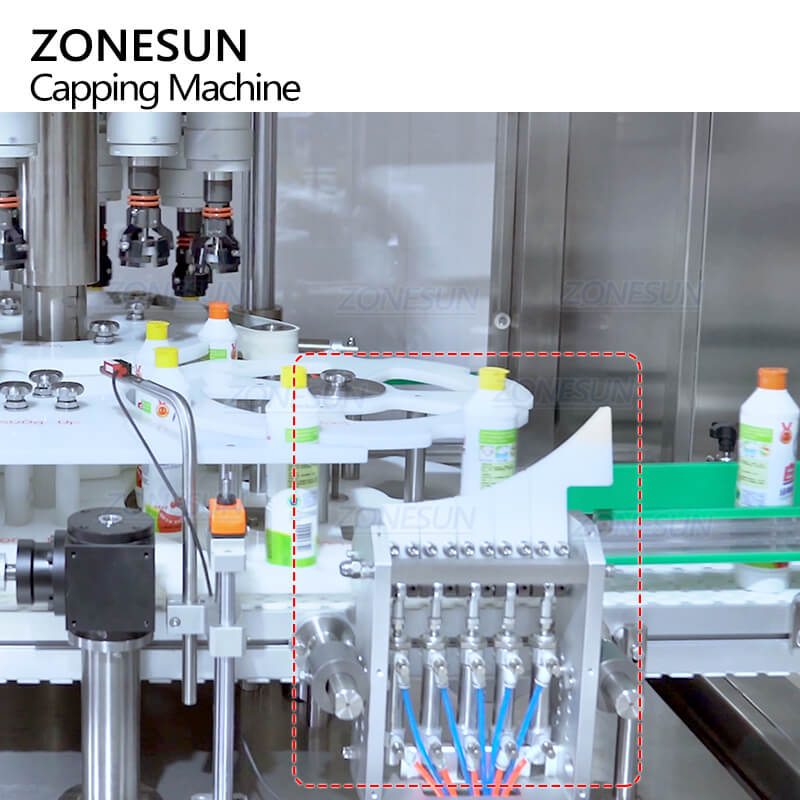

Equipped with unqualified products detecting structure, this can separate the qualified products and unqualified products, it saves working labor and improves production quality.
