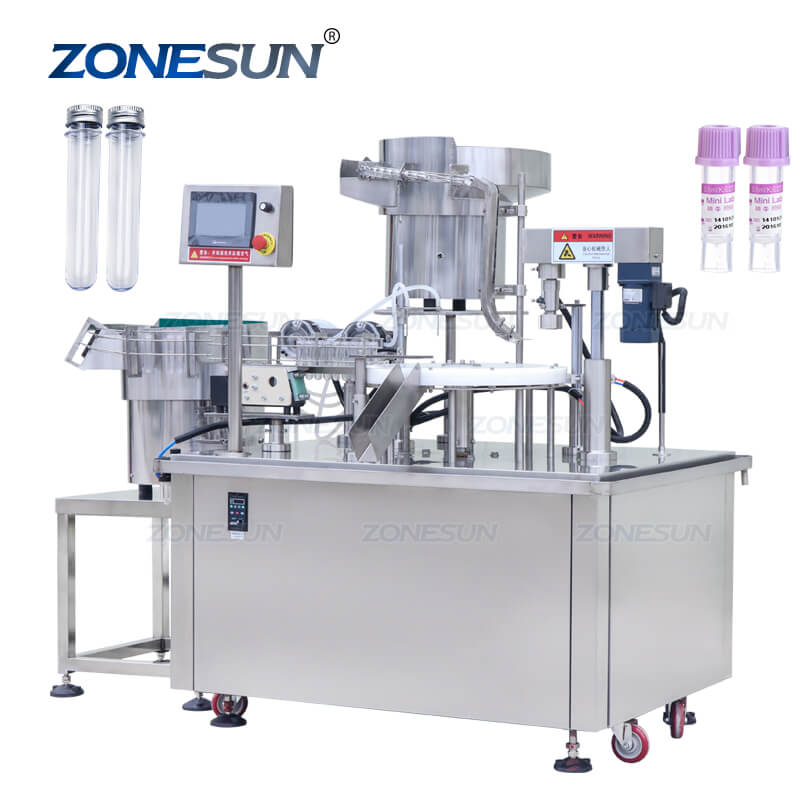

ZONESUN ZS-AFC10 Automatic Screw Cap Test Tube Liquid Monoblock Rotary Filling Capping Machine

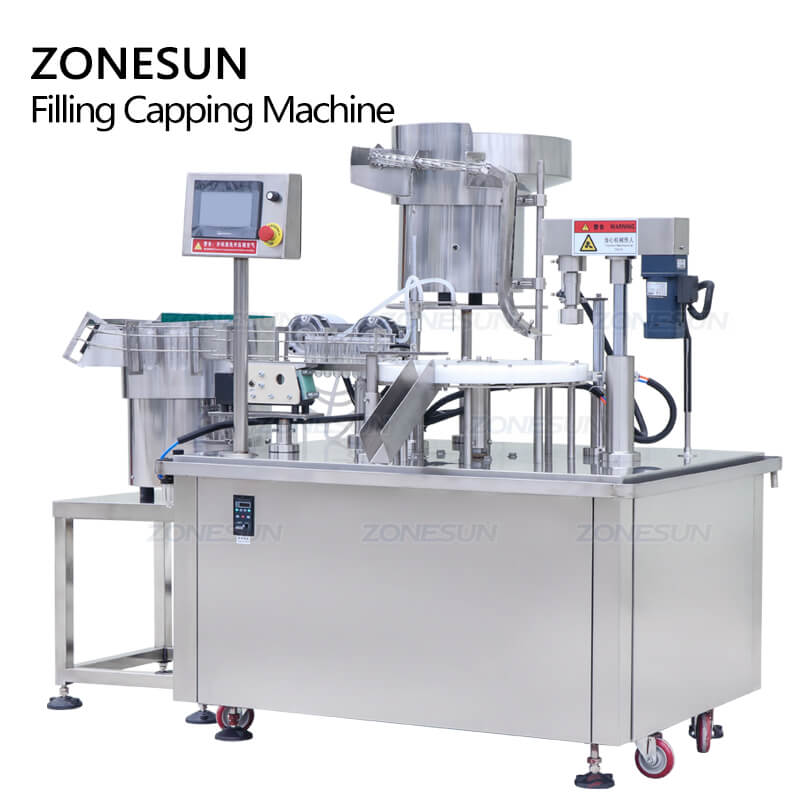

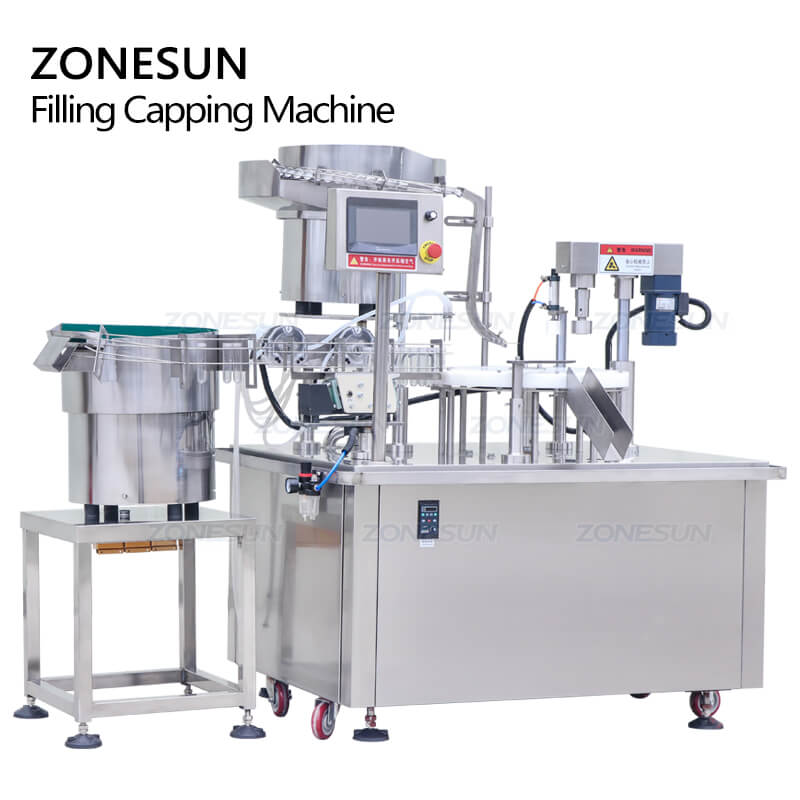

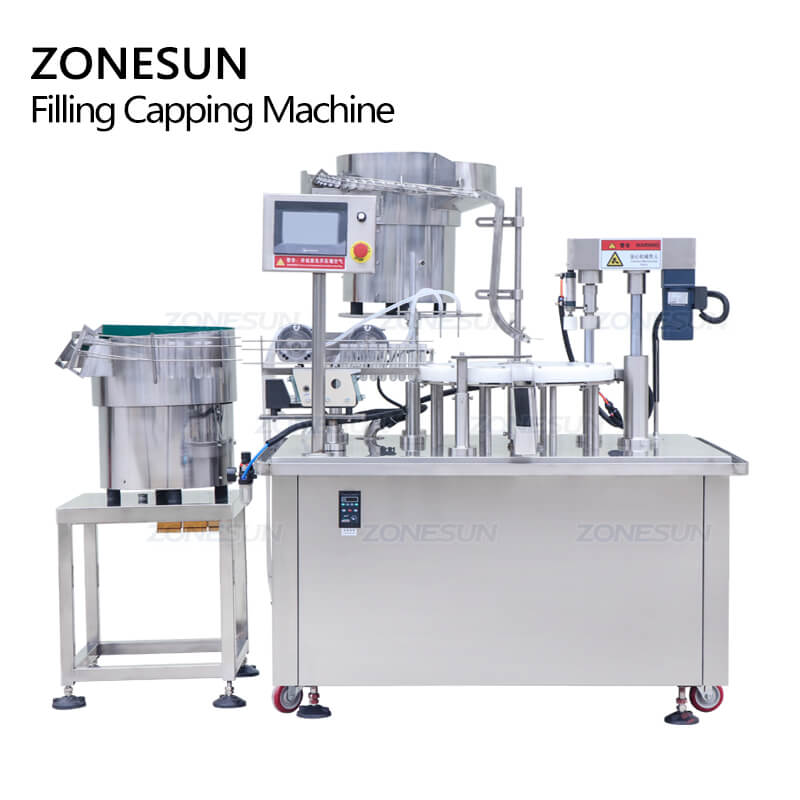

Test tube filling capping machine
Vibratory bowl sorter of Test tube filling capping machine
Filling structure of Test tube filling capping machine
Peristaltic pump of test tube filling capping machine
Test tube filling capping machine
Test tube filling capping machine
ZONESUN ZS-AFC10 Automatic Screw Cap Test Tube Liquid Monoblock Rotary Filling Capping Machine

ZONESUN ZS-AFC10 Automatic Screw Cap Test Tube Liquid Monoblock Rotary Filling Capping Machine

Size
Regular price $18,069.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico)

Click Video Link For Video

This rotary filling capping machine is good for filling liquid into small test tube,high accuracy and can improve working efficiency.The filling range and rotary plate size can be customized as operation need.

Parameter

Model:ZS-AFC10
Voltage:110/220V 50-60HZ
Power:2KW
Filling range:20ML (can be customized according to need)
Working speed:About 30 bottles/min (based on filling volume)
Filling accuracy:±2%
Air consumption:0.8-2m³/h
Pressure:0.3-0.8Mpa
Packing size:About 1560*1460*1600mm
Packing weight:About 562kg

Test tube filling capping machine

Application of Test tube filling capping machine

Machine details of Test tube filling capping machine

Control panel of test tube filling capping machine

The touch screen control panel makes working parameter be in visual,it can watch the working status in time and adjust the parameter as operation need.

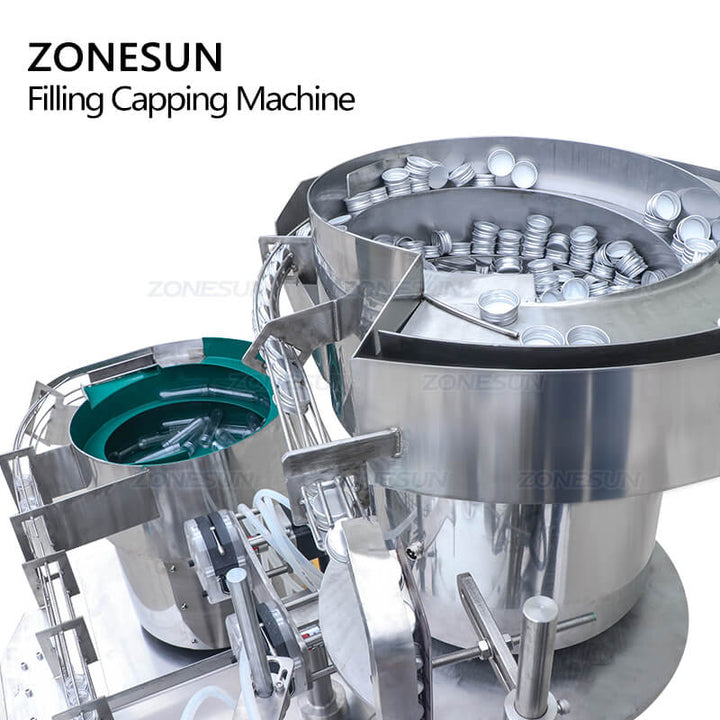

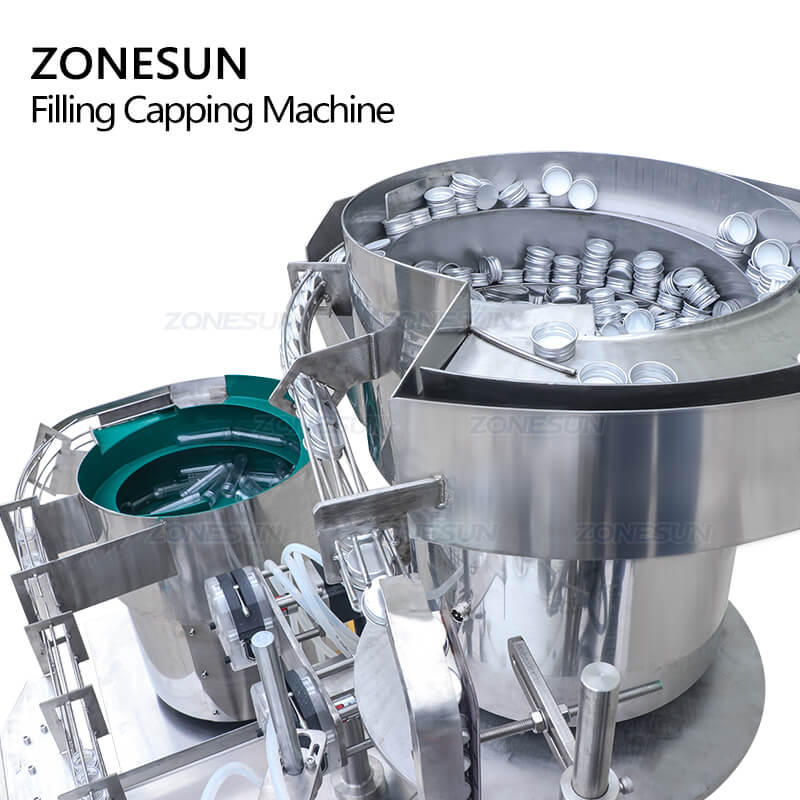

Vibratory bowl sorter of test tube filling capping machine

Equipped with two pieces of bowl sorter, one is for arrange bottles,another one is for arranging bottle caps.These can make the production be in order before filling and capping work,reduce the production error.

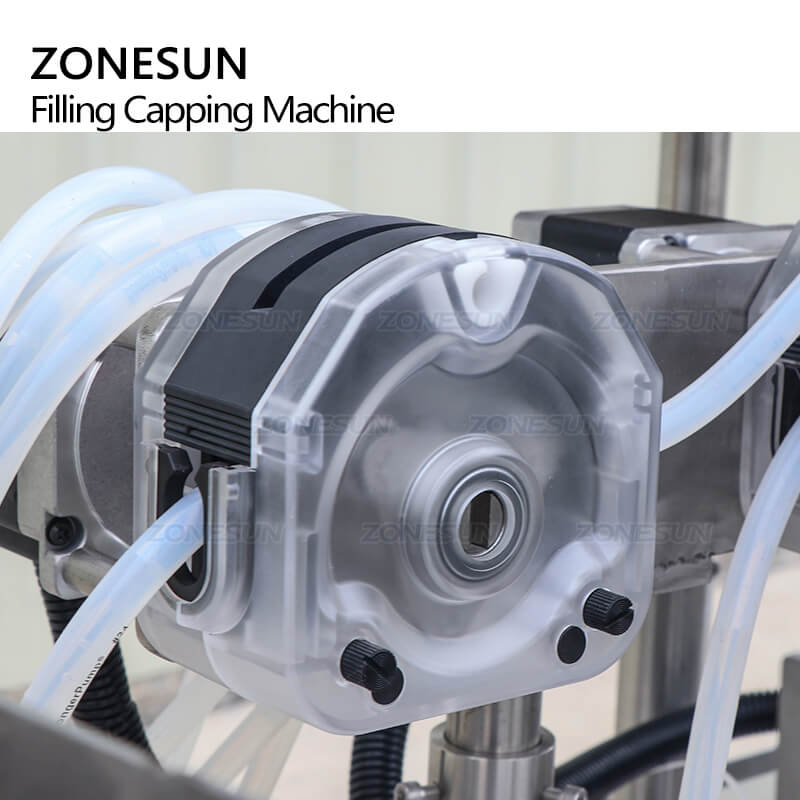

Peristaltic Pump of Test tube filling capping machine

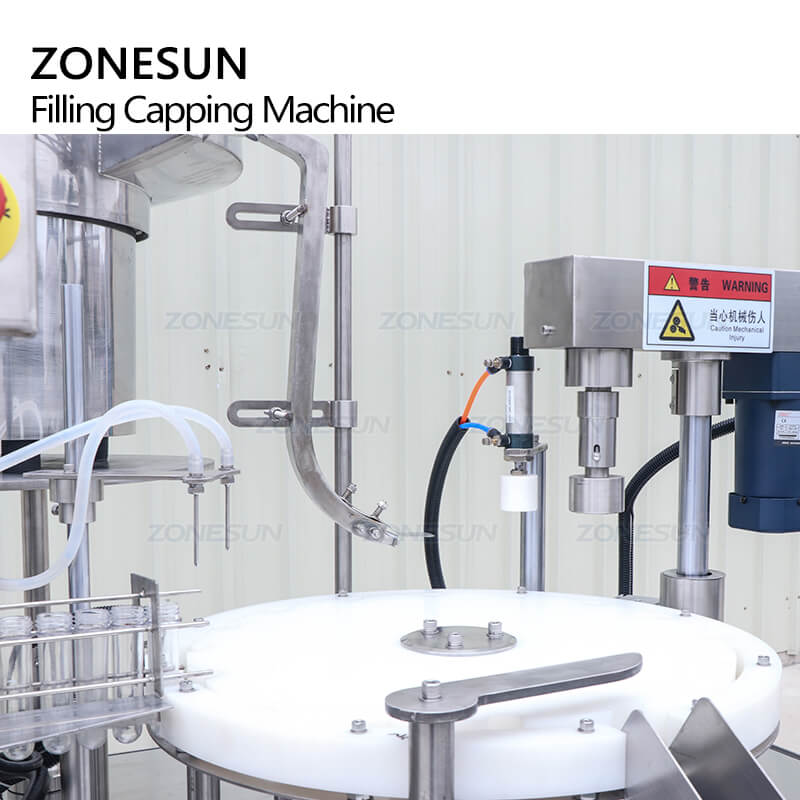

The machine integrates the functions of filling,capping and capping on a rotary plate,which is customized according to the size of the container,improving the accuracy of production and reducing the working space

The machine integrates the functions of filling,capping and capping on a rotary plate,which is customized according to the size of the container,improving the accuracy of production and reducing the working space

Filling nozzle of Test tube filling capping machine

The electric eye is used to detect bottles and control the machine to start filling and capping work.With this,the machine can realize the automated production, helps to save production labor.

Test tube filling capping machine
