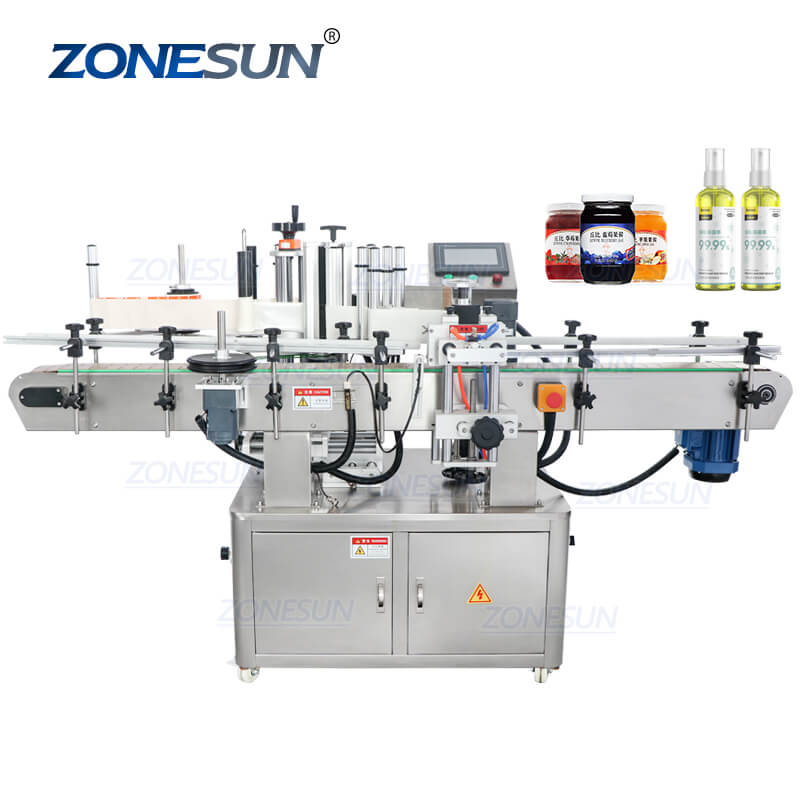

ZONESUN ZS-TB260 Round Bottle Single & Double Side Labeling Machine For Beverage Milk Juice Bottles

Voltage 110V 220V

Price

Save $-4,769 USD

/

One Year Warranty

User Manual

One-to-one Video Chat Support

Install & Debug Video

Custom Package Solution

Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

This fully automatic bottle labeling machine is designed for both single-side and double-side labeling, with a speed of up to 50 bottles per minute. It greatly improves labeling efficiency and ensures consistent performance. The machine is compatible with PET, metal, and glass bottles, making it a versatile solution for food, beverage, and cosmetic industries.

Parameter

Model: ZS-TB260 Labeling Machine
Power Supply: AC220V 50Hz/60Hz 1500W
Labeling Capacity: 25-50 PCS /min(Depends on bottle size)
Labeling Accuracy: ±1.0 mm
Suitable Bottle Diameter: Φ30-100 mm
Label Size: (L)15-200 mm x (H)15-150 mm
Roll Inside Diameter: Φ76mm
Roll Outside Diameter: Φ350mm
Conveyor Size: 1950(L)*100mm(W)
Machine Size :(L)2000*(W)1400*(H)1300mm
Packing Size: 2120*940*1500 mm

automatic labeling machine for PVC round bottle

round bottles suitable for automatic labeling machines

Types of labels used by labeling machines

suitable labels used by labeling machine

main components of the automatic labeling machine

control panel of automatic labeling machine

Intelligent control panel helps you control the machine easily, the working data is visual and can be adjusted accurately.

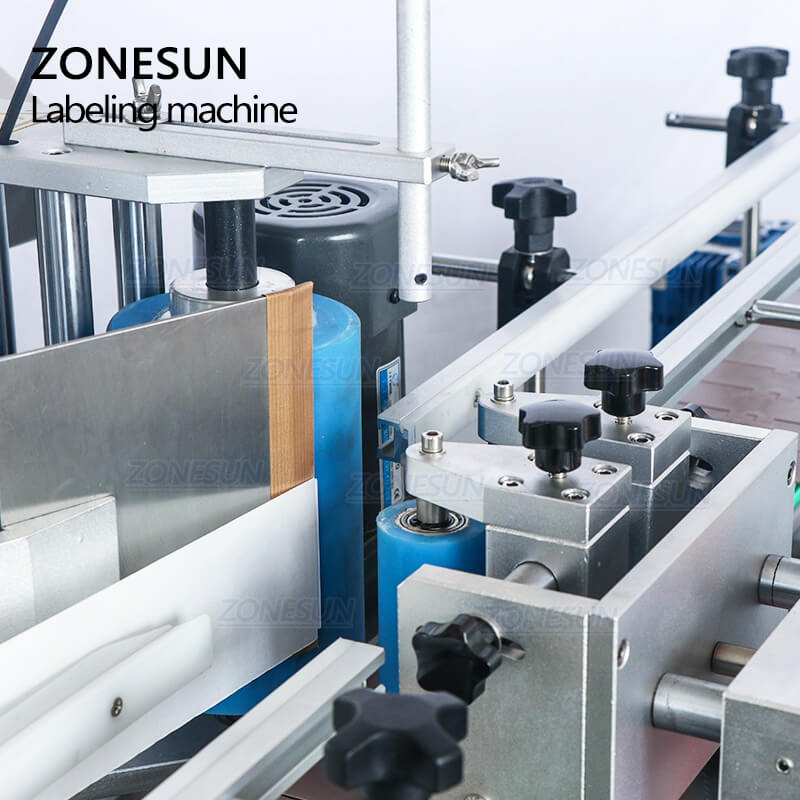

conveyor belt of automatic round bottle labeling machine

The conveyor width can be adjusted according to the bottle diameter. The transferring speed is adjustable by operation panel.

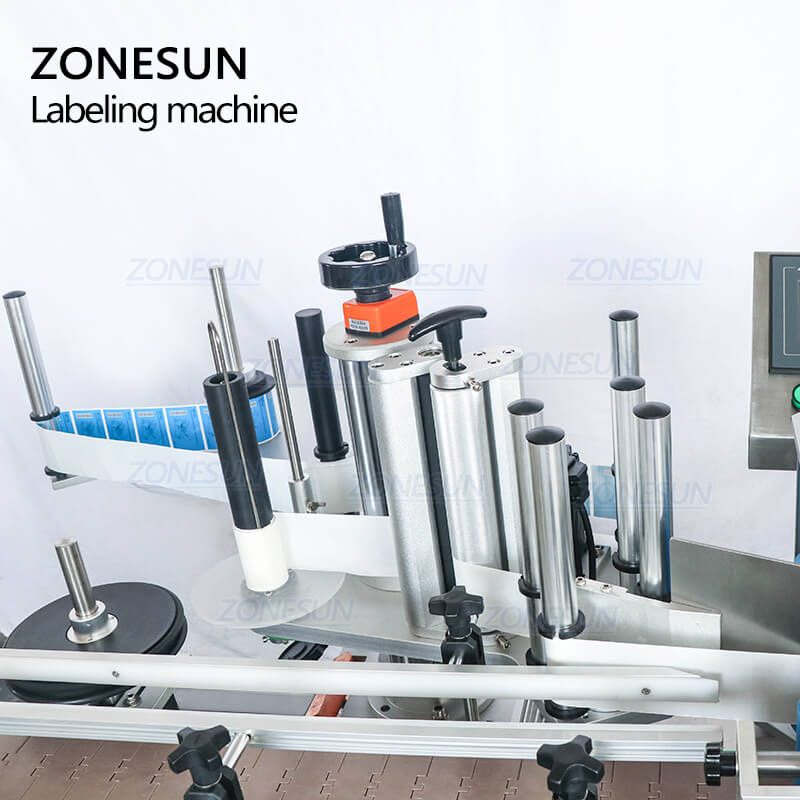

labeling structure of automatic labeling machine for round bottle

Scrolling to label stickers, this machine is suitable for single side or double side labeling stickers on round bottles. It works accurately and helps to improve working efficiency and offer better labeling effect.

label winding structure of automatic labeling machine

Suitable for (L)15-200mm x (H)15-150mm Labels, the position of label roll can be adjusted according to bottle height and labeling position, ensure the labeling effect.

bottle sensor of automatic labeling machine

It detects bottles by electric eye, prevent from missing bottles, the sensitivity of electric eye can be adjusted according to production needs.Improve labeling accuracy.
