ZONESUN ZS-FAL180G4 Automatic Rotor Lobe Pump Large Capacity Peanut Butter Fruit Paste Bucket Weighing Filling Sealing Machine Production Line

This filling line consists of a rotor pump weighing filling machine and a sealing machine, designed for efficiently packaging cup puree and other thick pastes. It is ideal for high-viscosity materials and can be customized to meet specific production needs. Featuring a wide filling range, it ensures precise dosing with its weighing function for accuracy. The sealing system supports both round and square-shaped seals, providing flexibility for different packaging designs. Additionally, the mixing function ensures uniform consistency, making it a reliable solution for high-quality paste packaging.

Filling Machine Parameter

• Machine Model: ZS-RPVW1

• Machine Voltage: 110/220V 50-60HZ 2.5 KW

• Filling Pump: Rotor pump

• Filling Range: 50-5000 ml

• Weighing Range: 0-8000 g

• Filling Accuracy: ±1%

• Bottle Size: 40-150*80-140 mm(φ*H) (Customizable)

• Hopper Size: 80 L

• Working Capacity: 8-10 BPM (based on 1000 ml filling volume)

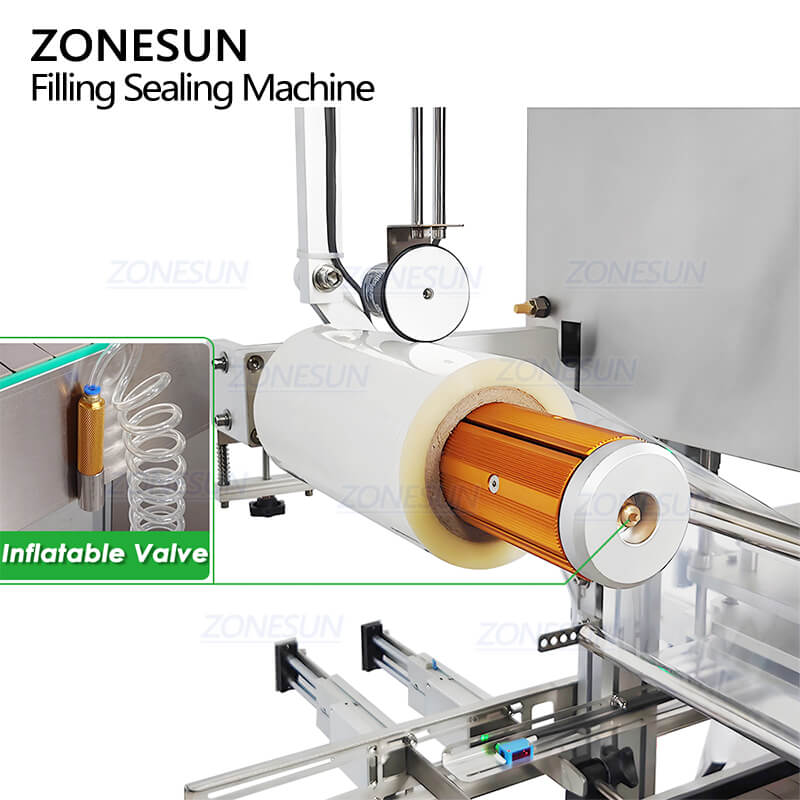

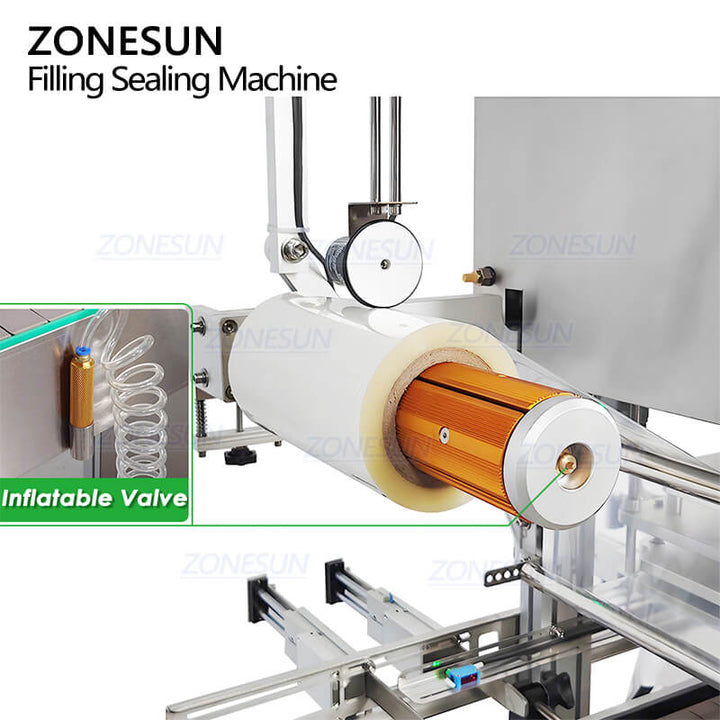

Sealing Machine Parameter

• Machine Model: ZS-FKR2T

• Machine Voltage: 110/220V 50-60HZ 2KW

• Quantity of Sealing Heads: 1/2/3/4 (can be customized based on bottle size)

• Working Speed: About 900-1200 BPH

• Heating Temperature: About 0-300 ℃

• Sealing Diameter: 50-250 mm( round or square can be customized )

• Suitable Film Size: 2-3 mm larger than bottle mouth

• Suitable Film Material: PP/PE/PET/PS/ Aluminum foil film

• Air Pressure: 4-8 kg/cm²

• Machine Size: About 2500*1000*1500 MM
