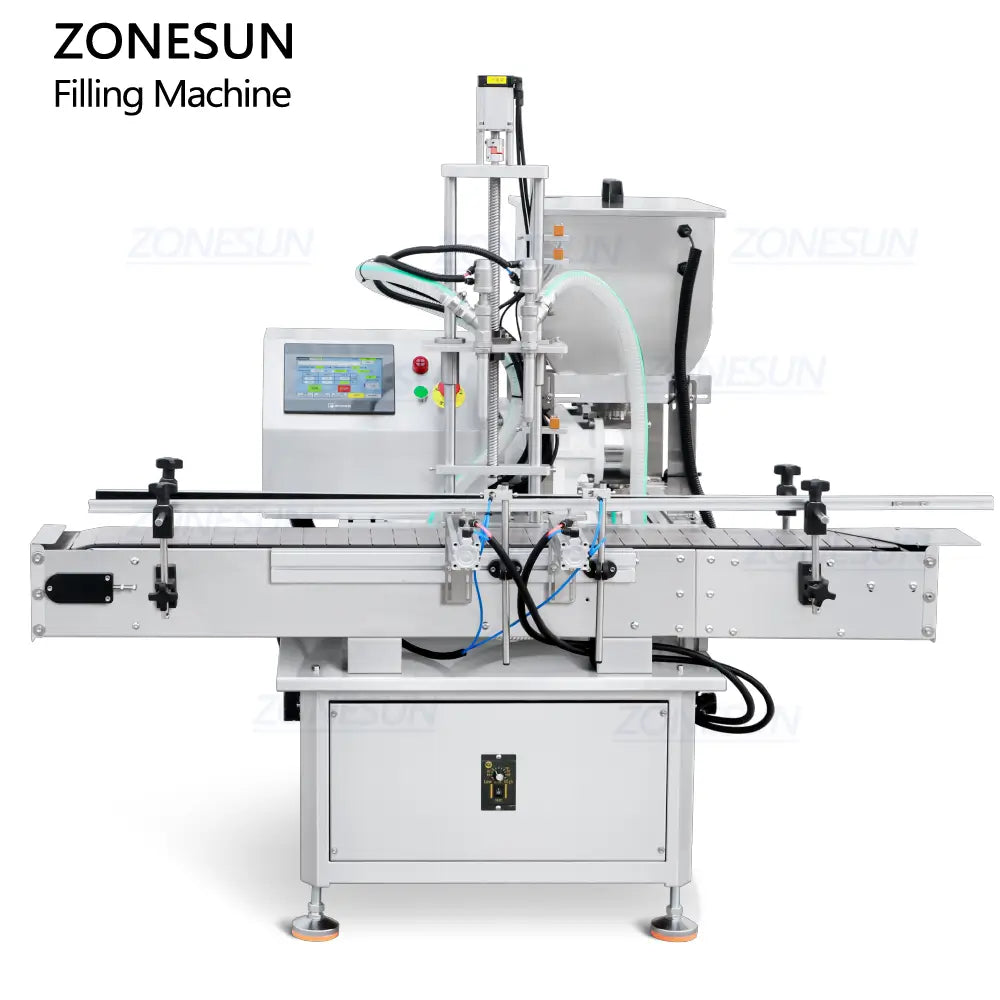

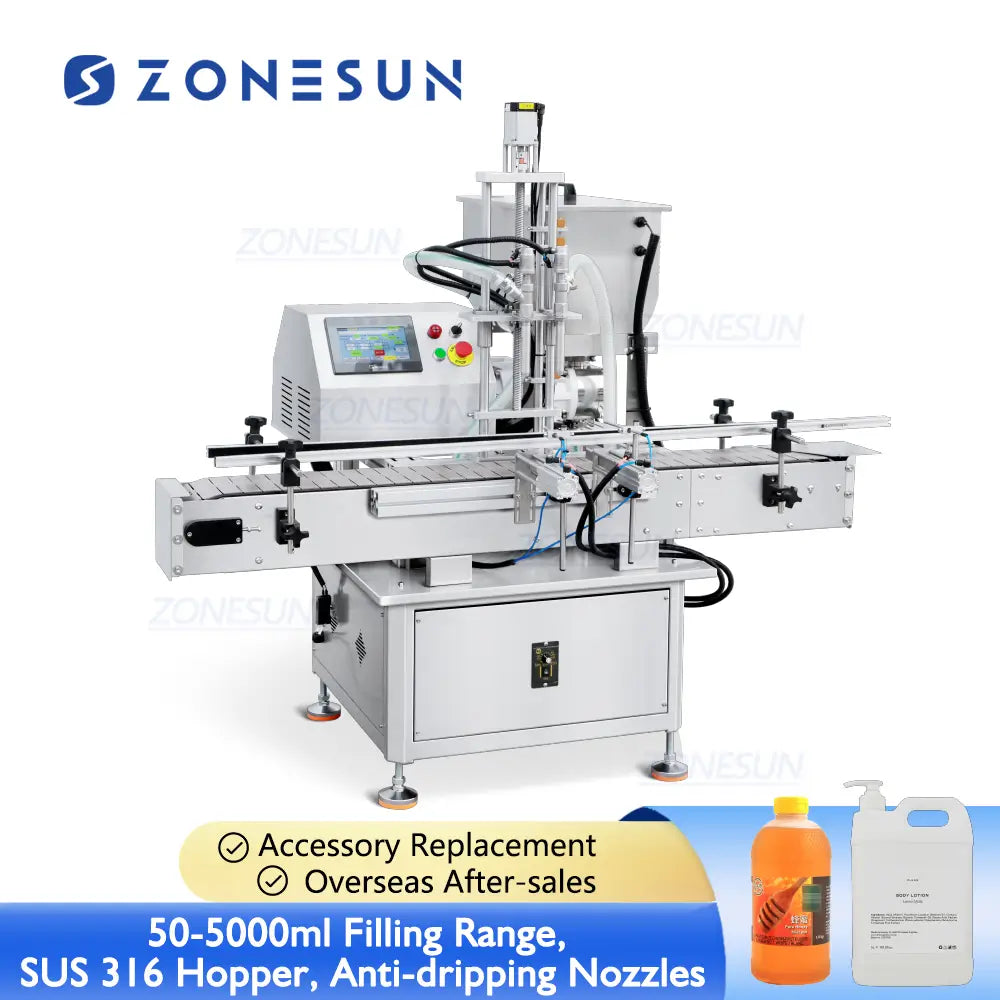

ZONESUN ZS-DTGT800U2 Automatic Tabletop Rotor Lobe Pump 2 Heads Fruit Jam Tomato Paste Filling Machine

This filling machine suits for thicker liquid or paste like sauce, mayonnaise, fruit jam. it has 316 stainless steel hopper and anti-dripping nozzles, tabletop machine design saves working space, it can integrate with capping and labeling machine to realize automated production.

Parameter

• Machine Model: ZS-DTGT800U2

• Machine Voltage: 3.5KW

• Filling Range: 50-5000 ml

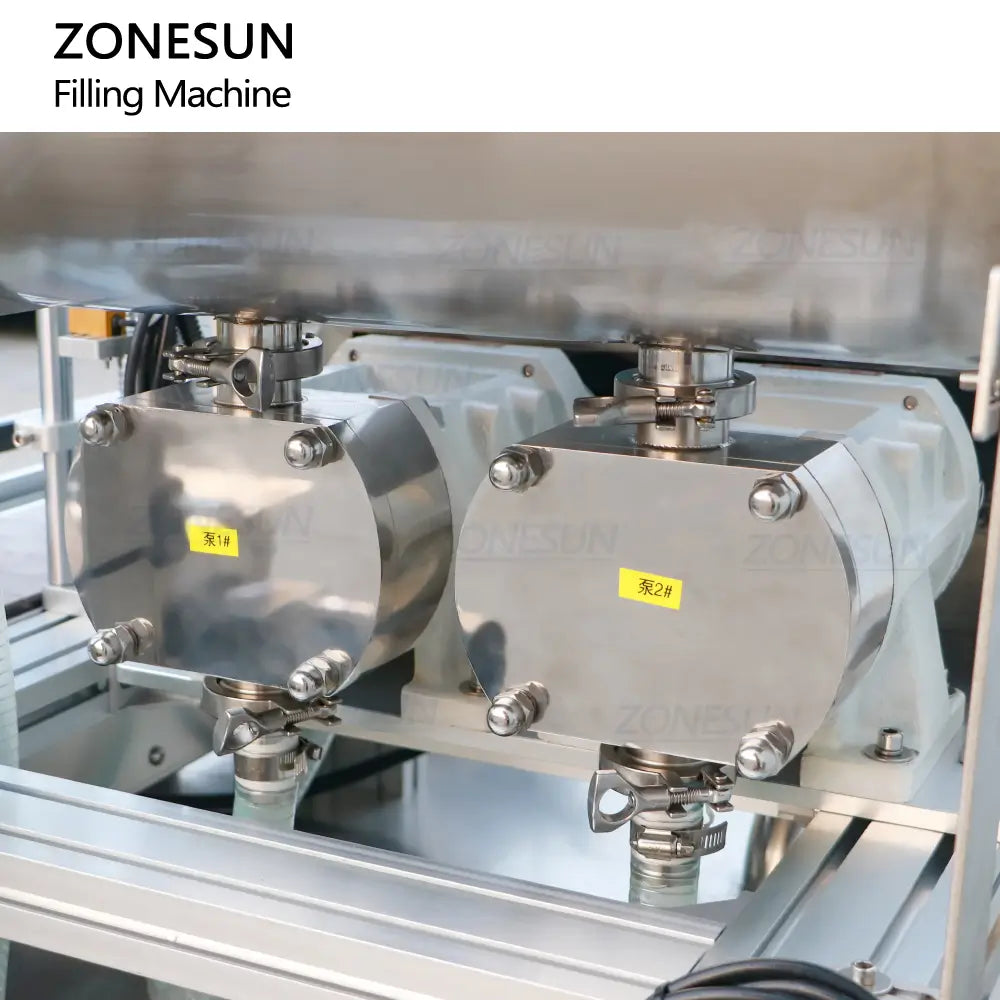

• Filling Pump: Rotor Lobe Pump

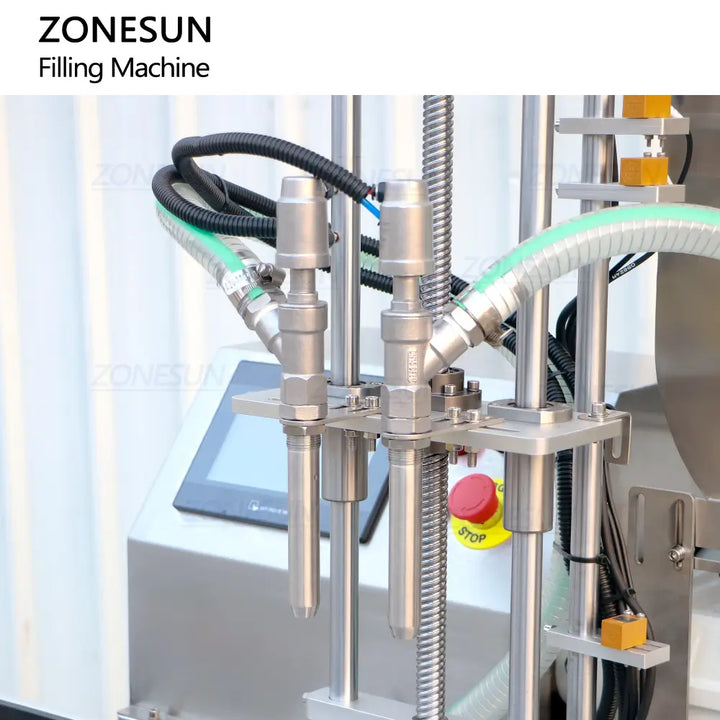

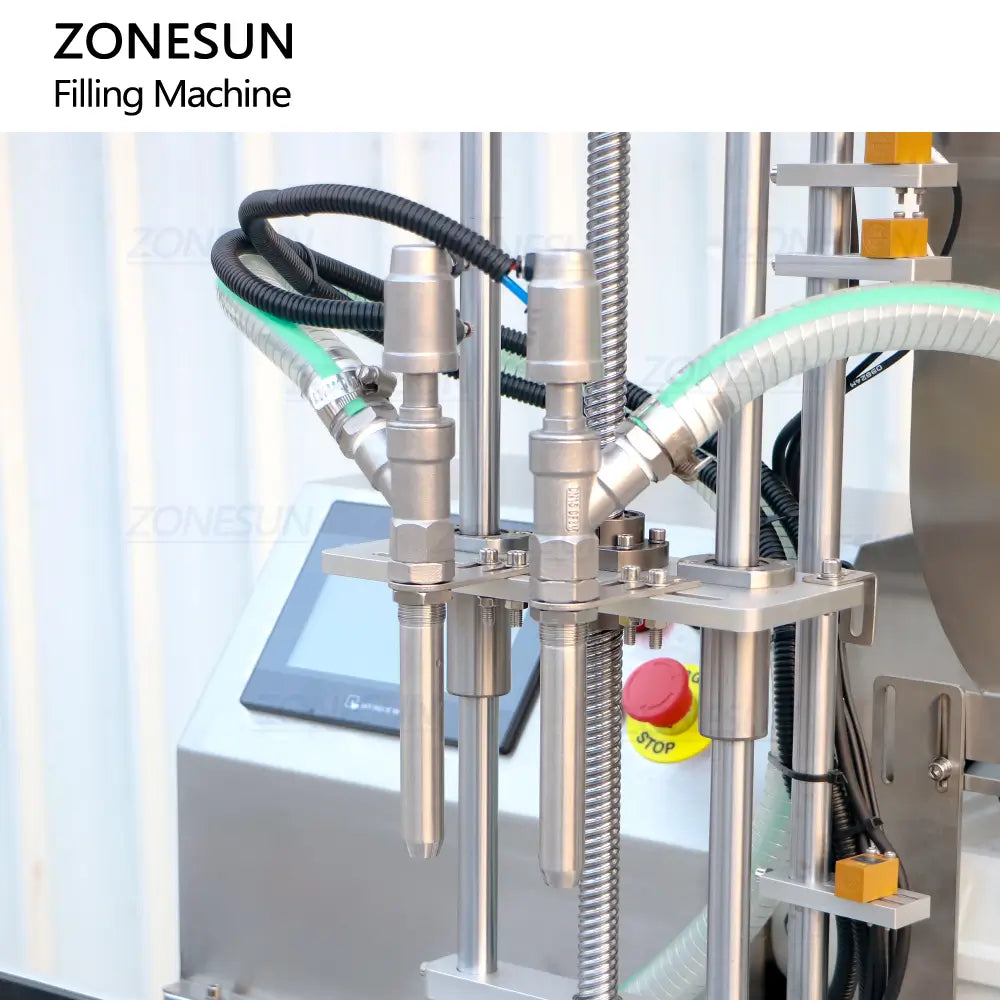

• Filling Nozzle Quantity: 2 Anti-dripping Nozzle

• Woking Capacity: 8-20 BPM (based on filling volume)

• Filling Accuracy: ± 1% (50ml filling error is ± 2ml)

• Air Pressure: 0.4-0.8 MPa

• Suitable Bottle Size: Max 150 mm(φ)*260 mm(H)

• Filling Hose Size: ID=25 mm

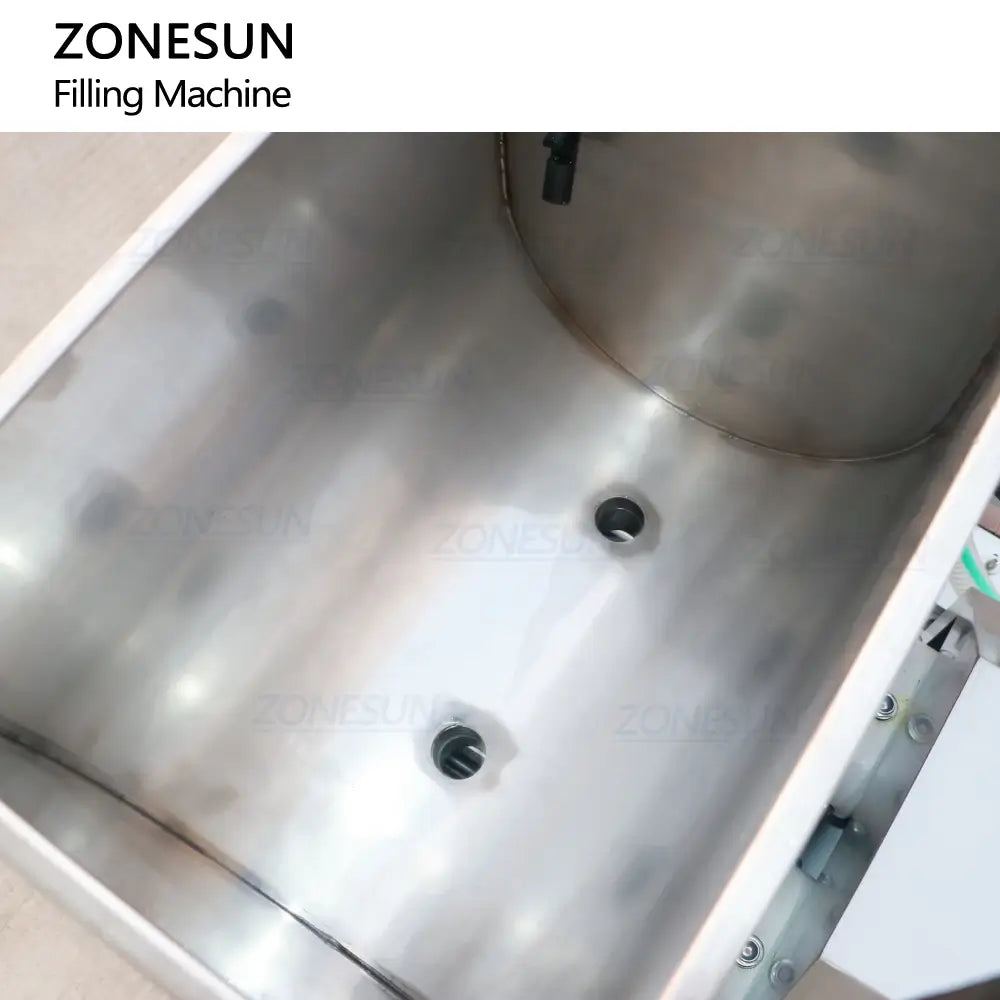

• Hopper Specification: About 450*320*350 mm / 40L

• Hopper Material: SUS316

• Machine Size: About 1510*1070*1560 mm
• Package Size: About1600*950*1450 mm

• Package Weight: About 275 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.
