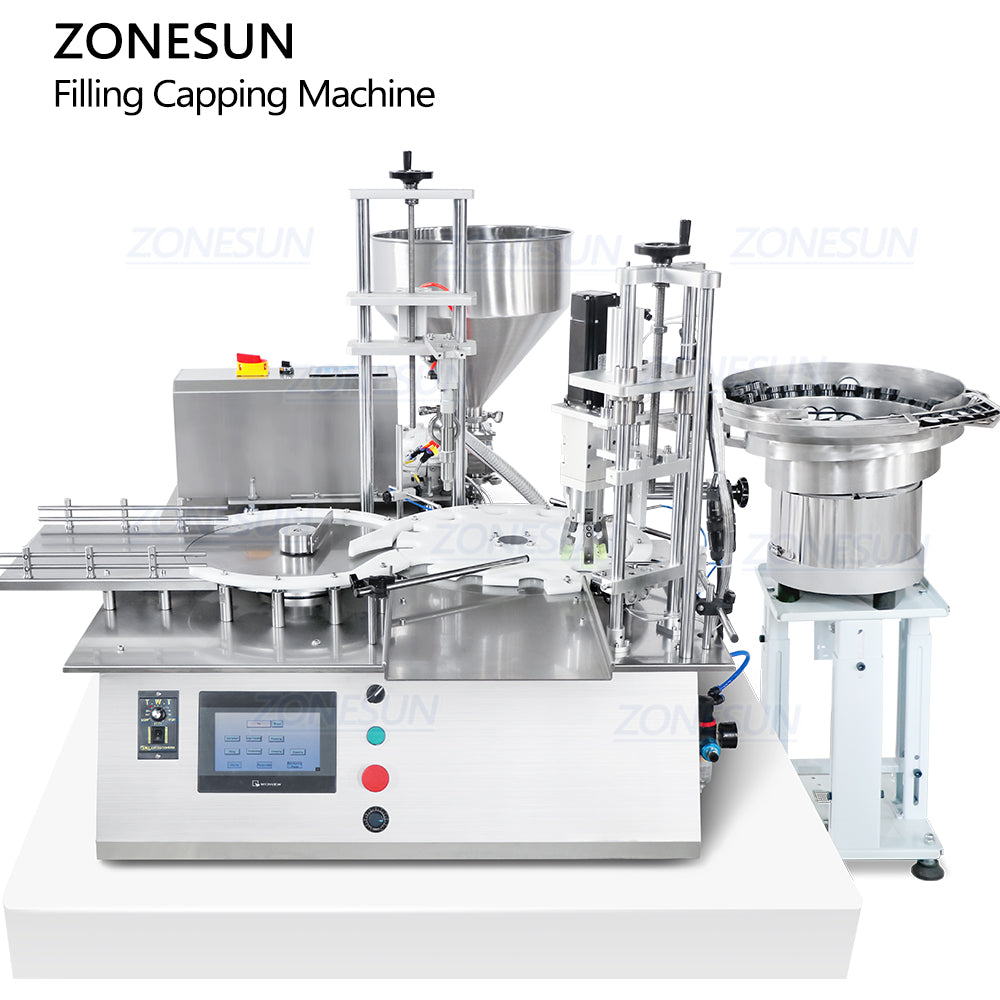

This desktop type filling capping machine can sort bottles, fill paste into bottles, feed bottle caps, and screw bottle caps at one workbench.The compact machine design is good for small scale production manufacturers in cosmetics, daily chemical andpharmaceutical industries.

Parameter

• Machine Model:ZS-AFC19
• Voltage:220V/110V 50-60Hz
• Filling Pump:Rotor Pump
• Filling Accuracy: ±1%(When the filling volume is less than 100 ml, there will be an error of 2-5 ml. Please consult customer service for specific materials.)
• Working Capacity:About 15bottles/min(depending on bottle size and filling material)
• Filling Range:20-200ml
• Suitable Bottle Diameter:25-60mm
• Suitable Bottle Height:30-90mm
• Bottle Mouth Diameter:10-35mm
• Bottle Cap Size:Can be customized
• Machine Size: About 1200*900*1070mm(Main Machine)+About 700*600*1000mm(Vibratory Bowl) +About 810*470*560mm(Filling Machine)
• Package Size:  About 1800*870*1070mm(Main Machine+Vibratory Bowl)                    About 1150*460*530(Filling Machine)
• Package Weight:  About 271kg(Main Machine+Vibratory Bowl)                          About 50kg(Filling Machine)

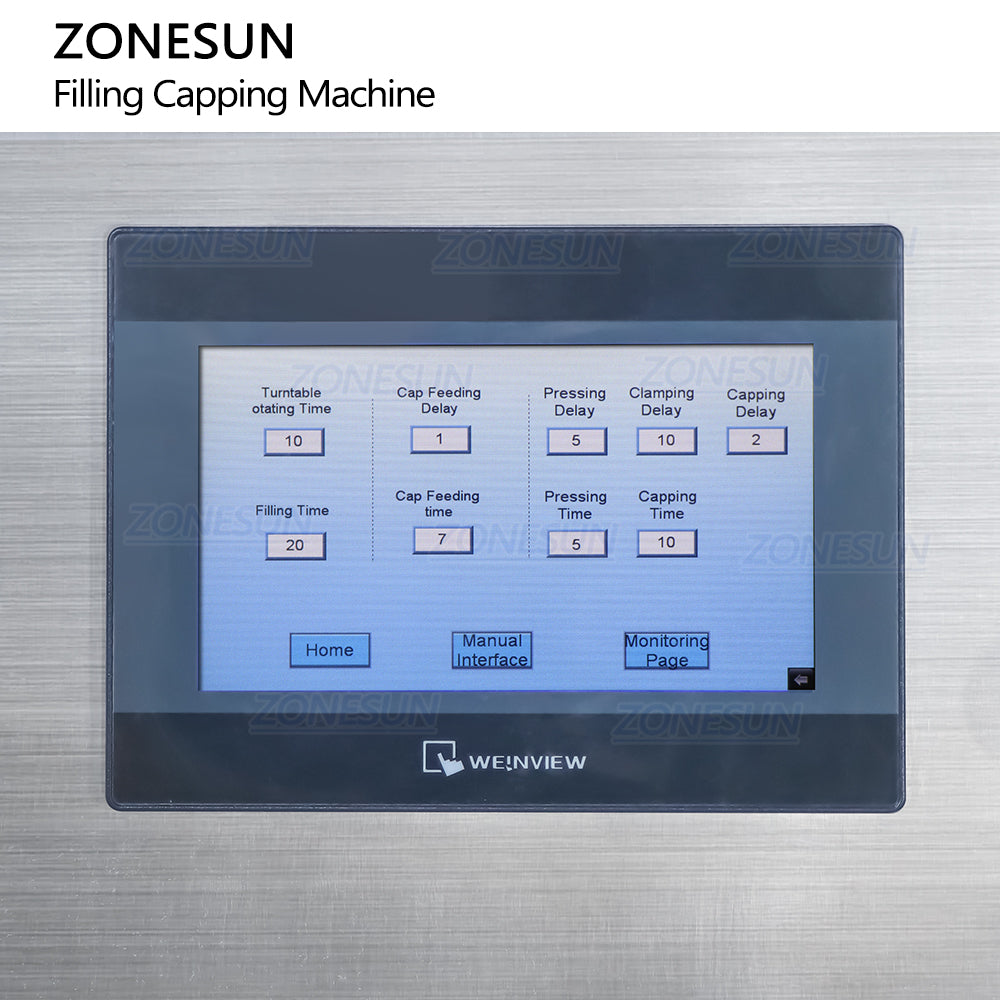

Equipped with PLC control panel, it is more convenient to set and adjust working parameters. The language of panel can be customized as your need.

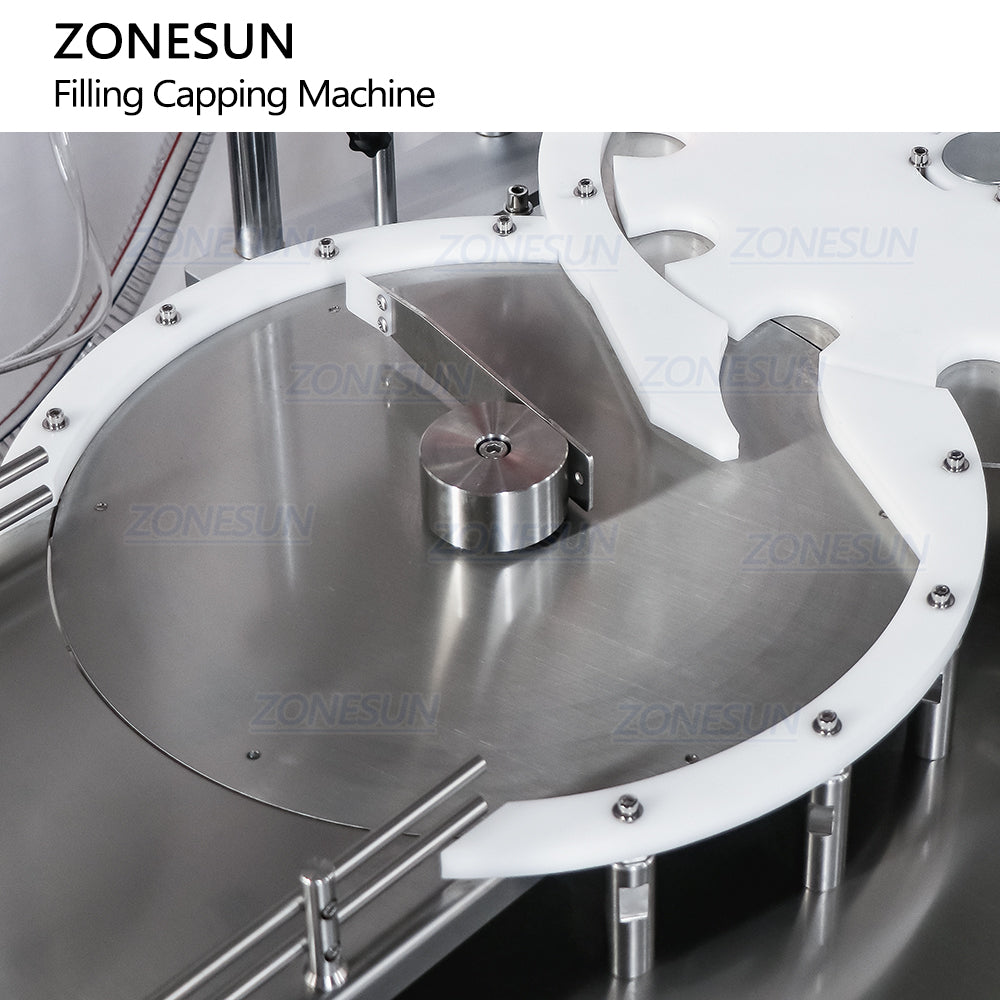

The turntable is designed for arranging bottles in order before production. The rotating speed can be adjusted as production need.

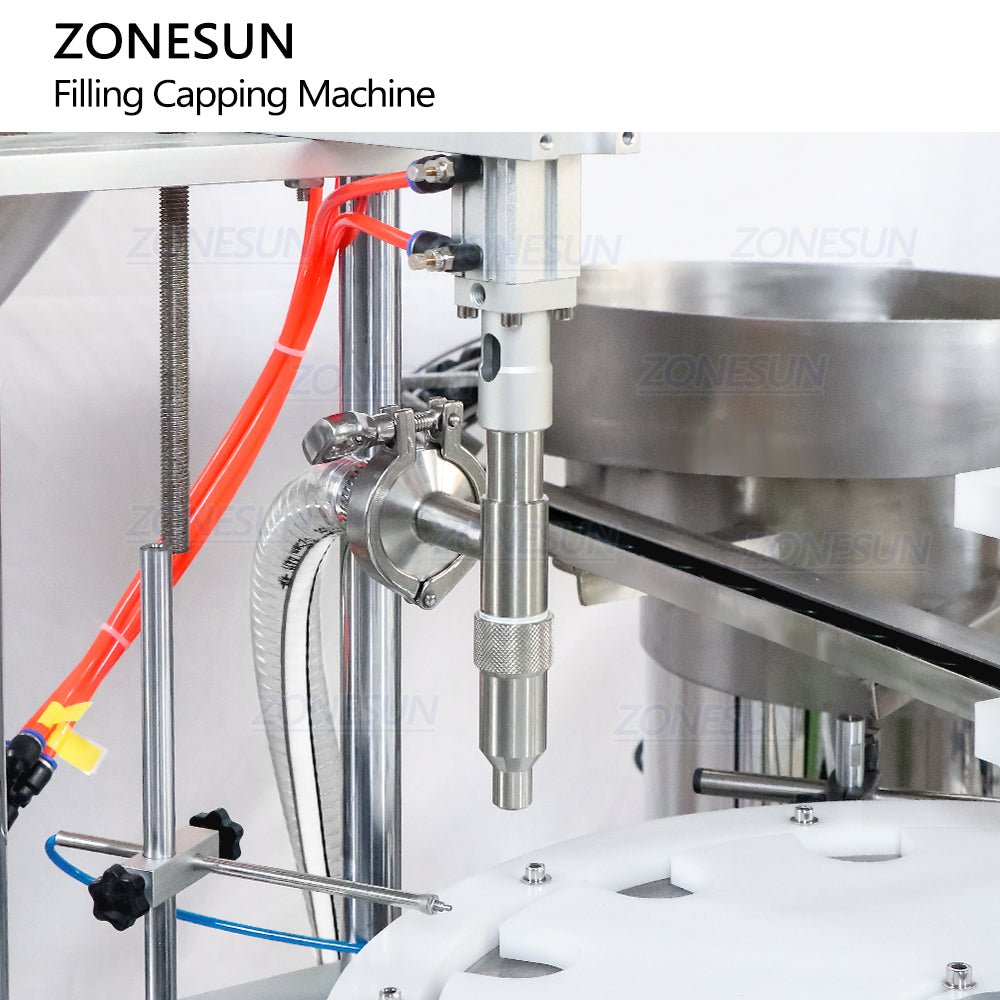

With pneumatic filling head, it can be used for filling thick paste like facial cream, lotion. The working height can be adjusted according to bottle height. It can be customized as your need.

Equipped with high quality rotor pump,this filling machine is a filling equipment composed of a servo motor and a cam rotor pump. The pump head is a metering pump with a positive displacement structure. The displacement per revolution is a fixed value. The servo motor can accurately control the speed for metering and filling.

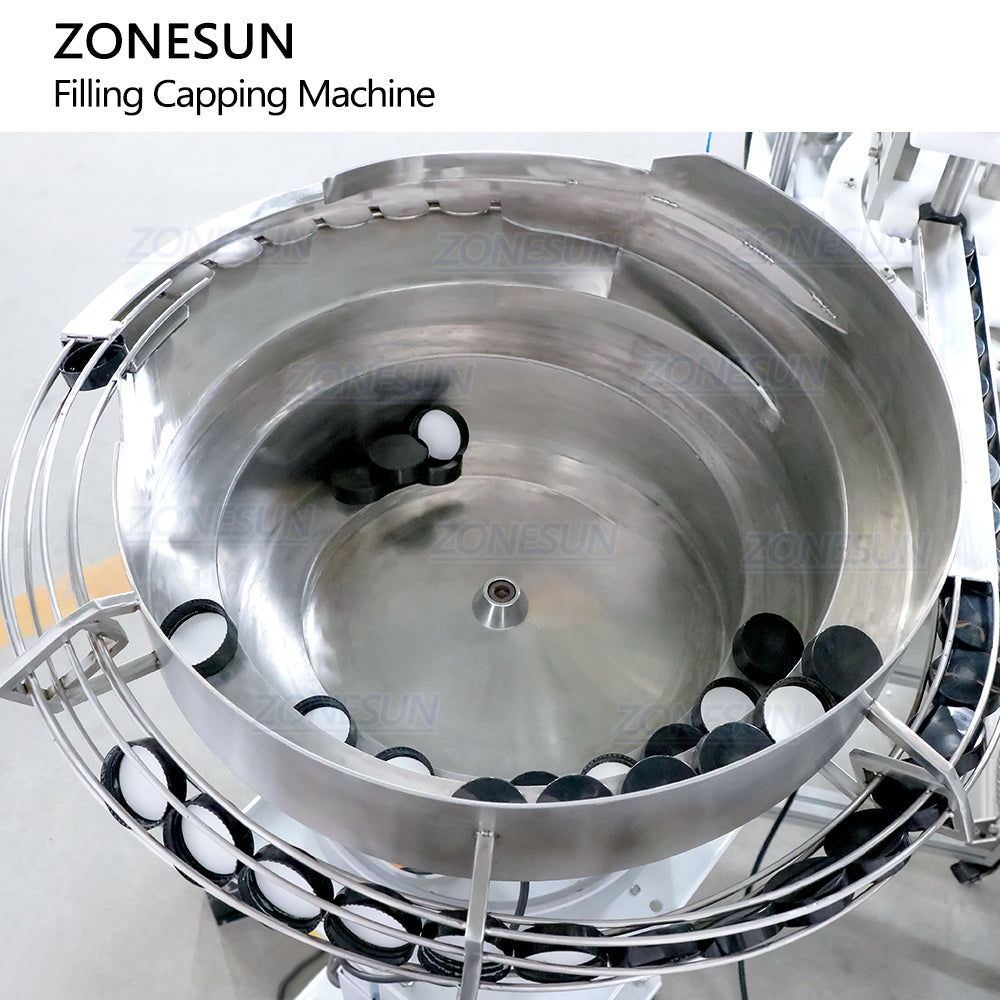

The vibratory bowl is used for arranging and feeding bottle caps automatically, saving labor cost. It can be customized according to cap size.

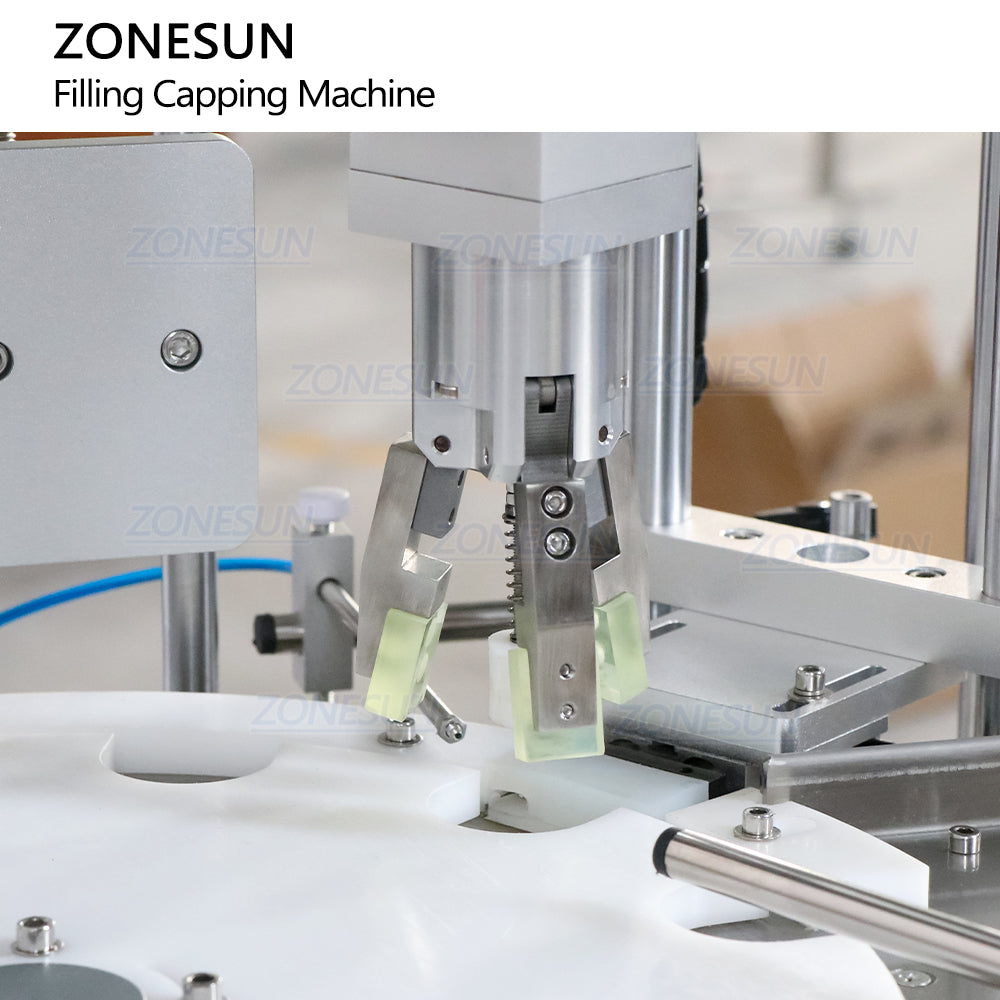

Driven by servo motor, it can tighten bottle caps well. The capping torque can be adjusted as needed. It can be customized according to production need.
