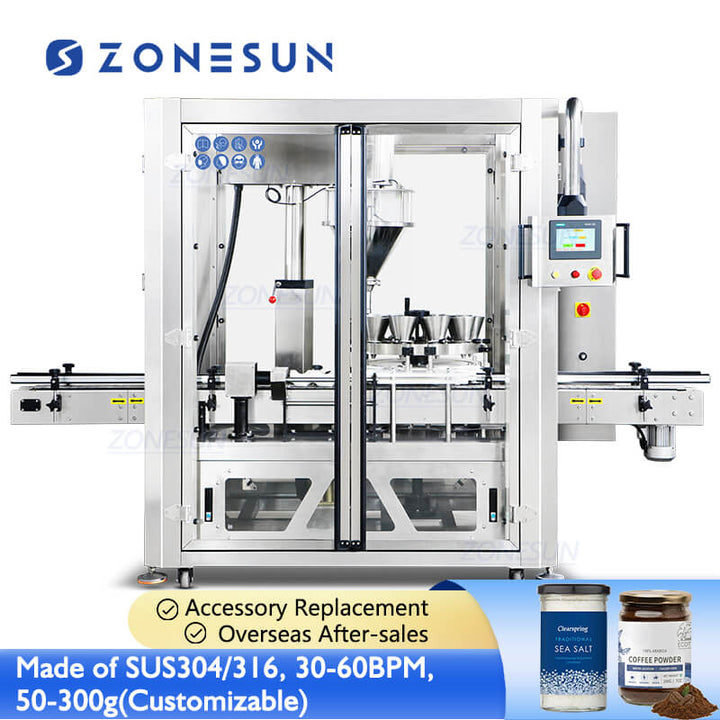

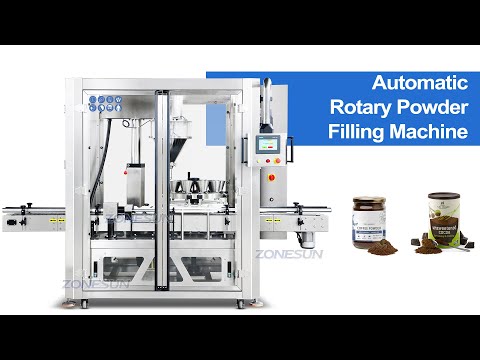

ZONESUN ZS-FM7A Automatic Rotary Auger Screw Dry Protein Powder Flour Bottle Cans Filling Machine
Regular price
$24,399.00 USD
Regular price
Sale price
$24,399.00 USD
Save $-24,399 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
This automatic filling machine can form an assembly line with bottle unscrambler, capping machine, labeling machine and other equipment. It is suitable for filling powdered materials in the food, cosmetics, daily necessities and other industries. Such as milk powder, protein powder, cocoa powder, coffee powder, and other powdered materials.
Parameter
- Machine Model: ZS-FM7A
- Machine Voltage: 220/380V 50-60HZ 2.2KW
- Filling Range: 5-50/50-300/300-1000/1000-5000g(Change auger)
- Working Capacity: 30-60BPM
- Measuring Method: Auger Filling
- Number of filling heads: 1 head (multiple heads are optional)
- Measurement error: ±1%
- Machine size: About 3000*1260*2300mm
- Machine weight: About 400kg
Control Panel
Human-Machine Interface for real-time monitoring and control.
Human-Machine Interface for real-time monitoring and control.
Rotary Machine Design
It saves working space and can reach 30-60 BPM
It saves working space and can reach 30-60 BPM

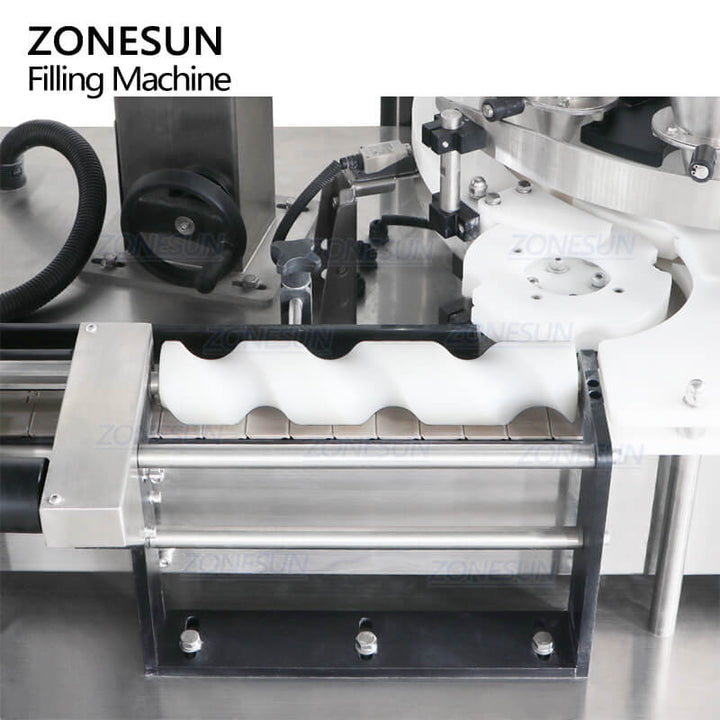

Timing Screw
Ensures accurate separation and positioning of products
Ensures accurate separation and positioning of products
Auger Filling
Control predetermined number of revolutions to fill material, it has high filling accuracy
Control predetermined number of revolutions to fill material, it has high filling accuracy

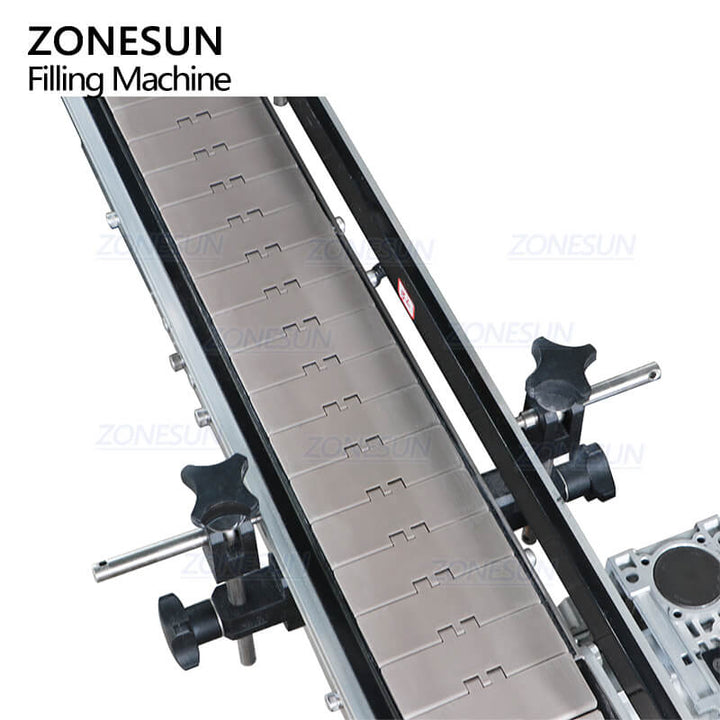

Chain Conveyor
Length and width are customizable, it has large weight capacity.
Length and width are customizable, it has large weight capacity.
