ZONESUN ZS-FAL180G2 Automatic Ropp Cap Square Bottle Olive Oil Spirits Shrink Filling Machine Production Line

This filling line consists of a magnetic pump filler, an inline ROPP capper, a sleeve band shrinking machine, a laser coding machine, a labeling machine, and a bottle sorting machine to achieve a complete packaging process. The machines are customizable based on production needs.

Infeed Bottle Sorting Machine

• Machine Model: ZS-LP800N

• Power Supply: 220V/110V 50-60Hz 200W

• Turntable Diameter: 800 mm

• Suitable Bottle Diameter: 20-100 mm

• Suitable Bottle Height: 30-320 mm

• Working Speed: 40-60 bottles/min(depending on bottle size)

• Package Size: About 1230*1010*1260 mm

• Gross Weight: About 141 kg

Magnetic Pump Filling Machine

• Machine model: ZS-VTMP80D

• Power supply: 220V-50HZ/110V-60HZ

• Machine power: 2000W

• Container size: φ20-160 mm H30-300 mm

• Max flow rate: 6000 ml/min | 7500 ml/min | 12L/min

• Recommend filling volume:10-500 ml | 30-1000 ml | 100-3000 ml

• Material of pump: 316 Stainless steel magnetic pump

• Filling speed: About 20-40 BPM (depending on filling volume & material)

• Filling accuracy:≤100 ml deviation ≤ ±1ml  > | 100ml deviation ≤±1% ( based on water)

• Size of air compressor connector: OD8 mm

• Machine weight: About 285 kg

• Machine size: About 1000*900*1860 mm

• Packing weight: About 390 kg

• Packing size: About 1970*1020*2050 mm

Inline ROPP Capping Machine

• Machine model:ZS-XG440Z

• Machine voltage:110/220V 50-60HZ 1 KW

• Suitable cap size:φ25-38 mm (Change mold)

• Suitable bottle height:About 150-320 mm

• Machine size:About 3550*1700*2250 mm

• Package size:About 1720*1600*2380 mm(Main Machine)  About 550*640*1780 mm(Vibratory Bowl)

• Package weight:About 640 kg(Main Machine)+123kg(Vibratory Bowl)

Shrinking Machine

• Machine model: ZS-SX405

• Voltage: 220V/380V

• Power: 6KW

• Sealing speed: 15m/min

• Suitable bottle height: ≤350 mm

• Suitable bottle diameter: ≤100 mm

• Machine size: 1500*500*1270 mm

• Machine weight: 80 kg

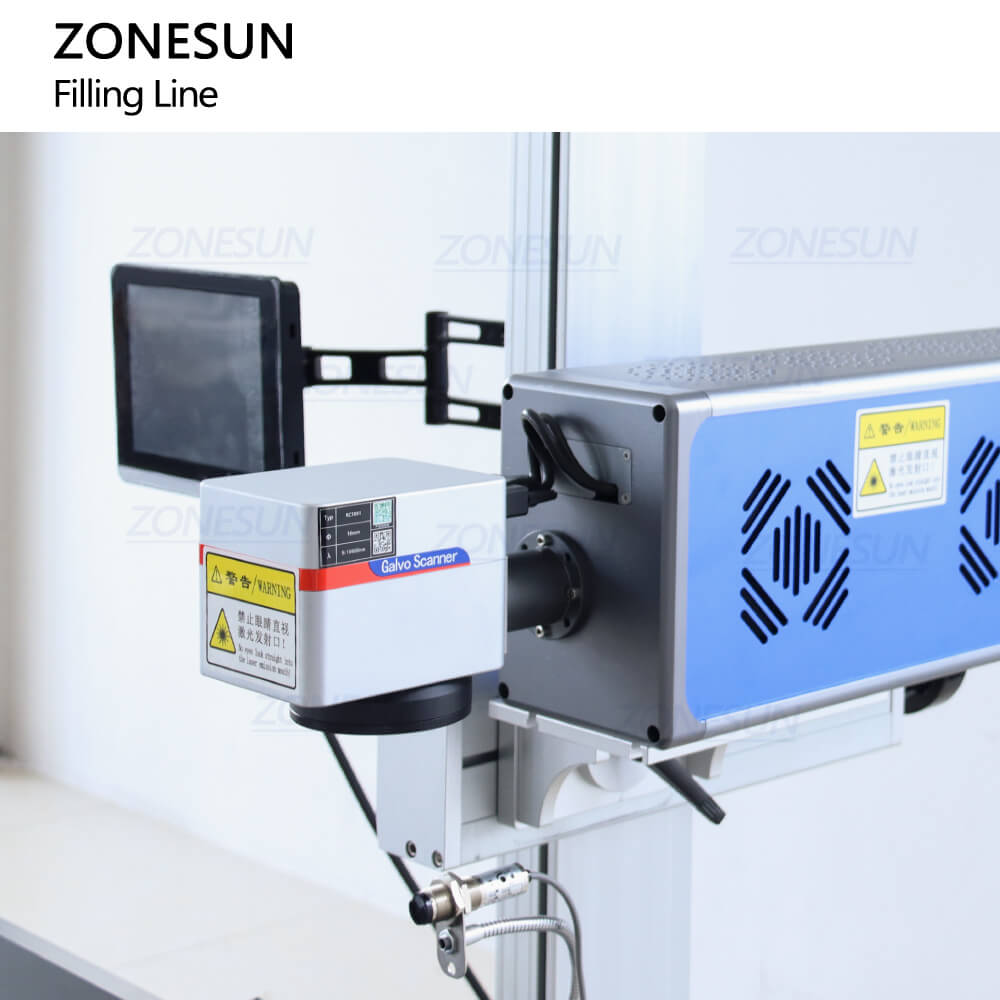

CO2 Laser Coding Machine

• Machine model: ZS-LM1

• Power Supply: 110/220V 50-60Hz 30W

• Cooling Method: Air cooling

• Laser: CO2

• Port: SD card, USB 2.0, RS232

• Wave Length: 9.3/10.2/10.6 um

• Working Capacity: PVC tubes: 40 m/min PET bottles: 20000 bottles/h Coated cartons: 35 m/min

• Marking Range:70*70/90*90/110*110/140*140 mm

• Applications: PET/Acrylic/Glass/Leather/Plastic/Cloth/Rubber(HDPE is not suitable)

• Language: English, French, Korean, Japanese, Russian, Arabic, etc.

• Machine Weight: About 110 kg

• Machine Size: About 1430*565*930 mm

Double Sides Labeling Machine

• Machine model: ZS-TB300V

• Voltage: 110V-60HZ/220V-50HZ

• Power: 3100W

• Working speed: 30-100 bottles/min

• Labeling accuracy: ±0.5 mm

• Suitable labeling Size: ≤200 mm(W)(Can be customized )

• Roll inside diameter(mm): Φ75 mm

• Roll outside diameter(mm): Φ250 mm

• Suitable bottle diameter: φ≤100 mm H≤350 mm

• Conveyor size: About 1800*100 mm

• Machine size: About 180*1250*1450 mm(L*H*W)

• Package size: About 1850*1135*1560 mm(L*H*W)

• Net weight/Gross weight: About 213/268 kg

Outfeed Turntable Machine

• Machine model: ZS-SP800S

• Voltage: 220V 50Hz (110V can be customized)

• Power supply: 200W

• Bottle specifications: Square bottle/round bottle

• Conveying speed: 0-20 revolutions per minute(adjustable)

• Turntable diameter: 800 mm (Customizable)

• Dimensions: About 550*550*990 mm

• Package size: About 1050*1000*1130 mm

• Net weight/Gross weight: About 93/120 kg
