ZS-AFC11 Automatic Roll-on Bottle Filling Capping Machine For Deodorant Perfume Oil With Vibratory Bowl Sorter

Roll-on Bottle Filling Capping Machine
Control Panel of Roll-on Bottle Filling Capping Machine
Vibratory bowl sorter of Roll-on Bottle Filling Capping Machine
Filling nozzles of Roll-on Bottle Filling Capping Machine
Capping head of Roll-on Bottle Filling Capping Machine
Rotary plate of Roll-on Bottle Filling Capping Machine
Electric eye of Roll-on Bottle Filling Capping Machine

ZS-AFC11 Automatic Roll-on Bottle Filling Capping Machine For Deodorant Perfume Oil With Vibratory Bowl Sorter

Voltage
Regular price $9,499.00
/
  • Multiple Shipping Method
  • Custom Service
  • Local Service Location
  • Secure payments

Click Video Link For Video

Description

Designed for roll-on bottles, this machine can feed bottle caps, fill liquid and tighten caps, greatly saving working space. It is equipped with two nozzles, each of which can be controlled separately. It can be used in cosmetic, daily chemical industries.

Parameter
Machine Model:ZS-AFC11
Voltage:220V/110V 50-60Hz
Power:2500W
Filling Pump:316 Stainless Steel Magnetic Pump
Working Speed:25-30bottles/min(depending on bottle size and liquid)
Max Flow Rate:4L/min*2(based on water)
Suitable Bottle Size:Customized
Bottle Cap Diameter:Customized
Package Size:About 2040*1660*1650mm
Package Weight:About 535kg

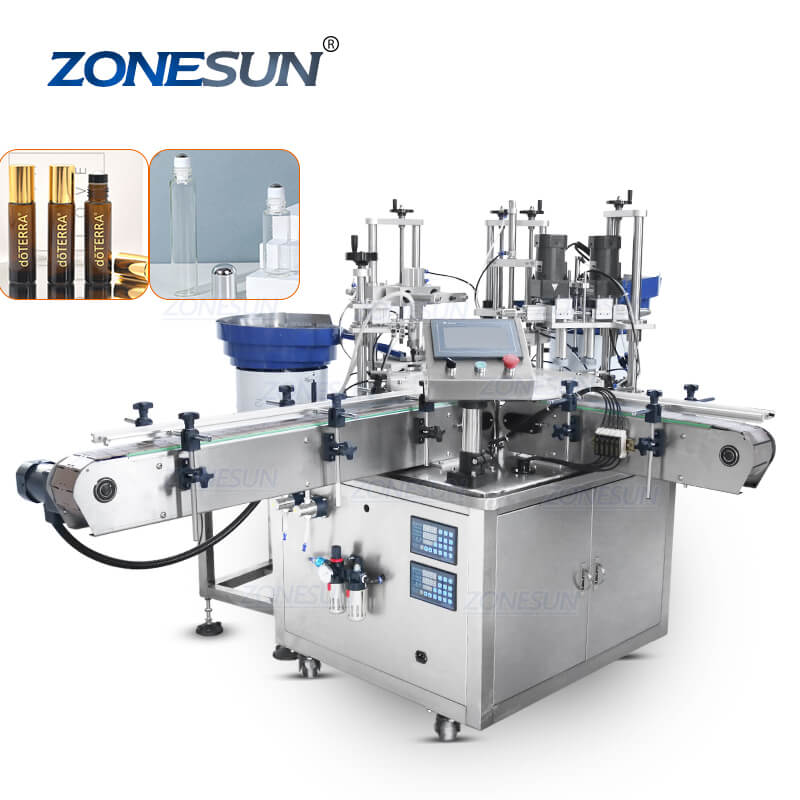

Automatic Roll-on Bottle Filling Capping Machine
Application of Automatic Roll-on Bottle Filling Capping Machine
Machine Dimension of Automatic Roll-on Bottle Filling Capping Machine

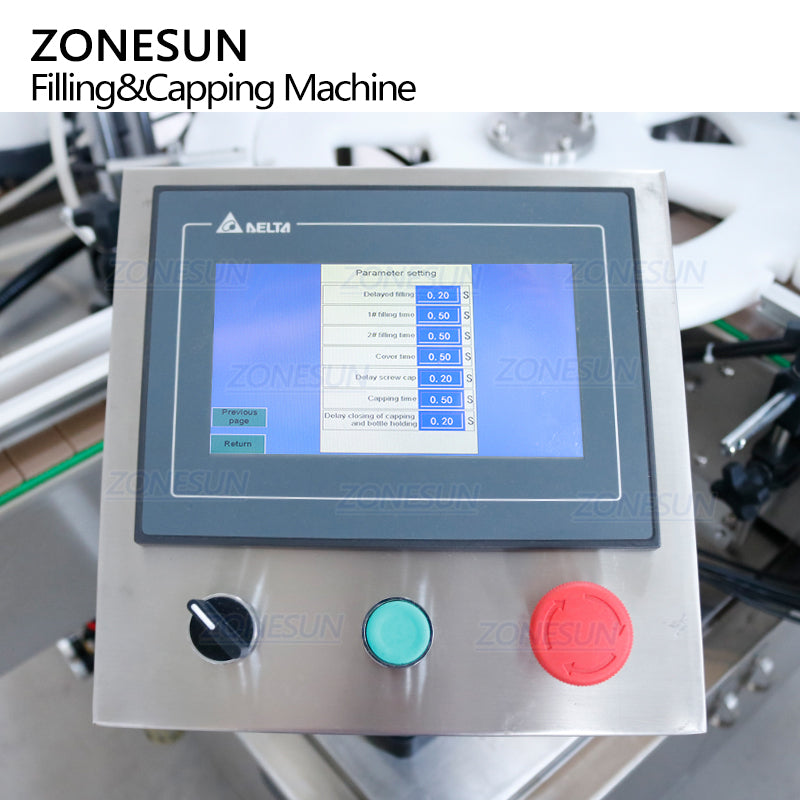

Control Panel of Automatic Roll-on Bottle Filling Capping Machine
With touch screen control panel, it is easy to set or adjust working parameters. The language of panel can be customized as needed.

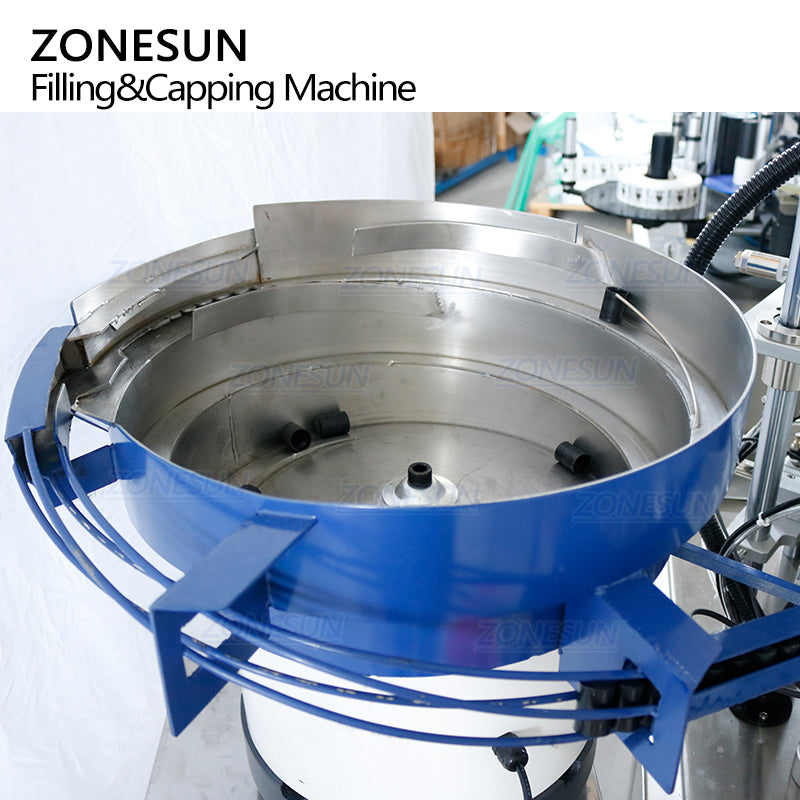

Vibratory bowl sortrt of Automatic Roll-on Bottle Filling Capping MachineThe vibratory bowls are used for arranging roll-on ball and bottle cover and feed them automatically. Both of them can be customized according to bottle cap size.

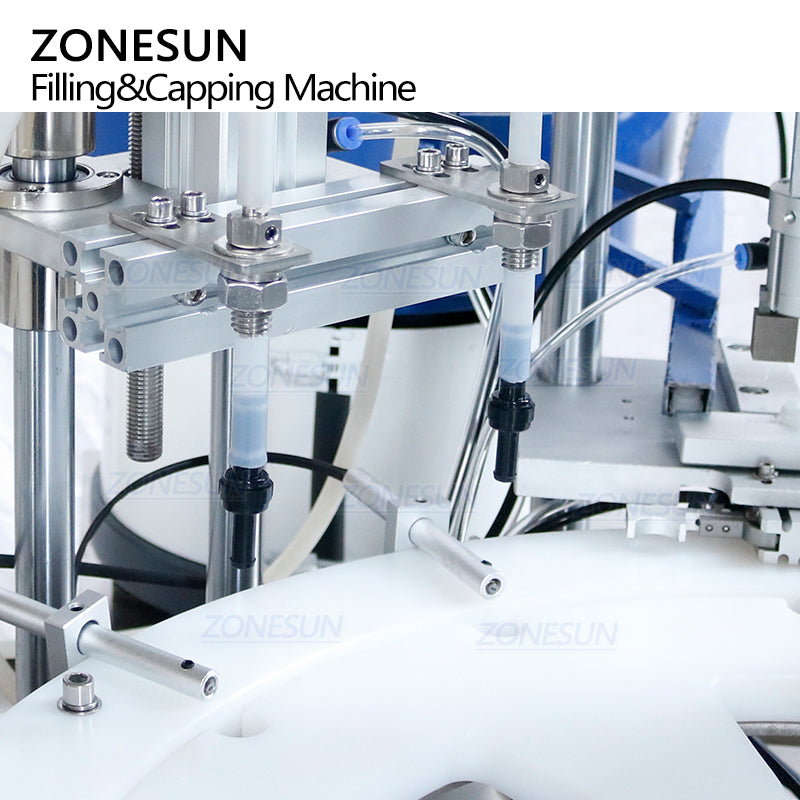

Filling nozzles of Automatic Roll-on Bottle Filling Capping Machine
Equipped with magnetic pumps, it can fill liquid accurately. The filling speed of two nozzles can be adjusted separately, easy to operate. Filling nozzles can be customized according to production need.

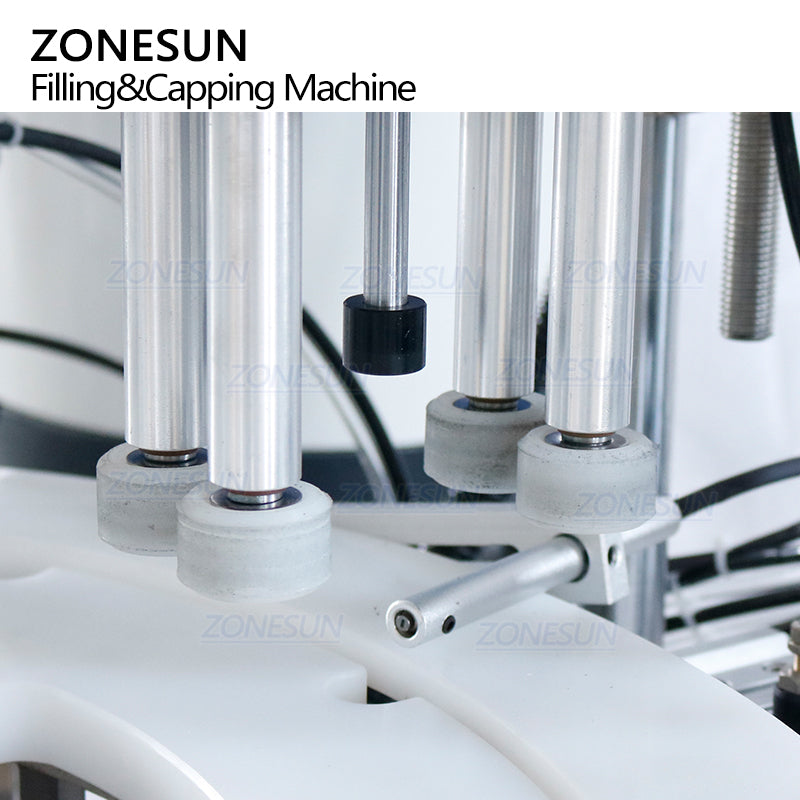

Capping head of Automatic Roll-on Bottle Filling Capping Machine
This machine will tighten bottle caps by 4 rubber wheels. It can be used for different shapes of bottle caps, such as dropper caps, trigger pump caps, etc.

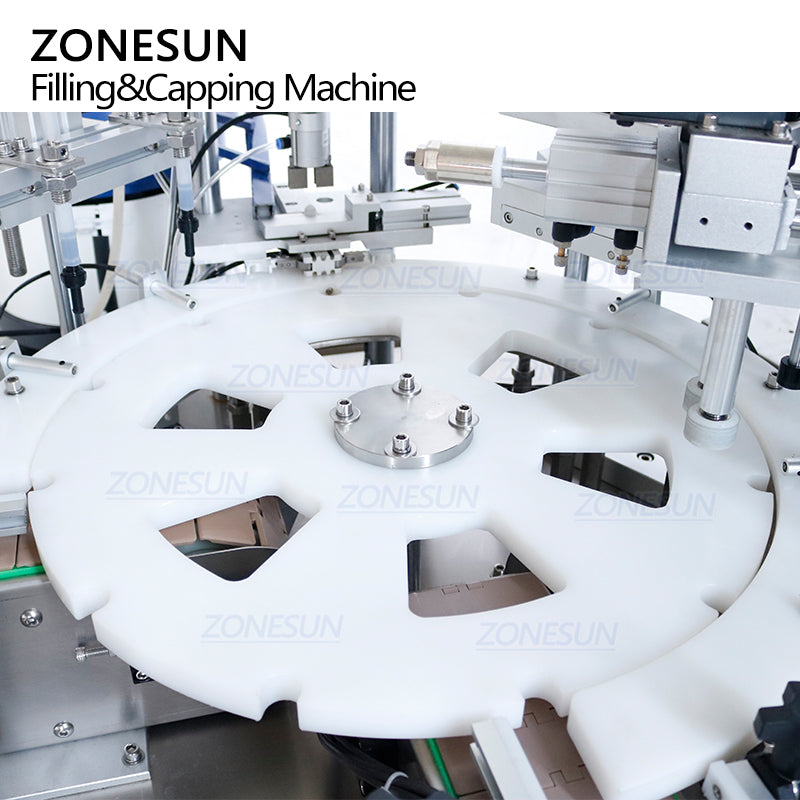

Rotary plate of Automatic Roll-on Bottle Filling Capping Machine
The rotary plate is designed for fixing and conveying bottles, making production smoother. It can be customized according to different bottles, making it work well with your products.

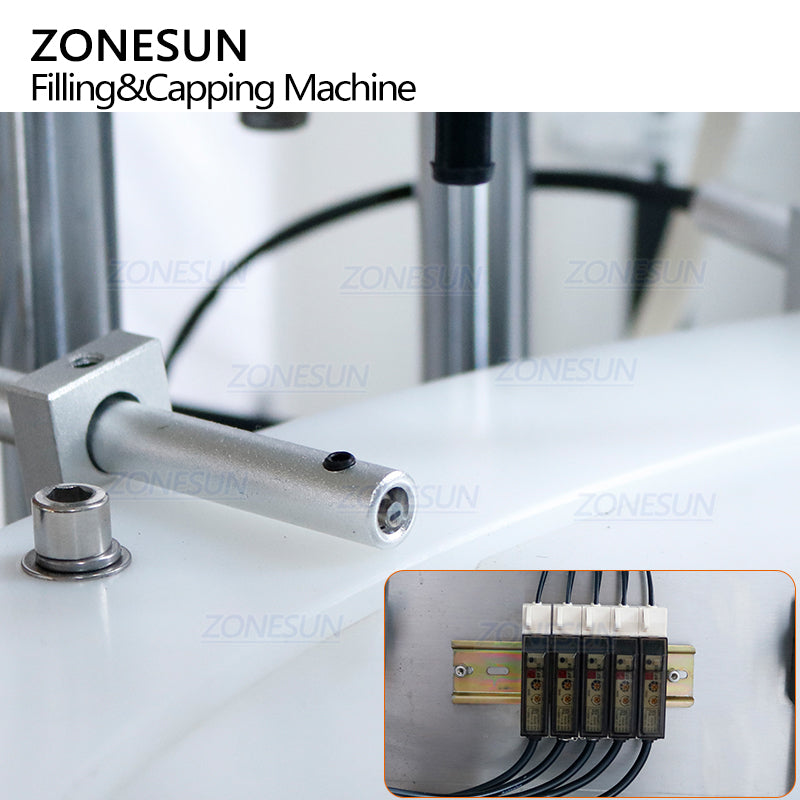

Eletric Eye of Automatic Roll-on Bottle Filling Capping Machine
With electric eye, it can detect bottles and control machine to run automatically, saving labor cost. The sensitivity of it can be adjusted by the sensitivity regulator.
Automatic Roll-on Bottle Filling Capping Machine
