ZONESUN ZS-YT1T-1PXM Automatic Quantitative Sauce Bottle Filling Machine with Servo Rotor Lobe Pump for Jam Ketchup Mayonnaise
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

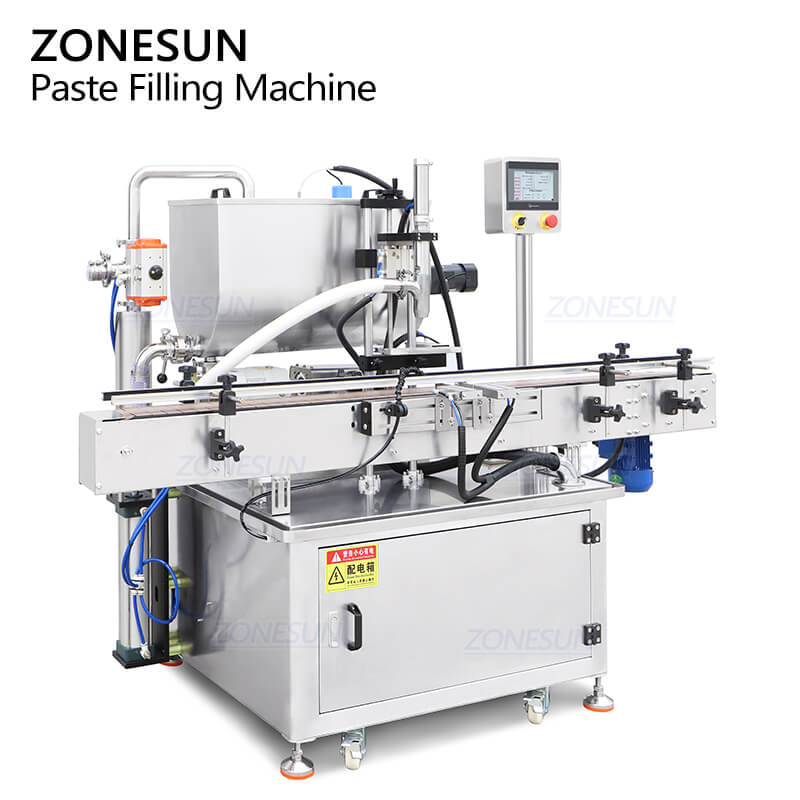

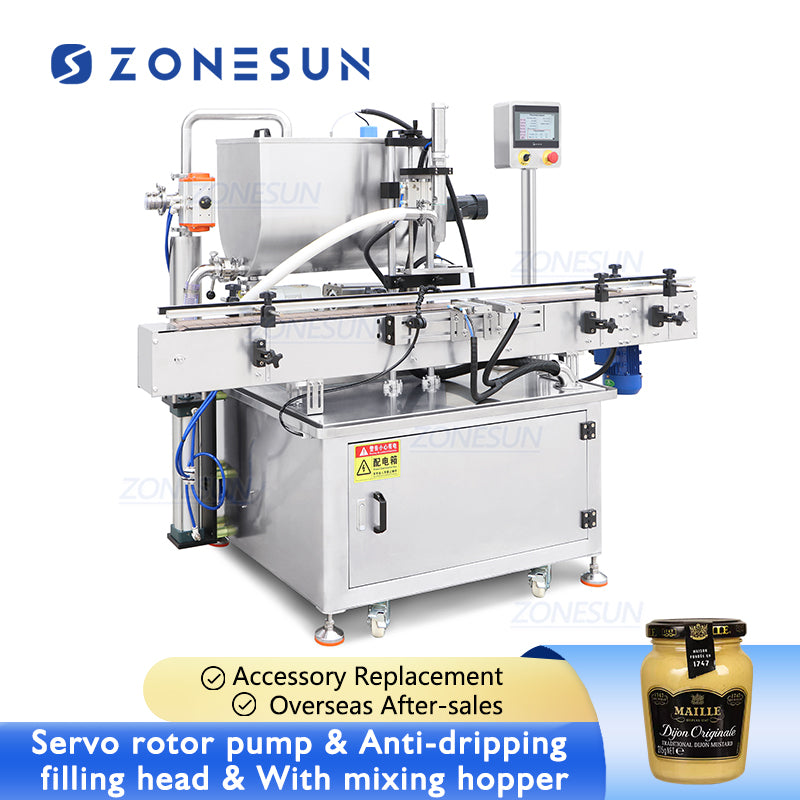

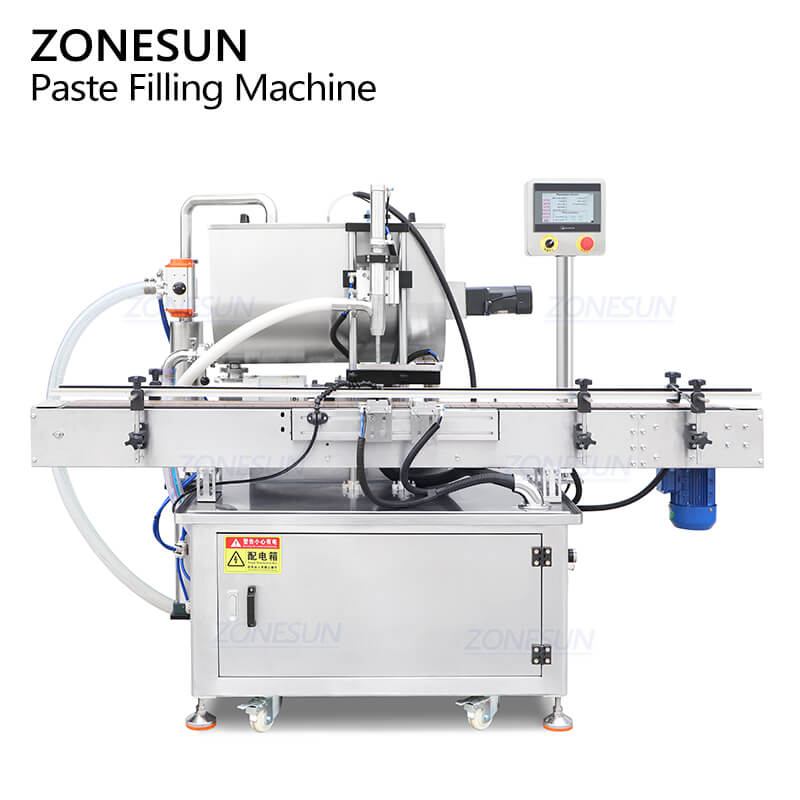

The ZONESUN sauce bottle filling machine is designed for 100-1000ml quantitative filling of viscous products such as jam, chili sauce, ketchup, mayonnaise and other thick sauces. A 70L U-shaped hopper with mixing function helps reduce material settling, while optional heating can be added according to the product. The servo rotor pump allows filling volume and speed to be set directly from the control panel. Anti-drip filling nozzles help reduce dripping and stringing during filling. A servo piston feeding pump continuously supplies material to the hopper, reducing manual feeding work. The machine can work independently or connect with capping, labeling and other packaging equipment.
Sauce Bottle Filling Machine Parameter
- Machine Model: ZS-YT1T-1PXM
- Power Supply: 220/110 V, 50-60 Hz, 2.5 kW
- Filling Pump: Servo Rotor Pump
- Filling Speed: About 20-30 bottles/min (Depending on filling materials)
- Filling Range: 100-1000 ml(Customizable)
- Filling Accuracy: ±1 %
- Hopper Size: About 70 L (with mixer)
- Air Pressure: 0.5-0.7 MPA
- Machine Size: About 2090*1070*1700 mm(L*W*H)
- Package Size: About 1740*1010*1670 mm(L*W*H)
- Package Weight: About 350 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

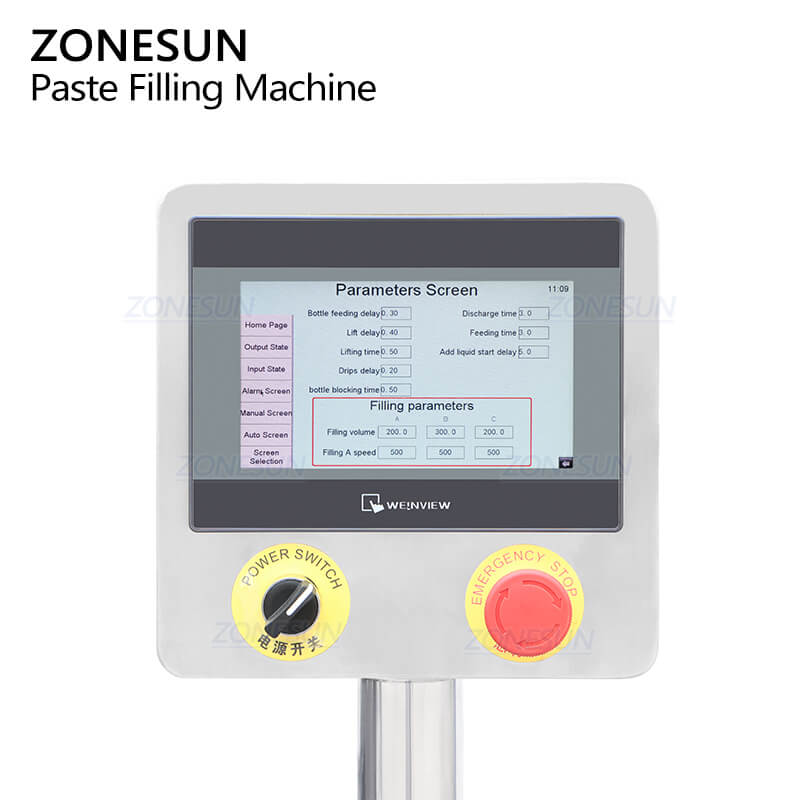

Easier to set working parameters like filling volume. Multiple languages are customizable.

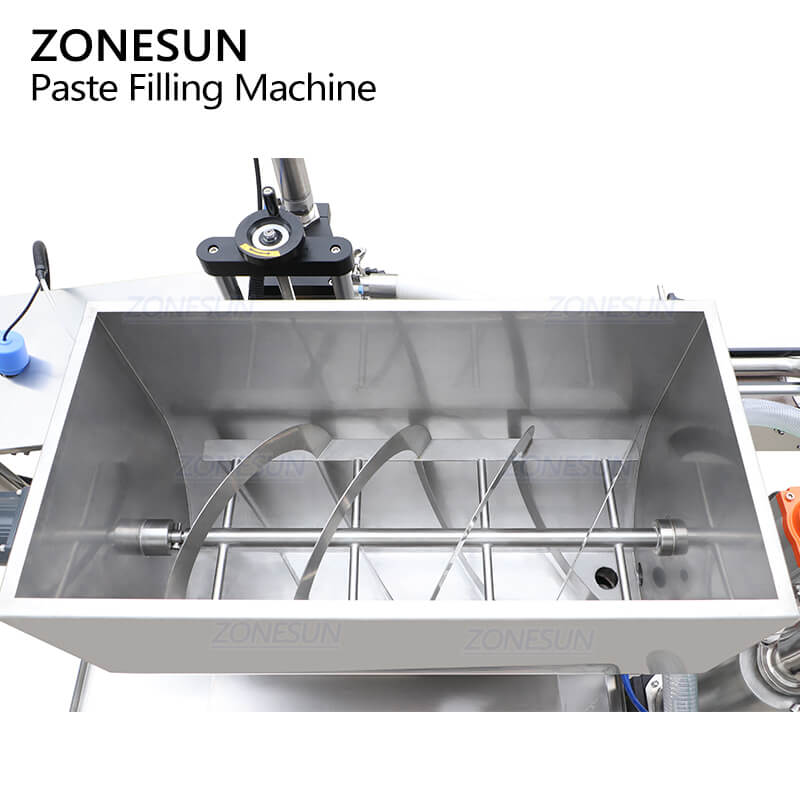

Supports even mixing and continuous feeding of materials.

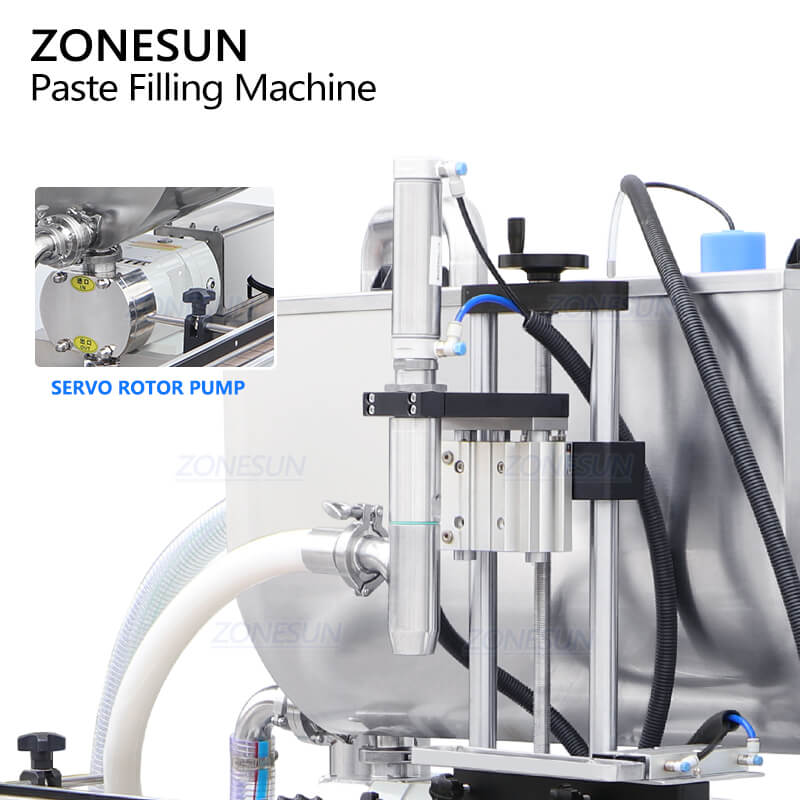

Can fill viscous liquids or pastes accurately. Filling head quantity is customizable.

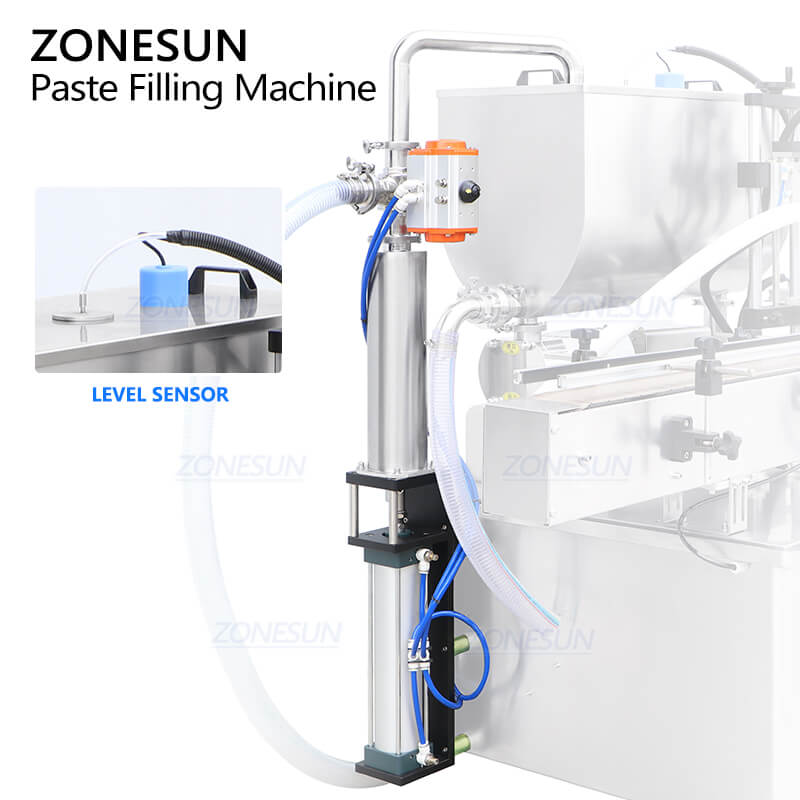

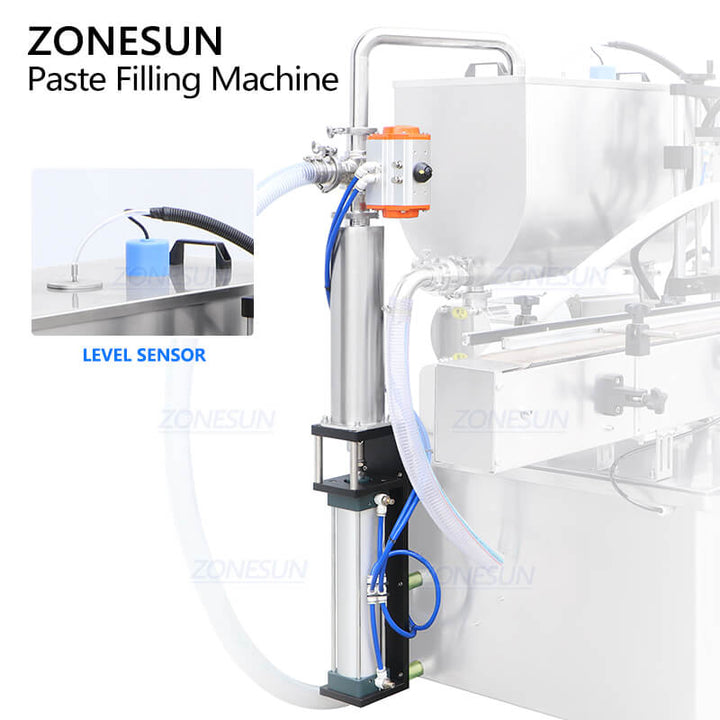

Ensures filling material can be supplied in time to save working labor.

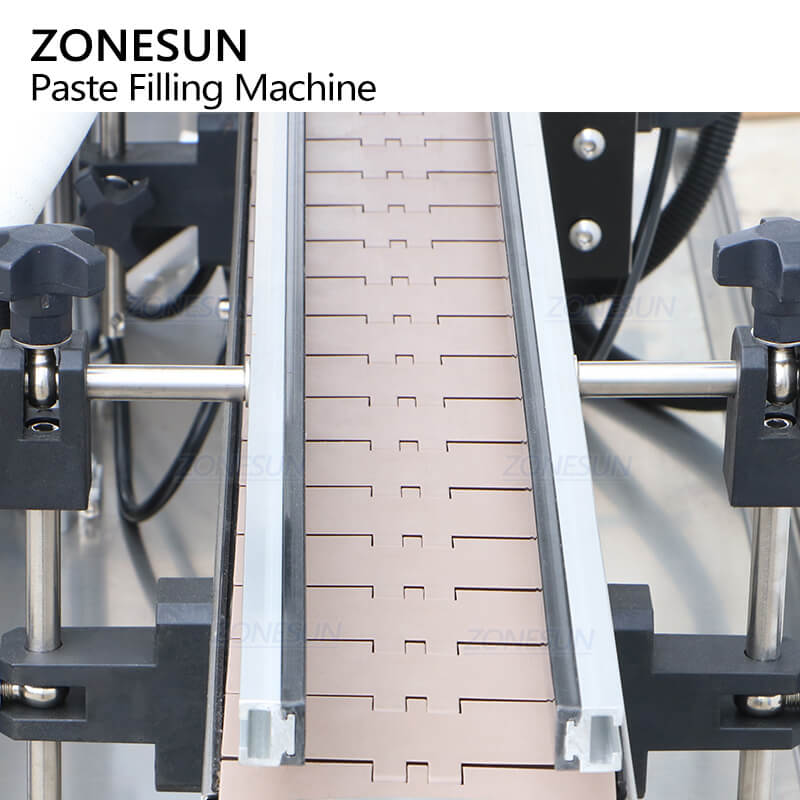

Chain conveyor has larger weight capacity, and conveyor size is customizable as needed.

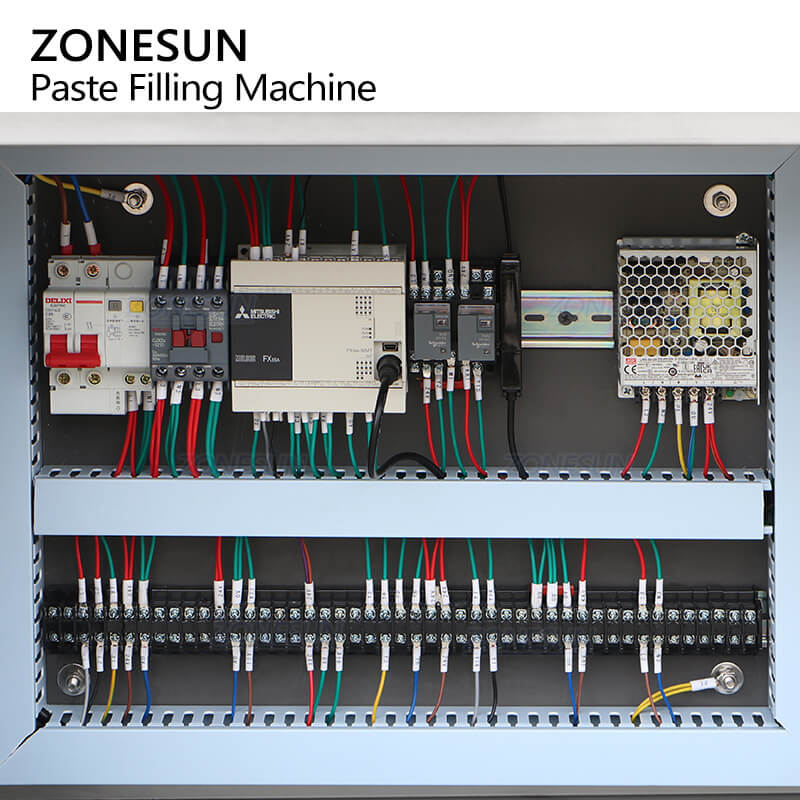

Circuits are connected neatly to ensure stable production.
FAQ of Sauce Bottle Filling Machine
Q1. Can this machine fill sauces with small particles?
It depends on the particle size, amount and product consistency. Please provide product information or samples so we can check whether the rotor pump and filling nozzle are suitable.
Q2. My sauce separates or settles after sitting for a while. Will this affect filling?
The U-shaped hopper has a mixing function to keep the material moving during production and reduce settling. The suitable mixing speed depends on the actual product.
Q3. Will thick sauce drip or leave strings between bottles?
The machine uses anti-drip filling nozzles to reduce dripping and stringing. For products with very high viscosity or special texture, sample testing is recommended.
Q4. What information should I send before ordering the machine?
Please provide the sauce type, viscosity or product sample, filling volume, bottle dimensions, bottle opening size and required production speed. If the product contains particles or requires heating, this information should also be confirmed.
