ZONESUN ZS-XG440G Automatic Plastic Tear Off Bottle Candy Health Care Product Bottle Outer Cover Cap Pressing Capping Machine

Voltage
Price
Regular price $5,499.00 USD
Regular price Sale price $5,499.00 USD
Save $-5,499 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Video For Tear off Bottle Cap Pressing Machine

Equipped with vibrating bowl sorting machine to arrange bottle caps, this machine has the function of conveying caps (or covers), and pressing caps.It can be connected with automated filling and labeling machine to realize the one-stop packaging system.

Parameter

  • Machine Model:ZS-XG440G
  • Working Voltage:AC220V/110V 50-60HZ
  • Power:About 1100W
  • Working Speed:20-40 bottles/minute(depending on bottle and caps)
  • Bottle Height:60-270mm
  • Bottle Cap Diameter:Can be customized
  • Working Pressure:0.4-0.6 MPa
  • Machine Size:About 3000*1700*1280mm

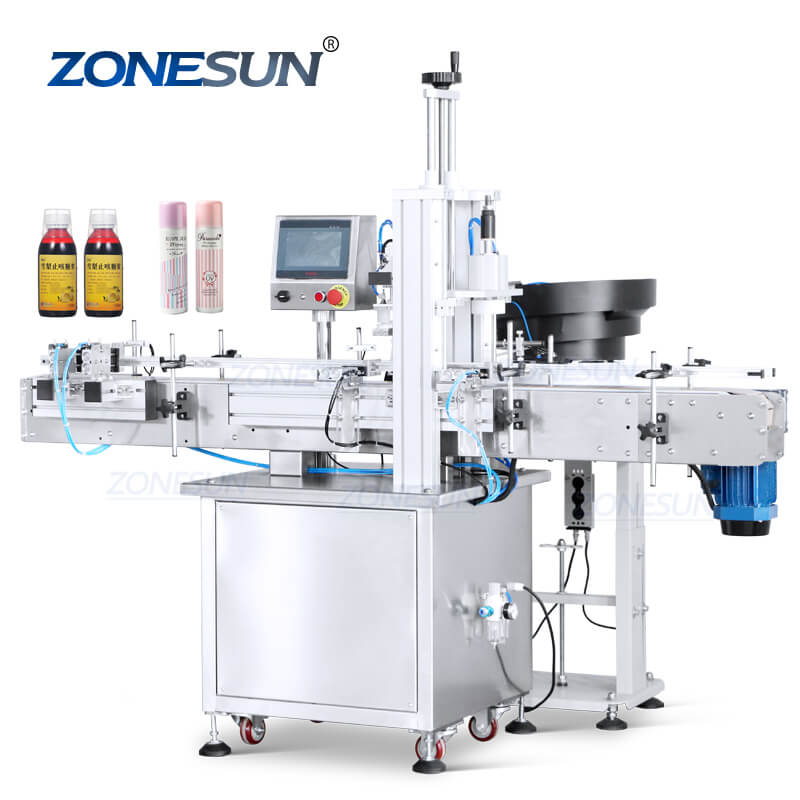

Tear off Bottle Cap Pressing Machine

application of tear off bottle cap pressing machine

automatic cap pressing machine

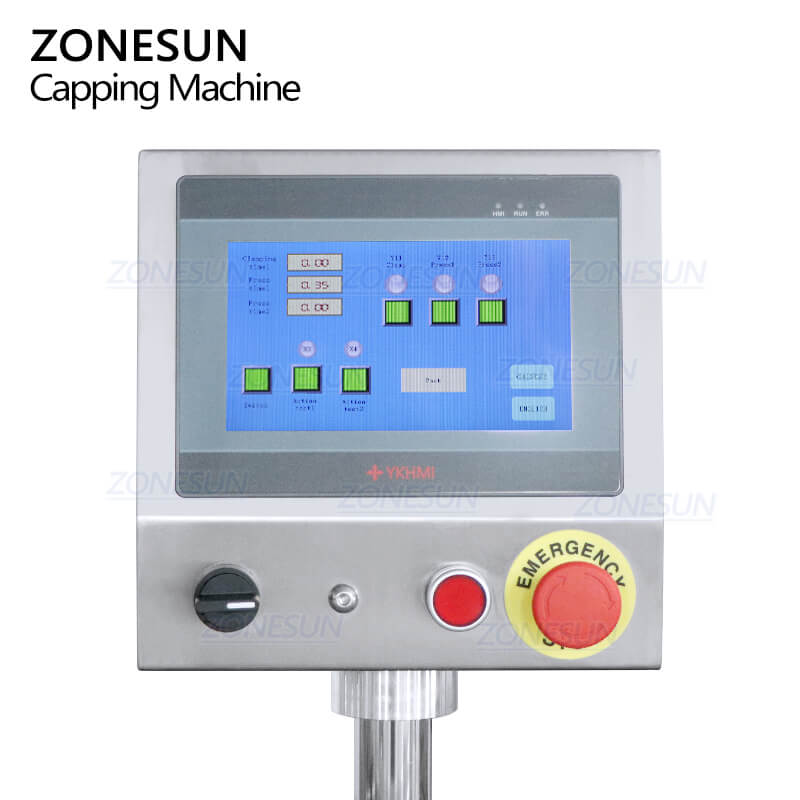

control panel of cap press machine

Equipped with PLC control panel, it is more convenient to set and adjust working parameters. The language of panel can be customized as your need.

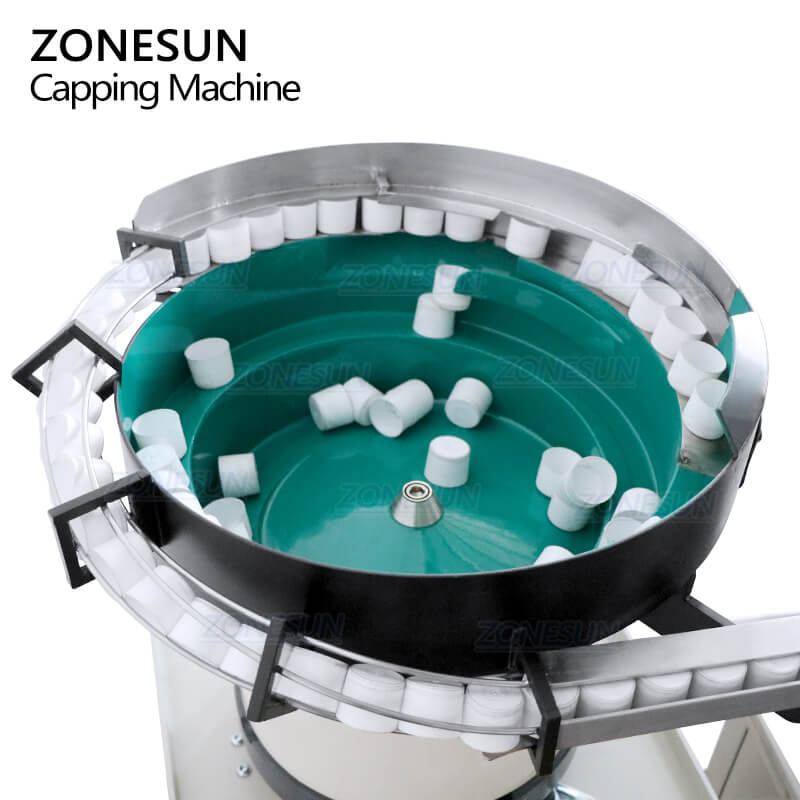

vibrating machine of cap pressing machine

The vibratory bowl is designed for sorting and feeding bottle caps automatically. It can be customized according to your bottle caps.

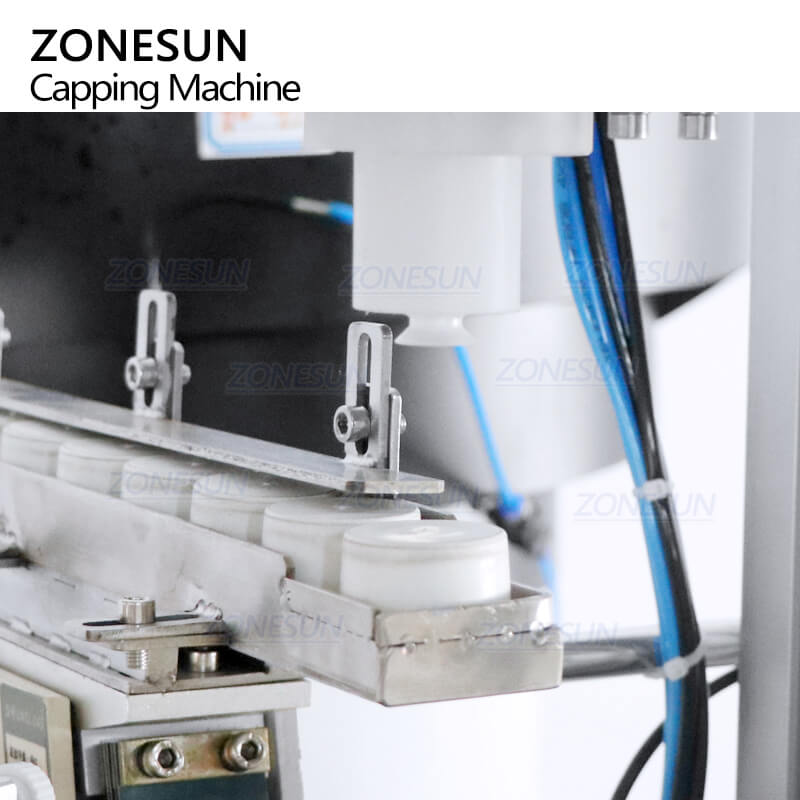

cap conveying structure of cap pressing machine

The suction cup is used for picking up caps and placing them onto bottles, saving labor cost. It is suitable for irregular bottle caps, whose top must be flat.

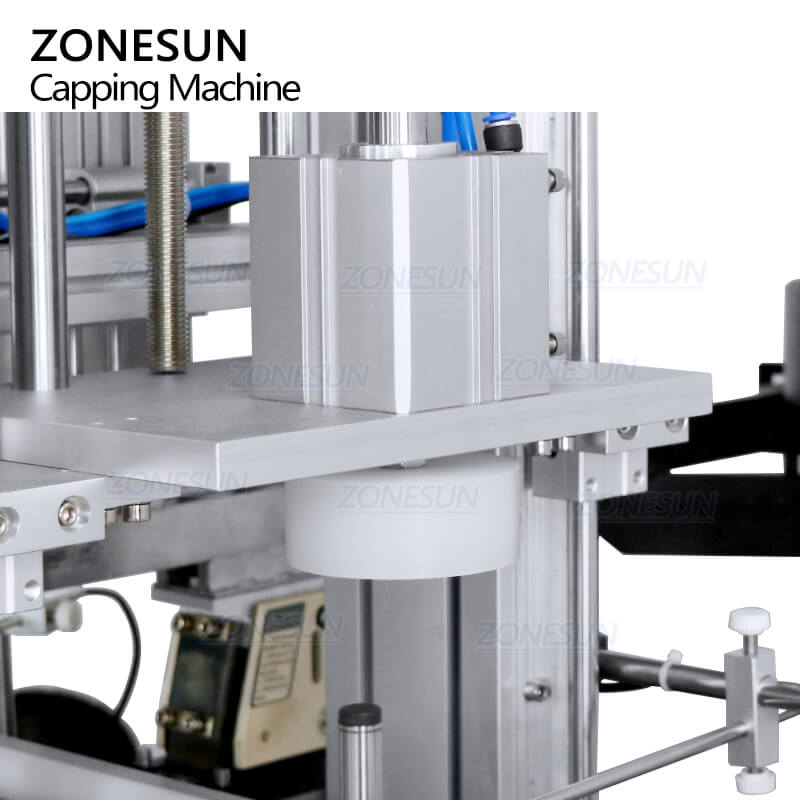

cap pressing structure of  cap pressing machine

Driven by powerful cylinder, the component can press bottle caps well. The height of pressing component can be adjusted according to bottle height. It can be customized according to the cap size.

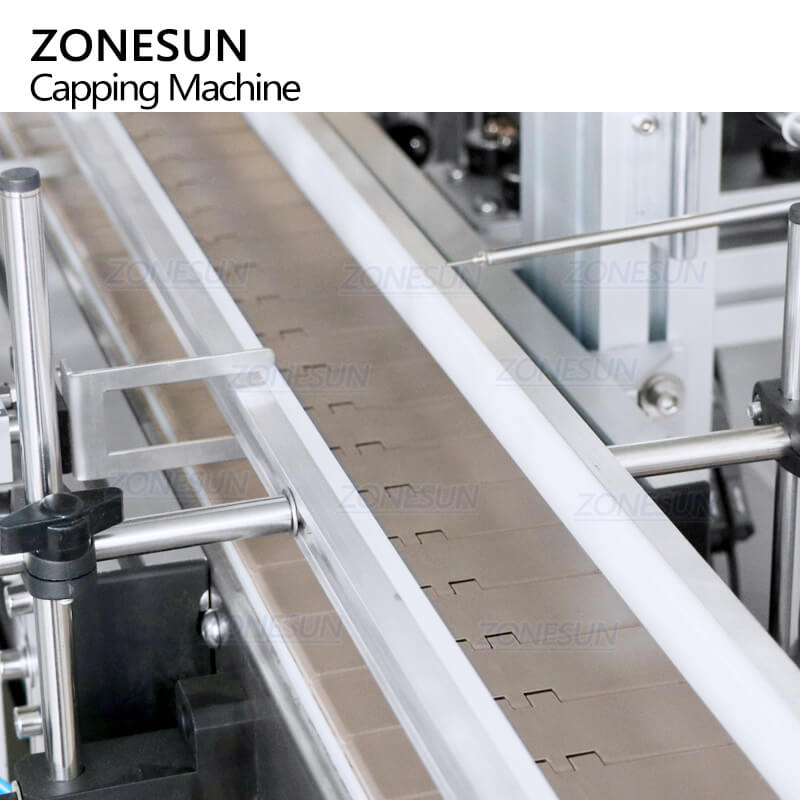

conveyor

Equipped with chain conveyor belt, it can convey bottles stably, improving efficiency. The conveying speed can be adjusted according to production need.

automatic bottle cap pressing machine
