Description

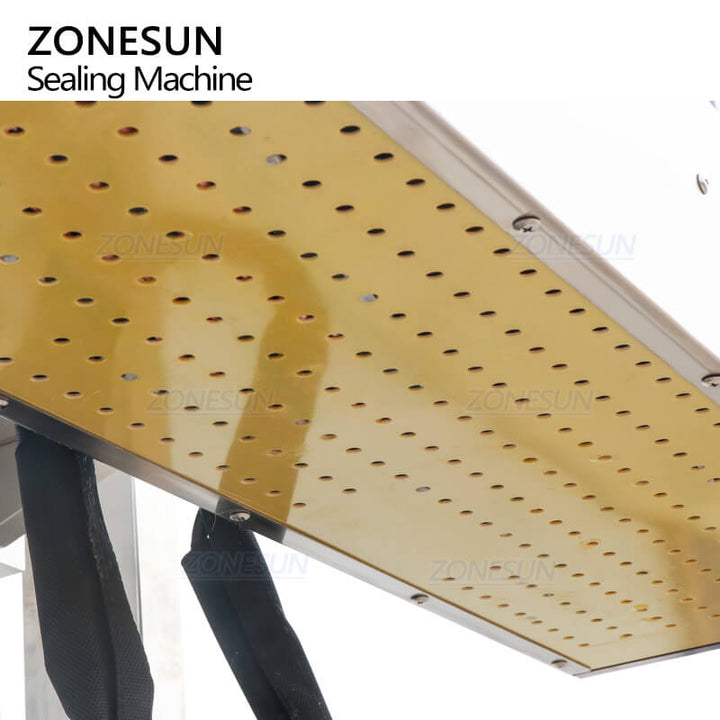

This machine transmits the super-audio current to the sensor component, and the aluminum foil at the bottle mouth under the sensor component is electromagnetically induced to generate a super-audio current. When it reaches the set temperature, the aluminum composite film melts and adheres to the bottle mouth. Efficient and high-quality sealing effect.

Parameter

Machine model:ZS-FK4200V
Power supply:220V 50HZ 4200W
Sealing diameter:15-60mm/20-70mm/35-85mm/50-120mm/60-130mm
Sealing speed:0-260bottles/min(based on bottle size)
Suitable bottle height:10-300mm(based on 900mm height conveyor belt)
Machine size:About 700*690*1450mm
Machine weight:About 43kg
Package size:About 850*650*1590mm
Package weight:About 92kg

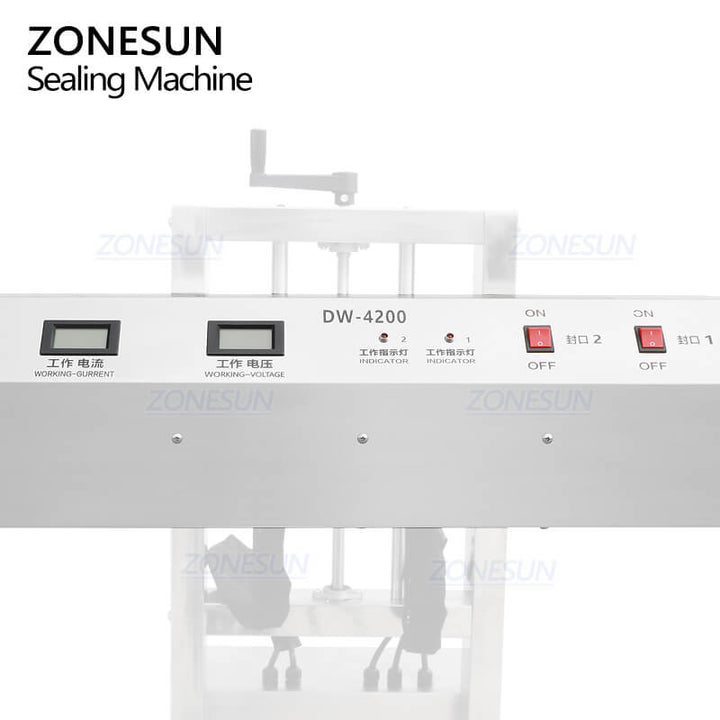

Simple operation panel,it is easy to adjust the machine according to working status.It is equipped with voltmeter and ampere meter,which can help to watch the machine status in real time,ensure the safety operation.

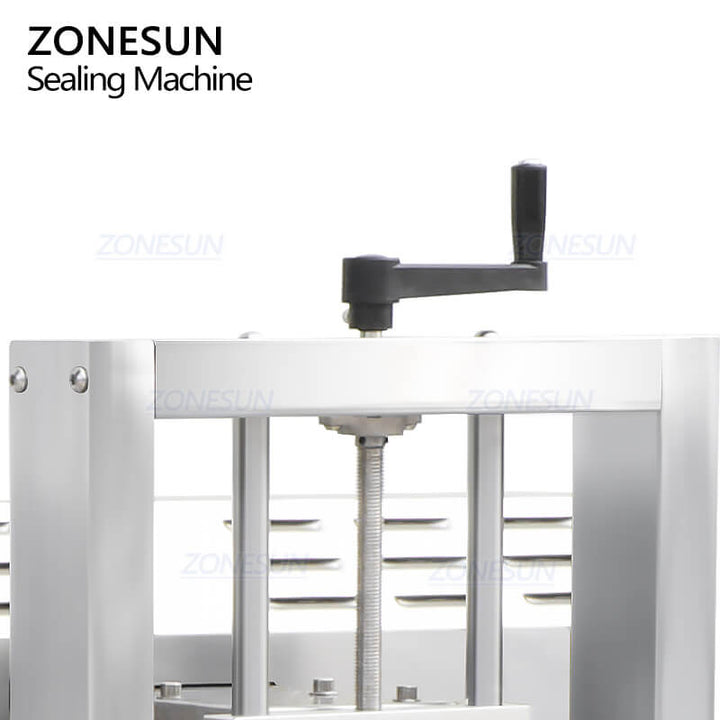

The working height can be adjusted according to bottle size.This machine is suitable for H=10mm-380mm bottles widen the application range.

The power of this machine can be controlled according to sealing effect.The closer the bottle is to the coil, the higher the sealing temperature.

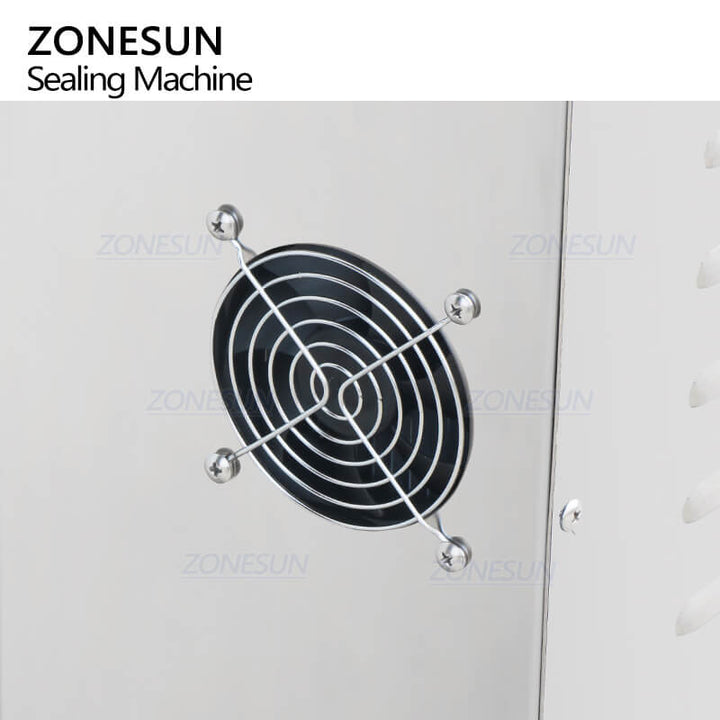

This machine is equipped with multiple cooling fans to lose heat,which can make sure the machine work stably during working,prevent from overload after long time work.
