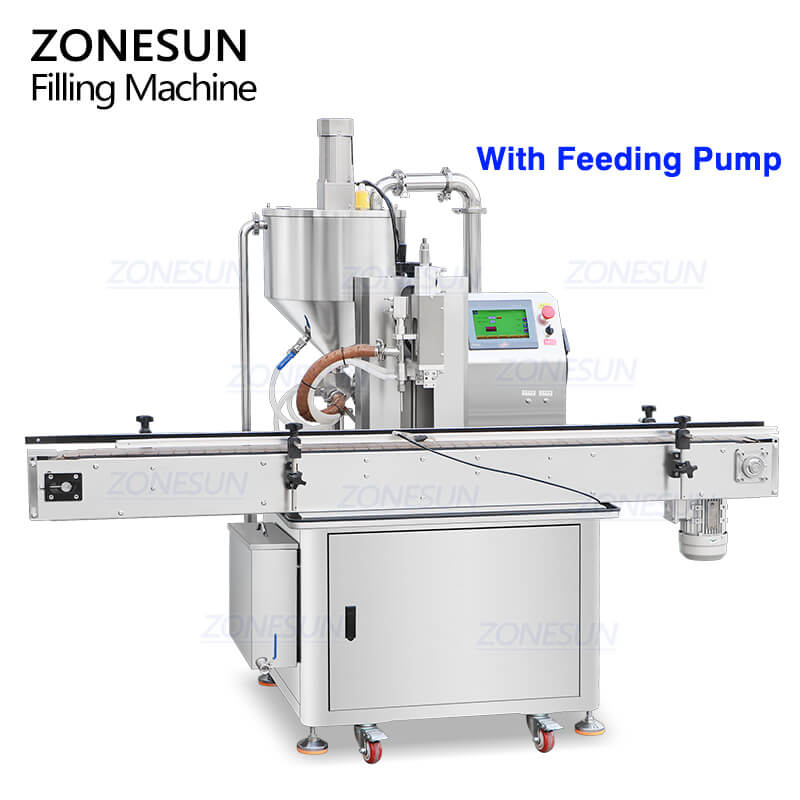

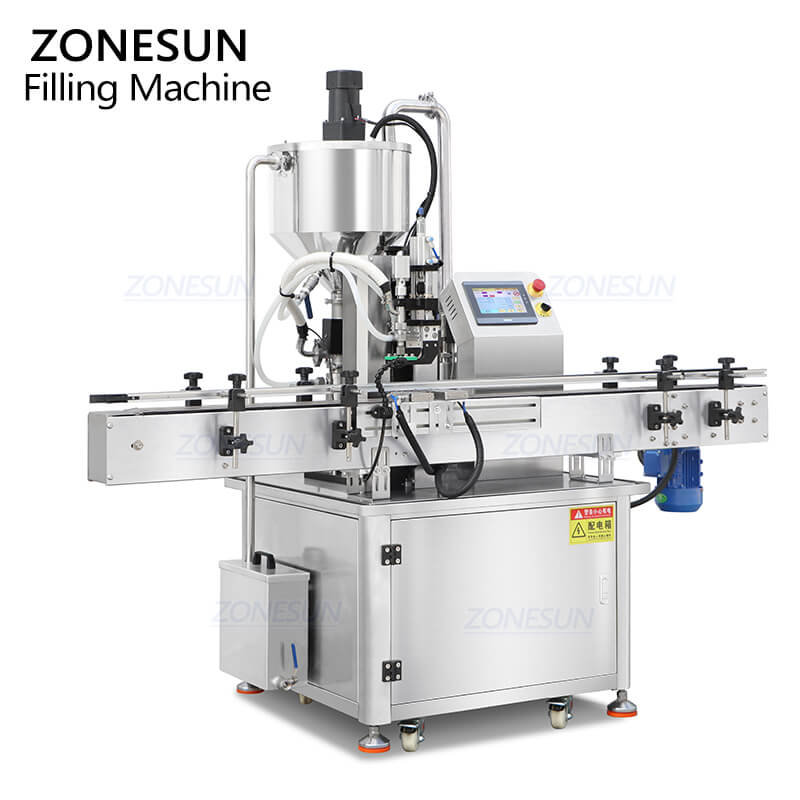

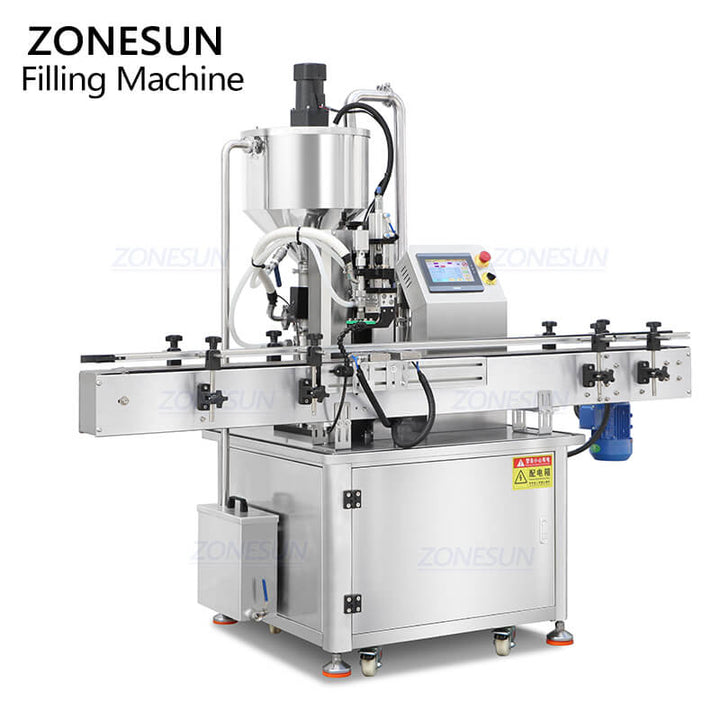

ZONESUN ZS-WCHJ1C Automatic Piston Pump Cosmetics Cream Ointment Wax Petroleum Jelly Paste Filling Machine with Mixer Heater
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

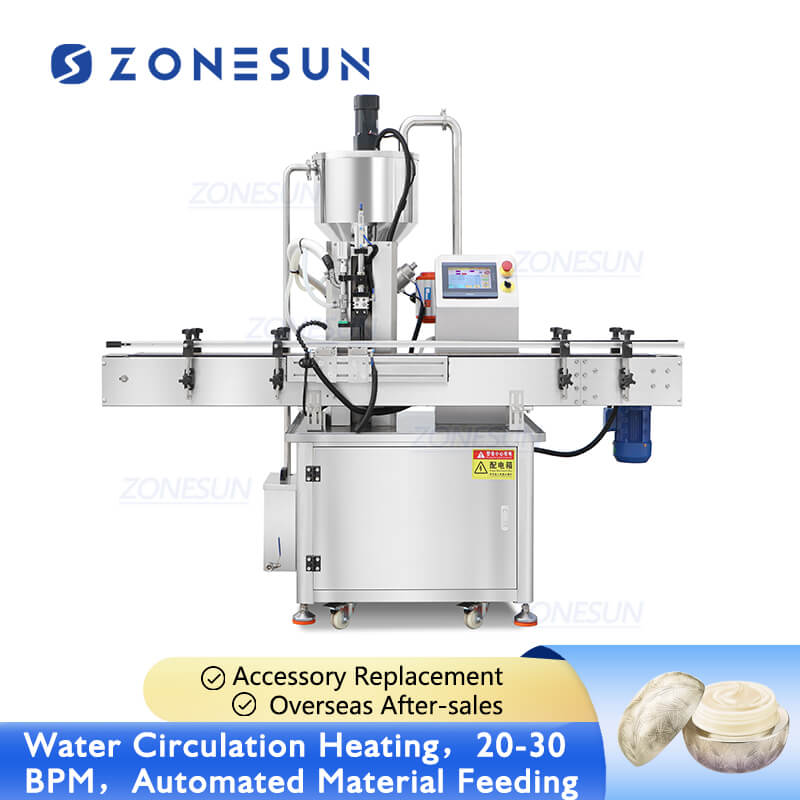

The ZONESUN ZS-WCHJ1C wax filling machine is designed for filling high viscosity and temperature-sensitive wax-based products, such as lip balm, hair wax, shoe wax and solid perfume. Different from normal filling machines, this machine uses water circulation heating to keep the material contact area at a stable temperature, helping reduce material solidification during filling. The jacketed hopper can be filled with hot water or thermal oil, and optional mixing function is available to improve material flow. Equipped with a piston pump feeding system, the machine provides continuous material supply during production. The filling pipeline is wrapped with high-temperature insulation material, and the filling nozzle is connected with warm water circulation to maintain suitable temperature at the filling end. Filling heads can be customized according to production requirements. With one-button cleaning function, the machine is easier to maintain and can be connected with capping machines, labeling machines and other packaging equipment.
Wax Filling Machine Parameter
- Machine Model: ZS-WCHJ1C
- Power Supply: 220/110V, 50-60 Hz, 4 kW
- Filling Speed: About 20-30 bottles/min (Depending on filling range and filling materials)
- Suitable Bottle Diameter: 4-150 mm
- Suitable Bottle Height: 10-200 mm
- Filling Range: 5-150 ml (Can be Customized)
- Filling Error: ≤0.5%
- Filling Pump: Piston Pump
- Air Pressure: 5-8 kg/cm²
- Material Contact Part: SUS304
- Machine Size: About 2050*875*2060 mm
- Package Size: About 1730*940*1970 mm
- Package Weight: About 327kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Detail

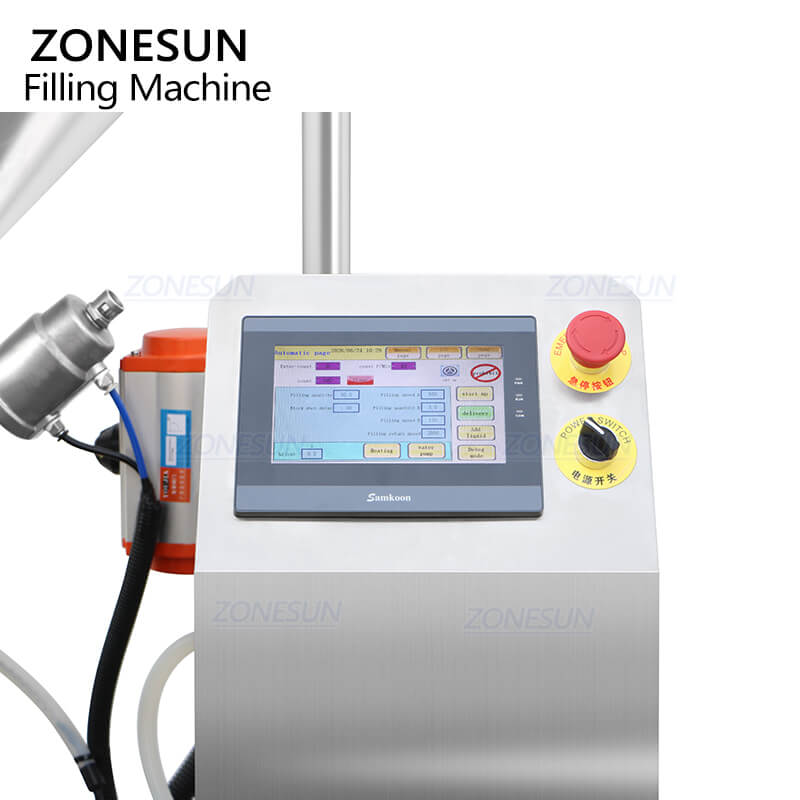

Allows operators to set filling parameters, control machine operation, operation language is customizable.

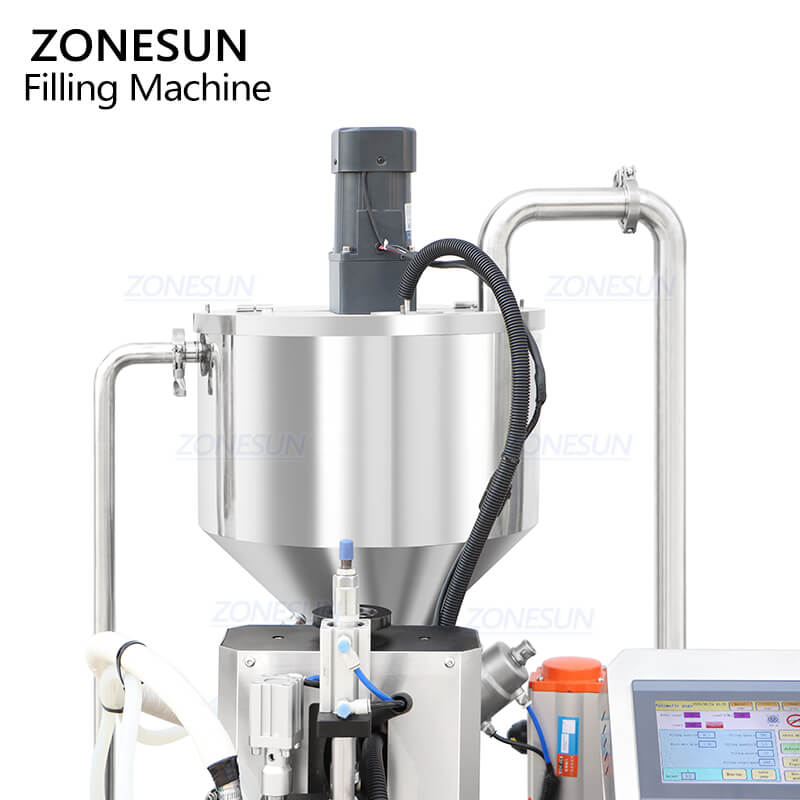

It can be filled with hot water or thermal oil to maintain material temperature, with optional mixing function for better material flow.

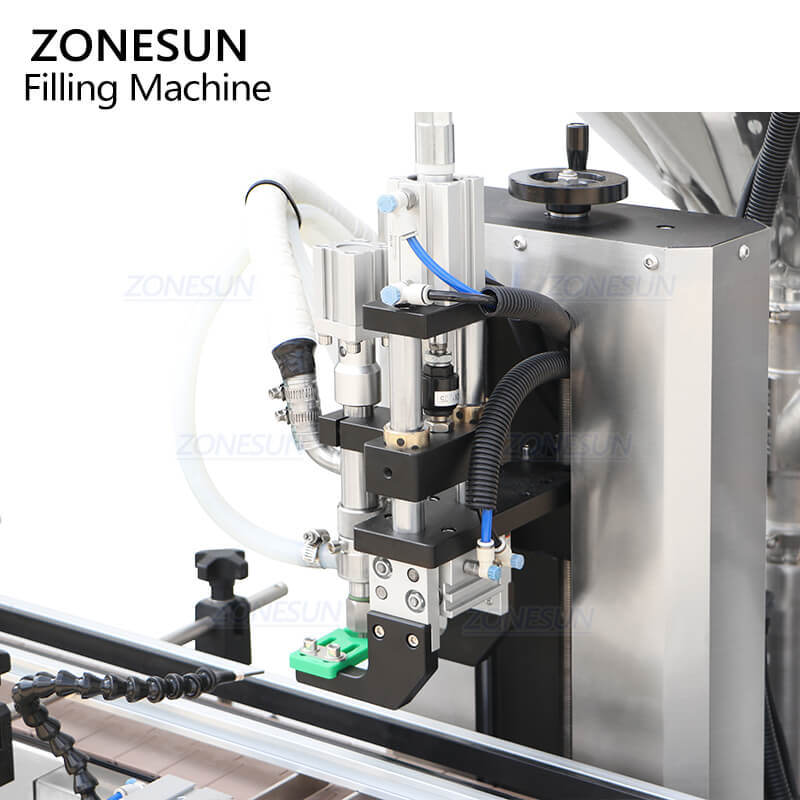

It is connected with warm water circulation to maintain suitable temperature at the filling end and reduce wax solidification during filling.

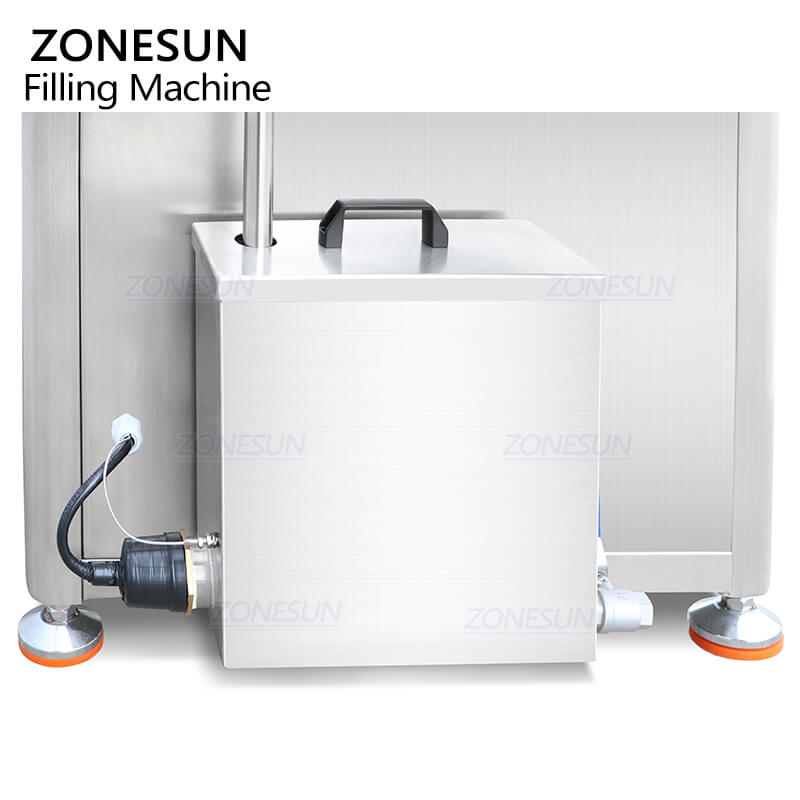

Provides continuous temperature control for the material contact area, helping keep wax products in suitable filling condition.

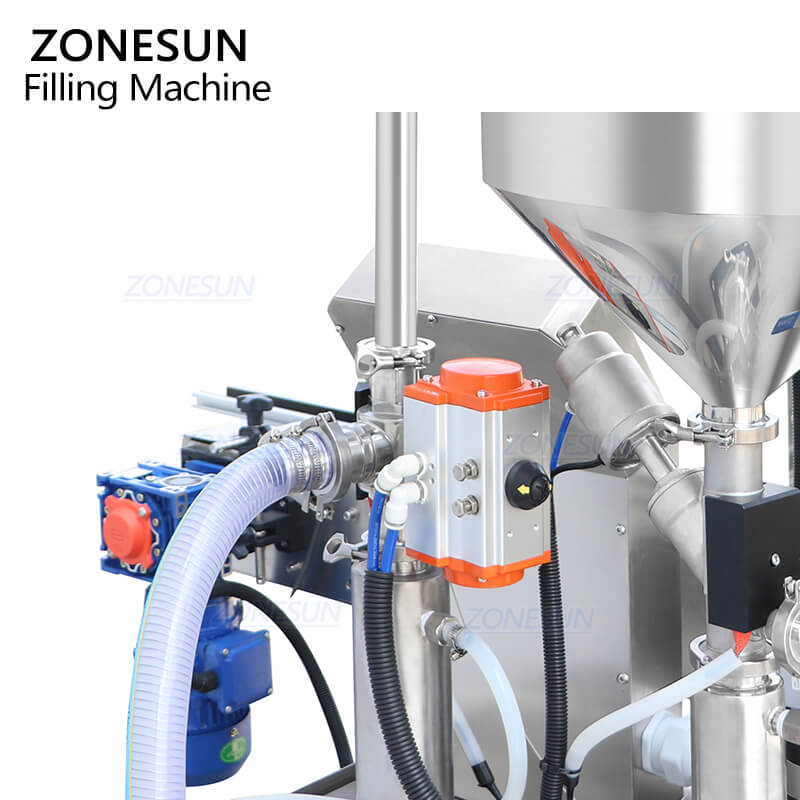

This provides stable material supply during production and is suitable for high viscosity wax-based products.

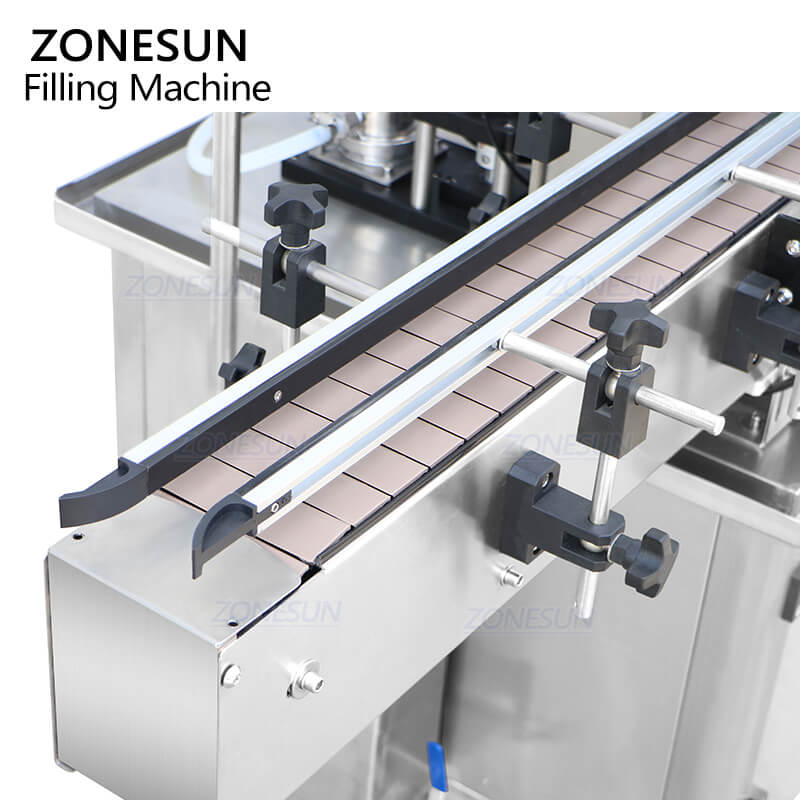

It transfers containers through the filling process smoothly and can be connected with downstream equipment.
FAQ
Q1. Why does this machine use water circulation heating?
Some material can easily cool down and become difficult to fill. The water circulation system helps maintain stable temperature in the material contact area and filling process.
Q2. Can this machine fill different container sizes?
Yes. Inline machine design can handle a wide range of bottle size.
Q3. Can the filling volume be adjusted?
Yes. Quantitative filling allows operator set filling volume through control panel directly.
Q4. Can this machine be connected with other packaging equipment?
Yes. The machine can be connected with capping machines, labeling machines and other equipment to create an automatic packaging line.
