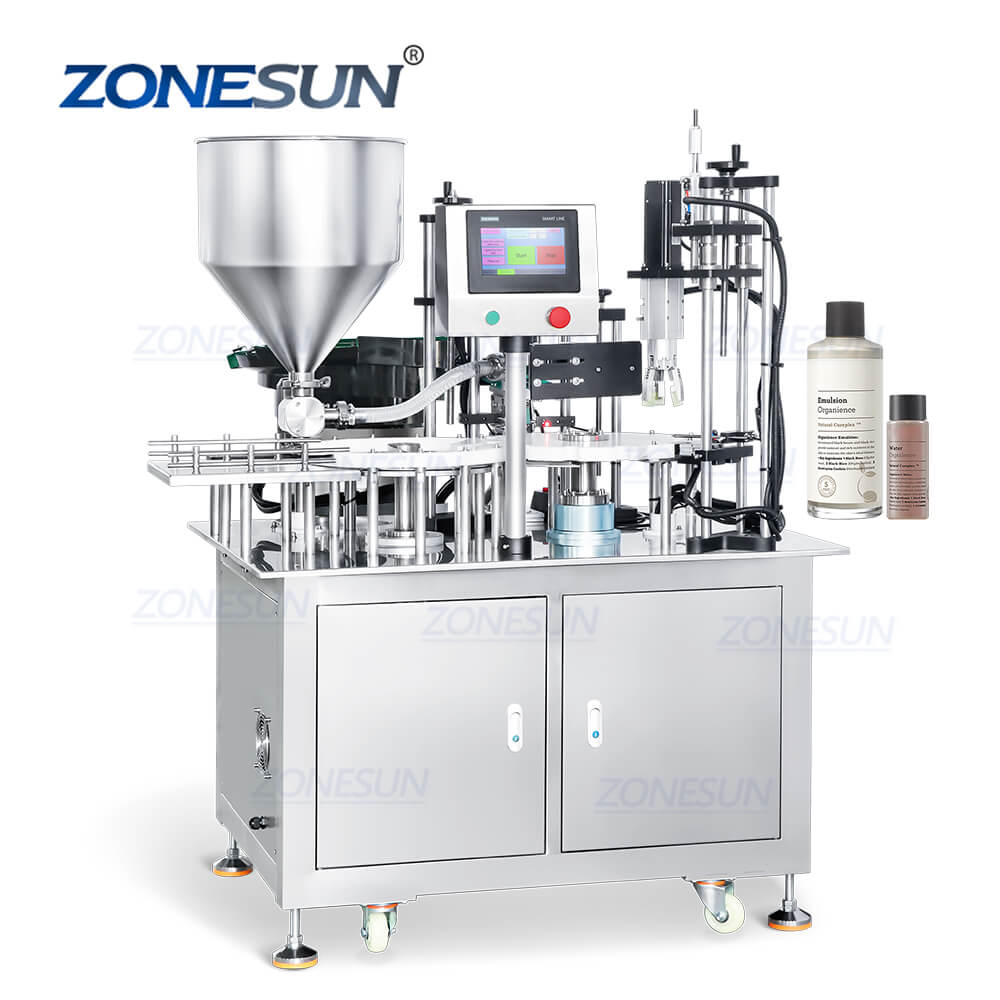

automatic filling capping machine
vibrating bowl sorter of automatic filling capping machine
control panel of automatic filling capping machine
bottle sorter of automatic filling capping machine
starwheel of automatic filling capping machine
capping structure of automatic filling capping machine
bottle filling capping machine

ZONESUN ZS-AFC24 Automatic Monoblock Thicker Liquid Paste Skincare Serum Moisturizer Cosmetic Cream Filling Capping Machine

Voltage
Price
Regular price $9,299.00 USD
Regular price Sale price $9,299.00 USD
Save $-9,299 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Machine Video

Monoblock filling capping machine is suitable for filling lotion, moisturizer, shampoo into bottles and tighten bottle caps.We add bottle sorting structure to this machine, it is no need to put bottles one by one manually.The mixer and heater can be quipped with for filling material pretreatment, improves production quality

Parameter

  • Machine Model:ZS-AFC24
  • Voltage:220V/110V 50-60Hz
  • Power:1.5kW
  • Filling Pump:Piston Pump
  • Working Speed:About 20 bottles/min
  • (depending on bottle size and filling materials)
  • Filling Range:20-100ml (Can be customized)
  • Filling Error:±1%
  • Suitable Bottle Height:35-150mm (Can be customized)
  • Suitable Bottle Diameter:14-42mm (Can be customized)
  • Suitable Bottle Cap Size:Can be customized
  • Air Pressure:0.6-0.8MPa
  • Machine Size:About 1300*1650*1520mm(L*W*H)
  • Machine Weight:About 300kg

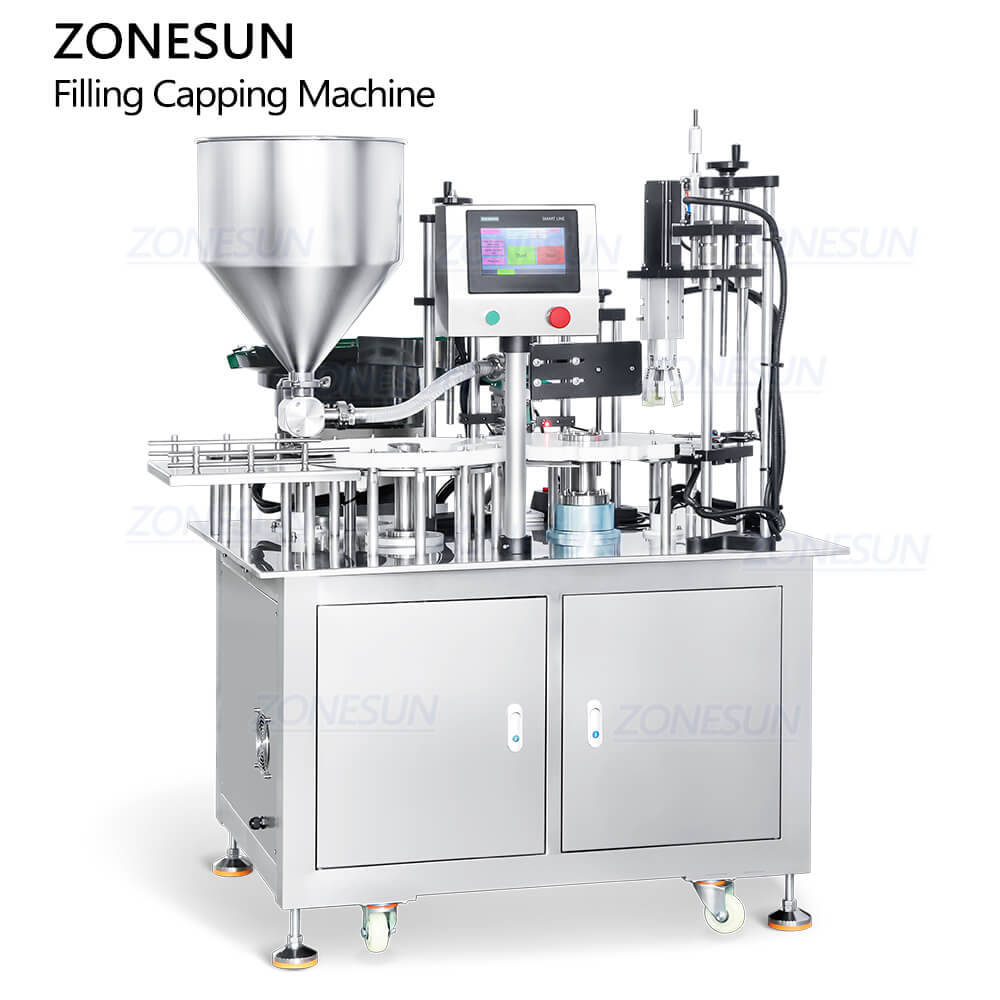

cream filling capping machine

application of cream filling capping machine

technical drawing of cream filling capping machine

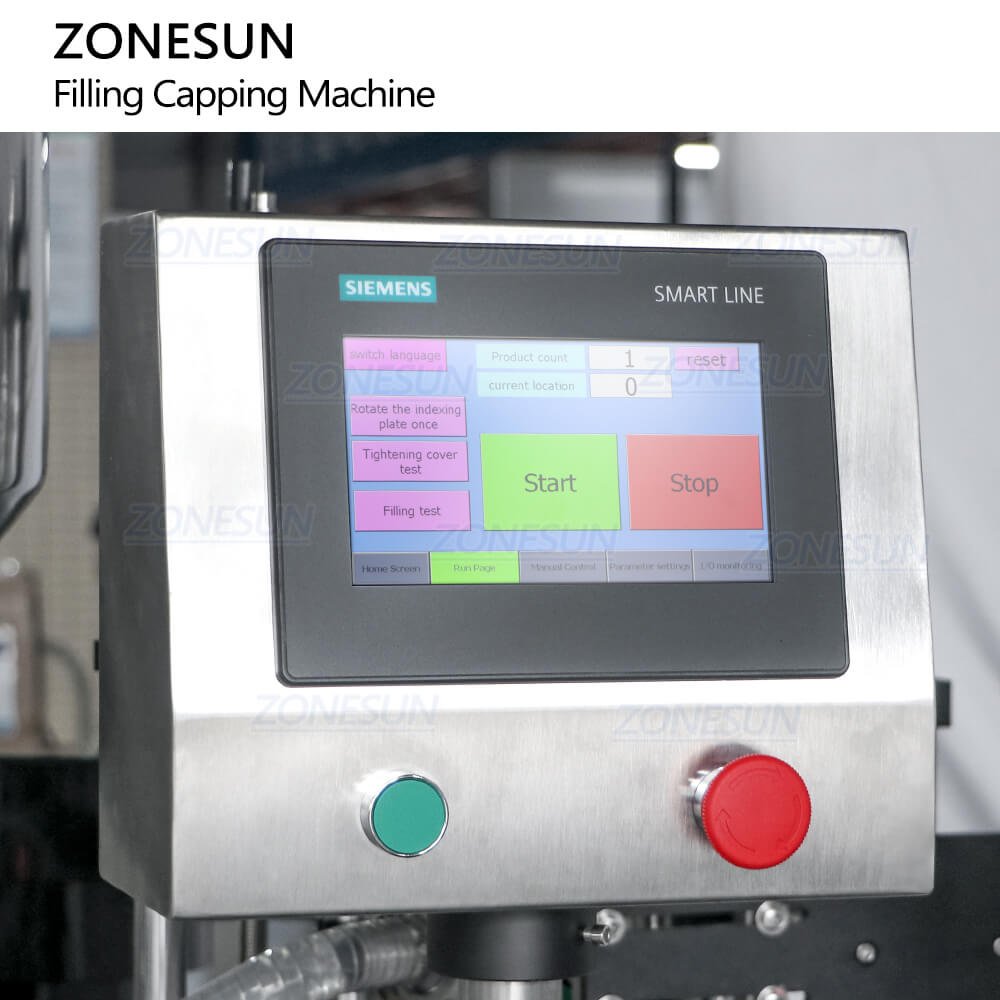

control panel of cream filling capping machine

Equipped with PLC touch screen control panel, this makes working data be in visual.Customizable inteface makes machine operation more convenient.

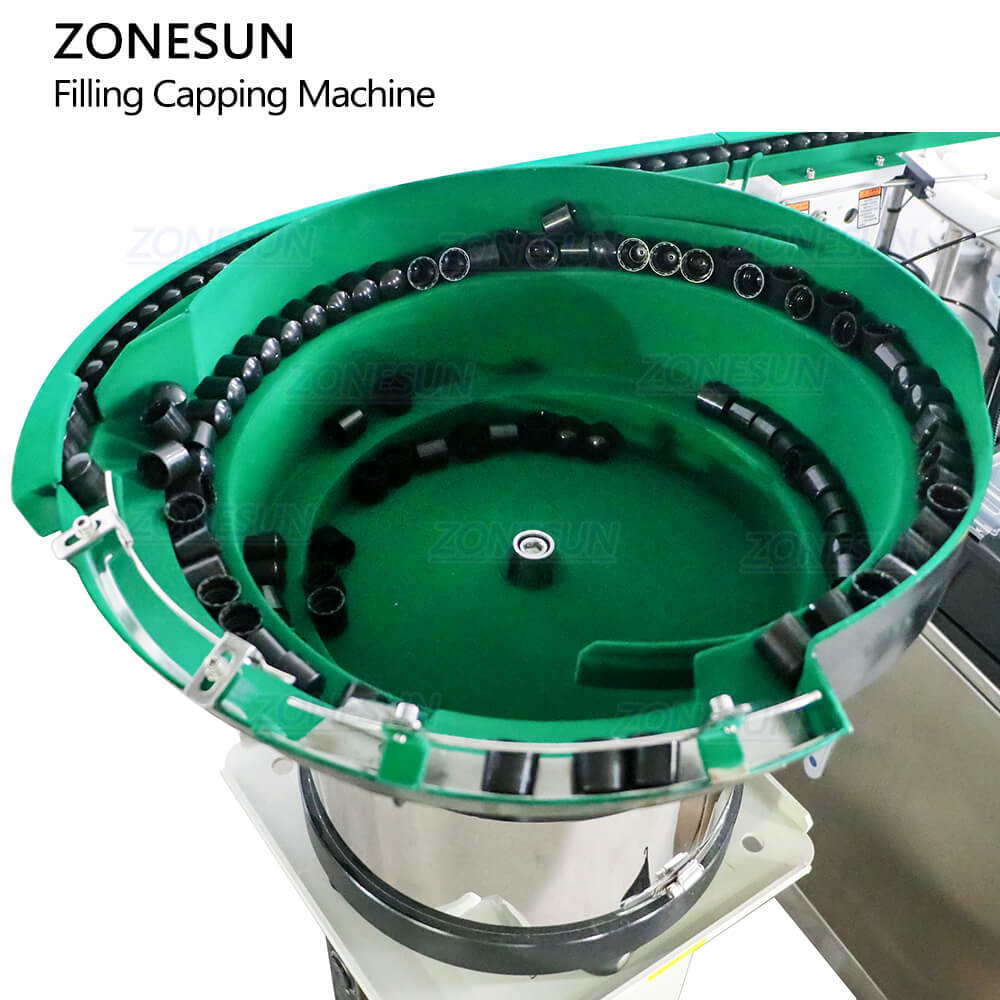

vibrating sorter of cream filling capping machine

Equipped with vibrating bowl sorter , which can make bottle caps be in order before capping work.This vibrating bowl sorting machine is customized according to cap size, ensures the working accuracy

bottle sorter of cream filling capping machine

Equipped with bottle sorting sturcture, it can make bottles be in order and convey them to the star wheel to the next production process.

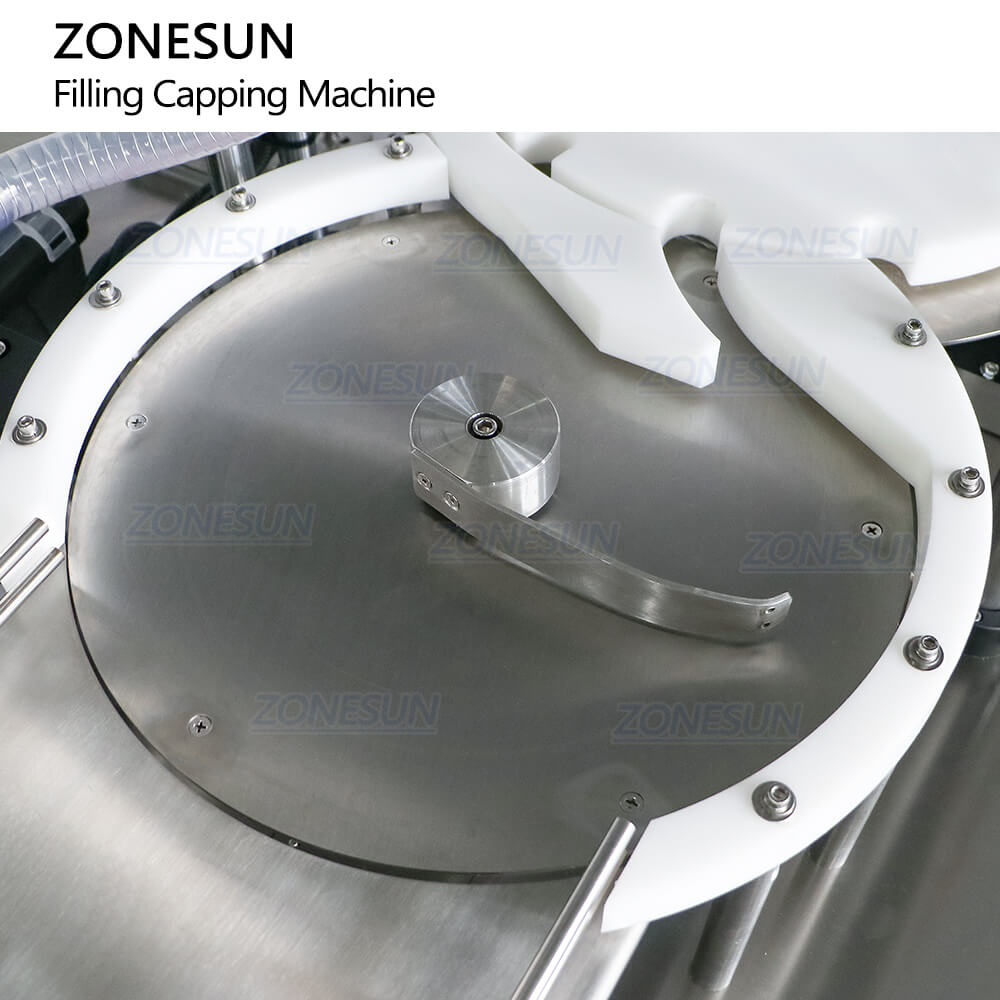

starwheel of cream filling capping machine

The filling structure,cap feeding structure and capping structure is combined together at one star wheel.This makes production can be orderly.Filling nozzle size and capping structure can be customized according to production request.

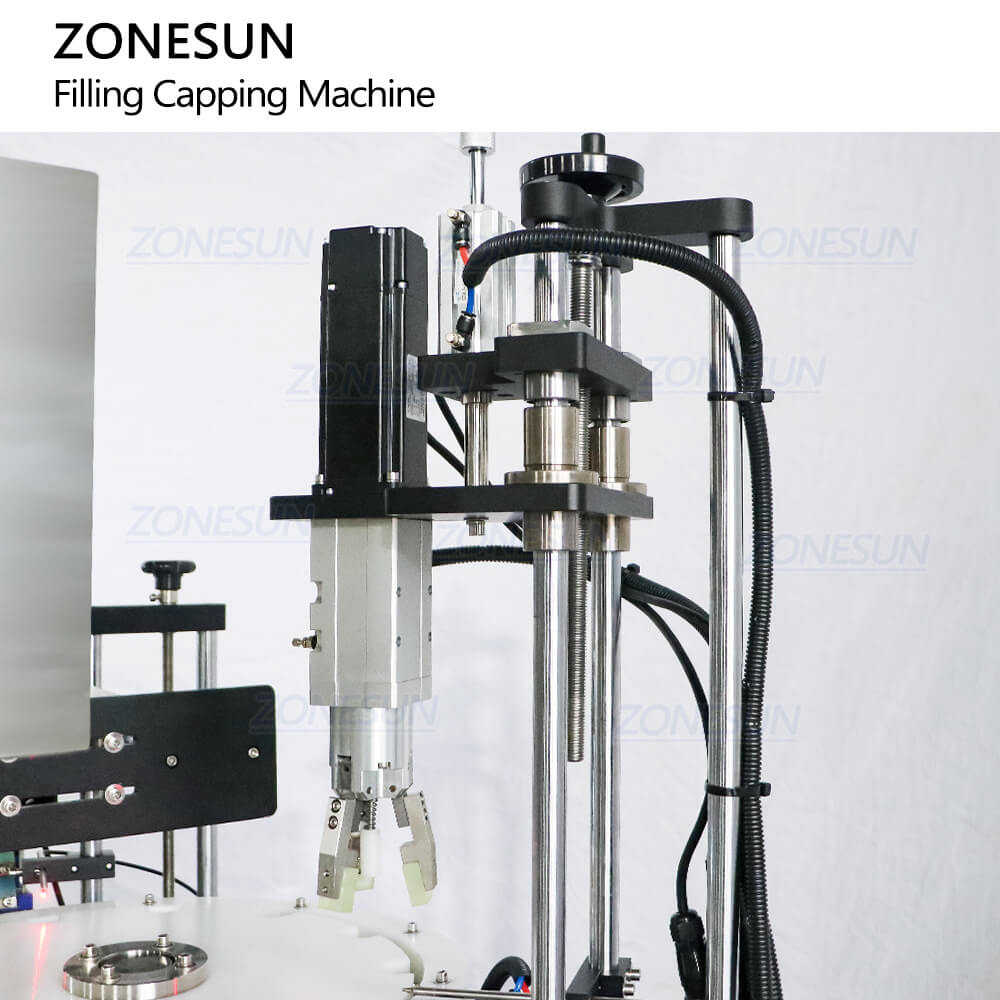

capping structure of cream filling capping machine

The capping structure is controlled by servo motor, which can improves capping accuracy and makes machine operation more convenient.

cpsmetic cream filling capping machine
