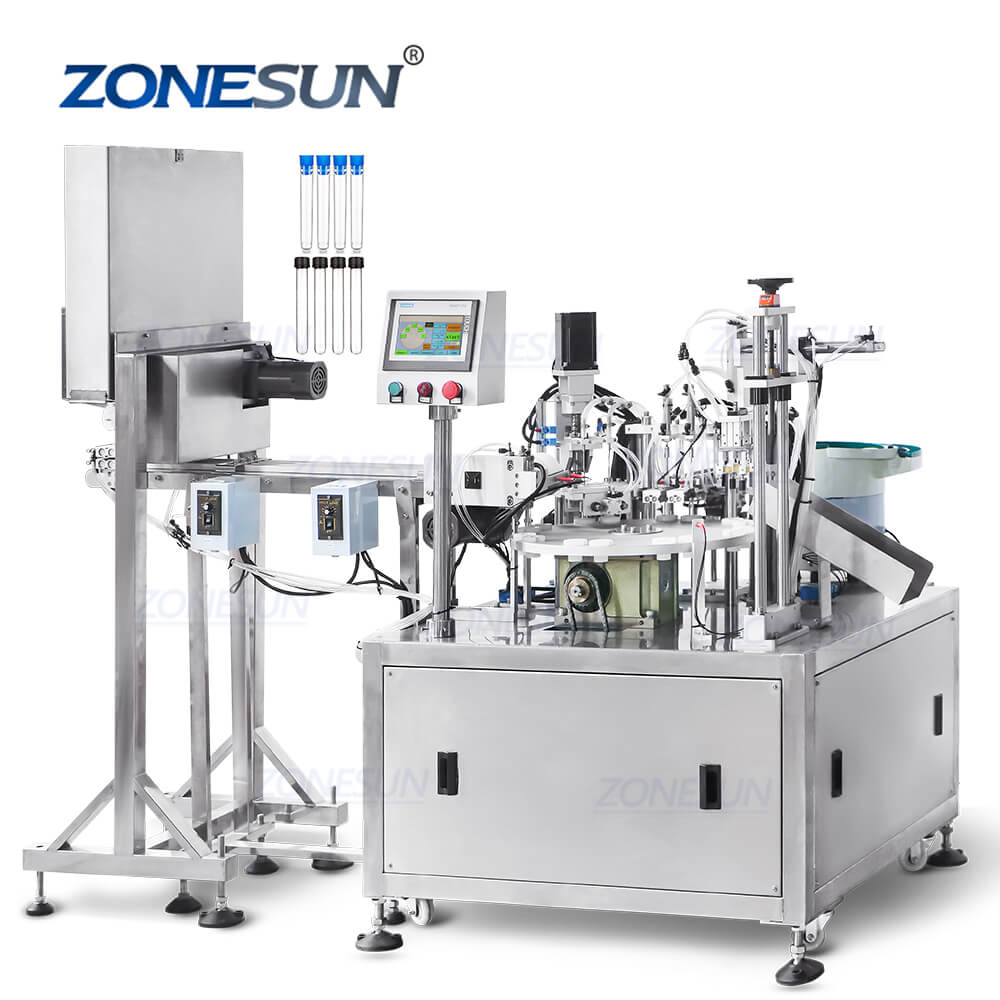

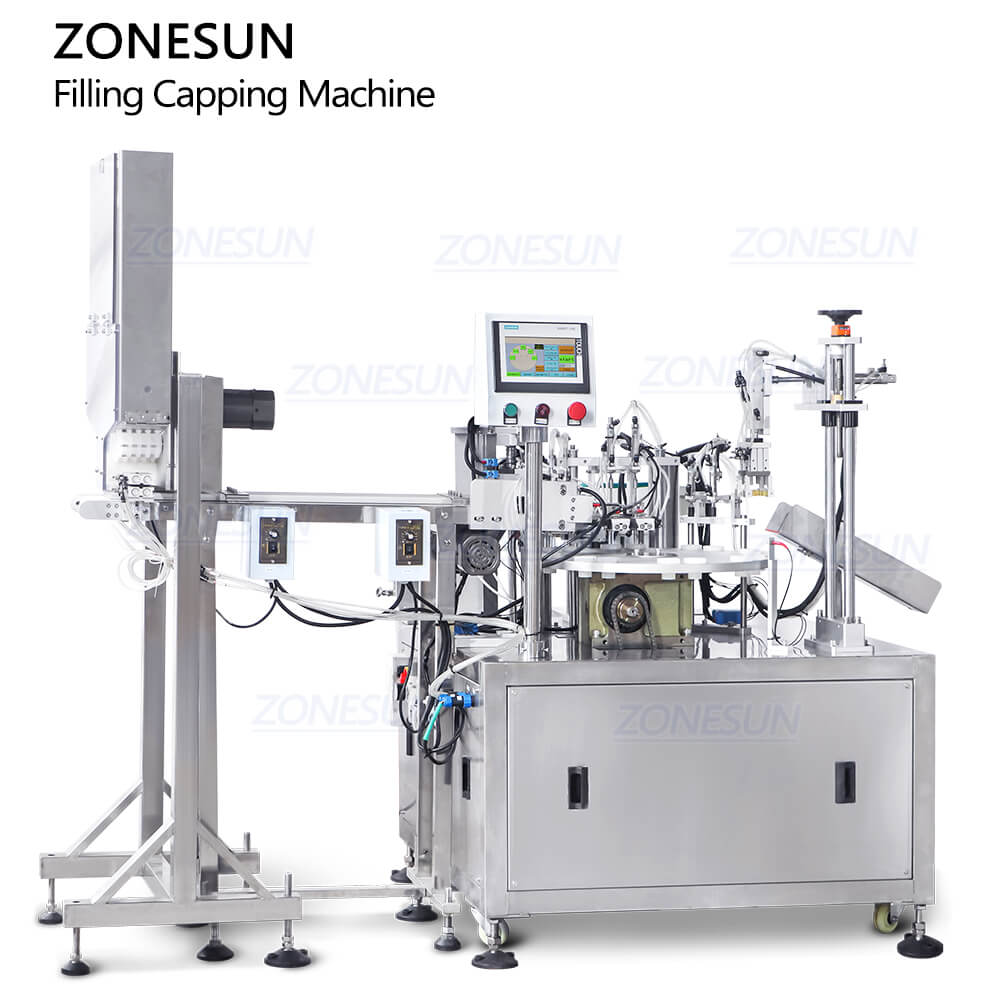

ZS-AFC17 Automatic Monoblock Small Glass Perfume Vial Filling Capping Machine

Voltage
Price
Regular price $18,999.00 USD
Regular price Sale price $18,999.00 USD
Save $-18,999 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

This filling capping machine is equipped with ceramic pump which is suitable for filling small volume liquid and has high filling accurately.It is equipped with bottle umscrambling  structure, can put bottles vertically into the rotary plate and realize automated production.This is suitable for perfume vial.

Parameter

Machine model:ZS-AFC17
Voltage:AC220V/380V, 50F 60Hz
Power about:5.5KW
Filling pump:Ceramic Pump
Number of filling heads:2
Working speed:About 1500 BPH
Recommended filling volume:5-6ml
Filling accuracy:±0.58ml
Air pressure:0.6-0.8MPa
Machine size:About 2060*1550*1710mm

Perfume Vial Filling Capping Machine

Application of Pefume Vial Filling Capping Machine

Machine Details of Pefume Vial Filling Capping Machine

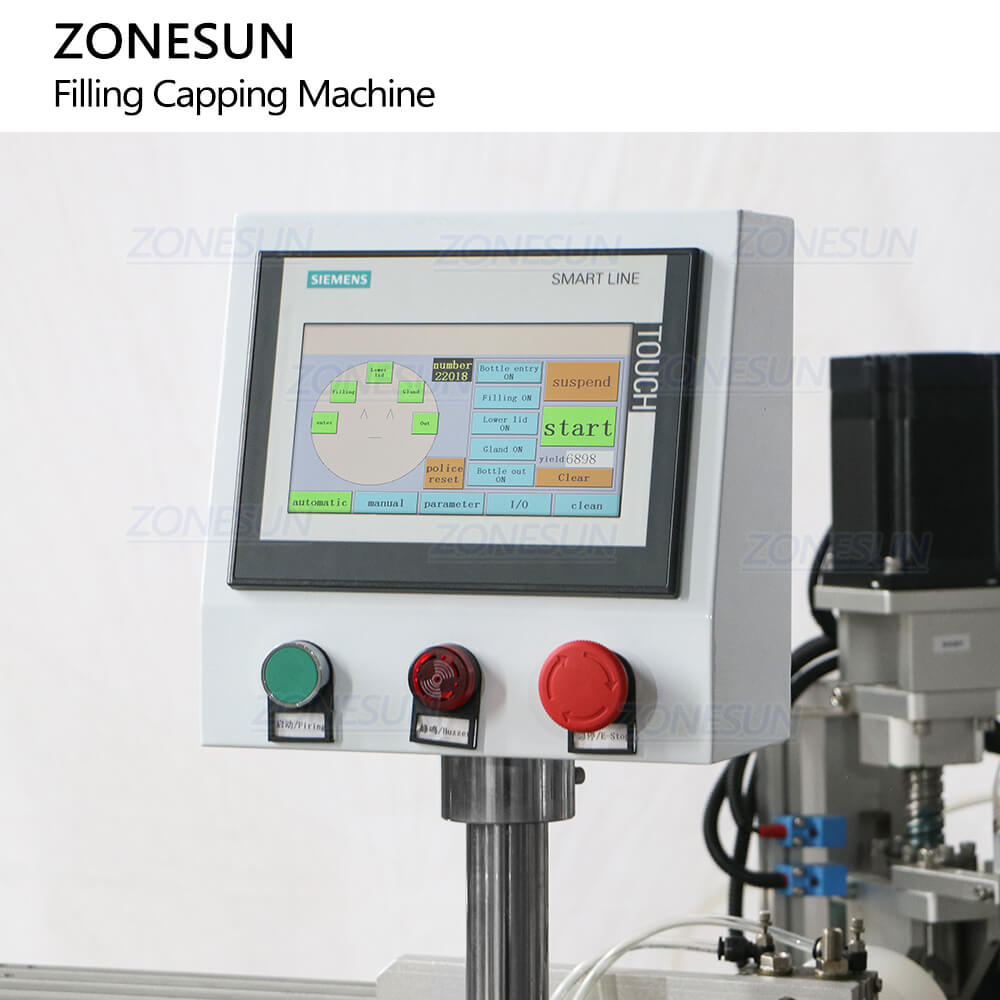

Control Panel of Pefume Vial Filling Capping Machine

The touch screen control panel makes working data visual, this is more convenient when watching machine working status and good for new operator to debug the machine.Different kinds of language can be customized as needed.

Bottle-Grouping Structure of Pefume Vial Filling Capping Machine



Equipped with bottle grouping structure, this can put bottles onto conveyor one by one, make the flling and capping work can be processed smoothly. it can save working labor and reduce production error.

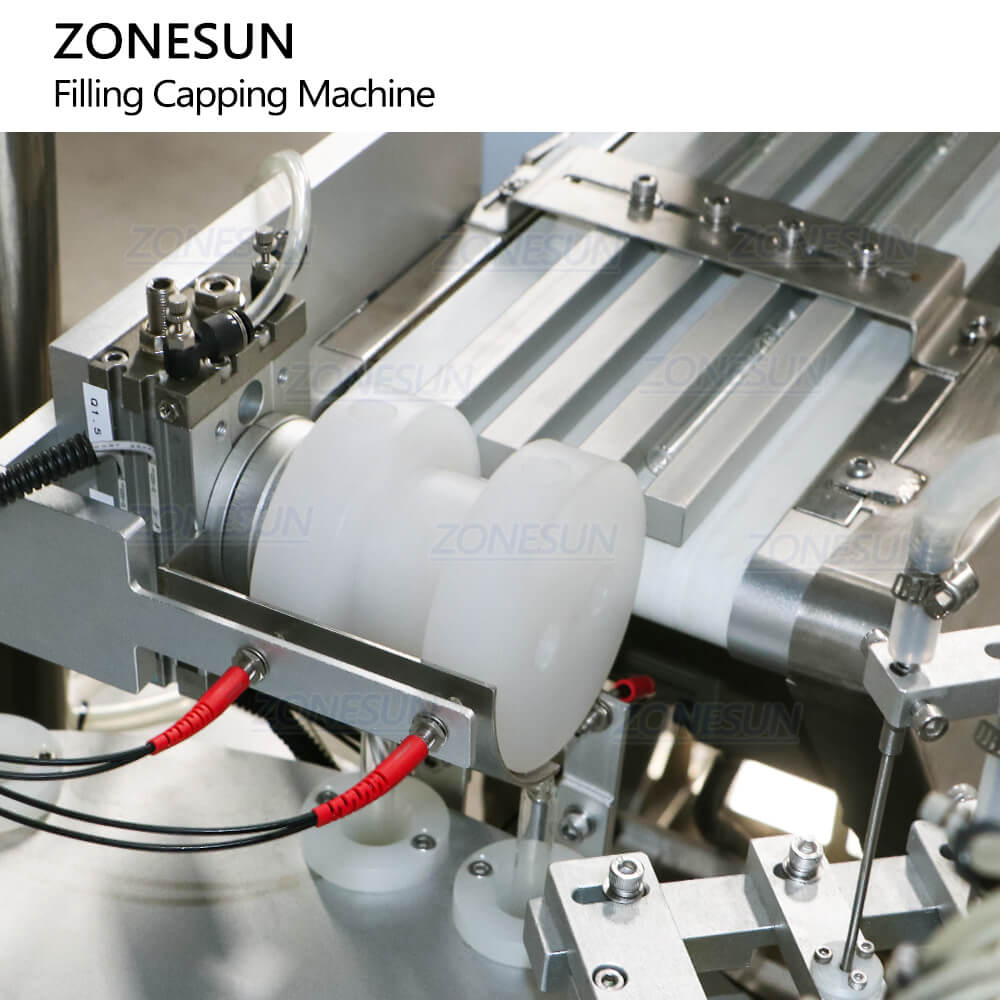

Bottle Standing Structure of Pefume Vial Filling Capping Machine

Designed with bottle standing structure, this can help to put bottles vertically into rotary plate and realize the automated bottle conveying.It is suitable for vials that can not stand during transporting.

Vibratory Bowl Sorter of Pefume Vial Filling Capping Machine

Equipped with vibratory bowl sorter, it can unscramble bottle caps automatically and transport bottles caps to the cap pressing structure.With this, it can improves working efficiency.

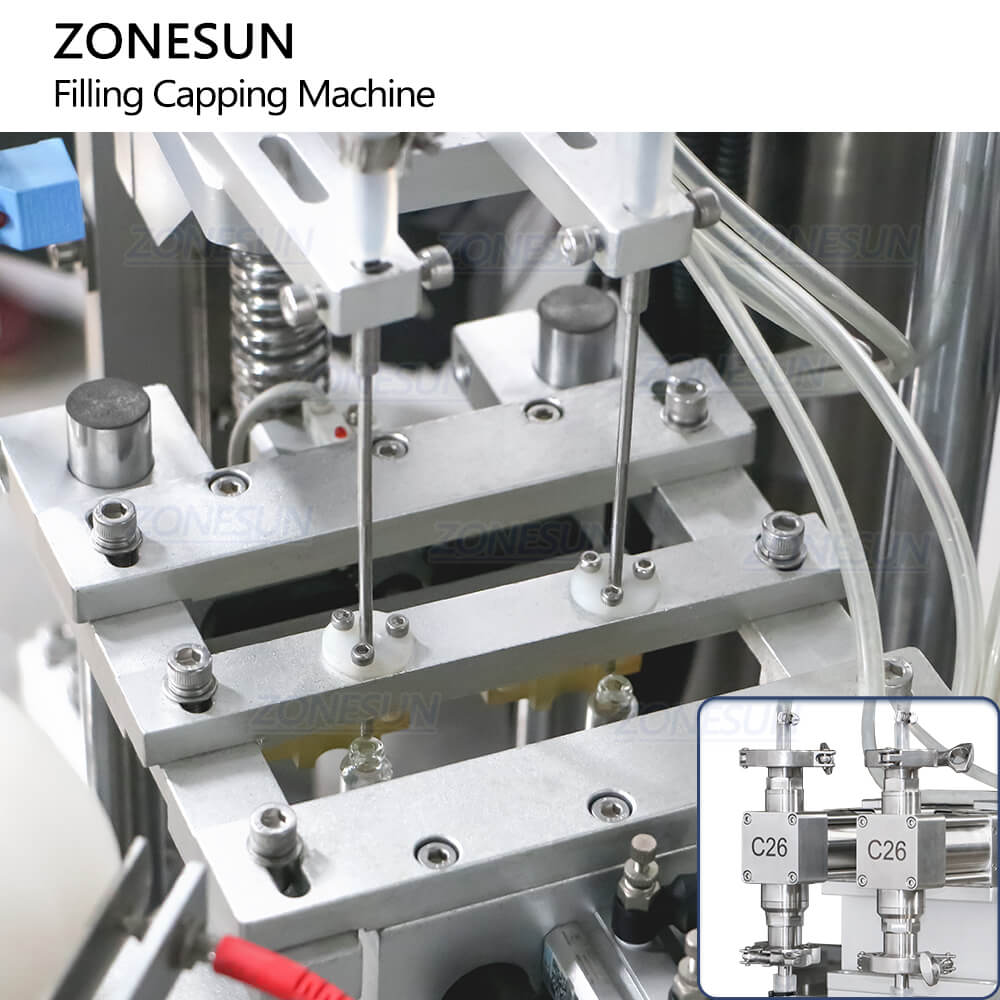

Filling Nozzle of Pefume Vial Filling Capping Machine

Single or double filling nozzles can be customized as production need.The small filling nozzle can prevent liquid spraying out during filling and improves filling accuracy.Equipped with ceramic pump, they are suitable for filling small volume liquid.

Cap Pressing Structure of Perfume Vial Filling Cap Pressing Machine

The capping structure is designed for compressing bottle caps after the electric eye detect bottles. Different kinds of capping structure can be customized according to caps type.

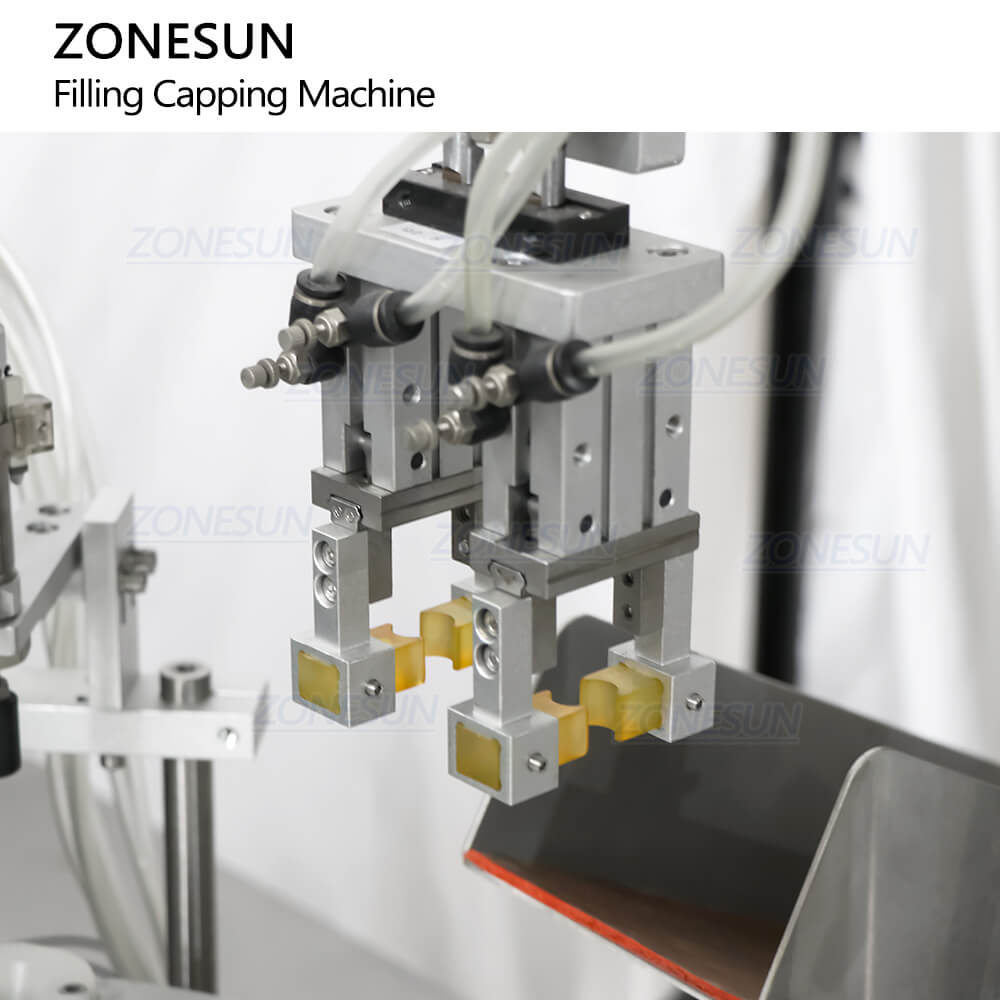

Bottle Clamping Structure of Perfume Vial Filling Cap Pressing Machine

The bottle clamping structure can imitate human hands to take bottles out of fixing mold.This can saves working process of collecting bottles.
