ZS-DTMPZ1 Automatic Magnetic Pump Essential Oil Juice Ink Small Spray Bottle Liquid Quantitative Filling Machine

Liquid Quantitative Filling Machine
Control Panel of Liquid Quantitative Filling Machine
Conveyor of Liquid Quantitative Filling Machine
Electric Eye of Liquid Quantitative Filling Machine
Bottle Quantitative Filling Machine
Liquid Filling Machine

ZS-DTMPZ1 Automatic Magnetic Pump Essential Oil Juice Ink Small Spray Bottle Liquid Quantitative Filling Machine

Machine Size
Regular price $1,379.00
/
  • Multiple Shipping Method
  • Custom Service
  • Local Service Location
  • Secure payments

Click Video Link For Video

Compared with other automatic filling machine,this automatic filling machine can set filling volume by entering certain number,it is no need to adjust the filling time and speed,more convenient.The small reasonable machine design saves working space.

Parameter

Machine Model:ZS-DTMPZ1
Voltage:220V/110V 50-60Hz
Power:About 170W
Filling Speed:About 20-25bottles/min(depending on liquid and bottle size)
Max Flow Rate:6L/min(based on water)
Filling Range:5-6000ml
Filling Accuracy:0.2%-1%
Conveyor Belt Size:About 1020*140mm(L*W)

Quantitative Filling Machine

Application of Quantitative Filling Machine

Machine Details of Quantitative Filling Machine

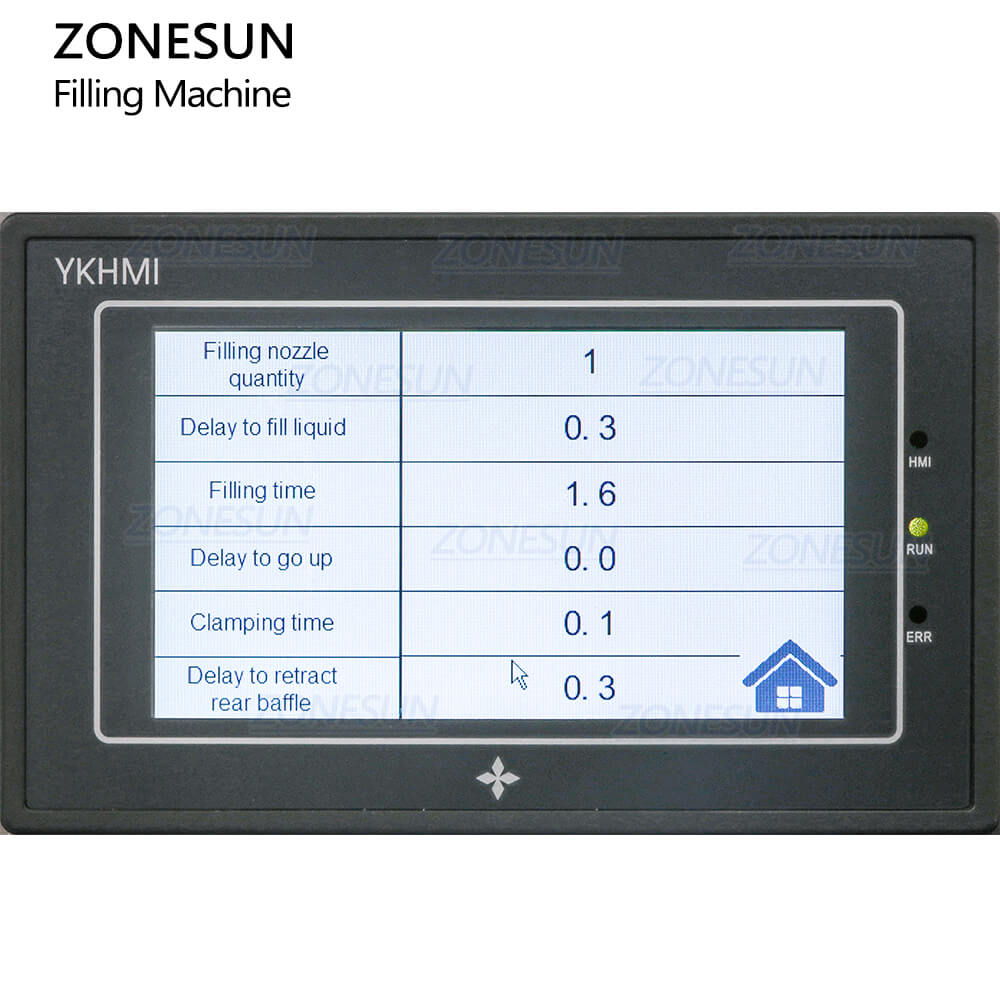

Control Panel of Automatic Quantitative Filling Machine

Through PLC control panel,it is easy to set or adjust working parameters like filling time.The language of panel can be customized as your need.

Magnetic Pump of Quantitative Filling Machine

Equipped with 316 stainless steel magnetic pump,it is suitable for weakly corrosive liquid like essential oil,care solution.lt fills liquid accurately.

Electric Eye of Quantitative Filling Machine

With electric eye,it can detect bottles accurately and control machine to fill liquid.Its sensitivity can be adjusted as needed.The position of filling head can be adjusted to suit for different bottles.

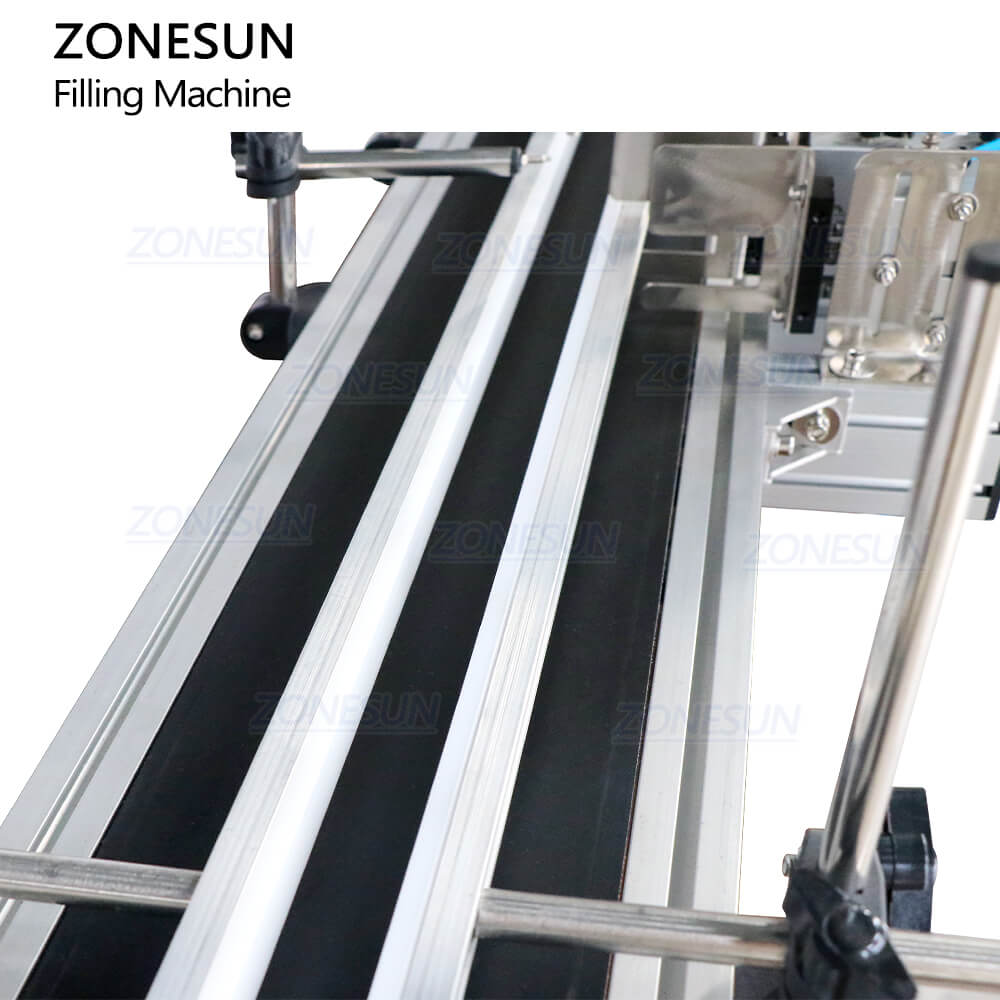

Conveyor of Quantitative Filling Machine

With high-quality conveyor belt,it can transport products steadily.The conveying speed can be adjusted according to production need.

Quantitative Filling Machine For Liquid
