ZS-AFC1S Automatic Magnetic Pump Essential Oil Eye Drops Chemical Liquid Perfume Glass Small Vial Bottle Filling Capping Machine

SKU: 00100100070-0003
Automatic Magnetic Pump Filling Capping Machine
Filling Nozzle of Desktop Magnetic Pump Filling Capping Machine
Capping Head of Desktop Magnetic Pump Filling Capping Machine
Rotary Plate of Desktop Magnetic Pump Filling Capping Machine

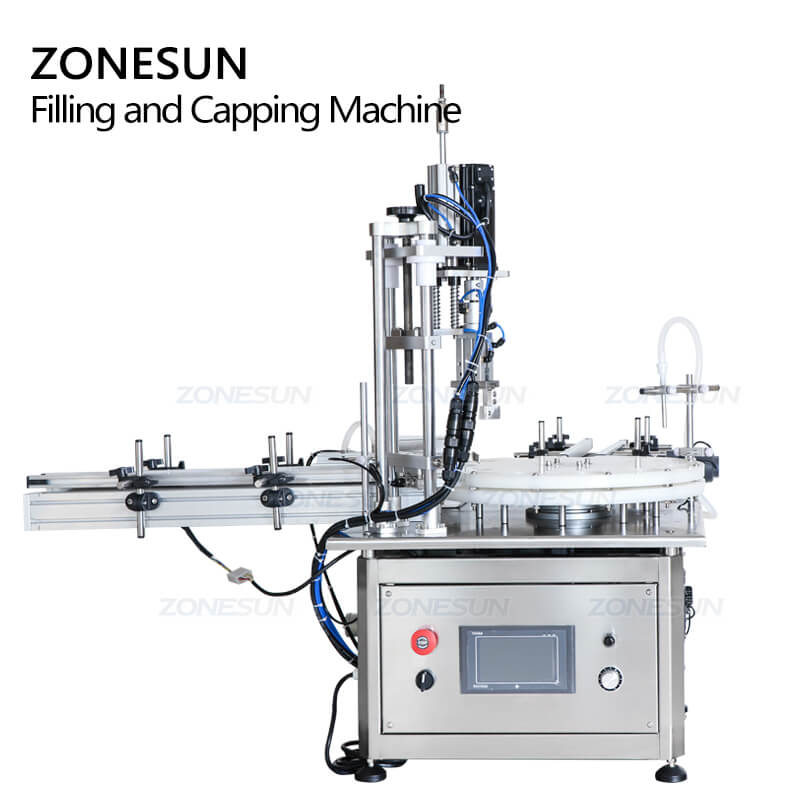

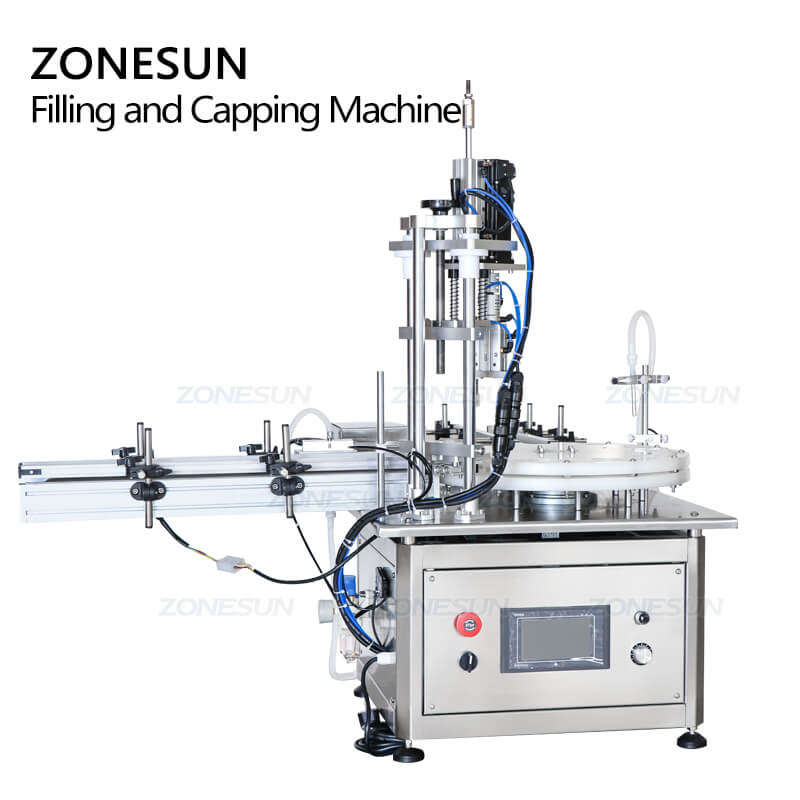

Desktop Magnetic Pump Filling Capping Machine
Desktop Magnetic Pump Filling Capping Machine
Desktop Magnetic Pump Filling Capping Machine

ZS-AFC1S Automatic Magnetic Pump Essential Oil Eye Drops Chemical Liquid Perfume Glass Small Vial Bottle Filling Capping Machine

SKU: 00100100070-0003
Voltage
Regular price $4,899.00
/
Only 666 items in stock!
  • Multiple shipping method
  • Custom Service
  • Two Local Service Location
  • Secure payments

Click Video Link For Video

Designed with a small conveyor belt,this peristaltic pump filling and capping machine can work with desktop labeling machine to realize automated production.Small machine body save working space and production cost.It is widely used in daily chemical,cosmetics industries.

Parameter

Machine model:ZS-AFC1S
Voltage:110/220V
Machine pump:Magnetic pump
Machine power:1000W
Bottle diameter:10-40mm
Filling range:≤100ml
Bottle height:≤120mm(Can customize for higher bottles)
Cap diameter:Customize
Size of filling nozzle:OD 8mm
Working speed:20-50bottles/min(depends on liquid and bottle size)
Conveyor belt size:About 640*80mm
Machine size:About 580*580*1080mm
Machine weight:About 75kg
Package size:About 720*620*1090mm
Package weight:About 97kg

Automatic Monoblock Magnetic Pump Filling Capping MachineApplication of Automatic Monoblock Magnetic Pump Filling Capping MachineOperation Panel of Automatic Monoblock Magnetic Pump Filling Capping Machine

Equipped with touch screen control panel,it can shows working parameter more clearly which is good for watching the machine status,the working speed of the conveyor can be adjusted as well.

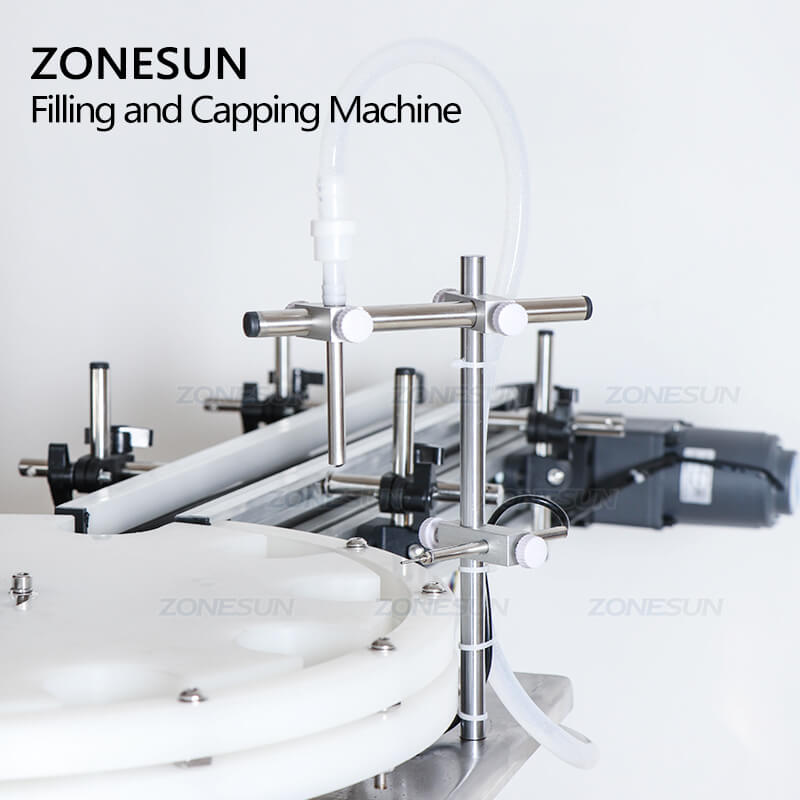

Filling Nozzle of Automatic Monoblock Magnetic Pump Filling Capping Machine

The height of filling nozzle can be adjusted according to bottle height,prevents from spreading out liquid.Multiple filling nozzle can be customized according to production need.The electric eye can detect passing by bottles and control the machine to start work or not.

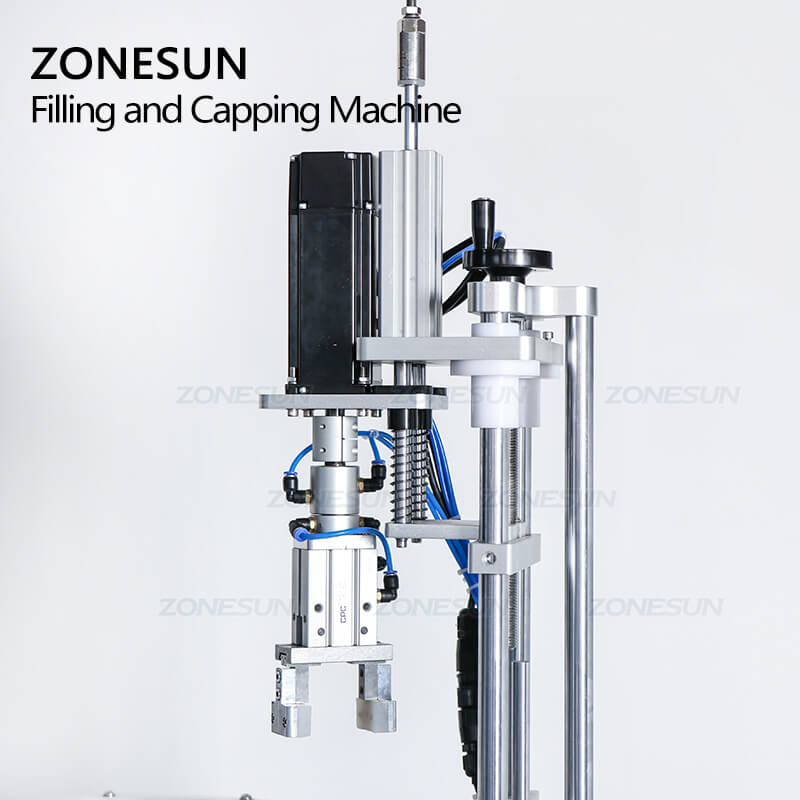

Capping Head of Automatic Monoblock Magnetic Pump Filling Capping Machine

It is equipped with high quality servo motor,this can ensure the stable working of the machine.The design of capping head is flexible,it can be customized according to bottle cap shape and size.

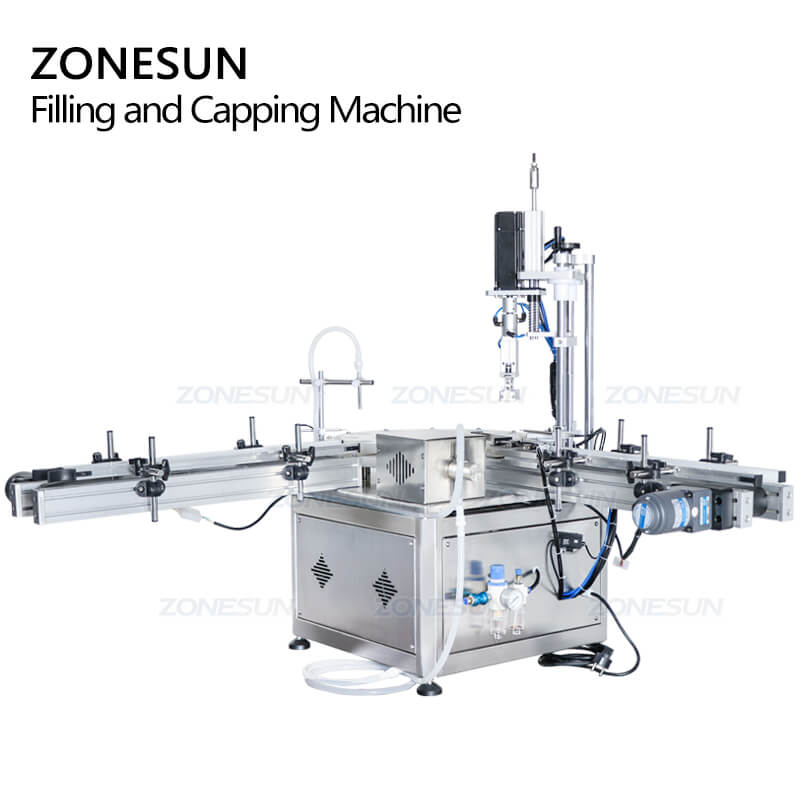

Conveyor Belt of Automatic Monoblock Magnetic Pump Filling Capping Machine

Equipped with conveyor belt,this can transport bottles before and after filling/capping work.It can be connected to automatic labeling machine to realize automated production.

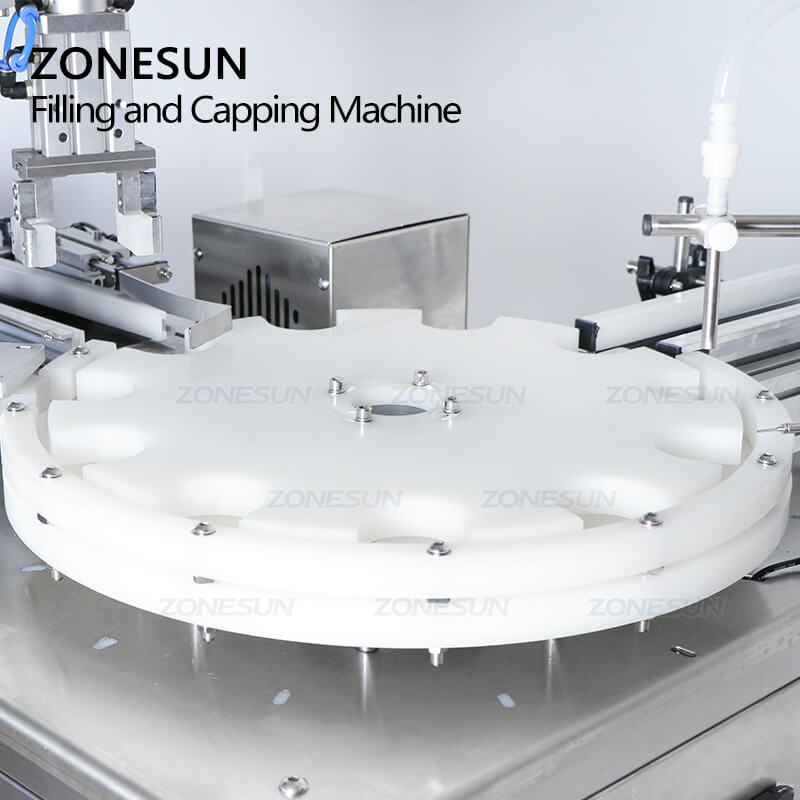

Rotary Plate of Automatic Monoblock Magnetic Pump Filling Capping Machine

Equipped with conveyor belt,this can transport bottles before and after filling/capping work.It can be connected to automatic labeling machine to realize automated production.

Magnetic Pump of Automatic Monoblock Magnetic Pump Filling Capping Machine

The machine is equipped with 316 stainless steel magnetic pump,which is suitable for filling corrosive liquid and can fill liquid accurately.

Automatic Monoblock Magnetic Pump Filling Capping Machine

Automatic Monoblock Magnetic Pump Filling Capping Machine
