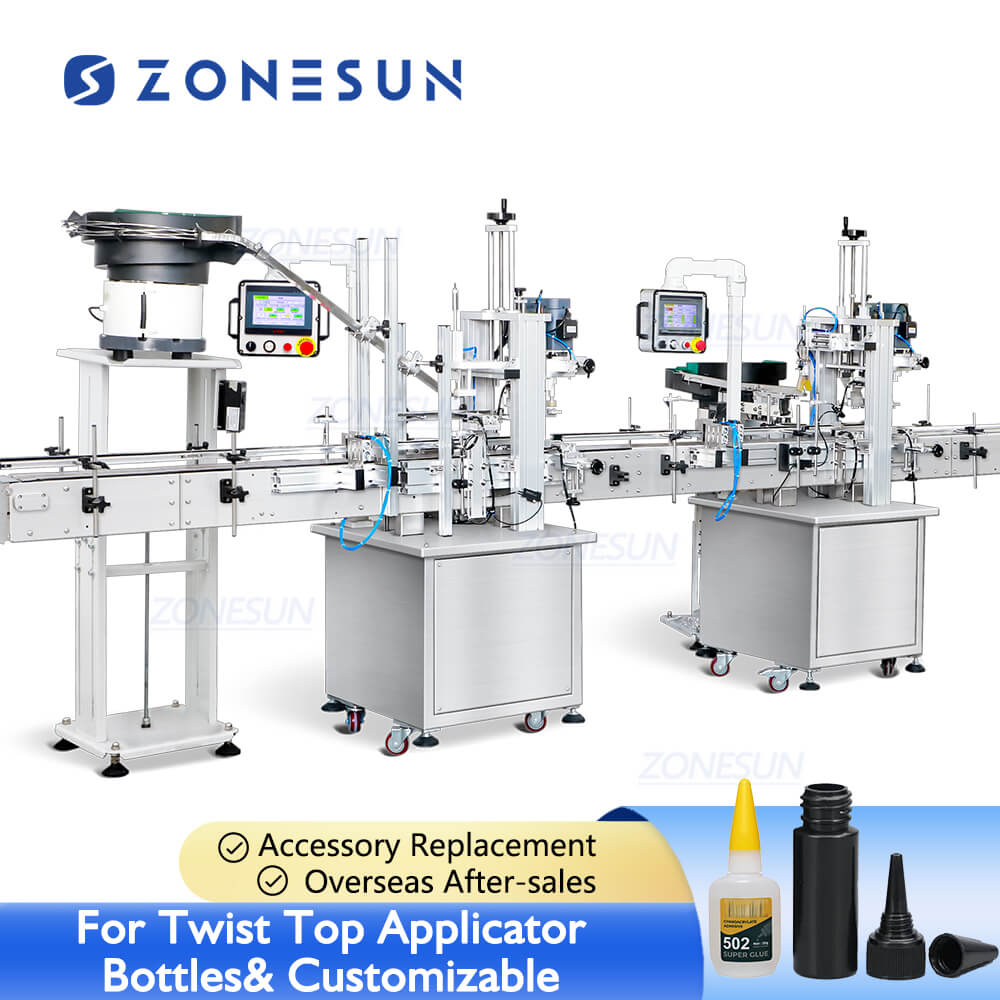

This capping machine is specifically designed for bottles with twist-on screw caps featuring pointed nozzle tips. It is capable of automatically sorting, feeding, placing, and tightening caps with high precision and consistency. The machine ensures a secure and leak-proof seal, making it ideal for packaging semi-viscous liquids such as honey, sauces, adhesives, and health solutions.
Parameter
- Machine model: ZS-XG16M
- Working voltage: AC220V/110V 50-60HZ
- Bottle height: 30-300 mm
- Cap diameter: 18-70 mm
- Bottle diameter: 20-160 mm
- Working speed: 10-25 bottles / minute (based on cap size)
- Working pressure: 0.4-0.6 MPa
- Machine size: About 2000*1000*1750 mm
- Package size: About 2050*820*1790 mm+About 1900*770*1780 mm
- Package weight: About 315+250 kg

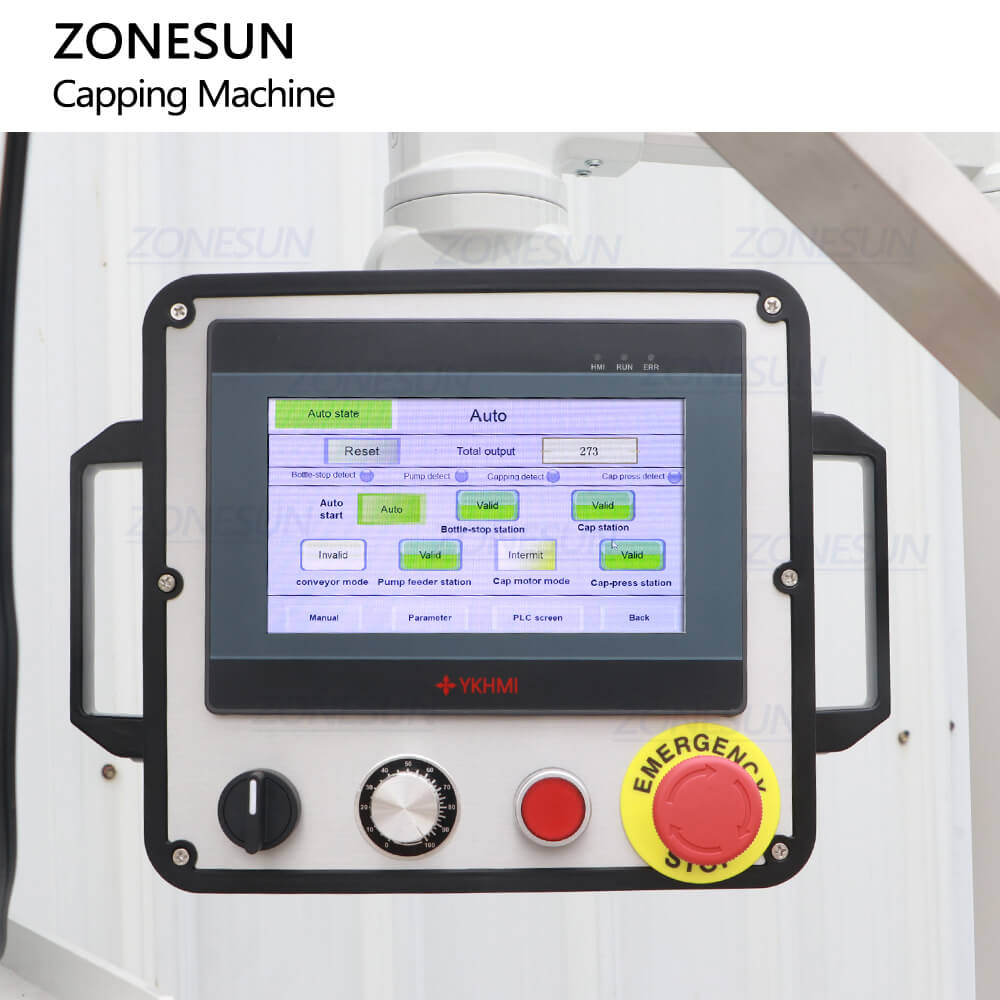

Robotic Arm Panel
User-friendly interface for easy operation
Vibratory Bowl Feeder
Ensures continuous and efficient cap supply
Cap Placing Structure
Can placing caps onto bottles accurately, suits two types of caps.
Customized Capping Structure
Designed for twist top applicator bottles, customizable to different bottle and cap sizes.
Photoelectric Sensor Detection
Automatically detects bottles and enables a fully automated workflow
Chain Conveyor
Larger weight capacity, width & length can be customizable as needed.
