ZONESUN ZS-XG440Z Automatic Inline Olive Oil Gin Liqueur Rum Glass Bottle Aluminum Pilfer Proof Crimping Ropp Capping Machine

Machine Video

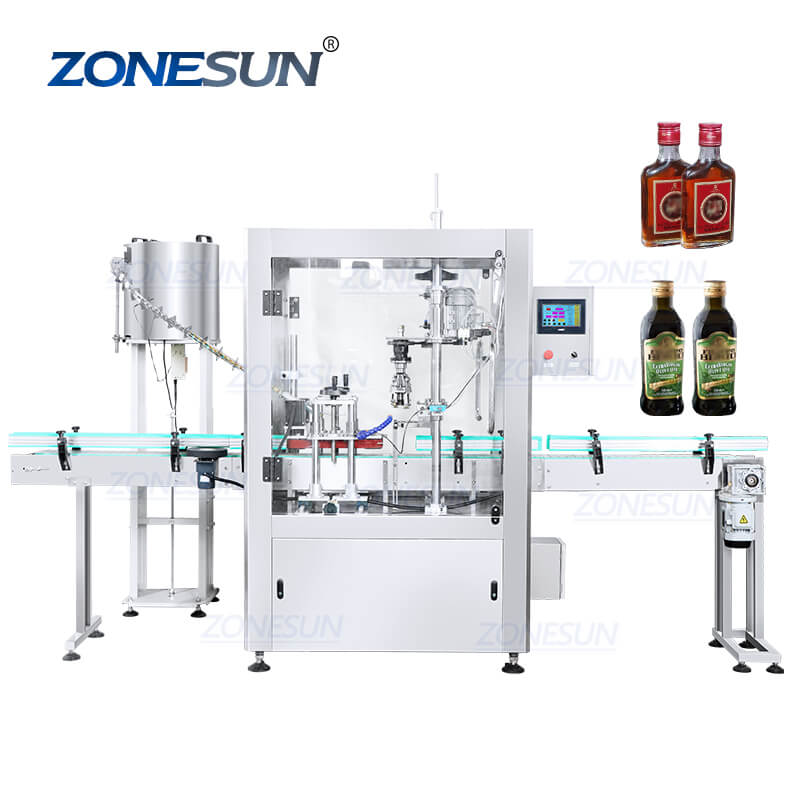

Compared with before automatic ropp capping machine, this one remove rotary table, bottles can be conveyed in a straight line, this is more convenient to operate for different shapes of bottles.It also has the bottleneck supporting component, which is suitable for the soft plastic bottles.This ROPP capping machine is suitable for packaging olive oil, spirits, wine etc

Parameter

• Machine model:ZS-XG440Z
• Machine voltage:110/220V 50-60HZ 1KW
• Suitable cap size:φ25-38mm（Change mold）
• Suitable bottle height:About 150-320mm
• Machine size:About 3550*1700*2250mm
• Package size:About 1720*1600*2380mm(Main Machine)
• About 550*640*1780mm(Vibratory Bowl)
• Package weight:About 640kg(Main Machine)+123kg(Vibratory Bowl)

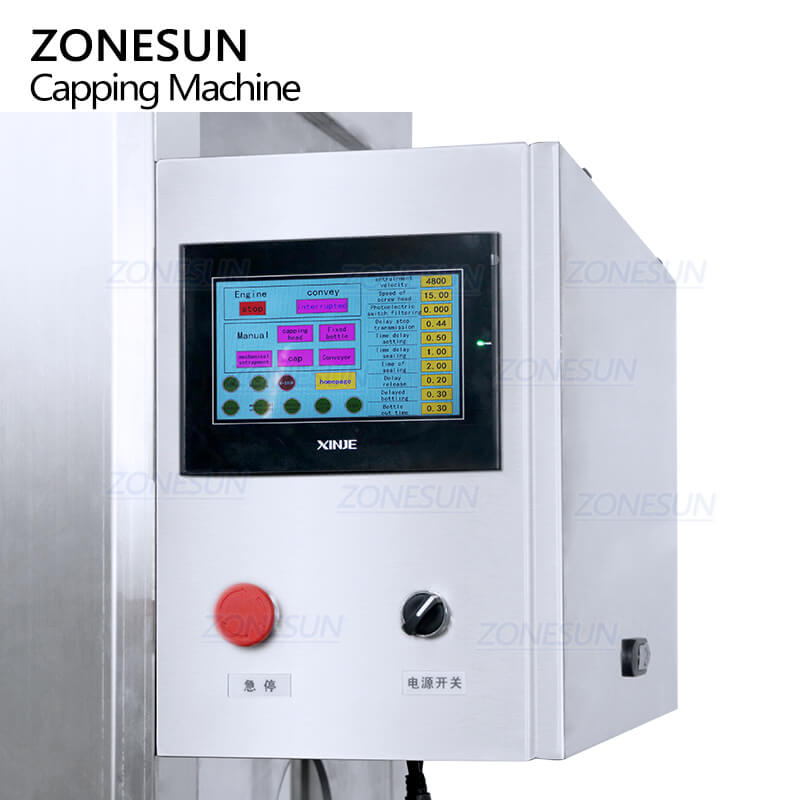

Touch screen control panel shows working data more clearly. Customizable interface makes machine operation more convenient.The distribution box helps to dubug machine easier.

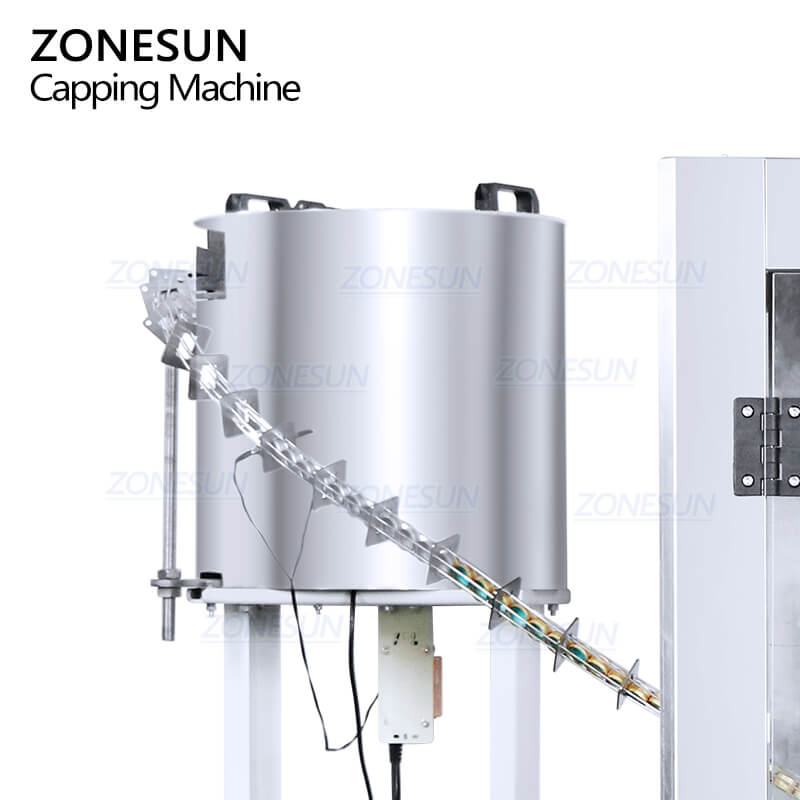

Equipped with vibrating bowl sorting machine, it can supply ropp caps in time, the guide rail will help to put caps onto bottles.This can save working labor and reduce production error.

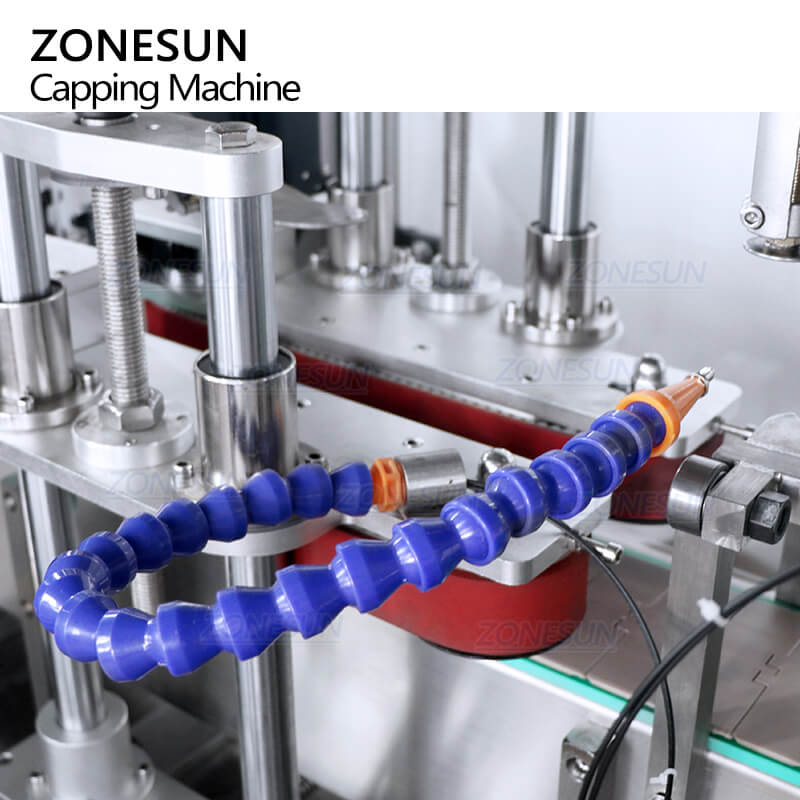

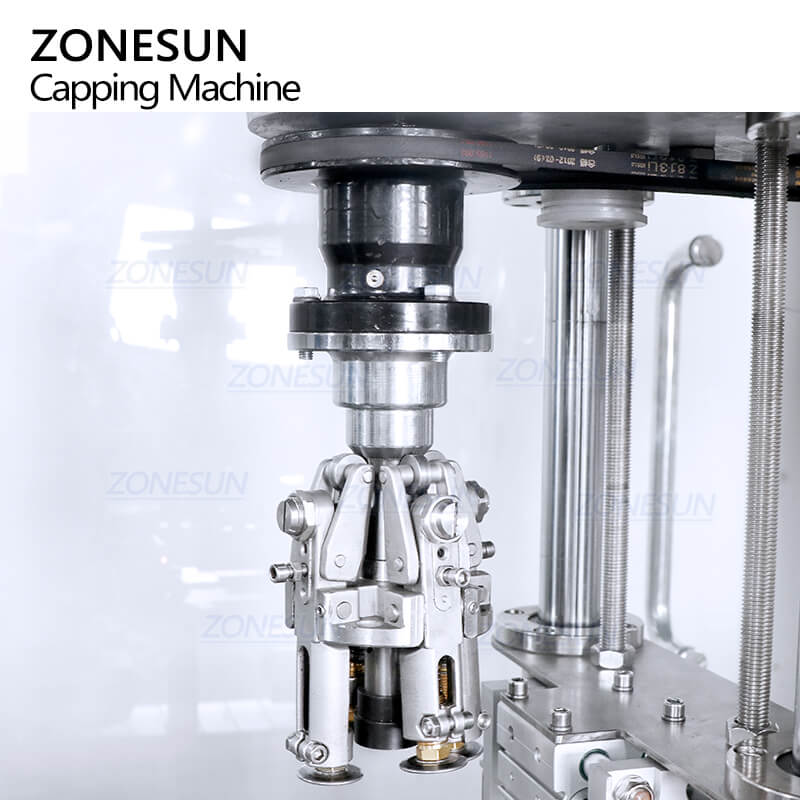

The capping structure is made of high quality material, It provides a balanced, symmetrical pressure that not only secures the cap but also creates a tamper-evident seal through a crimping process.This should be adjusted according to cap size.

High quality electric eye, it can detect passing by bottles and send signal to the control system to make the machine start the capping work automatically.
