ZONESUN ZS-MSZH80 Automatic Horizontal Perfume Face Cream Paper Box Cartoner Cartoning Machine
Earn 0 points on this purchase.
Regular price
$33,499.00 USD
Regular price
Sale price
$33,499.00 USD
Save $-33,499 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

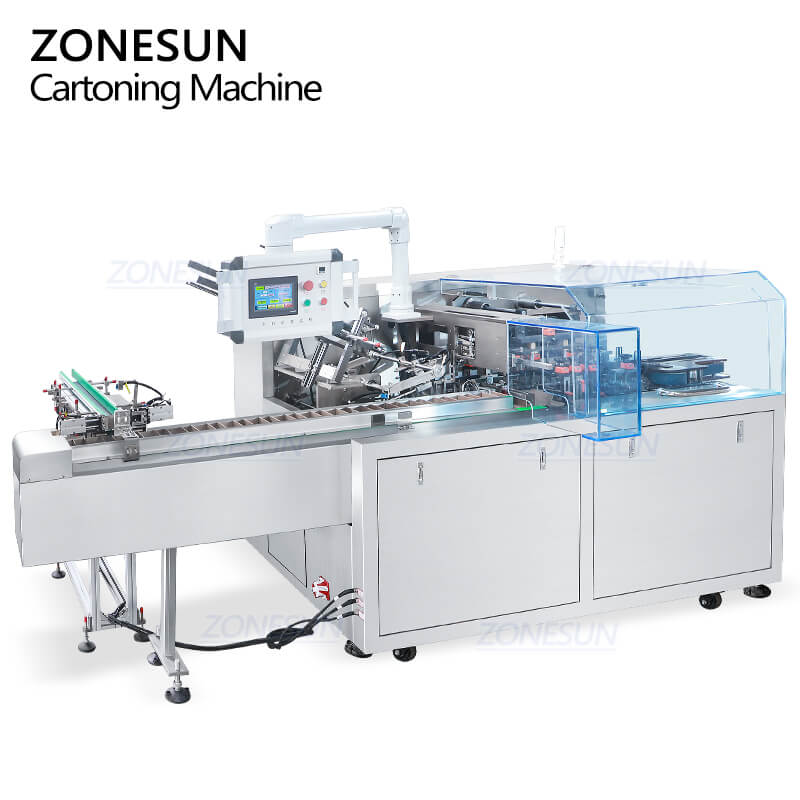

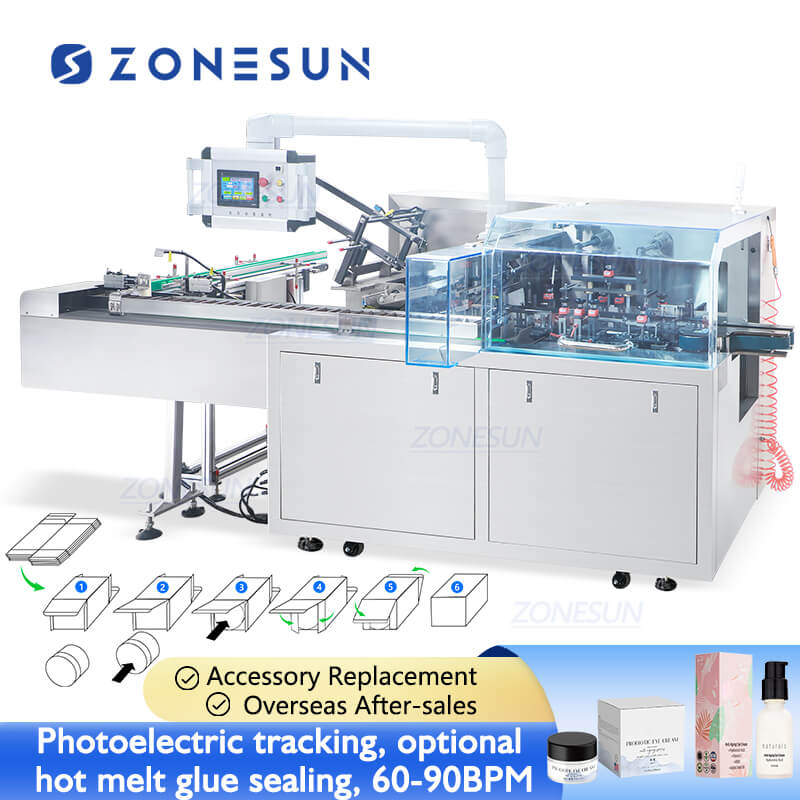

This automatic cartoning machine can complete product conveying, automatic box opening and feeding, automatic insertion of materials into the carton, and final sealing of both ends of the carton flaps. The machine’s transmission system is equipped with overload protection and an emergency stop device to ensure operator safety.
Parameter
- Forming Machine Model: ZS-MSZH80
- Power Supply: 220V–380V, 50Hz
- Main Motor Power: 1.5 kW
- Cartoning Machine Speed: 60-90 boxes/minute
- Carton Material Requirements: 250–400 g/m² (must have a flat surface for suction)
- Carton Size: L (50–180) × W (30–90) × H (20–60) mm
- Compressed Air Supply: ≥0.6 MPa, 20 m³/h
- Machine Size: 3500 × 2000 × 1750 mm(L×W×H)
- Machine Weight: 1300 kg

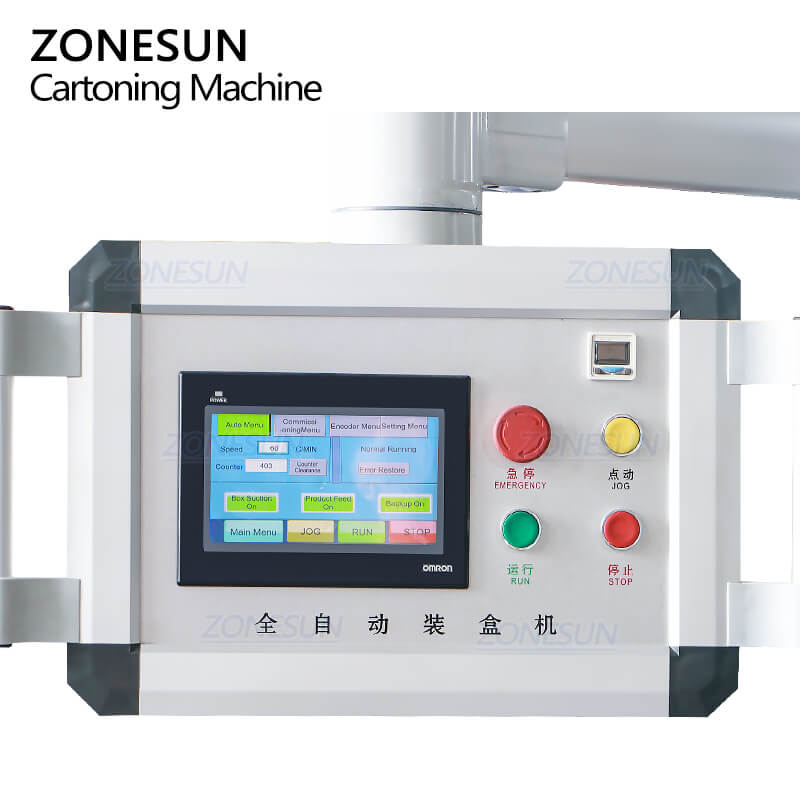

Intelligent Control System
Equipped with PLC, touchscreen, and asynchronous motor for user-friendly, highly automated operation.
Equipped with PLC, touchscreen, and asynchronous motor for user-friendly, highly automated operation.

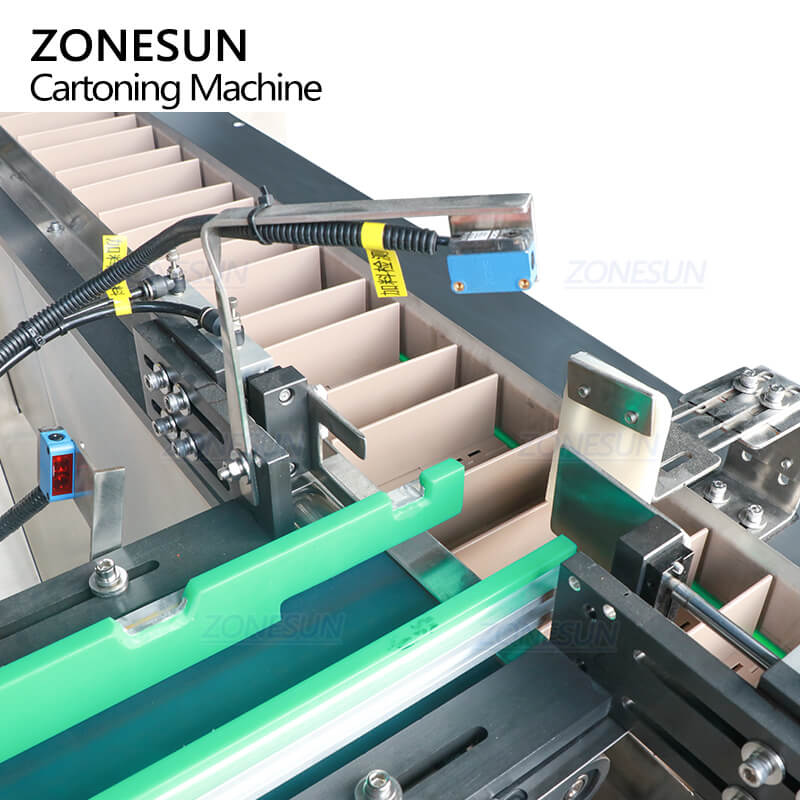

Photoelectric Tracking System
No product, no box picking — efficiently saves packaging materials.
No product, no box picking — efficiently saves packaging materials.

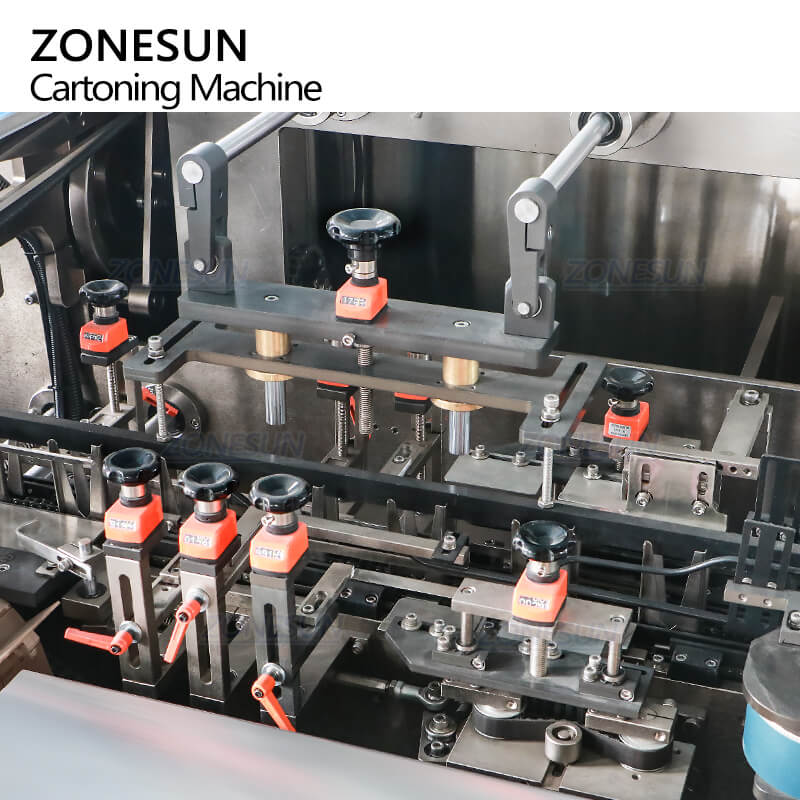

Fixed Slot Design
Securely holds products in place during cartoning, ensuring accurate insertion and preventing shifting or damage.
Securely holds products in place during cartoning, ensuring accurate insertion and preventing shifting or damage.

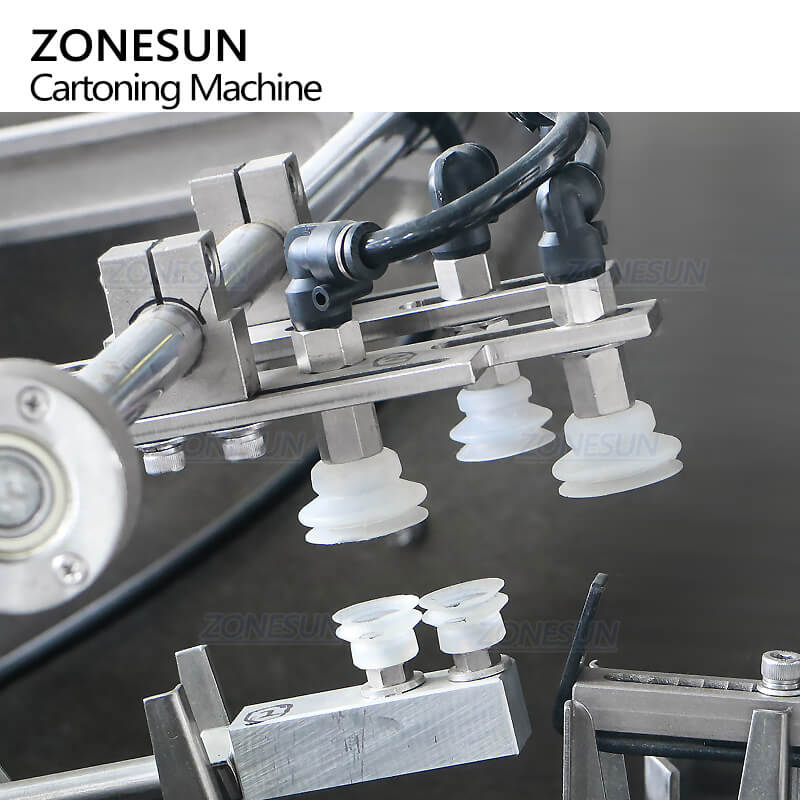

Suction Cup for Box Feeding
Uses suction to accurately pick and feed paper boxes into the system, ensuring stable and efficient box placement without deformation or misfeeds.
Uses suction to accurately pick and feed paper boxes into the system, ensuring stable and efficient box placement without deformation or misfeeds.
Optional Function
Optional hot melt glue sealing for enhanced box integrity.
Optional hot melt glue sealing for enhanced box integrity.
