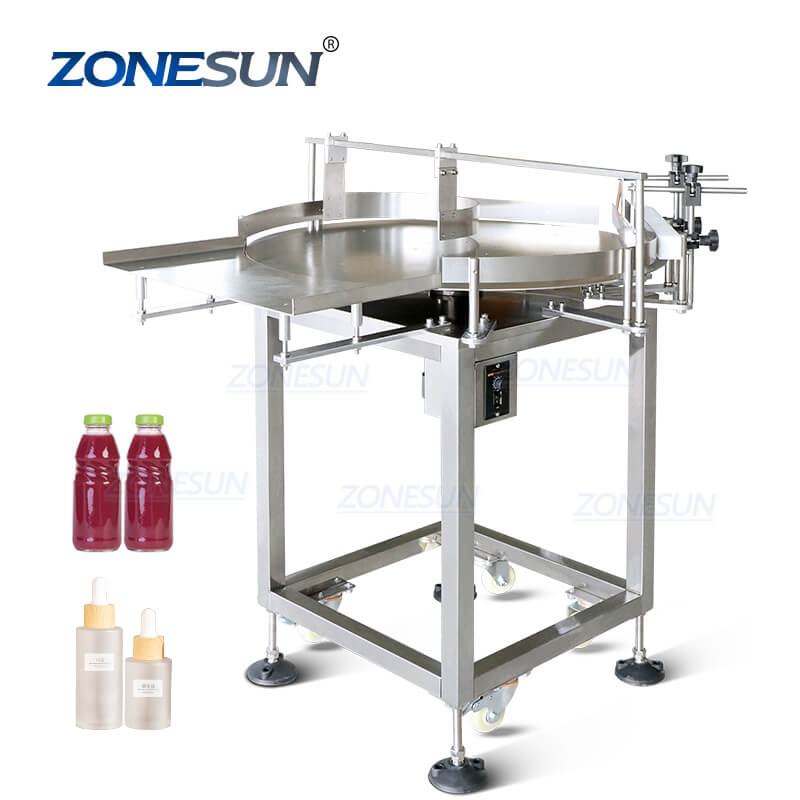

ZS-LP800N Automatic High Speed Glass Plastic Bottle Unscrambler Table Glass Jar Turntable Machine For Filling System

ZS-LP800N Automatic High Speed Glass Plastic Bottle Unscrambler Table Glass Jar Turntable Machine For Filling System

Voltage
Regular price $1,349.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

This high speed bottle unscrambler table is used to unscramble bottles for automatic production line. The size of this unscrabler table can be customized according to production need.It is widely used in food, daily chemical and cosmetics industries.

Parameter

Machine Model:ZS-LP800N
Power Supply:220V/110V 50-60Hz 200W
Turntable Diameter:800mm
Suitable Bottle Diameter:20-100mm
Suitable Bottle Height:30-320mm
Working Speed:40-60 bottles/min(depending on bottle size)
Package Size:About 1230*1010*1260mm
Gross Weight:About 141kg

Automatic Bottle Unscrambler

Application of Automatic Bottle Unscrambler


Working Principle of Automatic Bottle Unscrambler

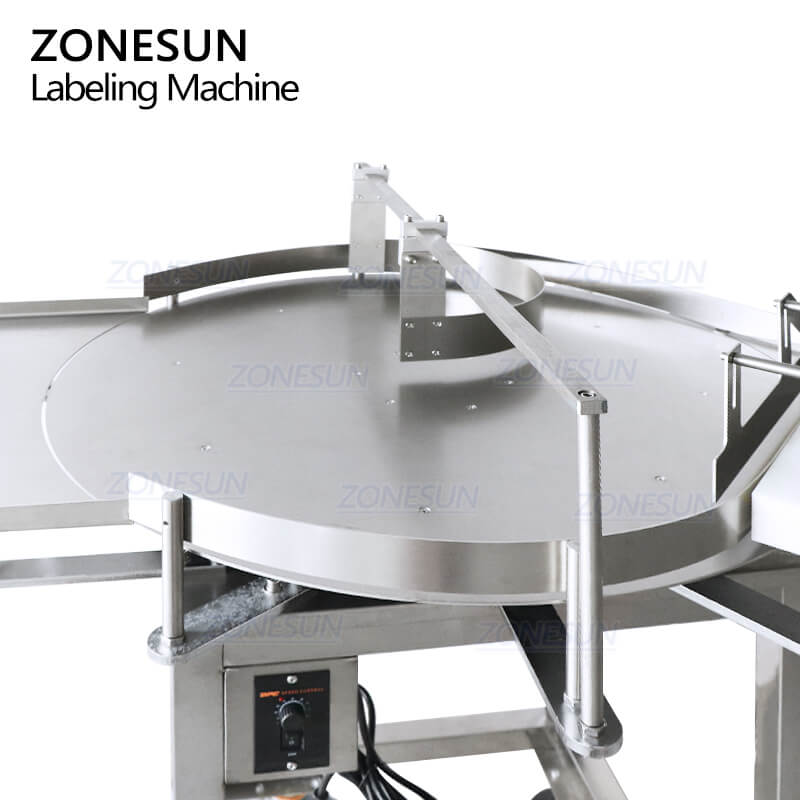

Rotary Table of Automatic Bottle Unscrambler

Designed for diameter 20-100mm bottles,it can sort 40-60 bottles/min.

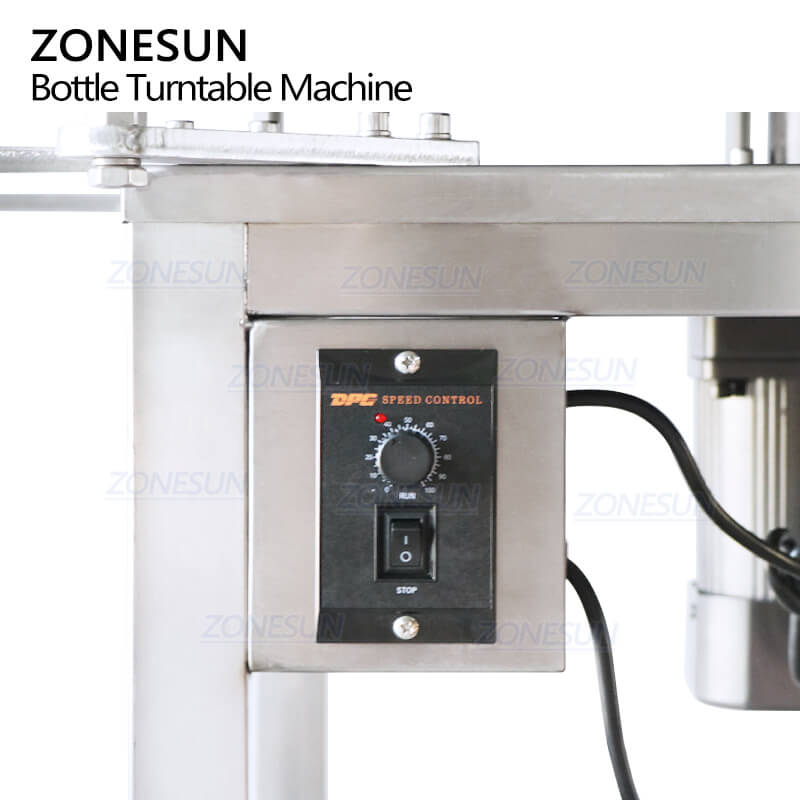

Speed Regulator of Automatic Bottle Unscrambler

By rotating the knob,you can adjust working speed according to production need.Easy to operate.

Automatic Bottle Unscrambler For Production Line

Simple design and made of high quality materials,it can be connected to the complete production line.

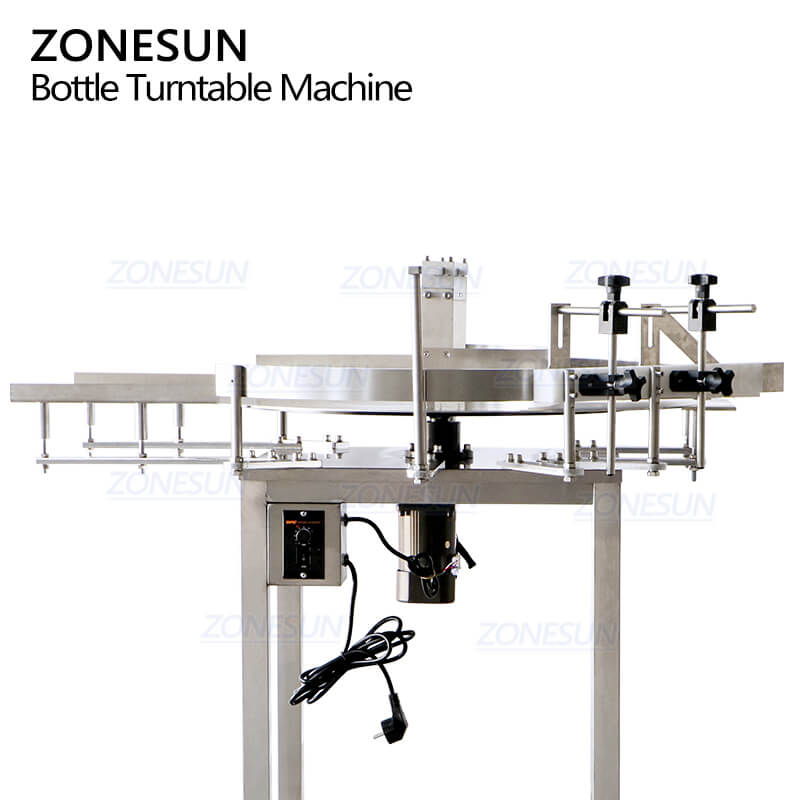

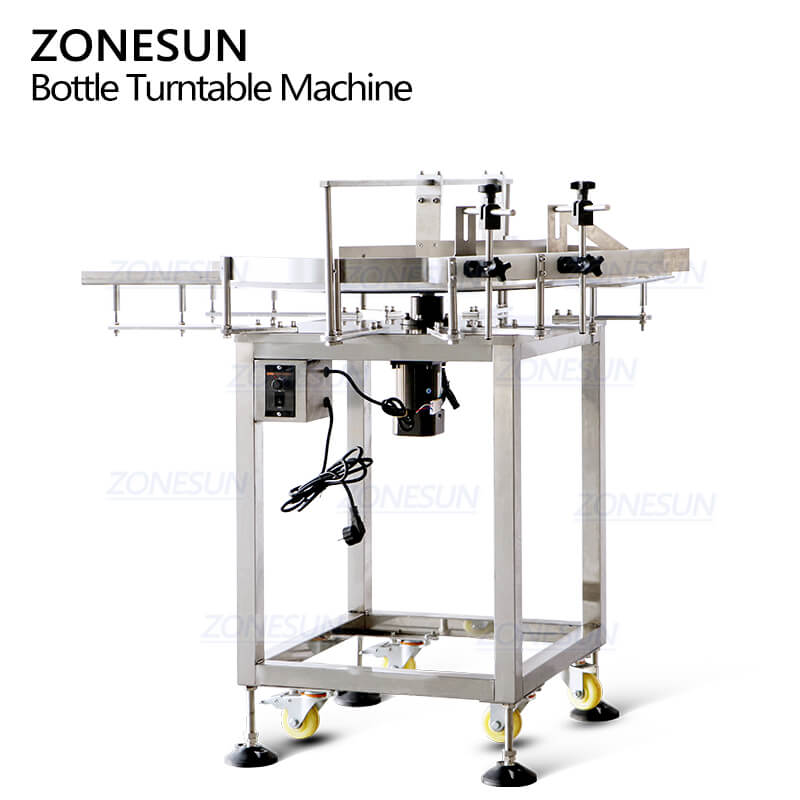

Automatic Bottle Turntable Machine
