ZONESUN ZS-TB550V Automatic Hexagonal Bottle Self-adhesive Sticker Full Wrap-around Labeler Jam Jar Bottle Label Applicator
Regular price
$6,999.00 USD
Regular price
Sale price
$6,999.00 USD
Save $-6,999 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

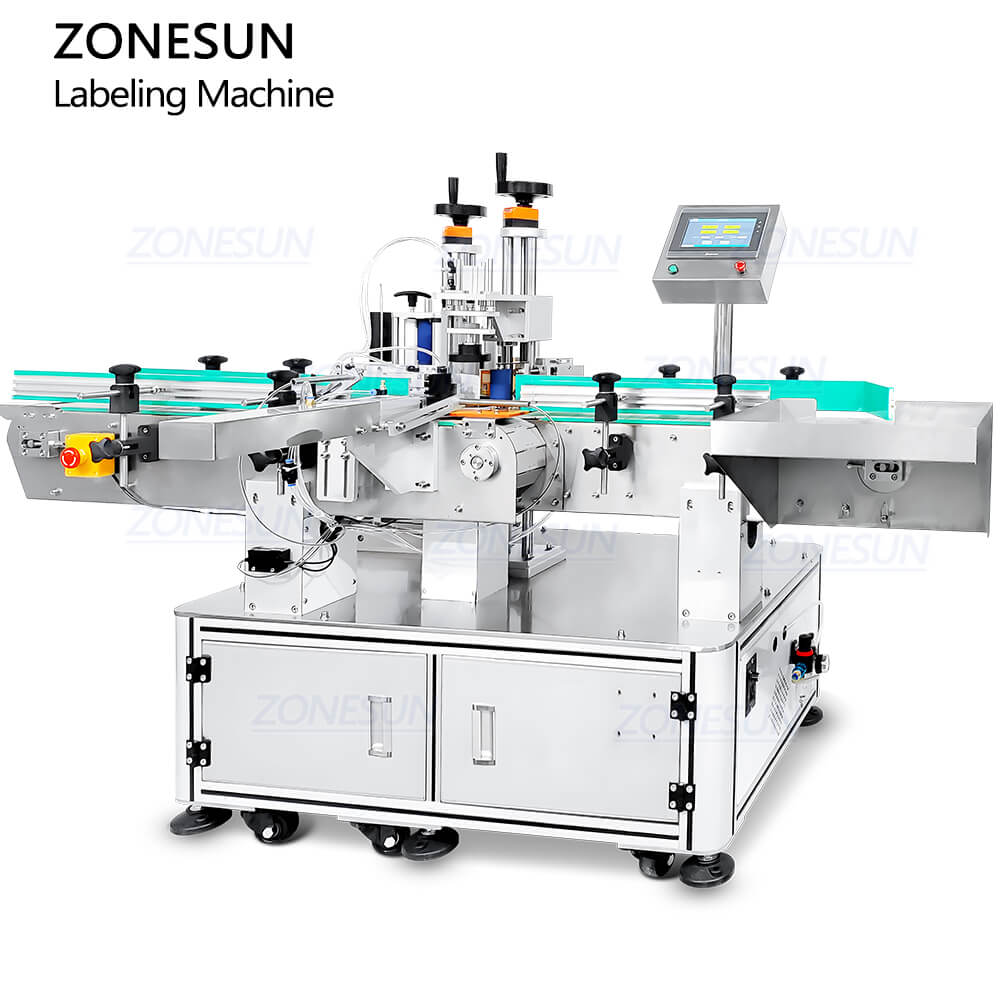

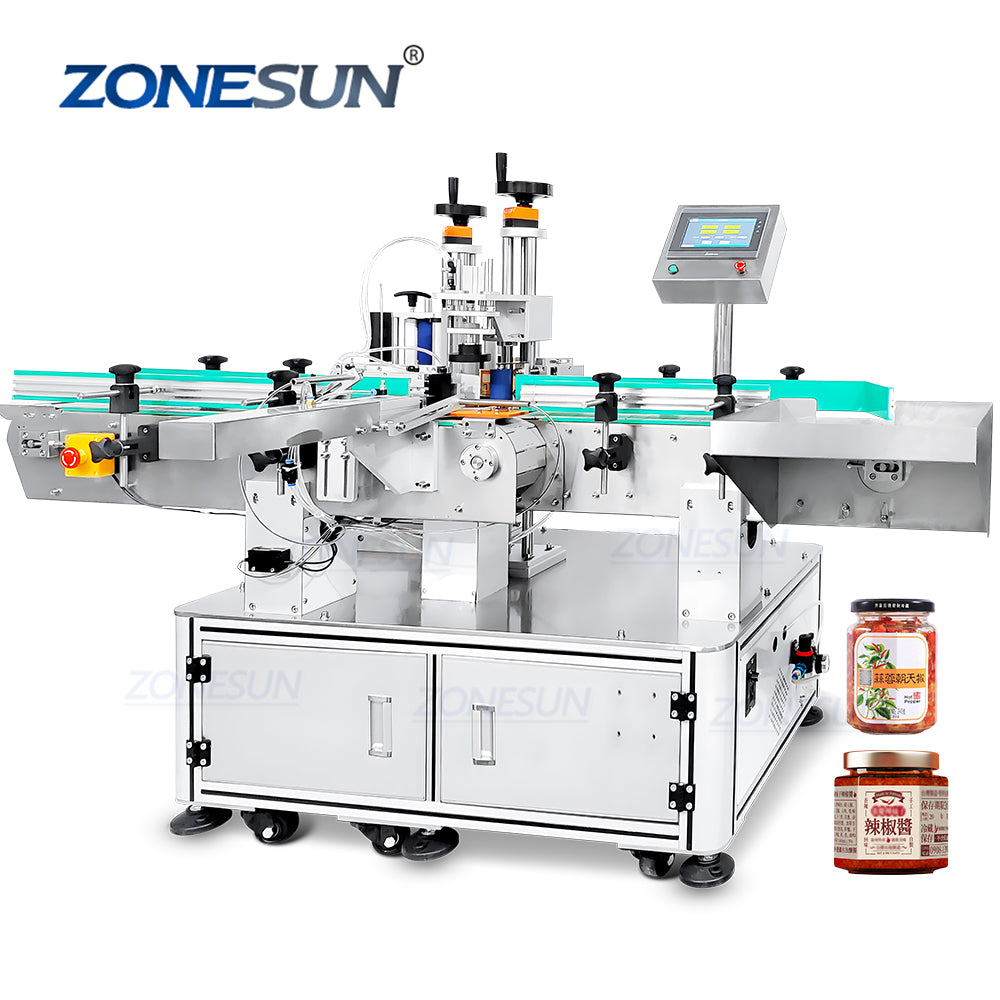

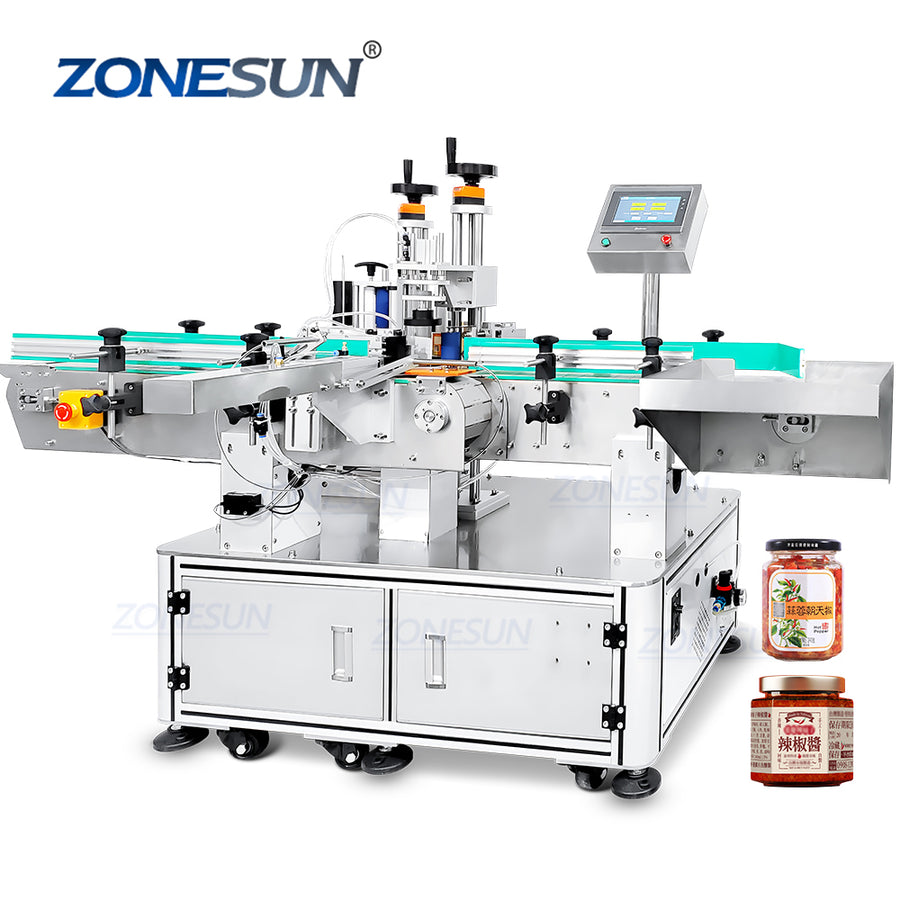

This automatic bottle labeling machine is designed for wrap-around labeling, as well as single or double-sided labeling on hexagonal bottles. It can be seamlessly integrated with filling and capping machines, automatically detecting bottles and applying labels with precision. Widely used in the food industry, it is ideal for packaging products such as fruit jam and hot sauce.
Parameter
- Machine model: ZS-TB550V
- Voltage: 220V 50-60HZ 570W
- Suitable bottle size: φ50-110 mm*25-130 mm(H) (Can be customized)
- Labeling speed: 25-45 bottles/min
- Labeling accuracy: ±1 mm
- Suitable label size: 20 mm-130 mm(W)*20mm-290mm(H)
- Label roll OD: About φ280 mm
- Label roll ID: About φ76 mm
- Air pressure: 0.4-0.6 MPa
- Machine size: About 2800*1200*1400 mm
- Machine weight: About 200 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required

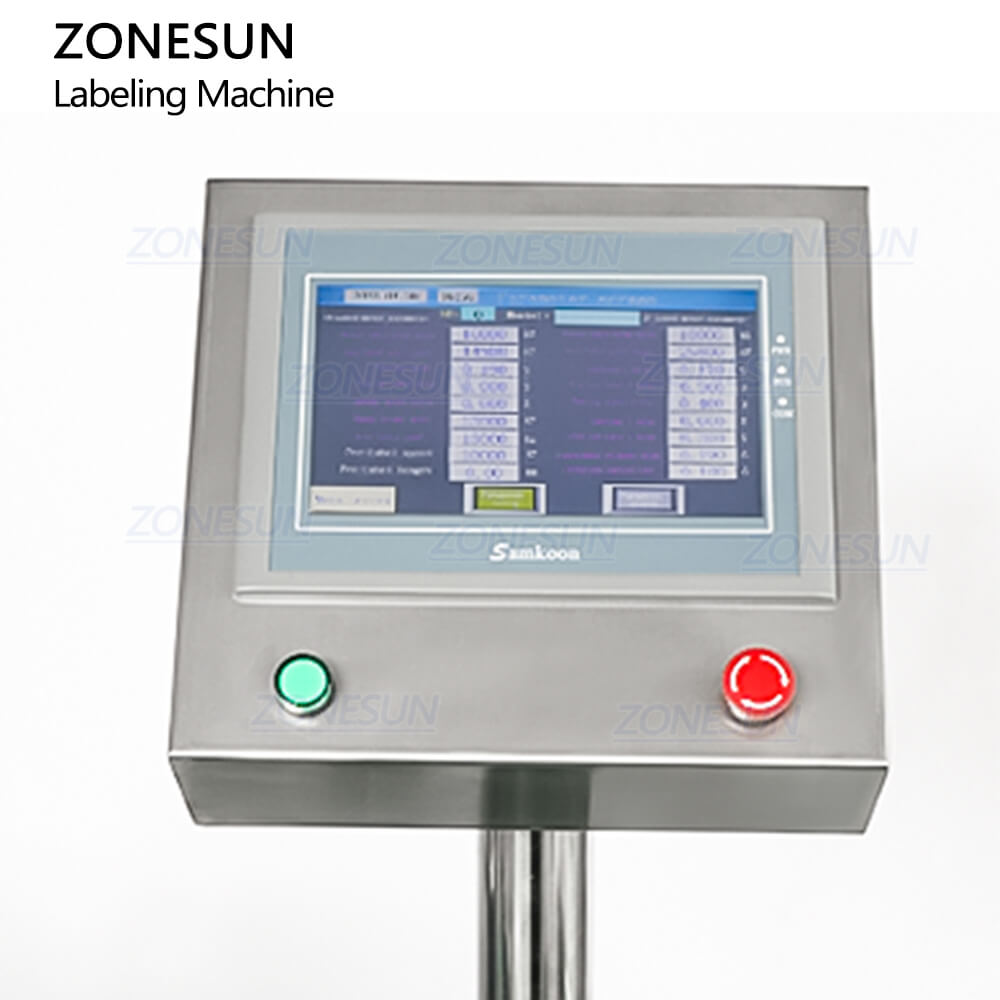

The touch screen control panel is more convenient to adjust machine parameter like labeling speed, label outputting length. We can customize the control panel in different kinds of languages, if you need this please contact us.

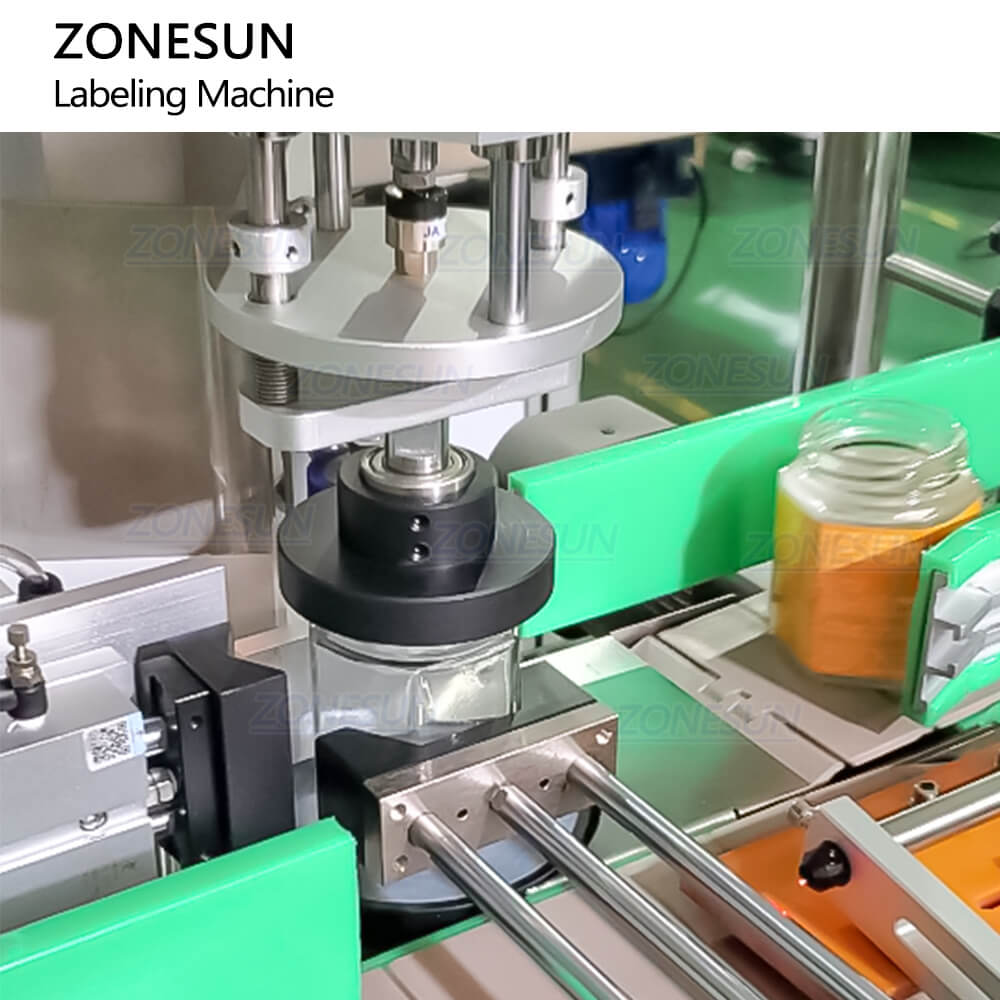

Mainly designed for wrapping around labeling on hexagonal bottles. The pressing structure will fix bottles and bottom rotating structure will rotate bottles and finish labeling work. It is also suitable for the single side and double sides labeling.

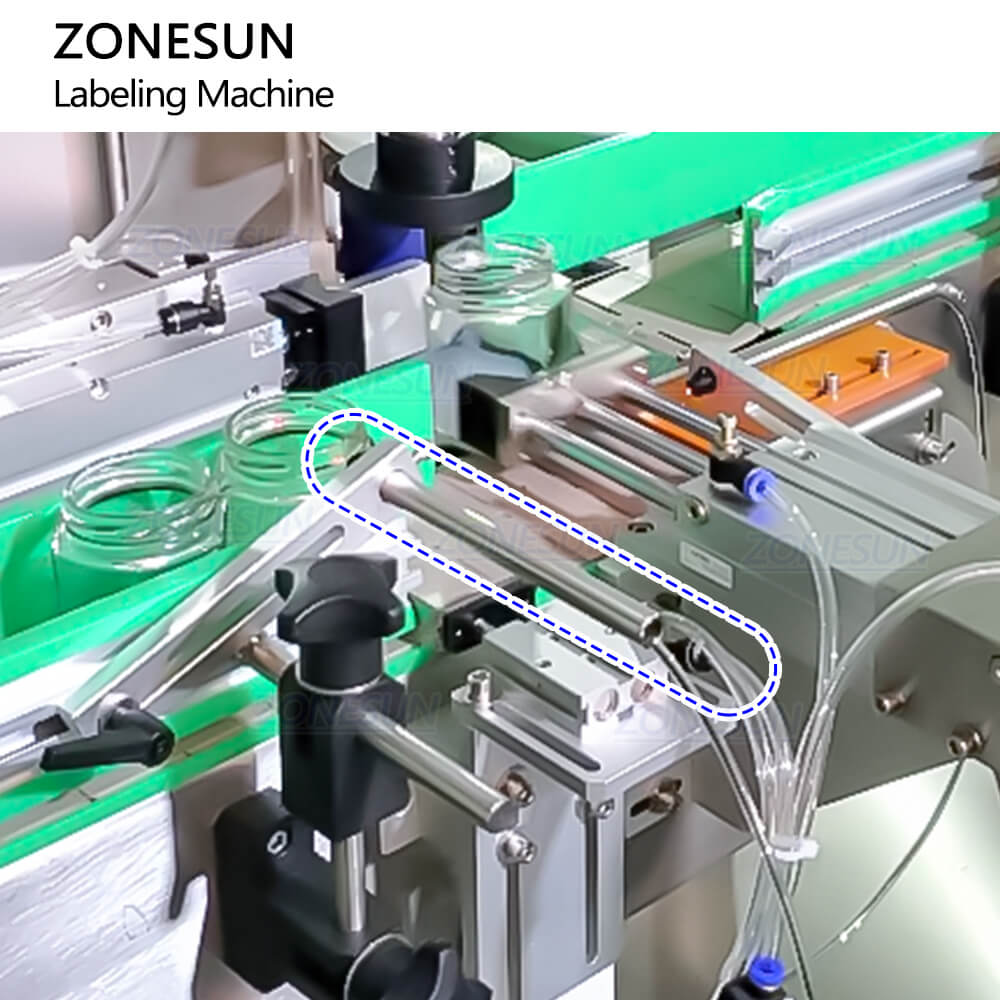

Electric eye can detect passing by bottles and send the signal to the operating system and control the machine to start the labeling work automatically. The sensitivity of electric can be adjusted according to labeling objects, this can improves labeling accuracy.

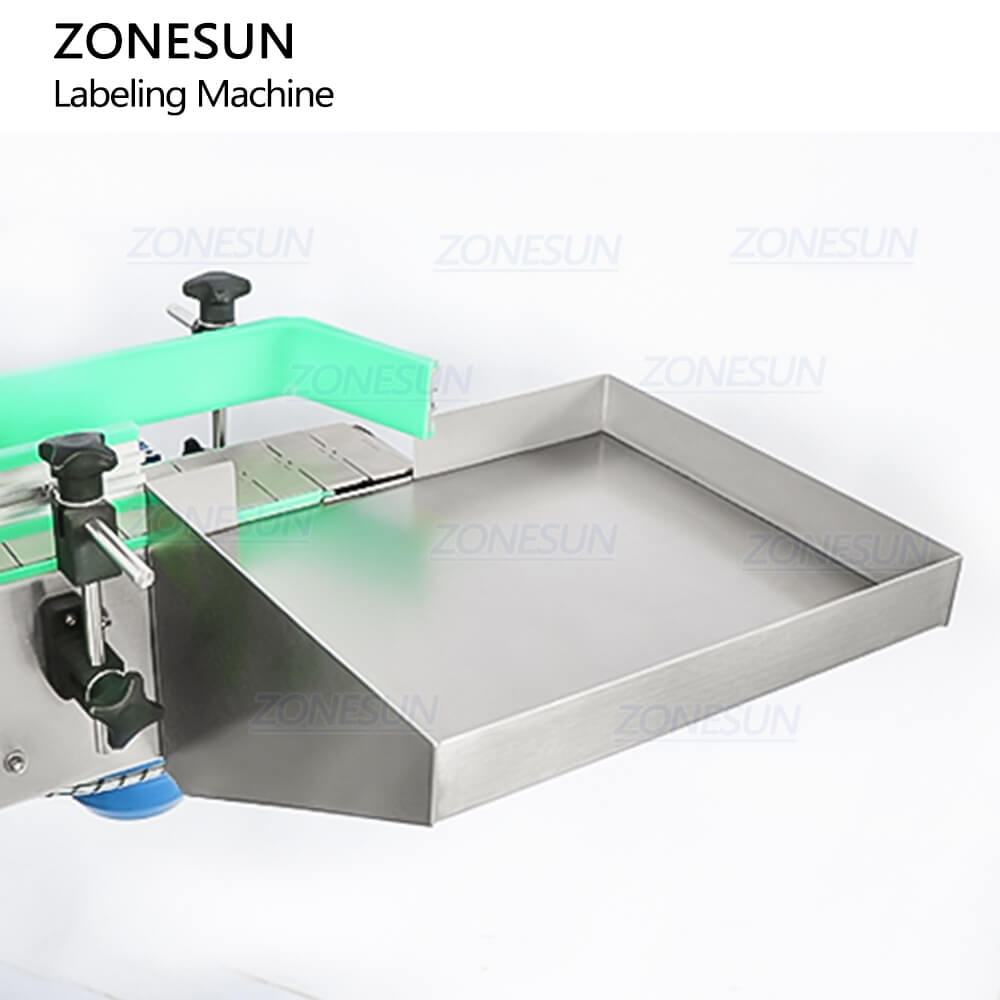

The bottle receiver is used to collect finished products. This can prevent that bottles fall off from conveyor. This is more convenient for next production process.
