ZONESUN ZS-MPYT250C Automatic Glass Vial Ink Essential Oil Bottle Liquid Filling Machine With Conveyor
Regular price
$749.00 USD
Regular price
Sale price
$749.00 USD
Save $-749 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

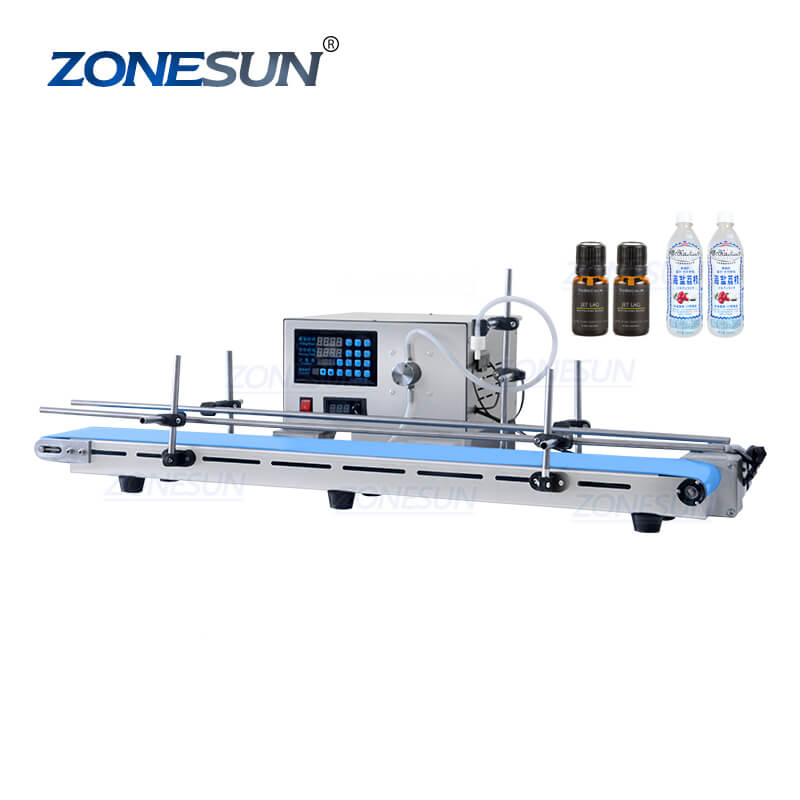

This compact automatic filling machine features a high-precision magnetic pump, ideal for accurately filling low-viscosity liquids such as water, essential oils, juice, and more. Multiple filling nozzles can be customized to meet your production requirements. Perfect for small-scale production, its fully automatic operation helps save time and increase efficiency.
Parameter
- Filling Pump: 316 Stainless Steel Magnetic Pump
- Filling Speed: About 5-30 bottles/min(depending on bottle size and material)
- Filling Range: 5-3000 ml
- Max Flow Rate: 3L/min
- Filling Accuracy: ≤±1%
- Conveyor Loading Capacity: Max 5kg
- Conveyor Belt Size: 1170 mm*150 mm(L*W)
- Suitable Liquid Temperature: <60℃
- Machine Size: About 1170*630*320 mm
- Package Size: About 1200*400*300 mm
- Gross Weight: About 30 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required

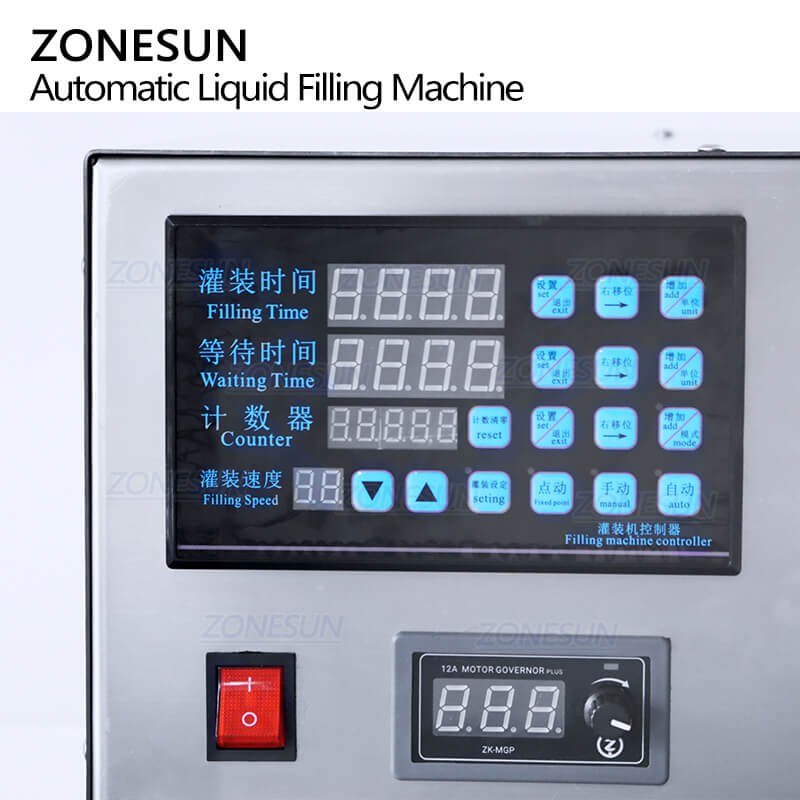

Through digital panel,you can set or adjust working parameters like filling speed and waiting time.Easy to operate. Quantity of filled bottles can show on panel,visual and accurate.

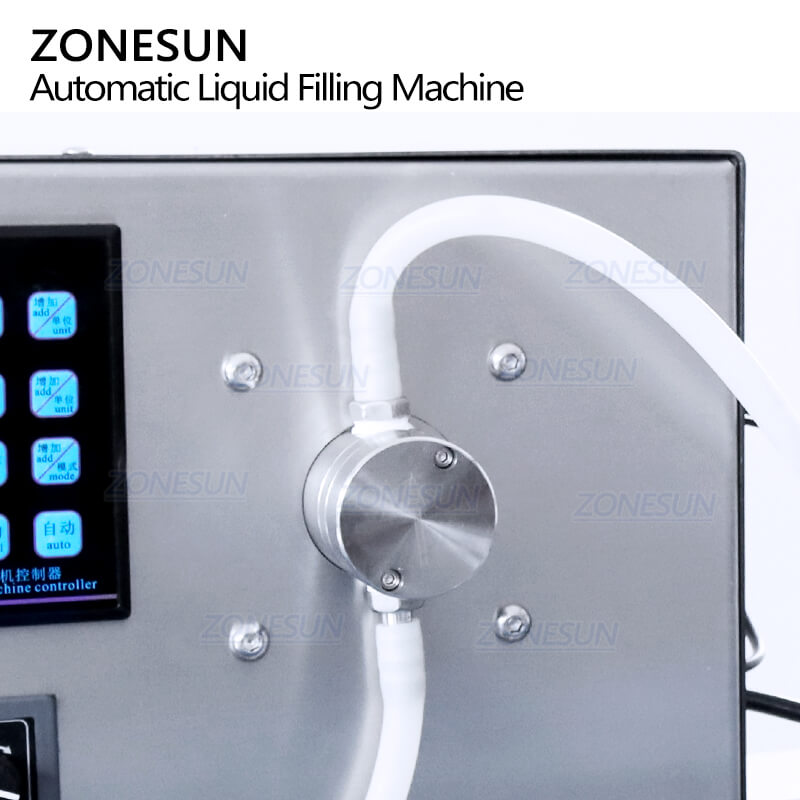

With stainless steel magnetic pump,it has feature of high filling accuracy and corrosion resistance.It is suitable for filling 3≤PH≤9 liquid.
The working height of filling nozzle can be adjusted according to bottle size. Multiple filling nozzles can be customized as your need.

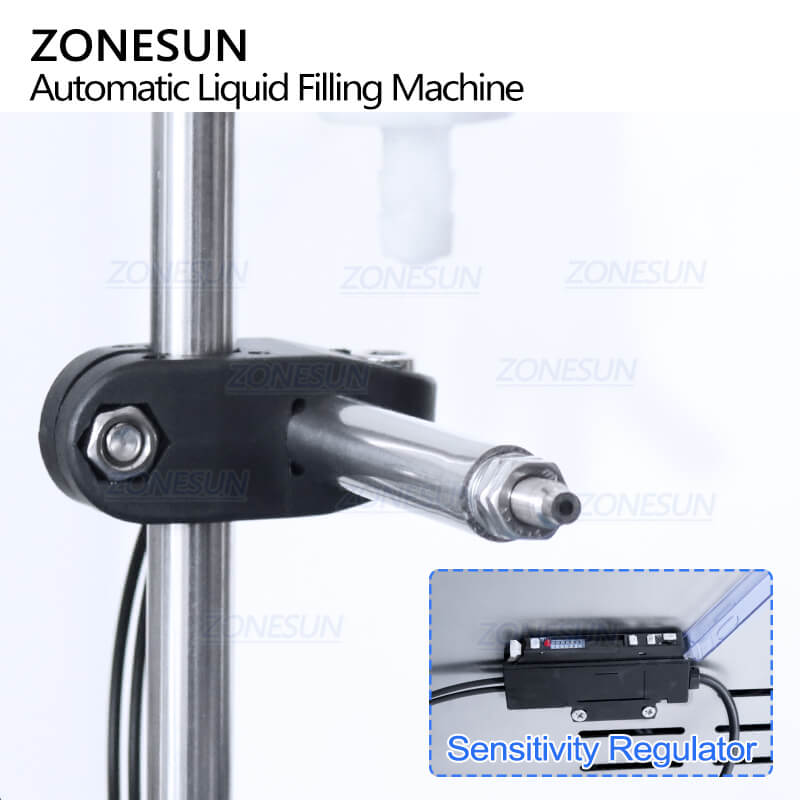

The electric eye is designed for detecting bottles and controlling machine to fill liquid.Intelligent and efficient.Its sensitivity can be adjusted as needed.

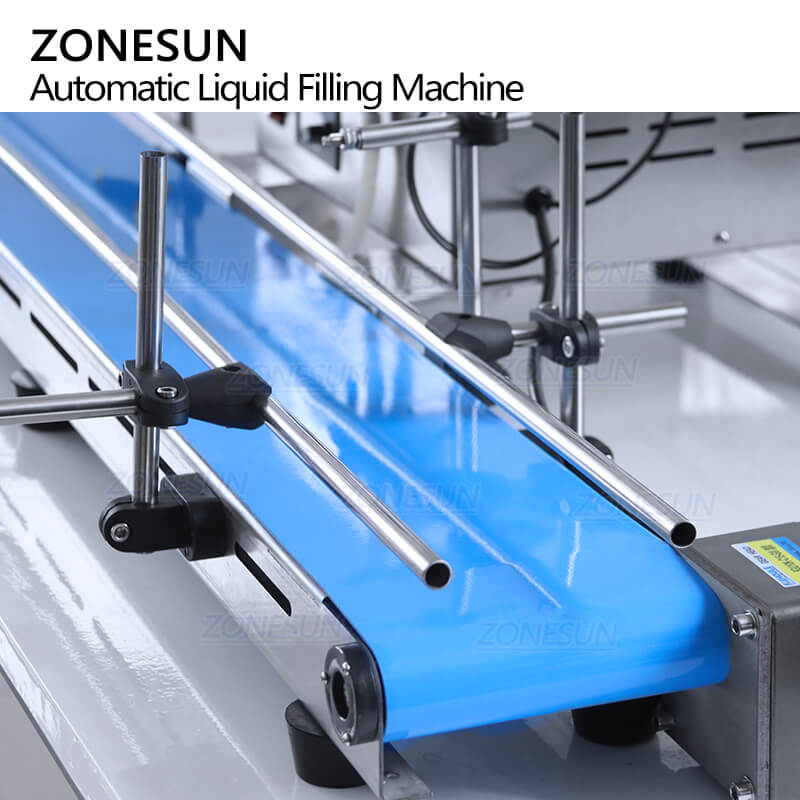

With high quality conveyor belt,it can transport bottles steadily.The conveying speed and width of conveyor belt can be adjusted according to production need.
