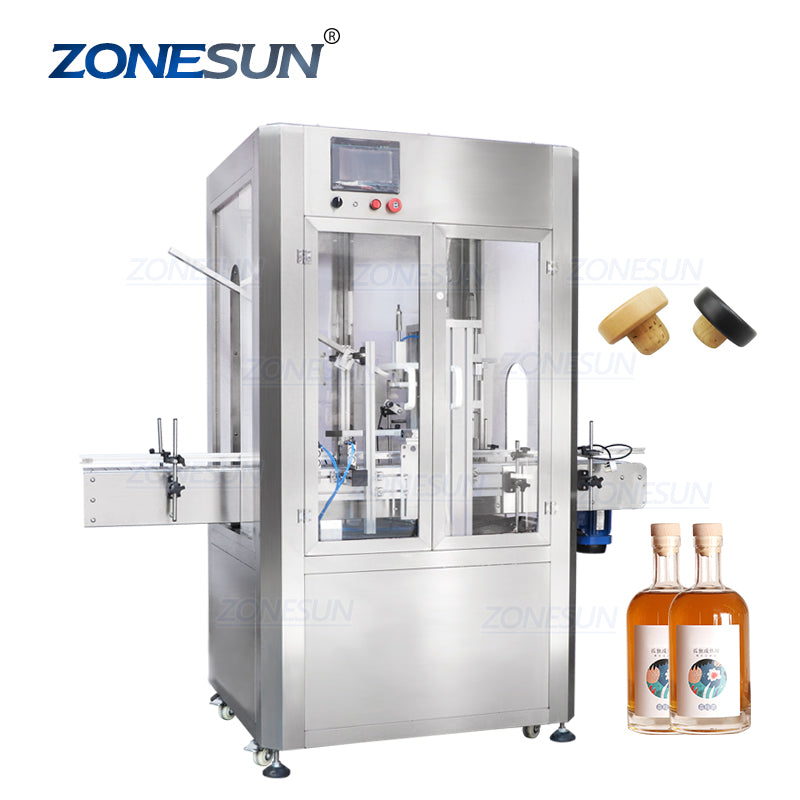

This automatic bottle capping machine is designed with a dust cover,which can prevent from pollution during producing.It can feed cork and press cork easily.This machine can work with automatic capping machine,labeling machine to realize full automated production.
Parameter
Machine Model:ZS-XG16D
Bottle Height:30-300mm
Cap Diameter:Customized
Bottle Diameter:20-100mm
Working Speed:20-60 bottles/minute (depending on bottle and cap size and shape)
Working Voltage:AC220V/110V 50- 60HZ
Working Pressure:0.4-0.6MPa
Machine Size:1000*900*1860mm
Machine Weight:About 243kg
Packing Size:1970*1020*2030mm
Package Weight:About 350kg
The PLC control panel shows working parameter clearly,and you can adjust parameter more convenient.We can customize the operation panel in different kinds of language,if you need this please contact us.
Designed with cap feeding component,it can arrange bottle caps,makes sure the production work be in order.It can be customized according to bottle cap size.The high quality cap press head can press caps or cork tightly,improve production quality.
Electric eye can detect bottle when they pass through,and send the signal to the system,then the machine will start or stop to work.This can ensure the production speed and quality.
The chain conveyor belt is with large weight capacity,it can transport bottles smoothly,help you save production labor and reduce production process
High quality motor,it offers greater power and make the machine can work stably,lengthen the working life of the machine.
