ZONESUN ZS-CTF50 Automatic Gelatin Nutritional Gummies Cooking Mixing Gummy Candy Depositing Machine
Regular price
$20,499.00 USD
Regular price
Sale price
$20,499.00 USD
Save $-20,499 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
The ZONESUN gummy depositor machine integrates cooking, depositing, and forming into one compact unit. It is designed for precise filling of liquid candy mixtures such as gelatin, pectin, and chocolate into molds. Equipped with a 25L cooking tank for melting and mixing, a heated storage hopper, and 10 depositing nozzles, it delivers stable output from 6,000 to 24,000 pieces per hour. 60 sets of recipe can be stored for flexible operation and food-grade silicone molds (sold separately) can be customized as needed. Its compact structure with a movable stand ensures flexible operation in small-scale production environments.
Gummy Candy Depositing Machine Parameter
- Machine Model: ZS-CTF50
- Voltage: 380V 50 Hz
- Heating Tubes: 2*3 kW
- Stirring Motor: 0.37/0.55 kW
- Heating Power: 6.5 kW / 380 V
- Depositing Nozzle: 10 Nozzles (Can be customized)
- Depositing Times: 6000-24000 pieces/hour
- Depositing Weight: 1-4.5 g for each time
- Hopper Capacity: 10 L
- Cooking Tank: 20L (With Mixer)
- Heating Temperature: Max 130℃
- Machine Material: 304 Stainless Steel
- Recipes Quantity: 60
- Filling Type: Piston Rod (Non-Pump Type)
- Sample Mold Size: 291.5*291.5*11.3 mm (Customizable, sold separately)
- Sample Cavity Size: 15.5*15.5*10 mm (Customizable)
- Sample Cavity Volume: 2.4 ml (Gummy 3.2 g, Chocolate 2.8 g) (Customizable)
- Machine Size: 650*550*600 mm
- Machine Weight: 65 kg
- Package Size: 750*740*900 mm
- Package Weight: 76 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Touchscreen Control Panel
Provides easy operation with parameter setting and up to 60 recipe memory storage.
Provides easy operation with parameter setting and up to 60 recipe memory storage.
Cooking Tank
20L tank used for melting and mixing raw materials with smooth discharge via butterfly valve.
20L tank used for melting and mixing raw materials with smooth discharge via butterfly valve.

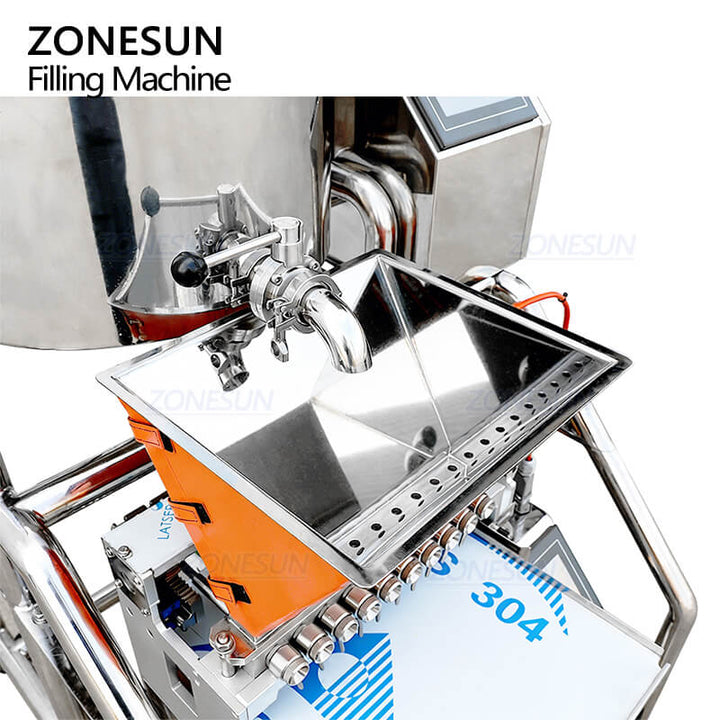

Heated Hopper
Maintains material temperature for consistent depositing, 10L Large capacity for smooth filling.
Maintains material temperature for consistent depositing, 10L Large capacity for smooth filling.

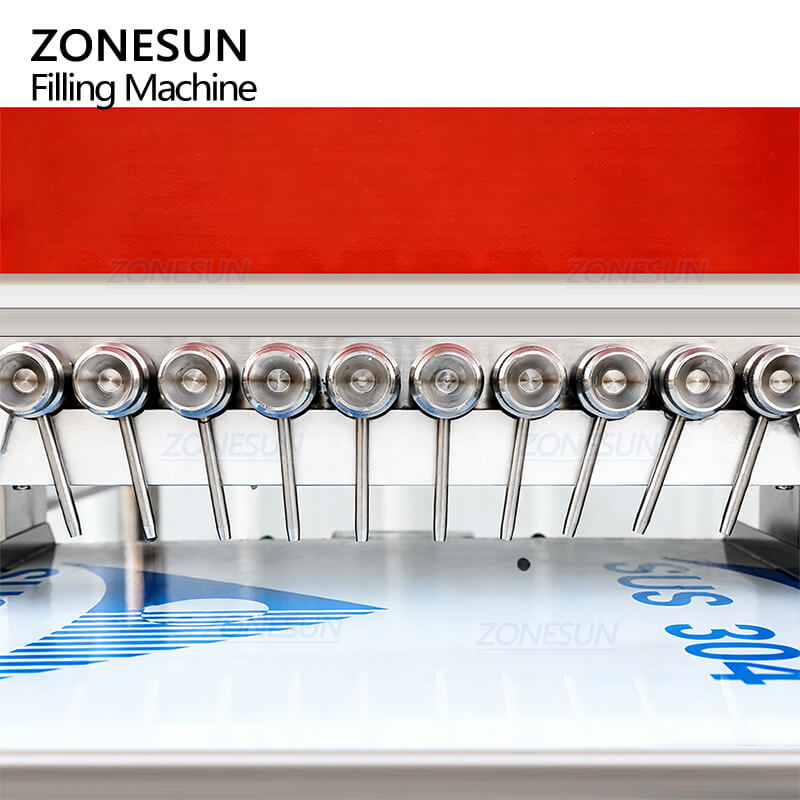

10-Nozzle Depositing Head
Ensures accurate and uniform filling across multiple cavities simultaneously.
Ensures accurate and uniform filling across multiple cavities simultaneously.
Conveyor System
Transports molds smoothly to ensure stable and continuous depositing operation.
Transports molds smoothly to ensure stable and continuous depositing operation.

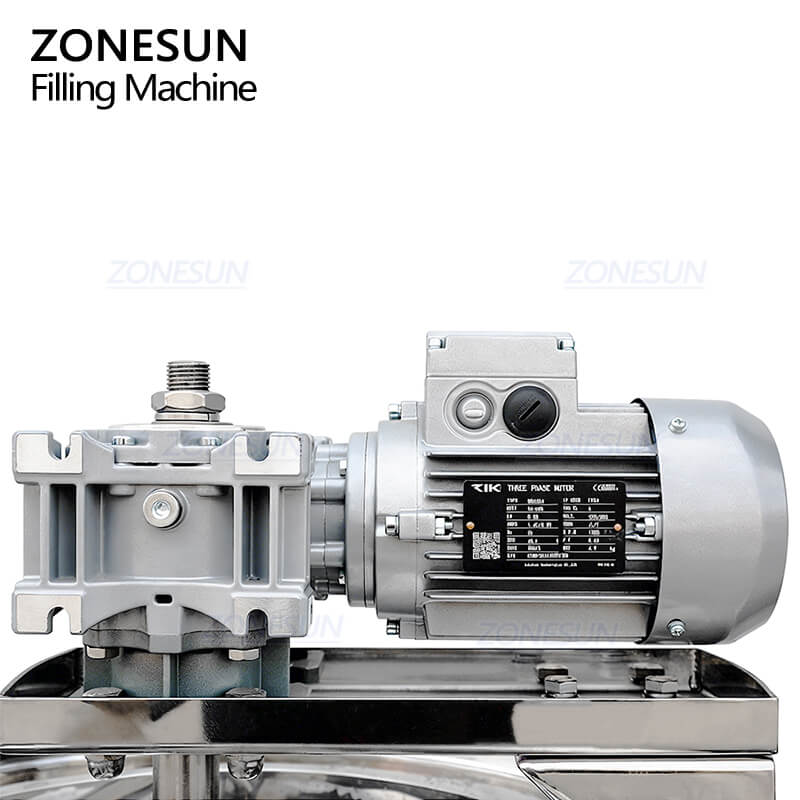

Motor System
Drives the machine steadily to ensure reliable and consistent performance.
Drives the machine steadily to ensure reliable and consistent performance.
