ZONESUN ZS-CTF50 Automatic Gelatin Nutritional Gummies Cooking Mixing Gummy Candy Depositing Machine
Regular price
$20,499.00 USD
Regular price
Sale price
$20,499.00 USD
Save $-20,499 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
This gummy candy depositing machine features a 25L cooker for dissolving and mixing ingredients. Once the syrup is ready, just pour it into the hopper through the butterfly valve. The control panel makes it easy to control how much syrup goes into each mold. With 10 adjustable nozzles and servo PLC control, you get accurate, consistent gummy production every time.
Gummy Candy Depositing Machine Parameter
- Machine Model: ZS-CTF50
- Voltage: 240-480v
- Total Power: 50kW
- Machinery Capacity: About 50 kg/hour
- Machine Size: About 1200*1500*230 mm
- Machine Weight: About 800 kg
Gummy Candy Depositing Machine Control Panel
The PLC control screen can set the filling volume separately, and the data is intuitive and easy to operate.
Raw Material Cooking Pot
Designed for uniform heating and thorough mixing, ensuring consistent syrup texture and no hot spots.

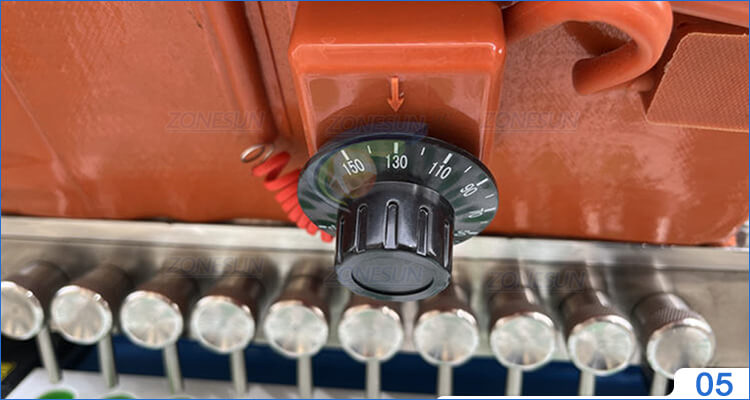

Pot Temperature Controller
Intuitive temperature controller precisely adjusts the ideal temperature to ensure ingredients are perfectly melted and mixed.
Gummy Filling Heads
Equipped with 10 removable nozzles that can be easily adjusted or replaced for flexible production of gummies in different shapes and sizes.
Hopper Temperature Controller
The filling hopper is equipped with a temperature controller to keep materials warm and prevent solidification during filling.
