ZS-FK8060C Automatic Flap Folding Box Paper Carton Taping Sealing Machine With PP Strap Belt Cutting Strapping Banding Machine Gravity Skatewheel Conveyor

carton sealing strapping machine with skatewheel conveyor
skatewheel conveyor
banding machine for PP strap belt
sealing structrue of carton sealing strapping machine with skatewheel conveyor
carton sealing machine with skatewheel conveyor-1
carton taping strapping machine with skatewheel conveyor

ZS-FK8060C Automatic Flap Folding Box Paper Carton Taping Sealing Machine With PP Strap Belt Cutting Strapping Banding Machine Gravity Skatewheel Conveyor

Voltage
Regular price $3,119.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

This packaging system is consist of carton sealing machine, PP strap belt banding machine, skatewheel conveyor.It can seal cartons, strap cartons and convey them to next production process.This packaging system can help to save working labor and improves working efficiency.

Parameter

Machine Model:ZS-FK8060C
Voltage:220V 50-60Hz
Power:400W
Minimum Packaging Size:(W)80mm*(H)60mm
Maximum Packaging Size:(W)800mm*(H)600mm
Strapping Band Width:9mm-15mm
Band Roll Inside Diameter:200mm-210mm
Band Roll Outside Diameter:400mm-450mm
Band Roll Width:170mm-190mm
Strapping Speed:≤2.5s per time
Conveyor Loading Capacity:Max 80kg
Height of Working Surface :750mm
Size of Skate Wheel Conveyor:Can be customized

carton sealing pp strap banding machine

application of carton sealing pp strap banding machine

working principle of carton sealing pp strap banding machine

control button of carton sealing pp strap banding machine

With simple panel, it is easy tocontrol the machine to work.Theemergency stop button can preventmachine from being damaged whenmalfunction appears, ensuring production safety.

tape winding structure of carton sealing pp strap banding machine

Equipped with 2 tapes, it can sealthe upper side and bottom ofcartons at the same time.Theposition of tape can be adjustedaccording to production need.

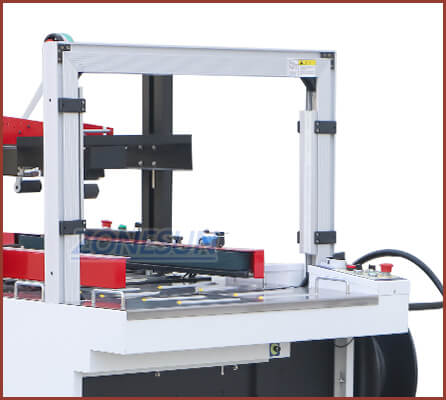

banding machine of carton sealing pp strap banding machine

The machine is equipped with adust cover to prevent dust fromcontaminating the freshly washed bottles during the drying process,ensuring production quality

sealing structure of carton sealing pp strap banding machine

With high-quality conveyor belt, it has large loading capacity, which can transport products stably.The width of feed inlet can be adjusted
according to production need.

conveyor of carton sealing pp strap banding machine

The skate wheel conveyor is designed for discharging cartons after strapping, which can save labor cost. It can be adjusted as production need.

automatic carton sealing pp strap banding machine
