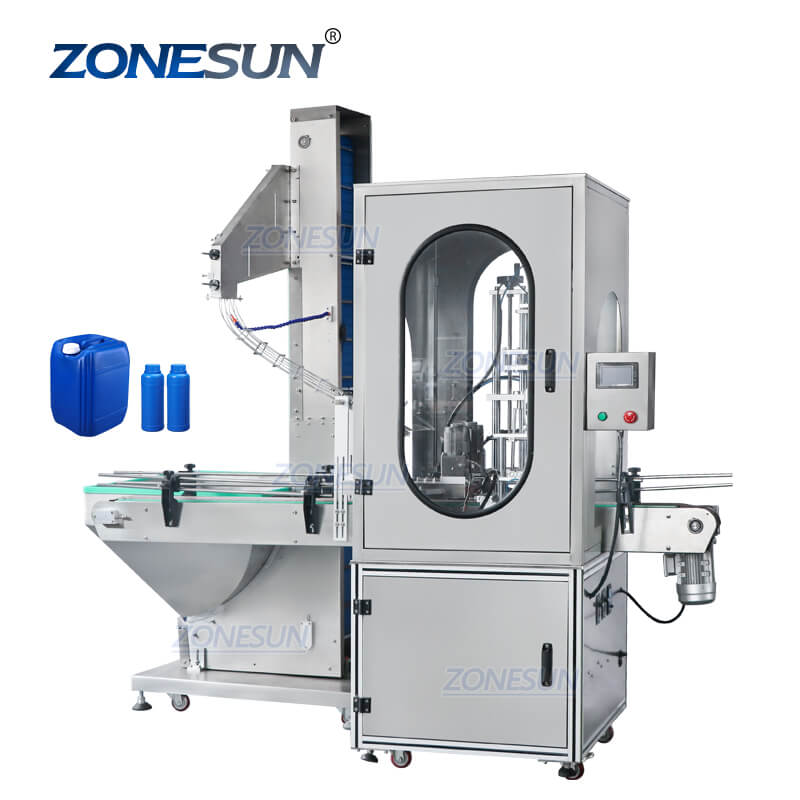

ZONESUN ZS-XG441F Automatic HDPE Jerry Can F-style Jug Gallon Bottle Screw Capping Machine With Cap Elevator Feeder For Engine Oil Chemical Liquid

Voltage
Price
Regular price $13,599.00 USD
Regular price Sale price $13,599.00 USD
Save $-13,599 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

This capping machine is designed for packaging jerry can of chemical liquid or engine oil, the cap elevator can lifts caps from a hopper and moves them to the capping area.The capping work is controlled by the servo motor, it can applies pressure and tighten the caps onto the containers securely.

Parameter

  • Machine model:ZS-XG441F
  • Machine voltage:110/220V 50-60HZ 2KW
  • Suitable cap size:30-120mm(Can be customized)
  • Suitable bottle height:Customized
  • Air pressure:0.7MPa
  • Working capacity:5-15BPM
  • Machine size:About 4020*1940*2340mm
  • Machine weight:About 350kg

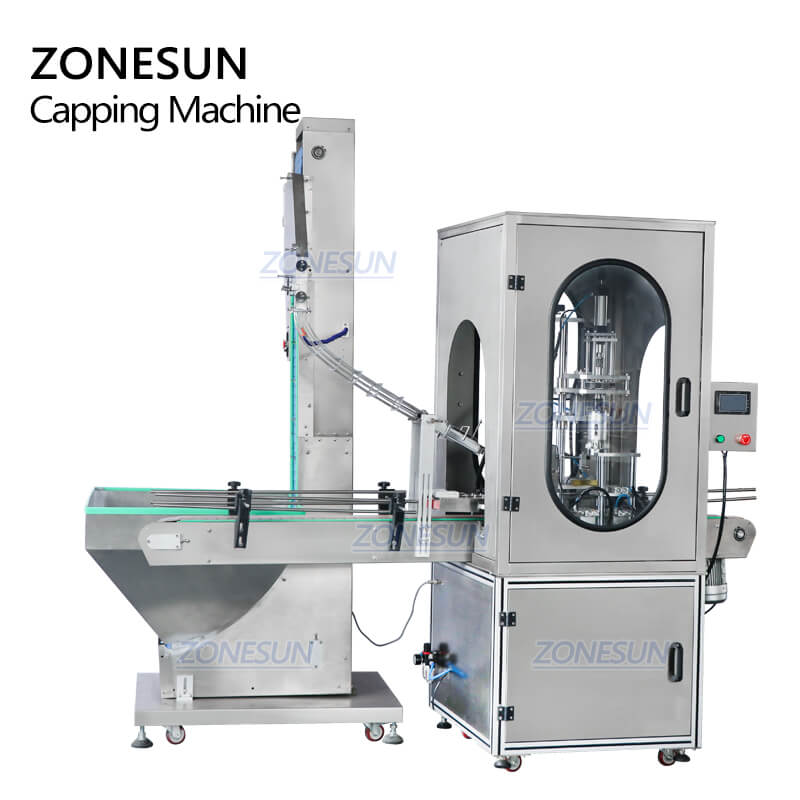

HDPE jerry can capping machine
application of HDPE jerry can capper machine

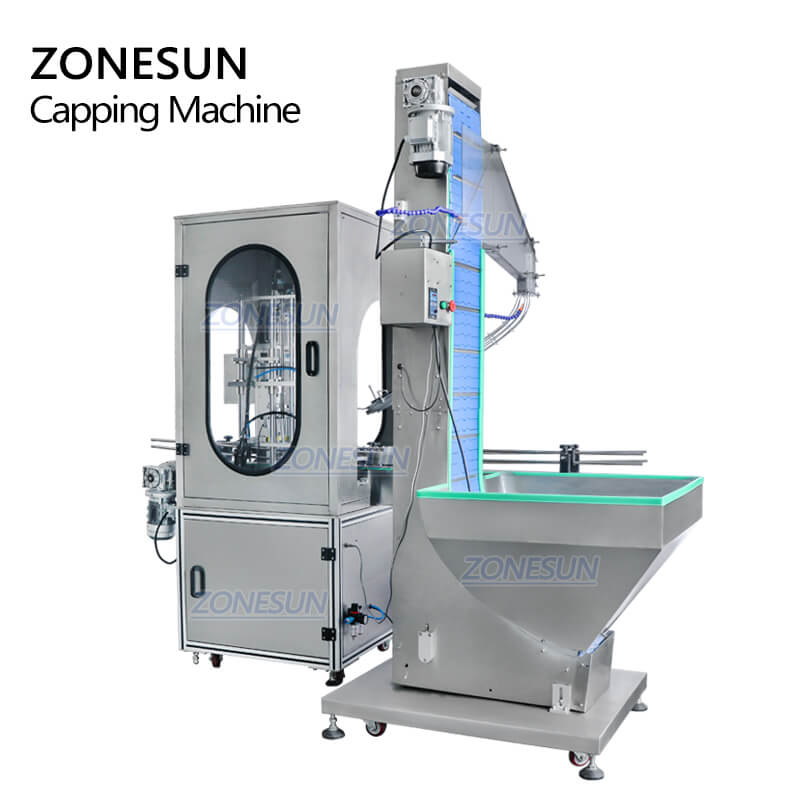

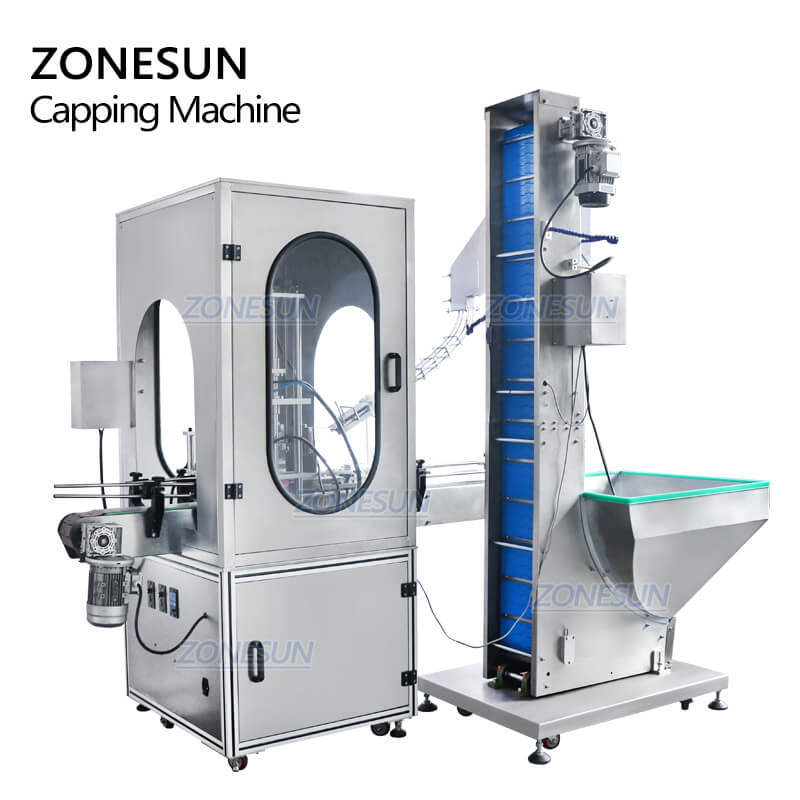

automatic HDPE jerry can capper machine
control panel of HDPE jerry can capper machine

Equipped with control panel, it provides real-time information about the status of the machine. This may include information such as the number of jerry cans capped per minute, any errors or malfunctions, and other diagnostic data.

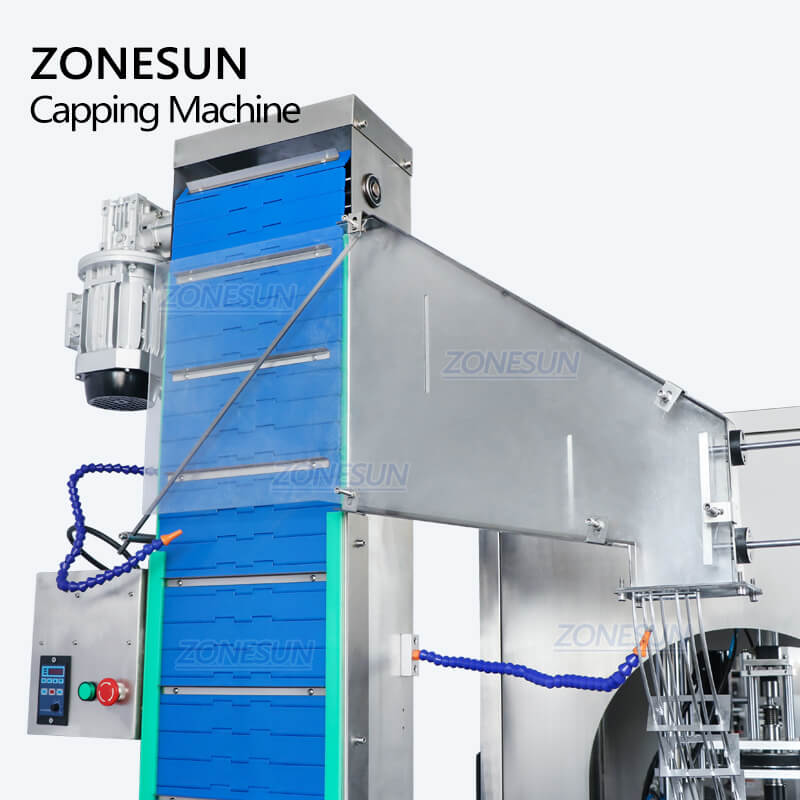

cap elevator of HDPE jerry can capper machine

UV sterilization helps to kill bacteria, viruses, and other microorganisms that may be present on the caps, ensuring that they are clean and safe for use.The cap elevator can lifts caps from a hopper and moves them to the capping area, it saves working labor.

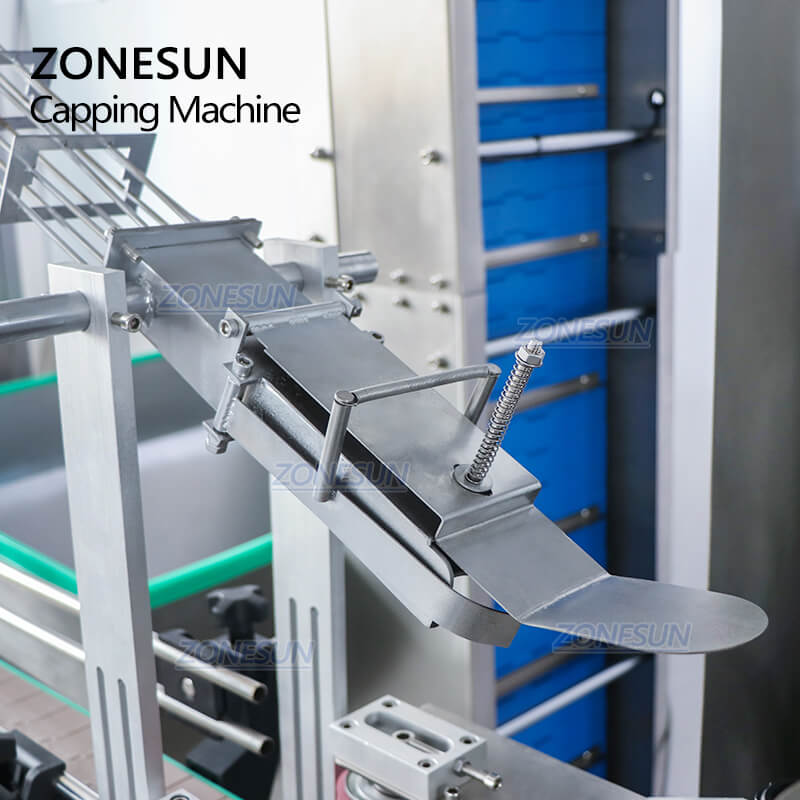

cap feeding structure of HDPE jerry can capper machine

Misalignment of caps can lead to improper sealing or damage to the caps and containers. The cap placing structure helps prevent misalignment by guiding caps into the correct position before they are applied to the jerry cans.

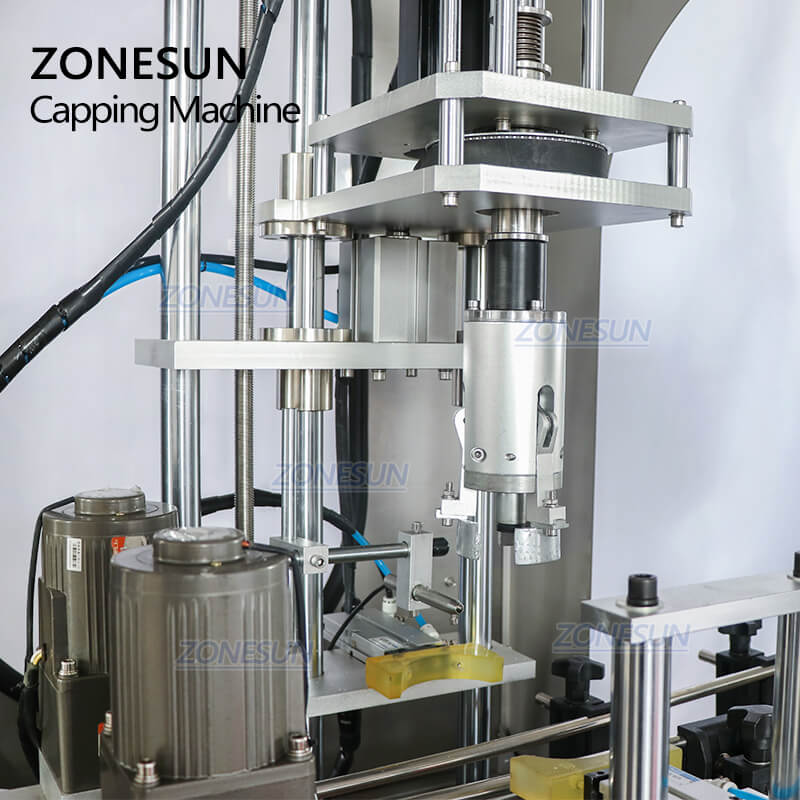

capping structure of HDPE jerry can capper machine

The capping work is controlled by servo motor, the capping torsion can be controlled more accuately.This precision allows for accurate positioning of caps onto jerry cans, imporving packaging quality.Size of capping chuck can be customized according to cap size.

electric eye of HDPE jerry can capper machine

Equipped with electric eye to detect passing by containers and control the machine to realize automated cap placing and capping work.The sensitivity of the electric eye can be adjusted according to operation need.

conveyor of HDPE jerry can capper machine

The chain conveyor is customized according to containers size. It is typically made from sturdy materials, making them durable and capable of handling heavy loads over extended periods.

HDPE jerry can capper machine for engine oil
