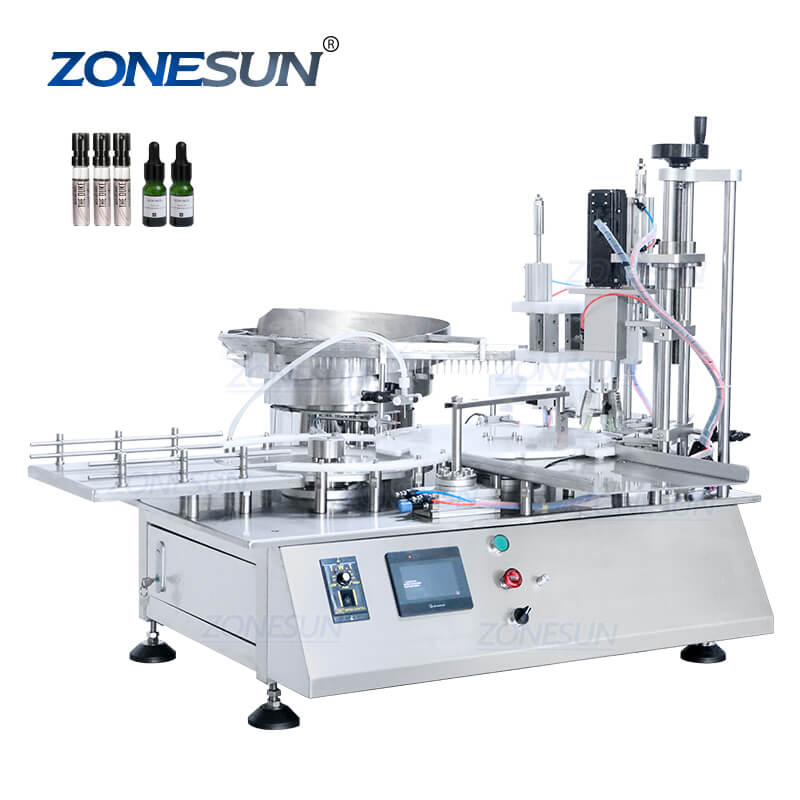

ZONESUN ZS-AFC7 Automatic Essential Oil Monoblock Rotary Liquid Herbal Tinctures Filling Machine Capping Machine With Bottle Turntable

Size
Price
Regular price $8,349.00 USD
Regular price Sale price $8,349.00 USD
Save $-8,349 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Machine Video

This filling capping machine is designed for the mini bottles like essential oil bottles, perfume sample bottles.It can sort bottles, fill liquid into bottle ,tighten bottle caps.It is also equipped with cap vibratory bowl sorter which can feed bottle caps automatically, it saves production labor.

Parameter

  • Machine Model:ZS-AFC7
  • Machine power:1000W
  • Machine voltage:110/220V 50-60HZ
  • Filling pump:Magnetic Pump
  • Recommended filling range:10-200ml
  • Pump maximum flow rate:4L/min
  • Suitable bottle height:About 10-100mm
  • Suitable bottle diameter:About 15-100mm
  • Suitable cover size:φ=10-50mm
  • Working speed:About 30 bottles/min
  • Machine size:About 98cm*82cm*96cm(machine)
  • About 51cm*72cm*62cm(vibratory bowl sorter)
  • Machine weight:About 150+71kg
  • Package size:1060*750*1060mm+750*550*590mm
  • Package weight:175kg+90kg
herbal oil filling machine

Application of Desktop Automatic Monoblock Filling Capping Machine

herbal tincture filling machine

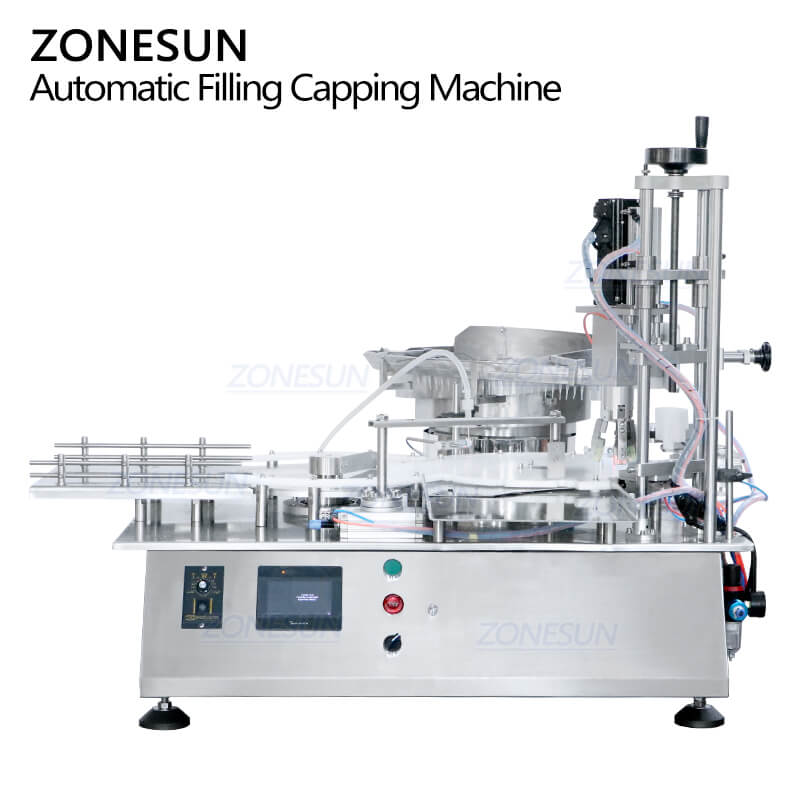

Operation Panel of Desktop Automatic Monoblock Filling Capping Machine

The touch screen conrtol panel makes working data visual,this is more convenient when debugging the machine.Different kinds of operation language can be customized as operation need.

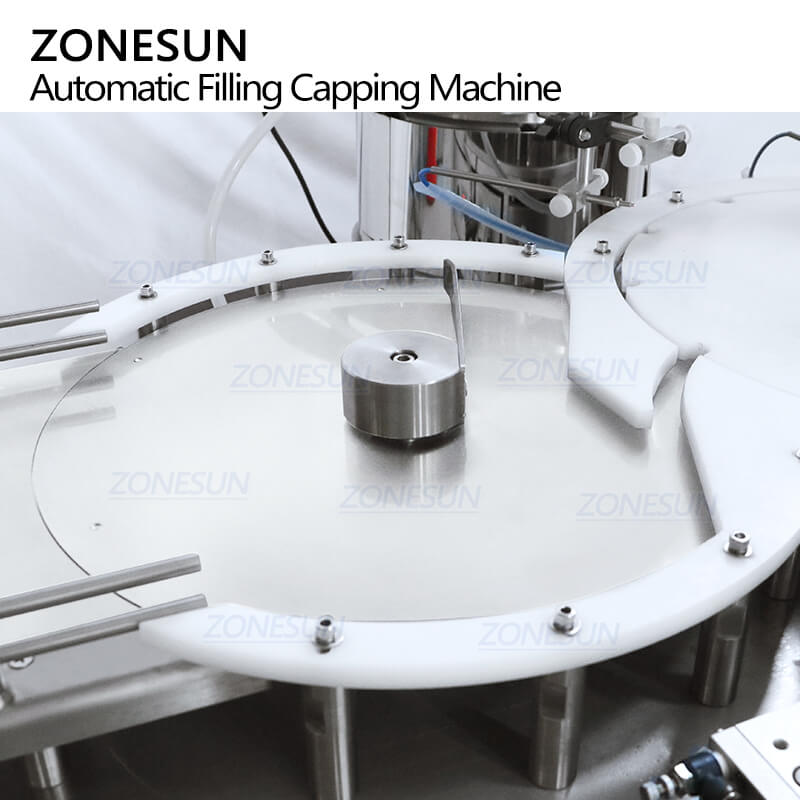

Bottle Turntable of Desktop Automatic Monoblock Filling Capping Machine

The touch screen conrtol panel makes working data visual,this is more convenient when debugging the machine.Different kinds of operation language can be customized as operation need.

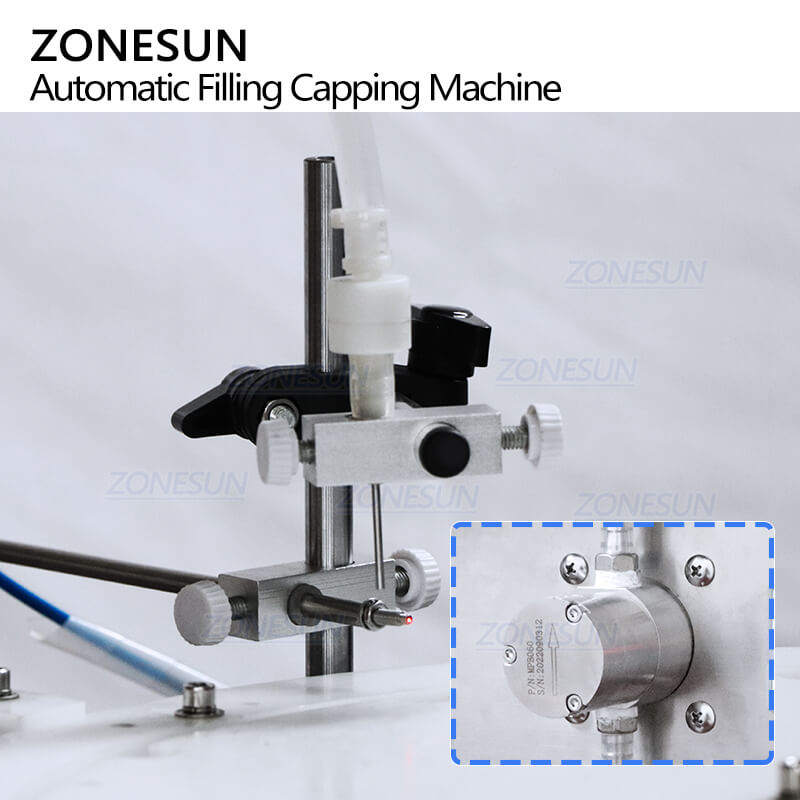

Magnetic Pump of Desktop Automatic Monoblock Filling Capping Machine
The size of filling nozzle can be changed according to bottle opening mouth, this can prevent from spraying liquid out.Multiple filling nozzles can be customized as production need.The 316 stianless steel magetic pump has high filling accuracy and suitable for low viscosity liquid.

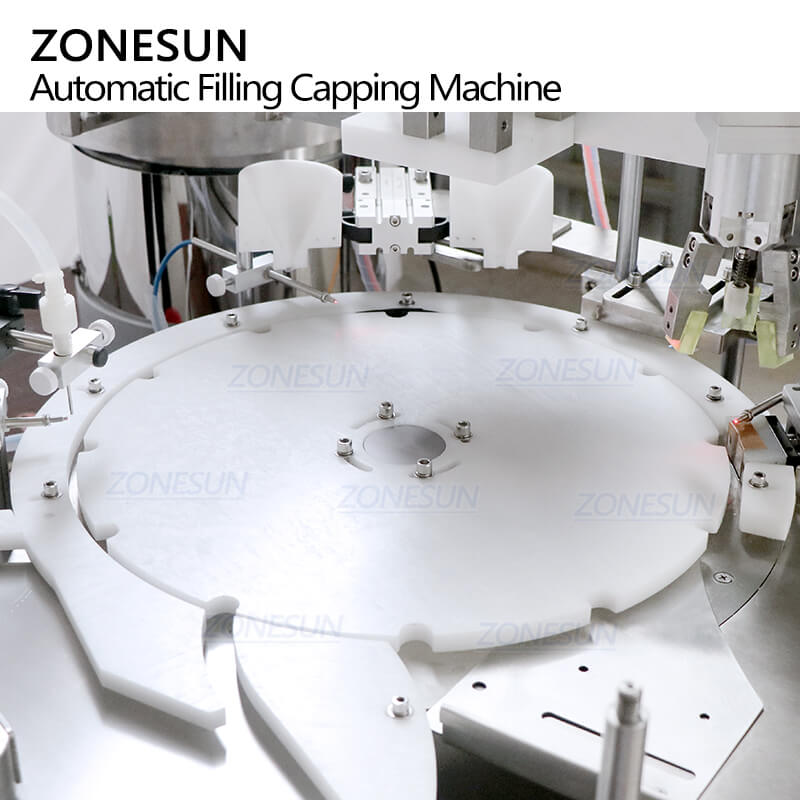

Rotary Plate of Desktop Automatic Monoblock Filling Capping Machine
The star wheel is customized according to bottle size.It can transport bottles to the next working process.There are electric eyes on each working structure, which can detect passing by bottles and control the machine to realize the automated work.

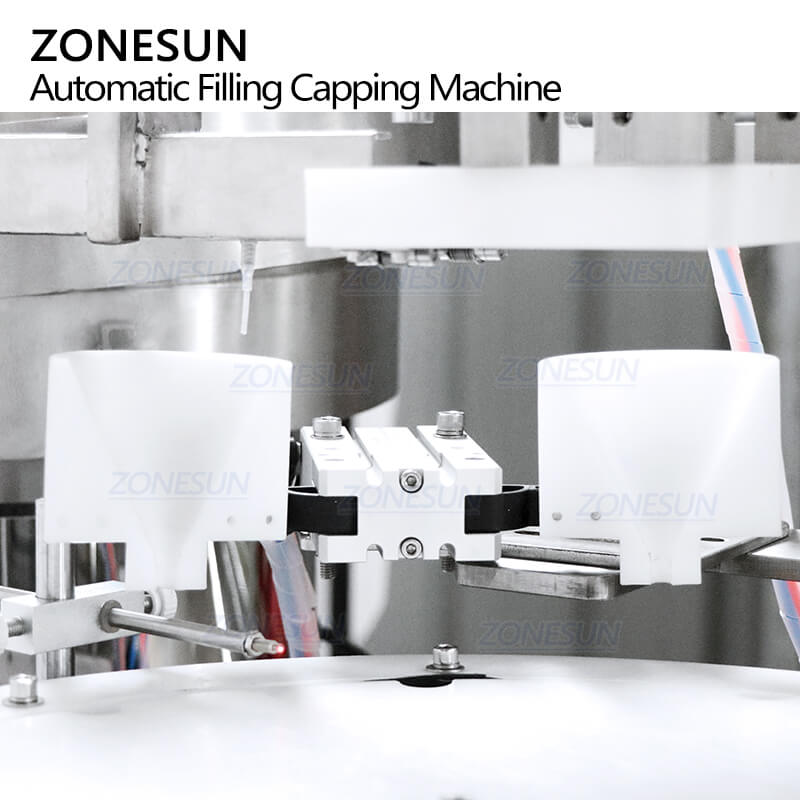

Guide Housing of Desktop Automatic Monoblock Filling Capping Machine
The cap feeding structure will drop bottles, the guide housing will help to make caps can be dropped into bottles correctly, this can reduce production labor.

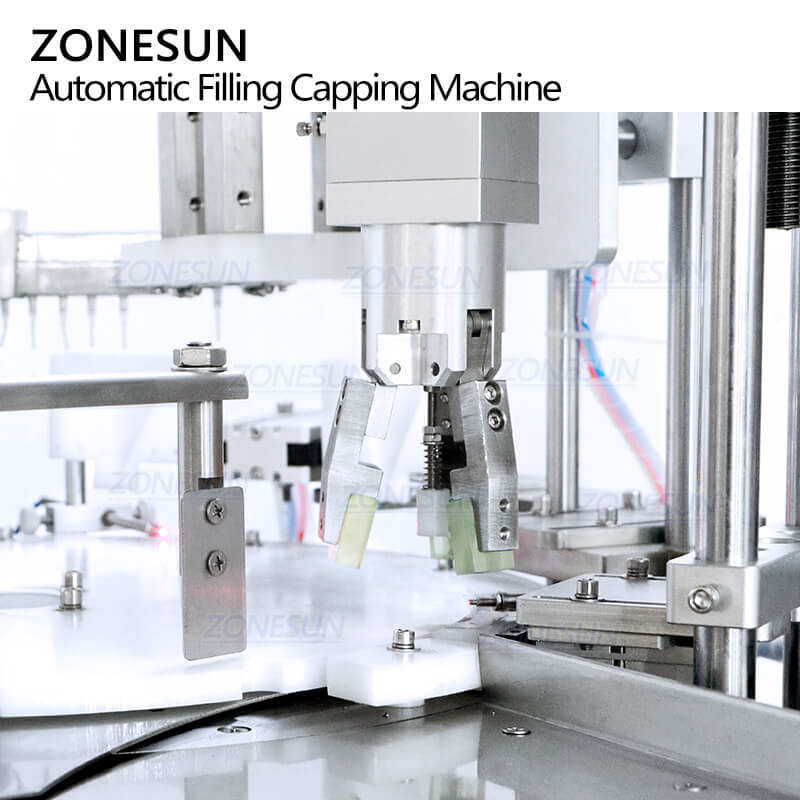

Capping Head of Desktop Automatic Monoblock Filling Capping Machine
The torsion of capping structure can be controlled as production need.This kind of capping strcuture is suitable for bottle caps with screw threads.The bottle pushing structure is used to push bottle out in time, improves working efficiency.

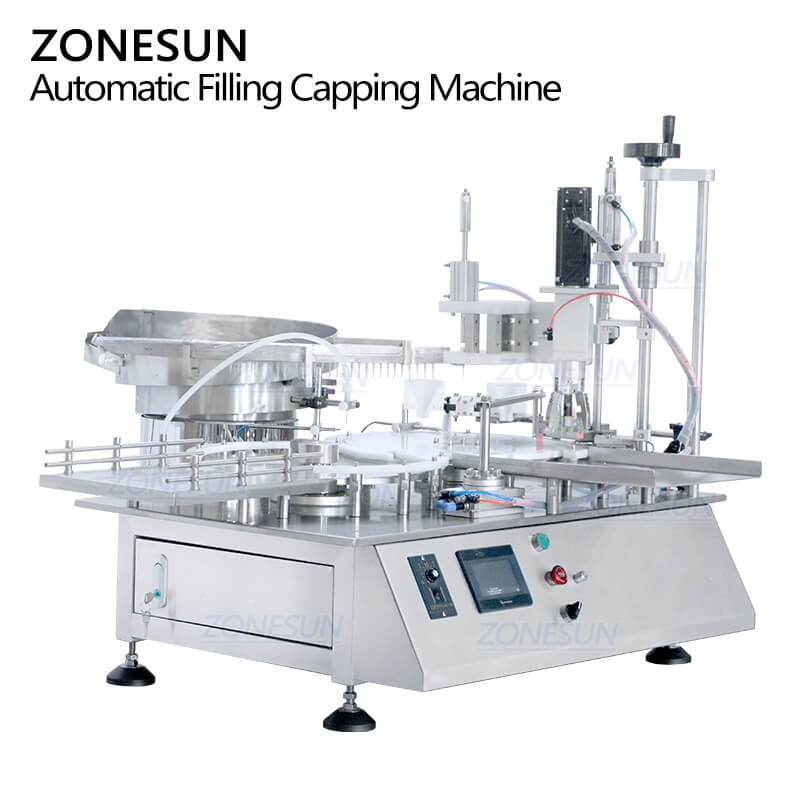

Automatic Monoblock Filling Capping Machine
