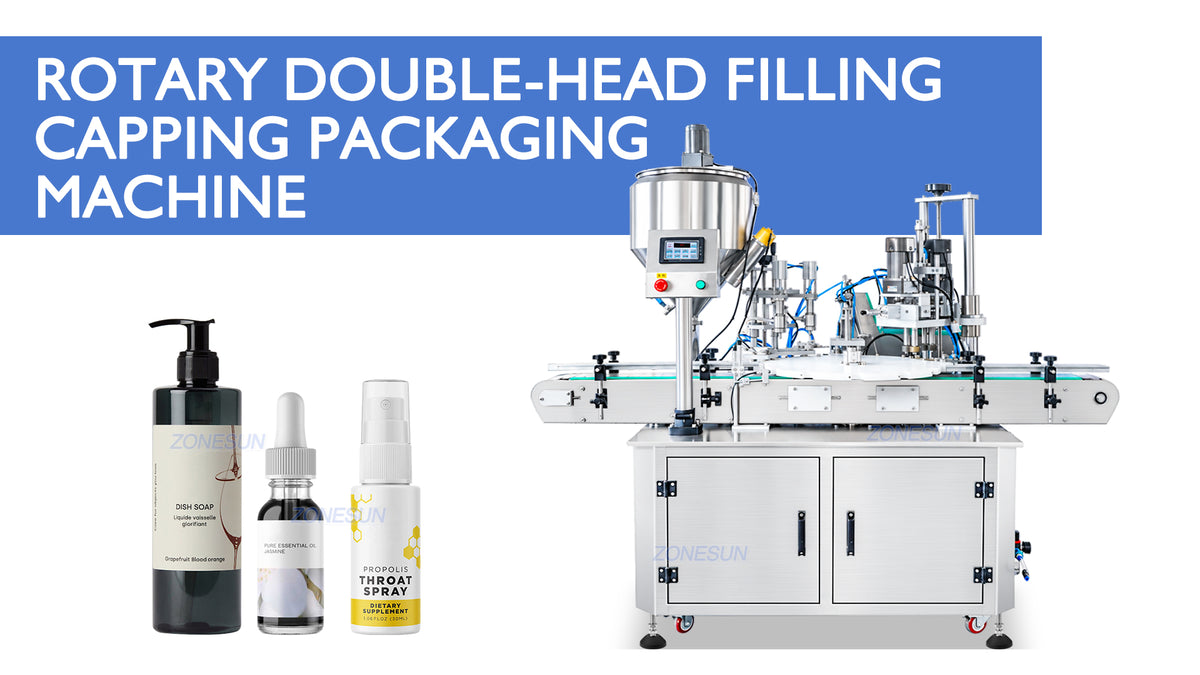

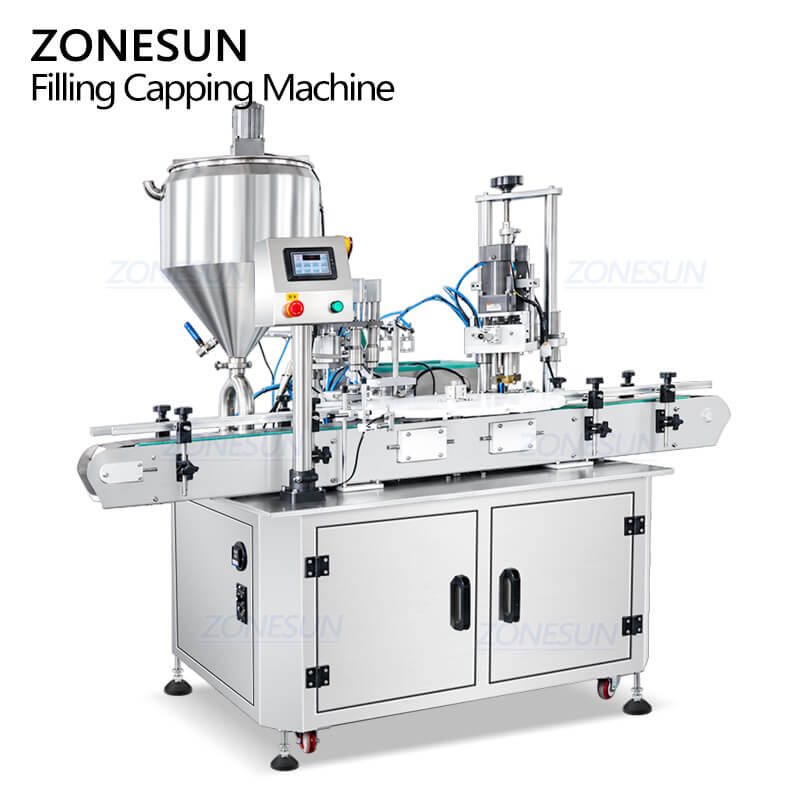

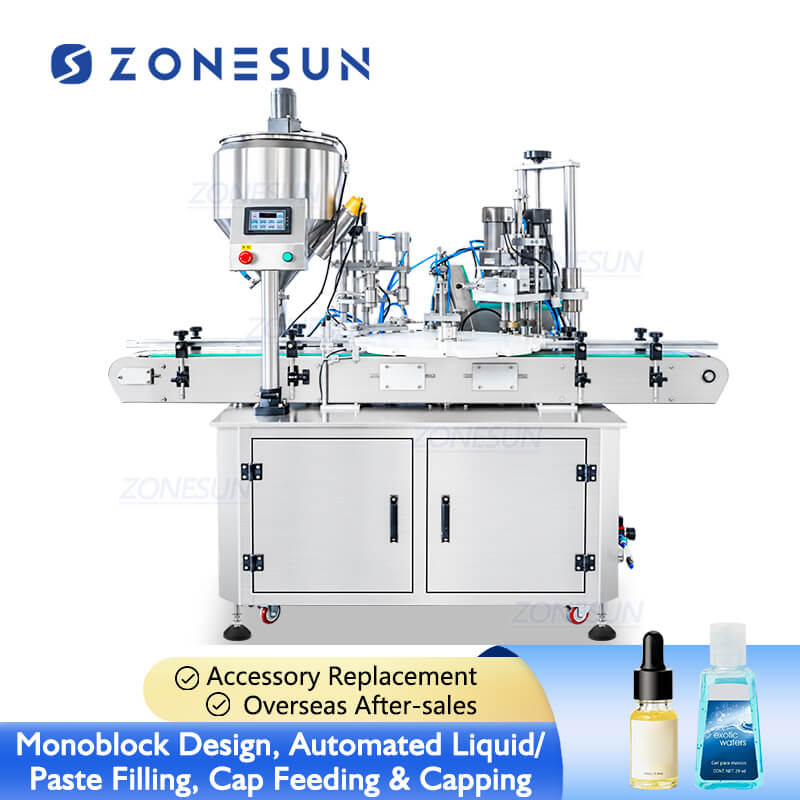

ZONESUN ZS-AFC3 Automatic Essential Oil Dropper Bottle Liquid Filling and Capping Machine
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
Description
This ZONESUN automatic liquid filling machine combines liquid or paste filling, automatic cap feeding, and bottle capping into one compact system. The multifunctional monoblock design streamlines the packaging process. Manual handling drops considerably. Production space and labor costs both shrink as a result.
Essential oils, water, juice, lotion, other liquid or paste products, the machine suits all of them. Filling and capping systems adjust for different container sizes too, which opens the door to a wide range of packaging applications.
Parameter
- Machine Model: ZS-AFC3
- Voltage: 110/220 V, 50-60 HZ, 1.2 kW
- Filling Material: Liquid and Paste
- Filling Range: 5-50 ml/10-100 ml/50-300 ml
- Conveyor Size: 1920 mm*100 mm(L*W)
- Bottle Diameter: Customized
- Temperature Range: Customized
- Bottle Cap Diameter: ≥15 mm
- Temperature Range: 0-180°C (Can be customized)
- Working Speed: About 20-30 bottles/min
- Machine Size: About 1210*910*1590 mm
- Package Size: About 2070*1040*1700 mm (Main Machine) About 845*700*1340 mm (Cap Feeder)
- Net Weight / Gross Weight: About 373.5 kg / 488 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Detail

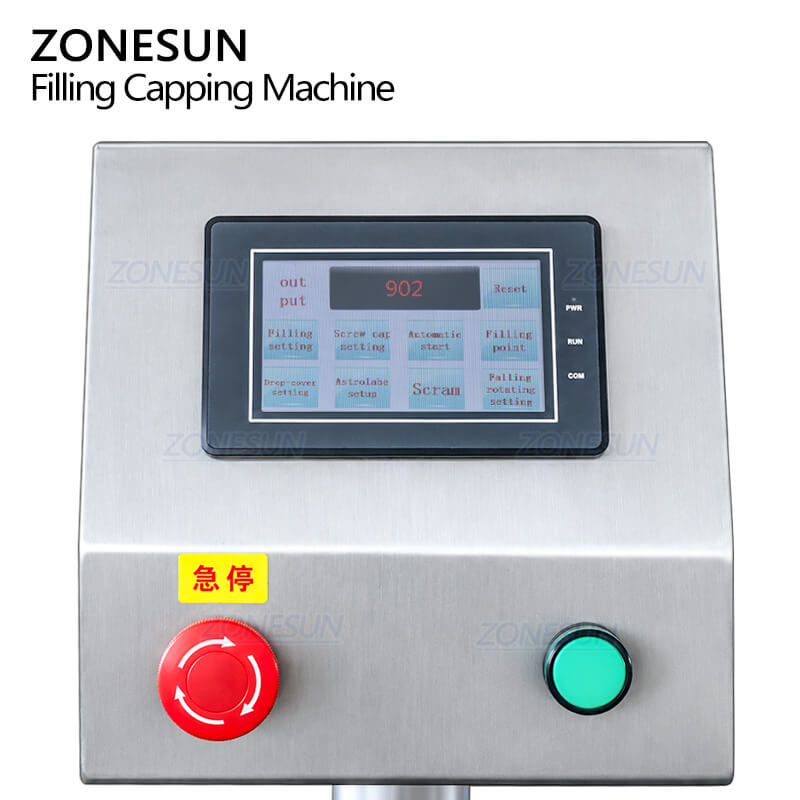

Touchscreen Control Panel
Operators enter and adjust operating parameters directly through the touchscreen. Machine control stays simple this way. Production setup too.

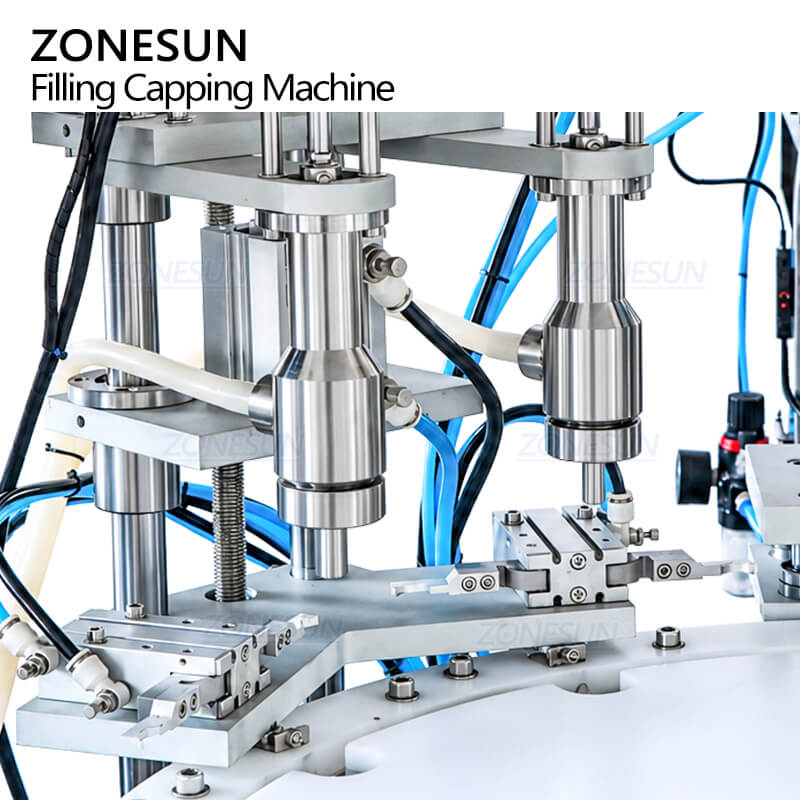

Pneumatic Filling Nozzles
Built for thicker liquids. Lotion, hand cream, essential oil, that kind of viscosity. Each nozzle controls independently, so operation stays flexible, nozzle by nozzle.

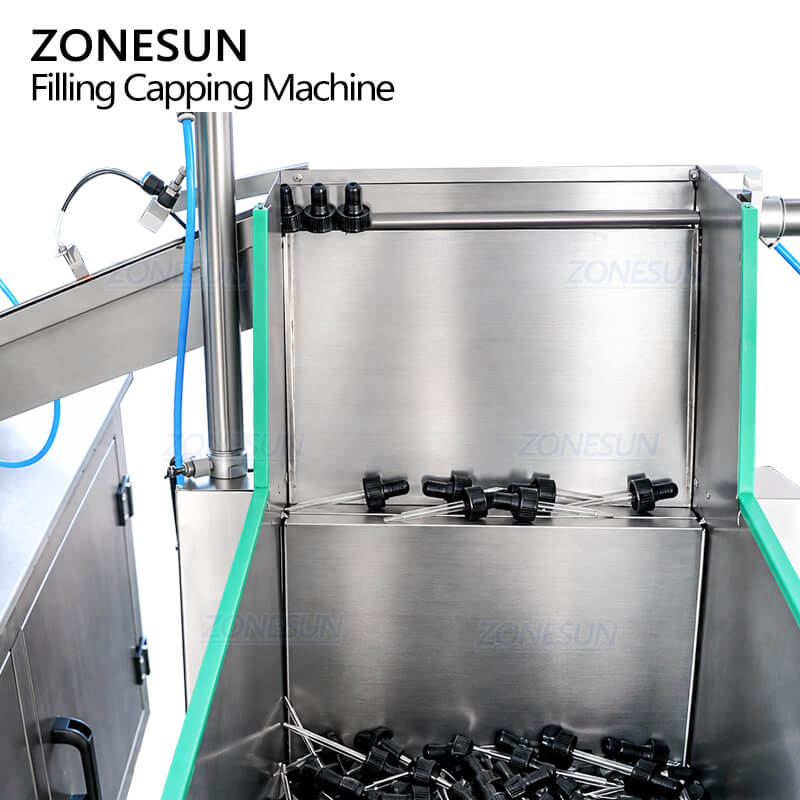

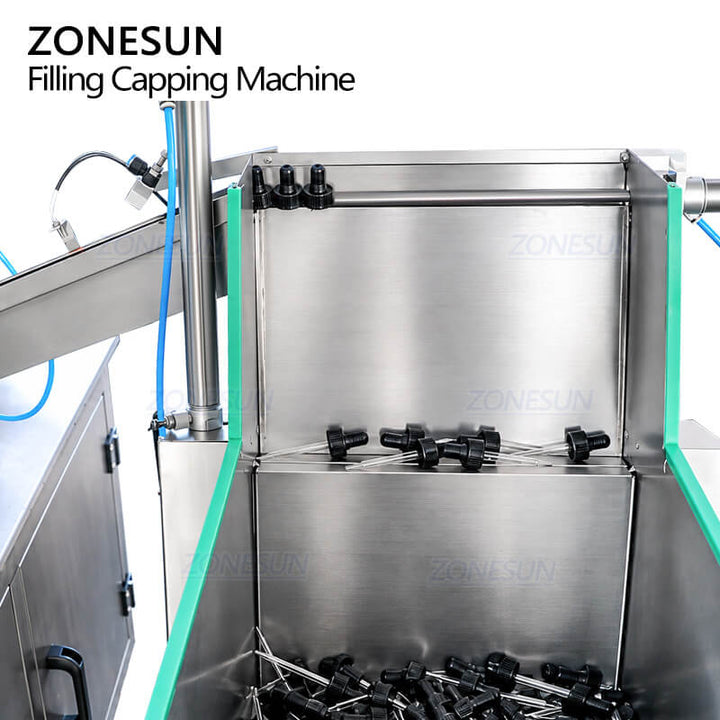

Automatic Cap Feeding System
Bottle caps arrange and feed into the capping station automatically. Filling and capping stay continuous, orderly, without gaps. The cap feeding system adjusts to production requirements when needed.

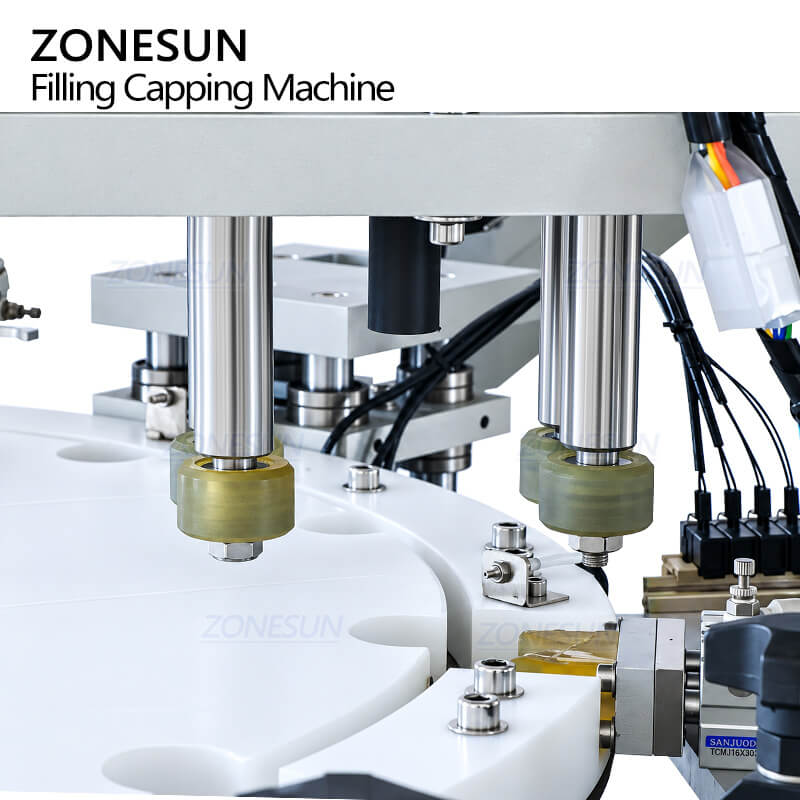

Four-Wheel Capping System
Four rotating rubber wheels tighten each cap, securely. The structure handles different cap types too, spray caps and dropper caps both.
Bottle Detection Electric Eye
The electric eye detects bottles during operation, coordinating machine mechanisms accordingly. Production consistency improves as a result. Operating errors drop.
FAQ
1. What products can this liquid filling and capping machine handle?
Liquid and paste products, mainly. Essential oil, water, juice, lotion, similar products all fit.
2. Can the machine fill thick or viscous products?
Yes. Pneumatic filling nozzles handle thicker liquids, lotion and hand cream included, along with essential oil.
3. Does the machine automatically feed bottle caps?
Yes. The automatic cap feeding system arranges and feeds caps into the capping station. The feeder itself can be customized too, matched to production requirements.
4. What types of bottle caps can the machine handle?
Four rotating rubber wheels drive the capping system. Different cap types fit, spray caps and dropper caps both.
5. Can the machine handle different bottle sizes?
Yes. Filling and capping components adjust for different container sizes. Specific compatibility, though, depends on confirming the actual bottle and cap specs.
6. Can each filling nozzle be controlled independently?
Yes. Each pneumatic nozzle controls separately. Flexibility during filling follows from that.
7. Does the machine detect bottles automatically?
Yes. An electric eye detects bottles and coordinates machine mechanisms as production runs. Consistency holds as a result.
8. Is the filling and capping process fully automatic?
Yes. Automatic filling, cap feeding, and bottle capping integrate into one rotary system. Manual handling drops. The packaging process streamlines considerably.
9. Can the machine be customized?
Yes. The cap feeding structure customizes directly. Other configurations get determined by the product, container, cap type, and production requirements at hand.
10. How is the machine operated?
A touchscreen control panel handles it. Operators enter and adjust parameters there, directly, for straightforward machine control.
