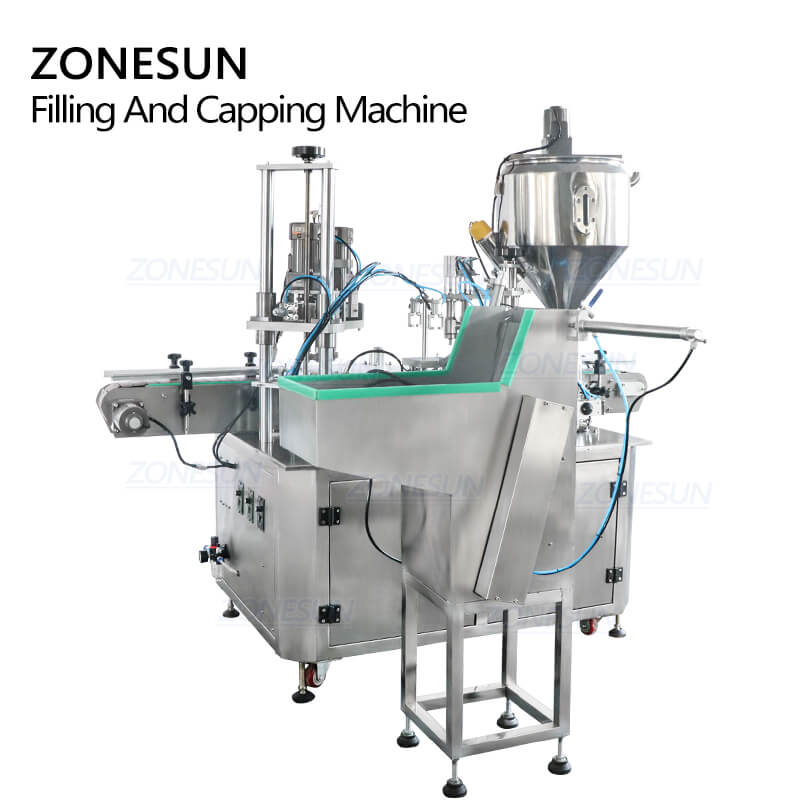

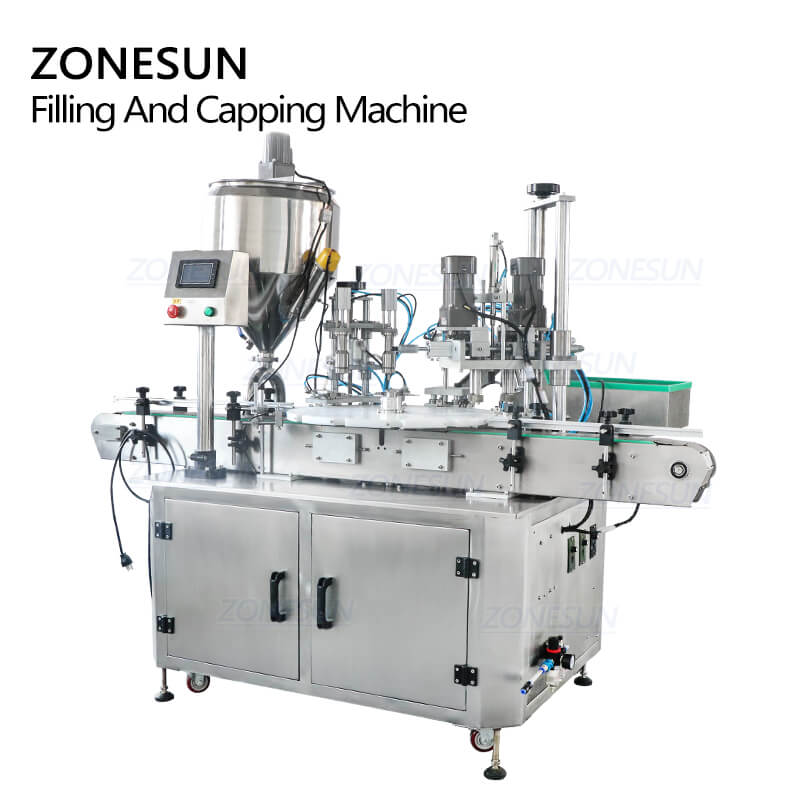

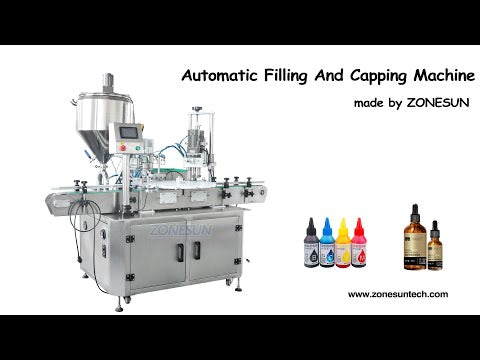

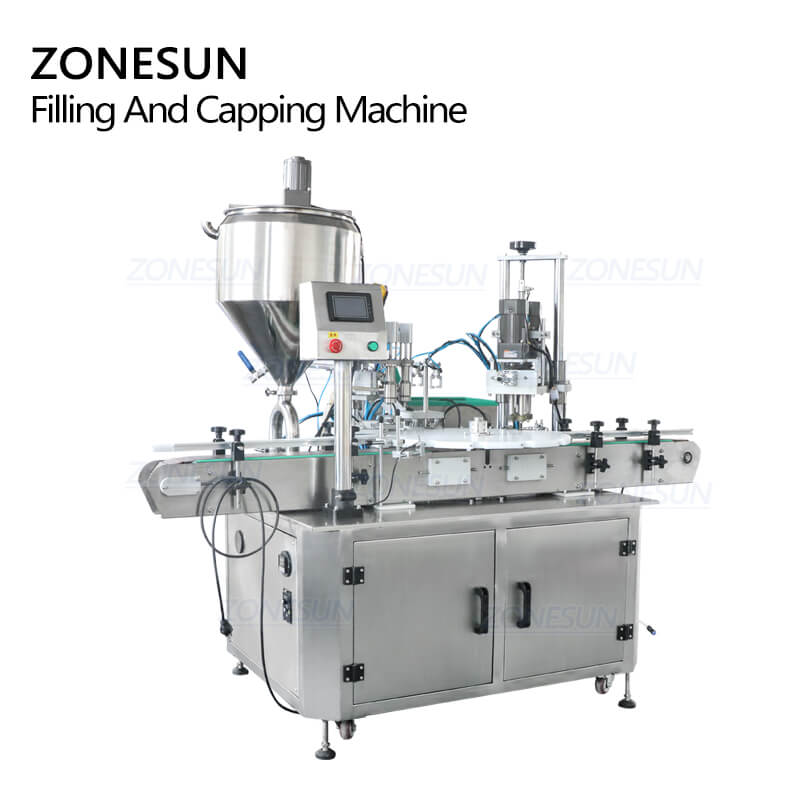

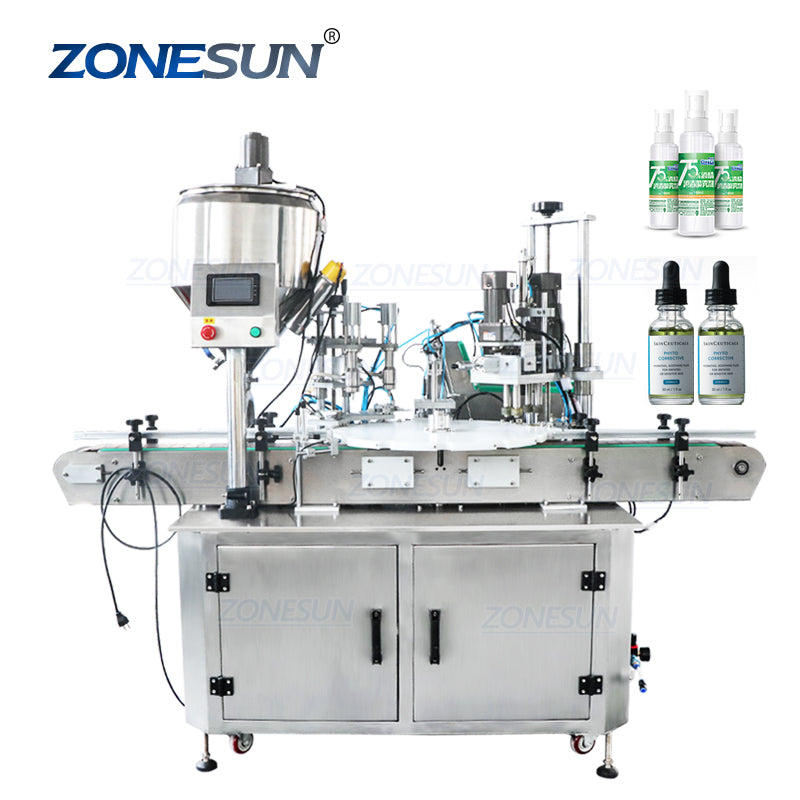

ZONESUN ZS-AFC3 Automatic Essential Oil Vial Spray Bottle Screw Filling And Capping Machine

This automatic packaging machine is designed with multiple function, it can fill liquid or paste, feed bottle caps and cap bottles automatically. The multifunctional filling and capping machine can help you save production cost and space. This machine is suitable for essential oil, water, juice etc. This machine is suitable for filling different sizes of containers at the same time.

Parameter

• Machine Model: ZS-AFC3
• Voltage: 220V/110V 50-60HZ 1.2kw
• Filling Material: liquid and paste
• Filling Range: 5-50ml/10-100ml/50-300ml
• Conveyor Size: 1920 mm*100 mm(L*W)
• Bottle Diameter: Customize
• Temperature Range: Customize
• Bottle Cap Diameter: ≥15 mm
• Temperature Range: 0-180°C (Can be customized)
• Working Speed: About 20-30 bottles/min
• Machine Size: About 1210*910*1590 mm
• Package Size: About 2070*1040*1700 mm(Main machine) About 845*700*1340 mm (Cap feeder)
• Net weight/Gross weight: About 373.5 kg/488 kg

With touch screen control panel,the operator just need to enter the number to set parameter,makes it more convenient to control the machine,save time on testing machine.

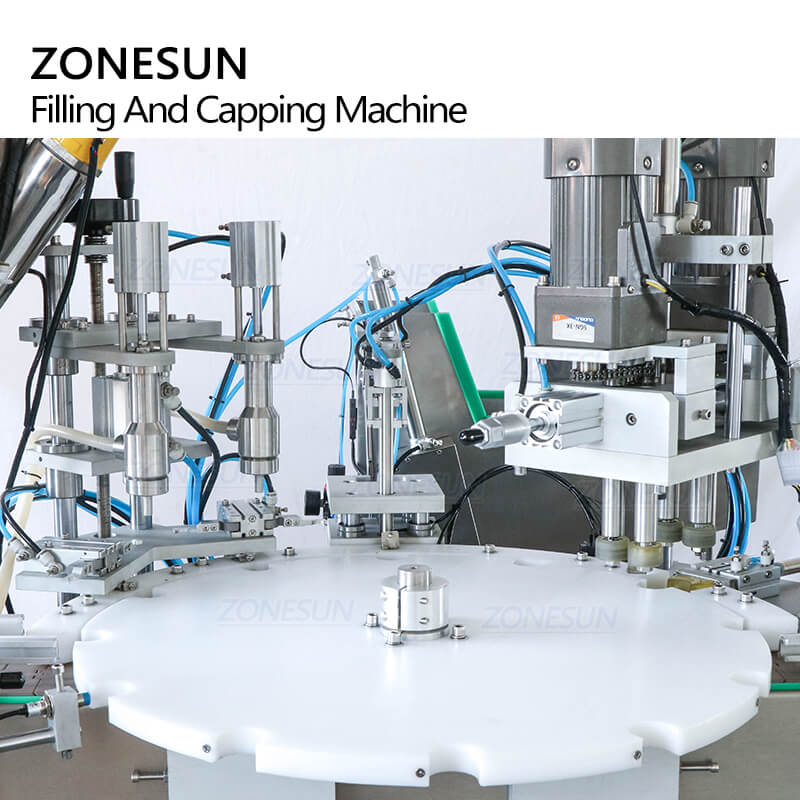

Designed with two pneumatic filling nozzle,it is suitable for filling thicker liquid like lotion,hand cream,essential oil.Each nozzle can be controlled separately.

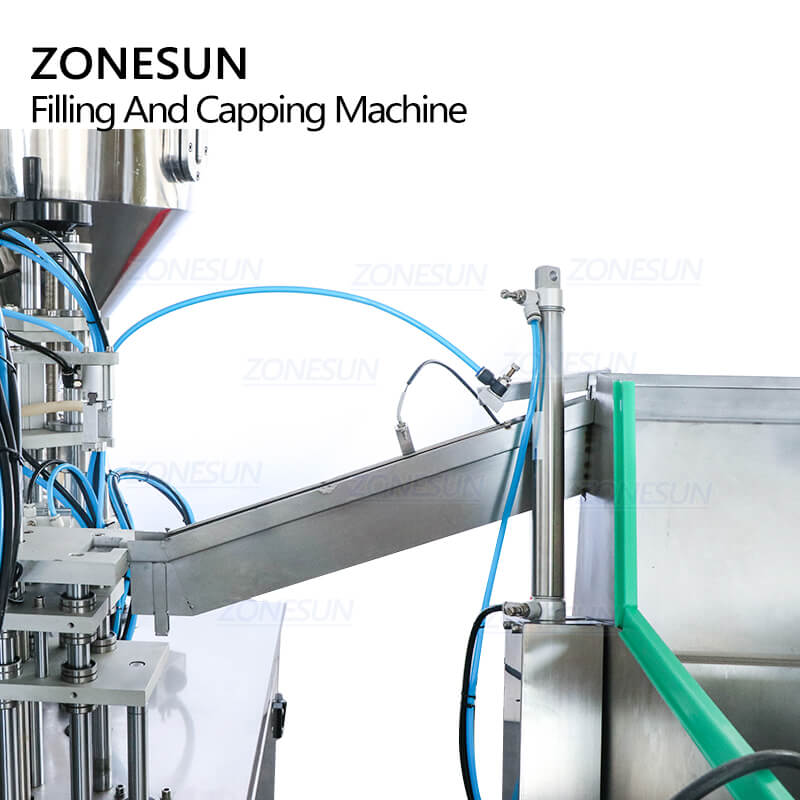

The cap feeding mechanism will arrange bottle caps,feed caps automatically,make the machine can work in order.The cap feeder will be customized according to your needs.

These four rubber wheels will rotate and tighten the bottle cap.This kinds of capping method makes it suitable for different kinds of bottle caps like spray bottles,water bottle,dropper bottles.

Equipped with high quality electric eye,these are designed for detecting bottles and control each mechanism of the machine to work or prepare the next process.Ensure the production quality.
